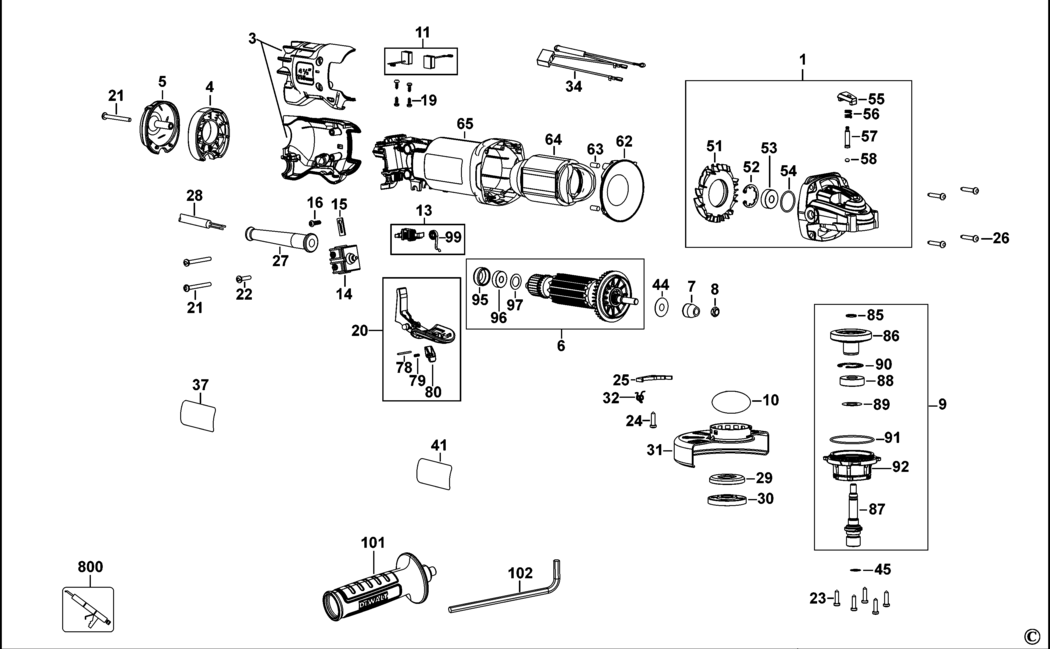

An exploded drawing and spare parts listing for the Dewalt DWE4202 Type 1 Small Angle Grinder
Ex VAT Inc VAT
1 - GEARCASE SA BDE-N413331.A10 N413331 £18.91 £22.69
3 - HOUSING SA BDE-N393706.A1 N393706 £4.69 £5.63
4 - DUST PORT INCL 7071 BDE-N401671.A7 N401671 £2.78 £3.34
5 - END CAP BDE-N400902.A24 N400902 £1.50 £1.80
6 - ARMATURE 115/120V LX BDE-N899443.A3 N899443 £41.25 £49.50
6 - ARMATURE 220/240V GB BDE-NA121482.A5 NA121482 £62.59 £75.11
7 - PINION BDE-N375339.A3 N375339 £5.88 £7.06
8 - NUT BDE-N372039.A14 N372039 £1.50 £1.80
9 - SPINDLE SA BDE-N421526.A4 N421526 £24.39 £29.27
10 - O RING BDE-N355619.A3 N355619 £1.50 £1.80
11 - BRUSH PAIR 230V GB BDE-NA121485.A0 NA121485 £10.85 £13.02
11 - BRUSH PAIR 115V LX BDE-N421361.A4 N421361 £7.18 £8.62
13 - BRUSHBOX SA BDE-N413349.A27 N413349 £4.69 £5.63
14 - SWITCH BDE-N396008.A16 N396008 £9.41 £11.29
15 - CORD CLAMP GB BDE-619328-00.A8 619328-00 £1.50 £1.80
15 - CORD CLAMP LX BDE-N194291.A0 N194291 £1.50 £1.80
16 - SCREW BDE-330065-06.A148 330065-06 £1.50 £1.80
19 - SCREW BDE-593478-00.A18 593478-00 £1.50 £1.80
20 - PADDLE BDE-N413352.A7 N413352 £3.30 £3.96
21 - SCREW BDE-N389438.A7 N389438 £1.50 £1.80
22 - SCREW BDE-330065-08.A152 330065-08 £1.50 £1.80
23 - SCREW BDE-330045-06.A163 330045-06 £1.50 £1.80
24 - SCREW BDE-N297219.A0 N297219 £1.50 £1.80
25 - LEVER BDE-N136731.A5 N136731 £1.50 £1.80
26 - SCREW BDE-N371839.A37 N371839 £1.50 £1.80
27 - CORD PROTECTOR GB BDE-N542553.A109 N542553 £3.80 £4.56
27 - CORD PROTECTOR LX BDE-401088-03.A27 401088-03 £1.50 £1.80
28 - CORDSET LX BDE-N382231.A0 N382231 £34.00 £40.80
28 - CORDSET (M/PLUG) GB GB BDE-N382230.A1 N382230 £16.03 £19.24
29 - INNER FLANGE BDE-391969-00.A28 391969-00 £1.82 £2.19
30 - OUTER FLANGE BDE-N419748.A34 N419748 £5.88 £7.06
31 - GUARD BDE-N377859.A0 N377859 £5.88 £7.06
32 - SPRING BDE-N291619.A8 N291619 £1.50 £1.80
34 - CAPACITOR BDE-N349959.A6 N349959 £3.30 £3.96
37 - BRAND LABEL BDE-N400392.A7 N400392 £1.50 £1.80
41 - RATING PLATE LX BDE-N393296 N393296 £1.50 £1.80
41 - RATING PLATE GB BDE-N409666 N409666 £1.50 £1.80
44 - WASHER BDE-N213812.A30 N213812 £1.50 £1.80
45 - O RING BDE-N420261.A2 N420261 £1.50 £1.80
51 - DEFLECTOR BDE-N401958.A2 N401958 £1.50 £1.80
52 - CIRCLIP BDE-N398877.A7 N398877 £1.50 £1.80
53 - BEARING BDE-N175104.A13 N175104 £3.30 £3.96
54 - O RING BDE-N119639.A38 N119639 £1.50 £1.80
55 - BUTTON BDE-N278899.A32 N278899 £1.50 £1.80
56 - SPRING BDE-N263579.A14 N263579 £1.50 £1.80
57 - LOCK PIN BDE-N481683.A8 N481683 £1.50 £1.80
58 - O RING BDE-N263699.A34 N263699 £1.50 £1.80
62 - BAFFLE BDE-N265479.A8 N265479 £1.50 £1.80
63 - DAMPER BDE-949638-02.A200 949638-02 £1.50 £1.80
64 - FIELD 115V LX BDE-N409483.A1 N409483 £34.00 £40.80
64 - FIELD 230V GB BDE-N421357.A1 N421357 £30.08 £36.10
65 - FIELDCASE BDE-N369341.A6 N369341 £7.85 £9.42
78 - ROLL PIN BDE-099204-14.A17 099204-14 £1.50 £1.80
79 - SPRING BDE-150264-01.A15 150264-01 £1.50 £1.80
80 - LEVER LOCK-OFF BDE-397657-00.A10 397657-00 £1.50 £1.80
85 - CIRCLIP BDE-444793-00.A101 444793-00 £1.50 £1.80
86 - GEAR BDE-N409481.A15 N409481 £12.17 £14.60
87 - SPINDLE BDE-N163702.A29 N163702 £5.88 £7.06
88 - BEARING BDE-605040-24.A44 605040-24 £3.30 £3.96
89 - WASHER BDE-N400478.A24 N400478 £1.50 £1.80
90 - RING BDE-N389985.A7 N389985 £1.50 £1.80
91 - O RING BDE-N307625.A5 N307625 £1.50 £1.80
92 - GEARCASE COVER BDE-N269901.A4 N269901 £7.18 £8.62
95 - SLEEVE BDE-641823-00.A201 641823-00 £1.50 £1.80
96 - BEARING BDE-N130916.A83 N130916 £2.26 £2.71
97 - WASHER BDE-N324400.A11 N324400 £1.50 £1.80
99 - SPRING BDE-N273780.A17 N273780 £1.50 £1.80
101 - SIDE HANDLE BDE-N382311.A18 N382311 £12.17 £14.60
102 - HEX KEY 6 MM BDE-N107295.A61 N107295 £1.50 £1.80
800 - GREASE 50 GMS BDE-583534-00.A306 583534-00 £144.10 £172.92
