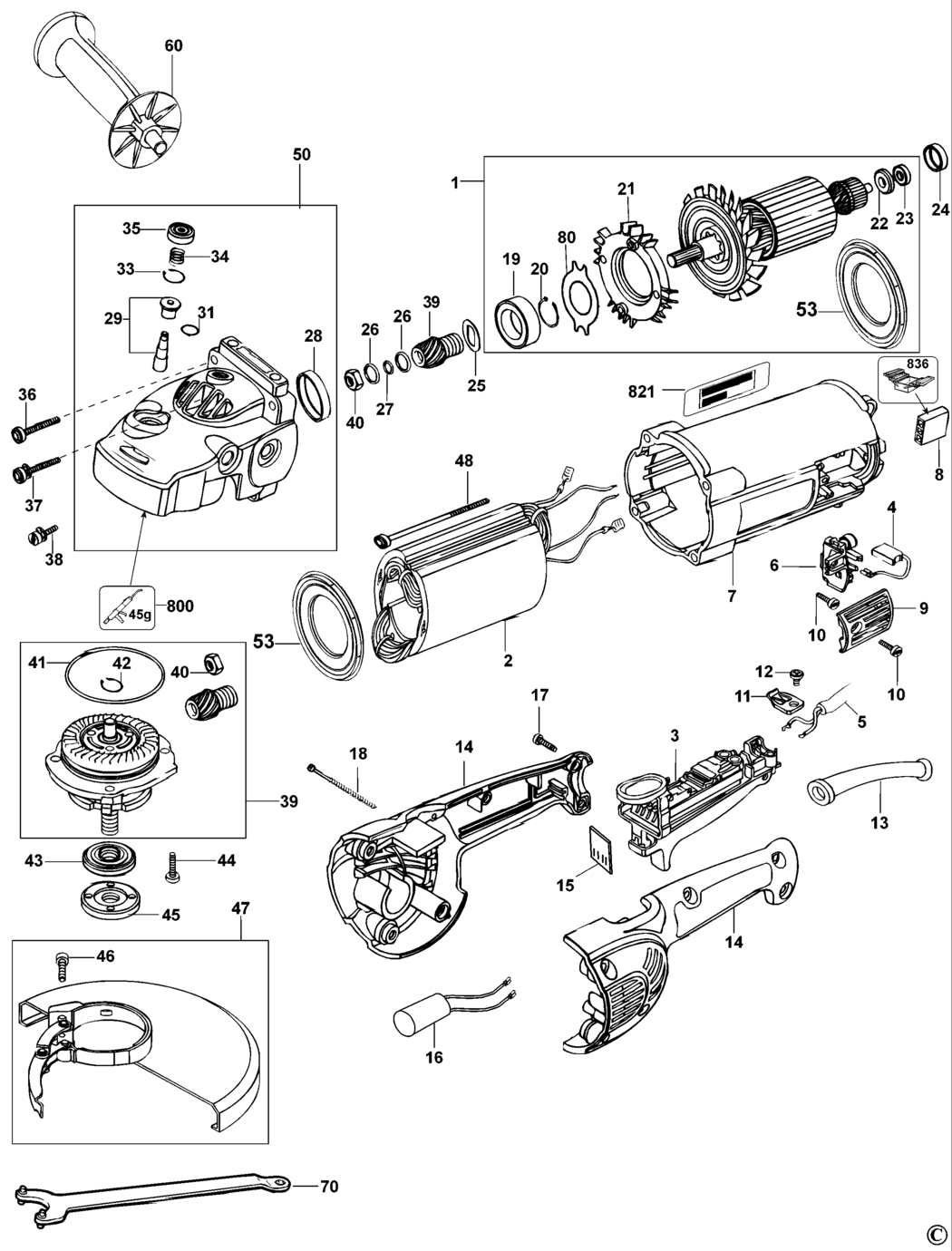

An exploded drawing and spare parts listing for the Dewalt D28413 Type 2 Angle Grinder
Ex VAT Inc VAT
6 - BRUSH HOLDER SA BDE-617001-00.A44 617001-00 £7.85 £9.42
17 - SCREW BDE-330019-32.A31 330019-32 £1.50 £1.80
19 - BEARING BDE-330003-13.A70 330003-13 £3.80 £4.56
20 - RETAINER BDE-398605-00.A0 398605-00 £1.50 £1.80
21 - SPACER BDE-614708-00.A22 614708-00 £5.72 £6.87
22 - SHIELD BDE-393238-00.A2 393238-00 £1.50 £1.80
23 - BEARING BDE-330003-60.A166 330003-60 £2.78 £3.34
24 - SLEEVE INSULATING BDE-609970-00.A3 609970-00 £1.50 £1.80
25 - WASHER BDE-608568-00.A40 608568-00 £1.42 £1.70
26 - WASHER BDE-607502-00.A5 607502-00 £1.50 £1.80
27 - WASHER SPRING BDE-614045-00.A40 614045-00 £1.42 £1.70
28 - SLEEVE BDE-609971-00.A48 609971-00 £1.50 £1.80
29 - REPAIR KIT BDE-496443-00.A12 496443-00 £4.69 £5.63
31 - RING BDE-050049-00.A42 050049-00 £1.50 £1.80
33 - RETAINER BDE-603470-00.A7 603470-00 £1.50 £1.80
34 - SPRING BDE-395029-00.A42 395029-00 £1.50 £1.80
35 - CAP BDE-610999-00.A44 610999-00 £1.50 £1.80
36 - SCREW BDE-330019-26.A94 330019-26 £1.50 £1.80
37 - SCREW BDE-330045-59.A37 330045-59 £1.42 £1.70
38 - SCREW BDE-330045-58.A1 330045-58 £1.42 £1.70
39 - GEARCASE COVER SA BDE-583532-01.A3 583532-01 £94.12 £112.94
40 - LOCK NUT BDE-609125-00.A6 609125-00 £1.42 £1.70
41 - O RING BDE-397031-00.A84 397031-00 £1.50 £1.80
43 - INNER FLANGE BDE-403150-01.A88 403150-01 £4.69 £5.63
44 - SCREW BDE-330045-15.A38 330045-15 £1.50 £1.80
45 - OUTER FLANGE BDE-401678-05.A100 401678-05 £4.69 £5.63
46 - SCREW BDE-606863-00.A1 606863-00 £1.50 £1.80
47 - GUARD SA BDE-393141-02.A0 393141-02 £16.03 £19.24
48 - SCREW BDE-330019-19.A189 330019-19 £1.50 £1.80
53 - BAFFLE BDE-614542-00.A3 614542-00 £1.50 £1.80
70 - WRENCH PIN BDE-938733.A164 938733 £7.18 £8.62
80 - INSERT BDE-613366-00.A42 613366-00 £1.42 £1.70
800 - GREASE 50 GMS BDE-583534-00.A91 583534-00 £144.10 £172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A55 559638-99 £24.39 £29.27
