Dewalt D28422 Type 2 Angle Grinder Spare Parts

Dewalt D28422 Type 2 Angle Grinder Spare Parts
Home Details Reviews Delivery

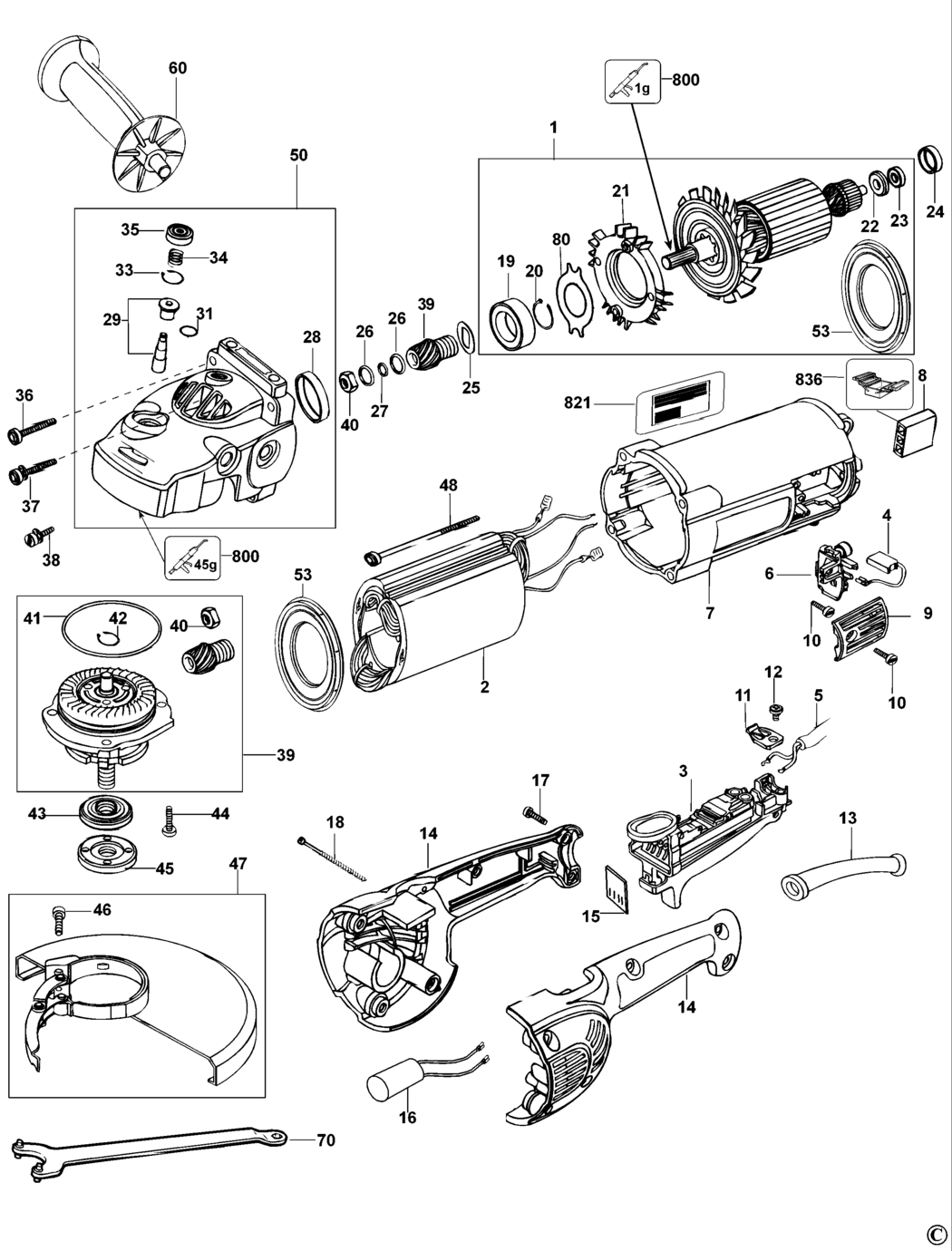

An exploded drawing and spare parts listing for the Dewalt D28422 Type 2 Angle Grinder
Ex VAT Inc VAT
3 - SWITCH SA BDE-393438-00.A13 393438-00 £45.14 £54.17
6 - BRUSH HOLDER SA BDE-617001-00.A31 617001-00 £7.85 £9.42
7 - FIELDCASE BDE-399025-01.A1 399025-01 £15.63 £18.76
8 - CONNECTOR BDE-604389-00.A30 604389-00 £1.50 £1.80
9 - BRUSH COVER BDE-394387-01.A3 394387-01 £1.50 £1.80
10 - SCREW.TEMP BDE-330019-11.A104 330019-11 £1.50 £1.80
11 - CORD CLAMP BDE-398217-00.A4 398217-00 £1.50 £1.80
12 - SCREW BDE-330019-03.A291 330019-03 £1.50 £1.80
13 - CORD PROTECTOR BDE-947964-01.A140 947964-01 £3.80 £4.56
14 - HANDLE SA BDE-395185-00.A7 395185-00 £14.57 £17.48
15 - SEAL BDE-398720-00.A29 398720-00 £1.42 £1.70
17 - SCREW BDE-330019-32.A63 330019-32 £1.50 £1.80
18 - SCREW BDE-330019-50.A47 330019-50 £1.50 £1.80
19 - BEARING BDE-330003-13.A60 330003-13 £3.80 £4.56
20 - RETAINER BDE-398605-00.A14 398605-00 £1.50 £1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A96069 000000-00 -
22 - SHIELD BDE-393238-00.A19 393238-00 £1.50 £1.80
23 - BEARING BDE-330003-60.A112 330003-60 £2.78 £3.34
24 - SLEEVE INSULATING BDE-609970-00.A24 609970-00 £1.50 £1.80
25 - WASHER BDE-608568-00.A46 608568-00 £1.42 £1.70
26 - WASHER BDE-607502-00.A0 607502-00 £1.50 £1.80
27 - WASHER SPRING BDE-614045-00.A47 614045-00 £1.42 £1.70
28 - SLEEVE BDE-609971-00.A40 609971-00 £1.50 £1.80
29 - REPAIR KIT BDE-496443-00.A2 496443-00 £4.69 £5.63
31 - RING BDE-050049-00.A57 050049-00 £1.50 £1.80
33 - RETAINER BDE-603470-00.A8 603470-00 £1.50 £1.80
34 - SPRING BDE-395029-00.A49 395029-00 £1.50 £1.80
35 - CAP BDE-610999-00.A46 610999-00 £1.50 £1.80
36 - SCREW BDE-330019-26.A66 330019-26 £1.50 £1.80
37 - SCREW BDE-330045-59.A31 330045-59 £1.42 £1.70
38 - SCREW BDE-330045-58.A7 330045-58 £1.42 £1.70
39 - GEARCASE COVER SA BDE-583532-01.A5 583532-01 £94.12 £112.94
40 - LOCK NUT BDE-609125-00.A1 609125-00 £1.42 £1.70
41 - O RING BDE-397031-00.A67 397031-00 £1.50 £1.80
42 - RETAINER BDE-034109-00.A45 034109-00 £1.42 £1.70
43 - INNER FLANGE BDE-403150-01.A79 403150-01 £4.69 £5.63
44 - SCREW BDE-330045-15.A20 330045-15 £1.50 £1.80
45 - OUTER FLANGE BDE-401678-05.A88 401678-05 £4.69 £5.63
46 - SCREW BDE-606863-00.A16 606863-00 £1.50 £1.80
47 - GUARD SA BDE-393141-02.A3 393141-02 £16.03 £19.24
48 - SCREW BDE-330019-34.A13 330019-34 £1.50 £1.80
50 - GEARCASE BDE-N075439.A37 N075439 £53.92 £64.70
53 - BUMPER BDE-620579-00.A8 620579-00 £5.72 £6.87
60 - SIDE HANDLE BDE-613777-00.A11 613777-00 £25.70 £30.84
70 - WRENCH PIN BDE-938733.A109 938733 £7.18 £8.62
80 - INSERT BDE-613366-00.A48 613366-00 £1.42 £1.70
800 - GREASE 50 GMS BDE-583534-00.A0 583534-00 £144.10 £172.92
836 - S.T.TERMINAL EXTRACTOR BDE-559638-99.A69 559638-99 £24.39 £29.27
