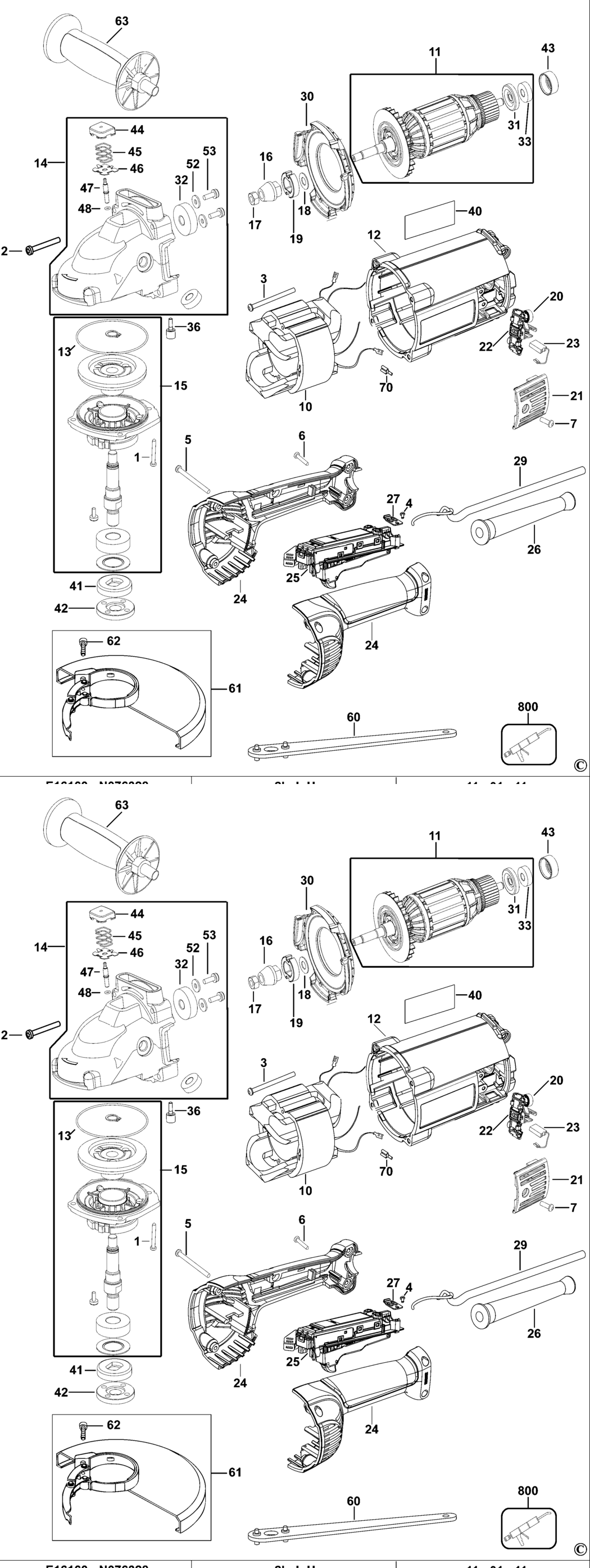

An exploded drawing and spare parts listing for the Dewalt D28498 Type 1 Angle Grinder
Ex VAT Inc VAT
1 - SCREW BDE-330045-14.A103 330045-14 £1.50 £1.80
2 - SCREW BDE-330019-26.A82 330019-26 £1.50 £1.80
3 - SCREW BDE-330019-19.A173 330019-19 £1.50 £1.80
4 - SCREW.TEMP BDE-330019-11.A120 330019-11 £1.50 £1.80
5 - SCREW BDE-330019-50.A26 330019-50 £1.50 £1.80
6 - SCREW BDE-330019-13.A465 330019-13 £1.50 £1.80
7 - SCREW BDE-176951-00.A1 176951-00 £1.50 £1.80
10 - NO LONGER AVAILABLE LX BDE-000000-00.A129332 000000-00 -
13 - O RING BDE-397031-00.A89 397031-00 £1.50 £1.80
14 - GEARCASE SA BDE-N074214.A24 N074214 £44.14 £52.97
15 - GEARCASE COVER SA BDE-N074213.A0 N074213 £51.90 £62.28
16 - PINION BDE-629729-00.A6 629729-00 £17.48 £20.97
17 - NUT BDE-330015-03.A74 330015-03 £1.50 £1.80
18 - WASHER BDE-639681-00.A15 639681-00 £1.50 £1.80
19 - COLLAR BDE-632702-00.A11 632702-00 £2.78 £3.34
21 - BRUSH COVER BDE-394387-01.A12 394387-01 £1.50 £1.80
25 - NO LONGER AVAILABLE LX BDE-000000-00.A129333 000000-00 -
27 - CORD CLAMP BDE-398217-00.A8 398217-00 £1.50 £1.80
29 - NO LONGER AVAILABLE LX BDE-000000-00.A129334 000000-00 -
30 - BAFFLE FAN BDE-631350-00.A11 631350-00 £2.26 £2.71
31 - SHIELD BDE-393238-00.A9 393238-00 £1.50 £1.80
32 - BEARING BDE-N389509.A8 N389509 £3.80 £4.56
33 - BEARING BDE-N110359.A22 N110359 £3.75 £4.50
36 - SCREW BDE-N033051.A32 N033051 £1.50 £1.80
40 - NO LONGER AVAILABLE LX BDE-000000-00.A129335 000000-00 -
43 - SLEEVE INSULATING BDE-609970-00.A9 609970-00 £1.50 £1.80
44 - CAP BDE-630553-00.A25 630553-00 £1.50 £1.80
45 - SPRING BDE-638328-00.A38 638328-00 £1.50 £1.80
46 - RETAINER BDE-635908-00.A24 635908-00 £1.50 £1.80
47 - PIN BDE-634589-00.A38 634589-00 £1.82 £2.19
48 - O RING BDE-750831.A27 750831 £1.50 £1.80
52 - WASHER BDE-640591-00.A2 640591-00 £1.50 £1.80
53 - SCREW BDE-330045-67.A13 330045-67 £16.03 £19.24
60 - WRENCH PIN BDE-635261-00.A30 635261-00 £4.69 £5.63
62 - SCREW BDE-606863-00.A9 606863-00 £1.50 £1.80
63 - SIDE HANDLE BDE-613777-00.A8 613777-00 £25.70 £30.84
70 - TERMINAL BDE-612273-00.A15 612273-00 £1.50 £1.80
800 - GREASE 50 GMS BDE-583534-00.A126 583534-00 £144.10 £172.92
