Dewalt D28720 Type 1 Chop Saw Spare Parts

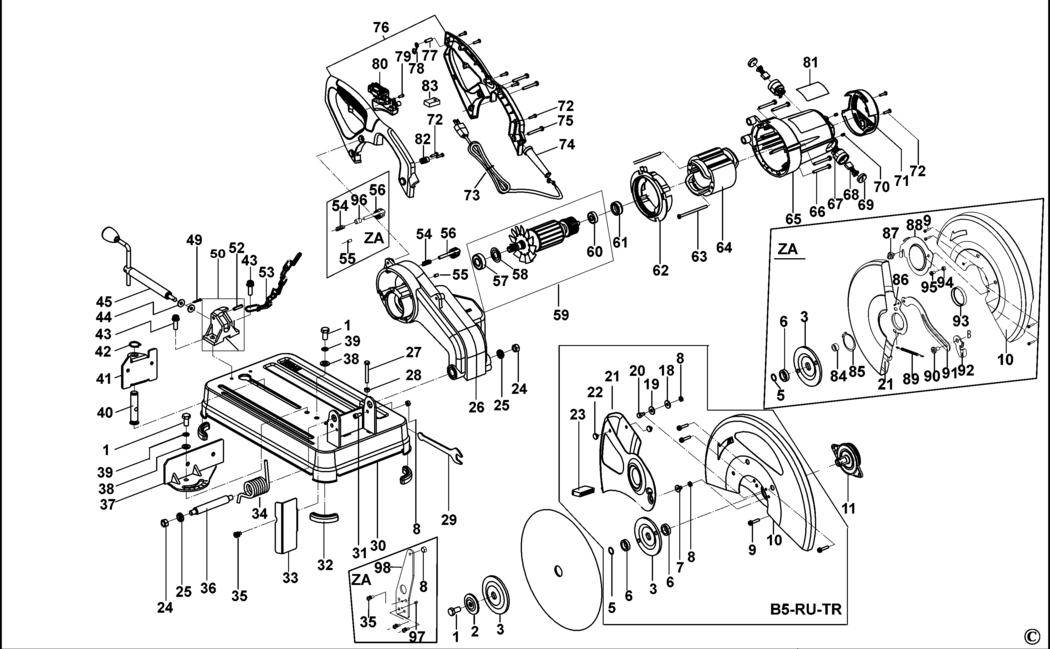

An exploded drawing and spare parts listing for the Dewalt D28720 Type 1 Chop Saw

	Ex VAT	Inc VAT
1 - BOLT BDE-5140062-44.A3 5140062-44	£1.50	£1.80
1 - BOLT BDE-5140062-44.A4 5140062-44	£1.50	£1.80
2 - INNER FLANGE BDE-N381289.A1 N381289	£1.50	£1.80
2 - INNER FLANGE BDE-N381289.A2 N381289	£1.50	£1.80
5 - O RING BDE-5140062-47.A10 5140062-47	£1.50	£1.80
5 - O RING BDE-5140062-47.A11 5140062-47	£1.50	£1.80
7 - SCREW BDE-5140062-49.A10 5140062-49	£1.50	£1.80
7 - SCREW BDE-5140062-49.A11 5140062-49	£1.50	£1.80
9 - SCREW BDE-5140062-51.A10 5140062-51	£1.50	£1.80
9 - SCREW BDE-5140062-51.A11 5140062-51	£1.50	£1.80
18 - WASHER BDE-5140062-54.A1 5140062-54	£1.50	£1.80
19 - WASHER BDE-5140062-55.A13 5140062-55	£1.50	£1.80
20 - SCREW BDE-5140062-56.A1 5140062-56	£1.50	£1.80
22 - RUBBER BDE-5140062-58.A4 5140062-58	£1.50	£1.80
23 - PROTECTOR BDE-5140062-59.A10 5140062-59	£1.50	£1.80
24 - NUT BDE-5140062-60.A5 5140062-60	£1.50	£1.80
24 - NUT BDE-5140062-60.A6 5140062-60	£1.50	£1.80
25 - WASHER. CUP BDE-5140062-61.A6 5140062-61	£1.50	£1.80
27 - BOLT BDE-5140062-63.A6 5140062-63	£1.50	£1.80
27 - BOLT BDE-5140062-63.A7 5140062-63	£1.50	£1.80
28 - NUT BDE-5140062-64.A2 5140062-64	£1.50	£1.80
28 - NUT BDE-5140062-64.A3 5140062-64	£1.50	£1.80
31 - BOLT BDE-5140062-66.A6 5140062-66	£1.50	£1.80
31 - BOLT BDE-5140062-66.A7 5140062-66	£1.50	£1.80
32 - FOOT BDE-5140062-68.A5 5140062-68	£1.50	£1.80
32 - FOOT BDE-5140062-68.A6 5140062-68	£1.50	£1.80
37 - FENCE RH BDE-N381299.A0 N381299	£16.03	£19.24
37 - FENCE RH BDE-N381299.A1 N381299	£16.03	£19.24
38 - WASHER BDE-5140062-76.A6 5140062-76	£1.50	£1.80
38 - WASHER BDE-5140062-76.A7 5140062-76	£1.50	£1.80
39 - WASHER SPRING BDE-5140062-77.A5 5140062-77	£1.50	£1.80
39 - WASHER SPRING BDE-5140062-77.A6 5140062-77	£1.50	£1.80
40 - SHAFT BDE-N381300.A0 N381300	£2.78	£3.34
40 - SHAFT BDE-N381300.A1 N381300	£2.78	£3.34
41 - FENCE LH BDE-N381301.A1 N381301	£4.69	£5.63
41 - FENCE LH BDE-N381301.A2 N381301	£4.69	£5.63
42 - RETAINER BDE-5140063-27.A1 5140063-27	£1.50	£1.80
42 - RETAINER BDE-5140063-27.A2 5140063-27	£1.50	£1.80
43 - SCREW BDE-N381302.A0 N381302	£1.50	£1.80
43 - SCREW BDE-N381302.A1 N381302	£1.50	£1.80
44 - WASHER BDE-5140062-82.A3 5140062-82	£1.50	£1.80
44 - WASHER BDE-5140062-82.A4 5140062-82	£1.50	£1.80
45 - HANDLE SA BDE-5140062-84.A2 5140062-84	£12.17	£14.60
45 - HANDLE SA BDE-5140062-84.A3 5140062-84	£12.17	£14.60
49 - PIN BDE-5140062-85.A5 5140062-85	£1.50	£1.80
49 - PIN BDE-5140062-85.A6 5140062-85	£1.50	£1.80
50 - LOCKING DEVICE BDE-5140062-86.A3 5140062-86	£10.85	£13.02
50 - LOCKING DEVICE BDE-5140062-86.A4 5140062-86	£10.85	£13.02
53 - CHAIN BDE-5140062-87.A5 5140062-87	£1.50	£1.80
53 - CHAIN BDE-5140062-87.A6 5140062-87	£1.50	£1.80
55 - PIN BDE-5140062-89.A9 5140062-89	£1.50	£1.80
55 - PIN BDE-5140062-89.A10 5140062-89	£1.50	£1.80
57 - BEARING BDE-N381304.A1 N381304	£10.85	£13.02
57 - BEARING BDE-N381304.A2 N381304	£10.85	£13.02
58 - WASHER BDE-5140062-92.A1 5140062-92	£1.50	£1.80
58 - WASHER BDE-5140062-92.A2 5140062-92	£1.50	£1.80
59 - ARMATURE SA BDE-5140062-94.A0 5140062-94	£115.77	£138.92
59 - ARMATURE SA BDE-5140062-94.A1 5140062-94	£115.77	£138.92
60 - BEARING BDE-5140062-96.A3 5140062-96	£5.88	£7.06
60 - BEARING BDE-5140062-96.A4 5140062-96	£5.88	£7.06
61 - SLEEVE BEARING BDE-5140062-97.A9 5140062-97	£2.78	£3.34
61 - SLEEVE BEARING BDE-5140062-97.A10 5140062-97	£2.78	£3.34
62 - DUST DEFLECTOR BDE-5140062-98.A3 5140062-98	£2.78	£3.34
62 - DUST DEFLECTOR BDE-5140062-98.A4 5140062-98	£2.78	£3.34
63 - SCREW BDE-5140062-99.A5 5140062-99	£1.50	£1.80
63 - SCREW BDE-5140062-99.A6 5140062-99	£1.50	£1.80
64 - FIELD BDE-5140063-00.A1 5140063-00	-
64 - FIELD BDE-5140063-00.A2 5140063-00	-
65 - HOUSING BDE-N381305.A0 N381305	£30.08	£36.10
65 - HOUSING BDE-N381305.A1 N381305	£30.08	£36.10
66 - SCREW BDE-5140063-03.A6 5140063-03	£1.50	£1.80
66 - SCREW BDE-5140063-03.A7 5140063-03	£1.50	£1.80
67 - BRUSH HOLDER BDE-5140063-04.A2 5140063-04	£2.78	£3.34
67 - BRUSH HOLDER BDE-5140063-04.A3 5140063-04	£2.78	£3.34
68 - BRUSH PAIR BDE-N381908.A0 N381908	-
68 - BRUSH PAIR BDE-N381908.A1 N381908	-
69 - BRUSH CAP BDE-5140063-07.A5 5140063-07	£1.50	£1.80
69 - BRUSH CAP BDE-5140063-07.A6 5140063-07	£1.50	£1.80
70 - SCREW BDE-5140063-08.A10 5140063-08	£1.50	£1.80
70 - SCREW BDE-5140063-08.A11 5140063-08	£1.50	£1.80
71 - COVER REAR BDE-N381910.A1 N381910	£4.69	£5.63
71 - COVER REAR BDE-N381910.A2 N381910	£4.69	£5.63
72 - SCREW BDE-5140063-10.A13 5140063-10	£1.50	£1.80
72 - SCREW BDE-5140063-10.A14 5140063-10	£1.50	£1.80
74 - CORD PROTECTOR BDE-5140063-19.A7 5140063-19	£7.18	£8.62
74 - CORD PROTECTOR BDE-5140063-19.A8 5140063-19	£7.18	£8.62
75 - SCREW BDE-5140063-20.A8 5140063-20	£1.50	£1.80
75 - SCREW BDE-5140063-20.A9 5140063-20	£1.50	£1.80
76 - HANDLE SA BDE-N381307 N381307	£25.70	£30.84
77 - PIN BDE-5140063-22.A8 5140063-22	£1.50	£1.80
77 - PIN BDE-5140063-22.A9 5140063-22	£1.50	£1.80
78 - HOOK BDE-5140063-23.A0 5140063-23	£1.50	£1.80
78 - HOOK BDE-5140063-23.A1 5140063-23	£1.50	£1.80
79 - SCREW BDE-5140062-93.A14 5140062-93	£1.50	£1.80
79 - SCREW BDE-5140062-93.A15 5140062-93	£1.50	£1.80
80 - SWITCH BDE-5140063-24.A3 5140063-24	£23.75	£28.50
82 - CORD CLAMP BDE-5140063-26.A14 5140063-26	£1.50	£1.80
82 - CORD CLAMP BDE-5140063-26.A15 5140063-26	£1.50	£1.80
