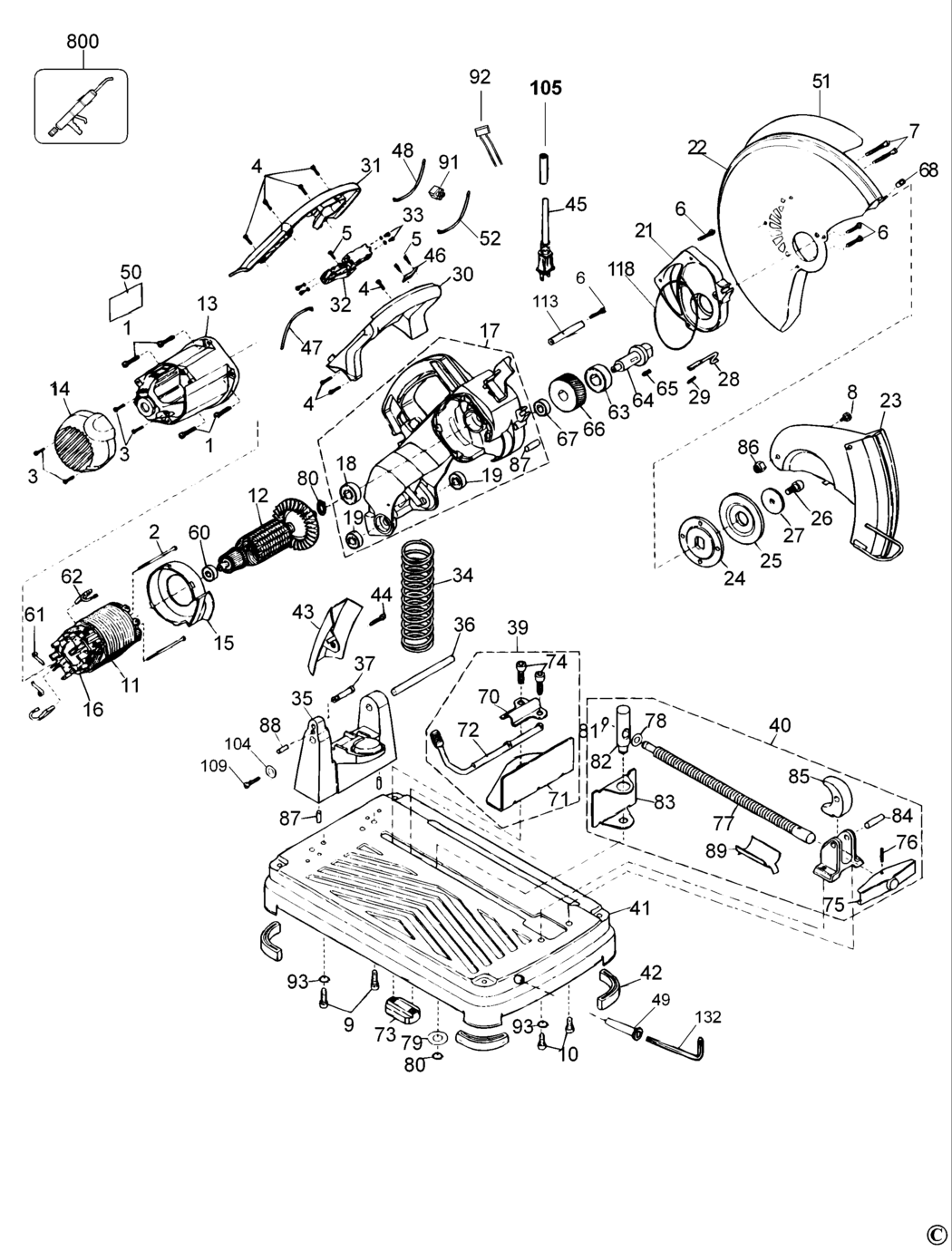

An exploded drawing and spare parts listing for the Dewalt DW871 Type 1 Chop Saw
Ex VAT Inc VAT
1 - SCREW BDE-330045-16.A1 330045-16 £1.50 £1.80
2 - SCREW BDE-330019-33.A0 330019-33 £1.50 £1.80
3 - SCREW BDE-330019-13.A258 330019-13 £1.50 £1.80
4 - SCREW BDE-330019-14.A129 330019-14 £1.50 £1.80
5 - SCREW BDE-330019-02.A128 330019-02 £1.50 £1.80
6 - SCREW BDE-330045-17.A8 330045-17 -
7 - SCREW BDE-330045-20.A0 330045-20 £1.50 £1.80
8 - SCREW.SPECIAL BDE-384844-00.A4 384844-00 £1.50 £1.80
9 - SCREW BDE-098123-25.A1 098123-25 £1.50 £1.80
10 - SCREW BDE-098123-16.A7 098123-16 £1.50 £1.80
11 - NO LONGER AVAILABLE GB BDE-000000-00.A80069 000000-00 -
11 - NO LONGER AVAILABLE XW BDE-000000-00.A80070 000000-00 -
12 - NO LONGER AVAILABLE XW BDE-000000-00.A80071 000000-00 -
12 - ARMATURE 230V GB BDE-383652-09.A0 383652-09 -
13 - FIELDCASE GB BDE-383151-02.A2 383151-02 £18.91 £22.69
13 - FIELDCASE XW BDE-383151-02.A3 383151-02 £18.91 £22.69
14 - END CAP BDE-383155-00.A1 383155-00 £7.01 £8.41
15 - BAFFLE FAN BDE-383167-00.A3 383167-00 £2.26 £2.71
16 - BRUSH PLATE SA XW BDE-383685-00.A1 383685-00 £4.69 £5.63
16 - BRUSH PLATE SA GB BDE-383685-01.A3 383685-01 £7.18 £8.62
17 - GEARCASE SA BDE-386628-00.A3 386628-00 £104.31 £125.17
18 - BEARING XW BDE-868768-07.A183 868768-07 £7.85 £9.42
18 - BEARING GB BDE-868768-07.A184 868768-07 £7.85 £9.42
19 - BEARING BDE-330003-64.A58 330003-64 £4.69 £5.63
21 - NO LONGER AVAILABLE BDE-000000-00.A80072 000000-00 -
22 - NO LONGER AVAILABLE BDE-000000-00.A80073 000000-00 -
23 - GUARD COVER BDE-383175-00.A0 383175-00 -
24 - INNER FLANGE GB BDE-607173-00.A7 607173-00 £7.85 £9.42
24 - INNER FLANGE XW BDE-607173-00.A8 607173-00 £7.85 £9.42
25 - CLAMP OUTER GB BDE-382884-00.A4 382884-00 £5.88 £7.06
25 - CLAMP OUTER XW BDE-382884-00.A5 382884-00 £5.88 £7.06
26 - SCREW BDE-383286-00.A4 383286-00 £1.50 £1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A80074 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A80075 000000-00 -
29 - SPRING BDE-384716-00.A0 384716-00 £1.50 £1.80
30 - HANDLE HALF GB BDE-383159-03.A0 383159-03 £5.88 £7.06
30 - HANDLE HALF XW BDE-383159-03.A1 383159-03 £5.88 £7.06
31 - HANDLE COVER XW BDE-383160-02.A0 383160-02 £3.30 £3.96
31 - HANDLE COVER GB BDE-383160-02.A1 383160-02 £3.30 £3.96
32 - SWITCH KIT XW BDE-621514-02.A3 621514-02 £37.35 £44.82
32 - SWITCH KIT GB BDE-621514-02.A4 621514-02 £37.35 £44.82
33 - SCREW XW BDE-384127-01.A34 384127-01 £1.50 £1.80
33 - SCREW GB BDE-384127-01.A35 384127-01 £1.50 £1.80
34 - SPRING BDE-387282-00.A7 387282-00 £7.18 £8.62
35 - PIVOT BLOCK BDE-383168-00.A4 383168-00 -
36 - PIN BDE-383118-00.A0 383118-00 £1.82 £2.19
37 - LOCKING PIN BDE-383148-00.A8 383148-00 £1.50 £1.80
39 - FENCE SA BDE-384137-00.A5 384137-00 £16.03 £19.24
40 - VICE BDE-384180-00.A4 384180-00 £41.24 £49.49
41 - NO LONGER AVAILABLE XW BDE-000000-00.A80076 000000-00 -
41 - NO LONGER AVAILABLE GB BDE-000000-00.A80077 000000-00 -
42 - FOOT BDE-383243-00.A4 383243-00 £1.50 £1.80
43 - DEFLECTOR BDE-384159-00.A1 384159-00 £1.82 £2.19
44 - SCREW.SPECIAL BDE-330045-23.A14 330045-23 £1.50 £1.80
45 - CABLE SA XW BDE-330061-17.A2 330061-17 £17.48 £20.97
45 - CABLE SA GB BDE-330060-73.A1 330060-73 £9.41 £11.29
46 - CORD CLAMP BDE-386540-00.A0 386540-00 £1.50 £1.80
47 - LEAD GB BDE-386465-00.A1 386465-00 £1.50 £1.80
47 - LEAD XW BDE-386465-00.A2 386465-00 £1.50 £1.80
48 - LEAD XW BDE-386466-00.A6 386466-00 £1.50 £1.80
48 - LEAD GB BDE-386466-00.A7 386466-00 £1.50 £1.80
49 - HOLDER TOOL BDE-386765-00.A0 386765-00 £1.50 £1.80
50 - RATING PLATE GB BDE-569037-00.A82 569037-00 £3.80 £4.56
50 - NO LONGER AVAILABLE XW BDE-000000-00.A80080 000000-00 -
51 - LABEL XW BDE-384771-00.A2 384771-00 £4.58 £5.49
51 - LABEL GB BDE-384771-00.A3 384771-00 £4.58 £5.49
52 - NO LONGER AVAILABLE XW BDE-000000-00.A80078 000000-00 -
52 - NO LONGER AVAILABLE GB BDE-000000-00.A80079 000000-00 -
60 - BEARING BDE-330003-17.A56 330003-17 £3.80 £4.56
61 - SPRING BDE-384612-00.A3 384612-00 £1.50 £1.80
62 - BRUSH 230V GB BDE-384613-01.A3 384613-01 £3.30 £3.96
62 - BRUSH 120V XW BDE-384613-00.A2 384613-00 £1.50 £1.80
63 - BEARING BDE-330003-49.A5 330003-49 £7.85 £9.42
64 - SPINDLE BDE-382882-00.A0 382882-00 £57.22 £68.66
65 - KEY BDE-382675-00.A4 382675-00 £1.50 £1.80
66 - GEAR BDE-386277-00.A6 386277-00 £34.00 £40.80
67 - BEARING BDE-605040-20.A242 605040-20 £4.69 £5.63
68 - STOP RUBBER BDE-386526-00.A9 386526-00 £1.50 £1.80
70 - NO LONGER AVAILABLE XW BDE-000000-00.A80081 000000-00 -
70 - NO LONGER AVAILABLE GB BDE-000000-00.A80082 000000-00 -
71 - FENCE BDE-382677-00.A1 382677-00 £4.69 £5.63
72 - LEVER BDE-382540-00.A1 382540-00 £5.88 £7.06
73 - BLOCK BDE-383254-00.A2 383254-00 £7.18 £8.62
74 - SCREW BDE-383450-00.A11 383450-00 £1.50 £1.80
75 - LOCK HANDLE BDE-383252-00.A4 383252-00 £1.82 £2.19
76 - PIN BDE-330036-08.A34 330036-08 £1.50 £1.80
77 - ROD BDE-395856-00.A0 395856-00 £18.91 £22.69
78 - WASHER BDE-384365-00.A9 384365-00 £1.50 £1.80
79 - WASHER BDE-607592-00.A3 607592-00 £1.50 £1.80
80 - CIRCLIP BDE-144803-00.A30 144803-00 £1.50 £1.80
81 - CIRCLIP BDE-383169-00.A0 383169-00 £1.50 £1.80
82 - PIN XW BDE-5140000-11.A4 5140000-11 £3.80 £4.56
82 - PIN GB BDE-5140000-11.A5 5140000-11 £3.80 £4.56
83 - VICE JAW BDE-607278-00.A3 607278-00 £7.85 £9.42
84 - DOWEL BDE-386525-01.A0 386525-01 £1.50 £1.80
85 - LOCKING DEVICE BDE-383828-00.A1 383828-00 £10.85 £13.02
86 - LOCK-NUT GB BDE-148641-00.A5 148641-00 £1.50 £1.80
86 - LOCK-NUT XW BDE-148641-00.A6 148641-00 £1.50 £1.80
87 - DOWEL BDE-386525-00.A8 386525-00 £1.50 £1.80
88 - PLUG BDE-033055-00.A1 033055-00 £1.50 £1.80
89 - SADDLE BDE-383451-00.A4 383451-00 £1.50 £1.80
91 - TERMINAL BLOCK XW BDE-320078-00.A29 320078-00 £2.26 £2.71
91 - TERMINAL BLOCK GB BDE-320078-00.A30 320078-00 £2.26 £2.71
92 - NO LONGER AVAILABLE XW BDE-000000-00.A80083 000000-00 -
92 - NO LONGER AVAILABLE GB BDE-000000-00.A80084 000000-00 -
92 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A80085 000000-00 -
93 - WASHER BDE-098197-09.A19 098197-09 £1.50 £1.80
104 - WASHER BDE-388354-00.A6 388354-00 £1.50 £1.80
105 - SLEEVE BDE-386491-00.A3 386491-00 £7.18 £8.62
109 - SCREW BDE-330045-49.A23 330045-49 £1.50 £1.80
113 - SPACER BDE-391740-00.A0 391740-00 £1.42 £1.70
118 - O RING BDE-391485-00.A4 391485-00 £1.50 £1.80
132 - WRENCH BDE-384717-00.A14 384717-00 £1.50 £1.80
800 - GREASE BDE-286436-00.A139 286436-00 £126.63 £151.96
