Dewalt DCM585 Type 1 Chainsaw Spare Parts

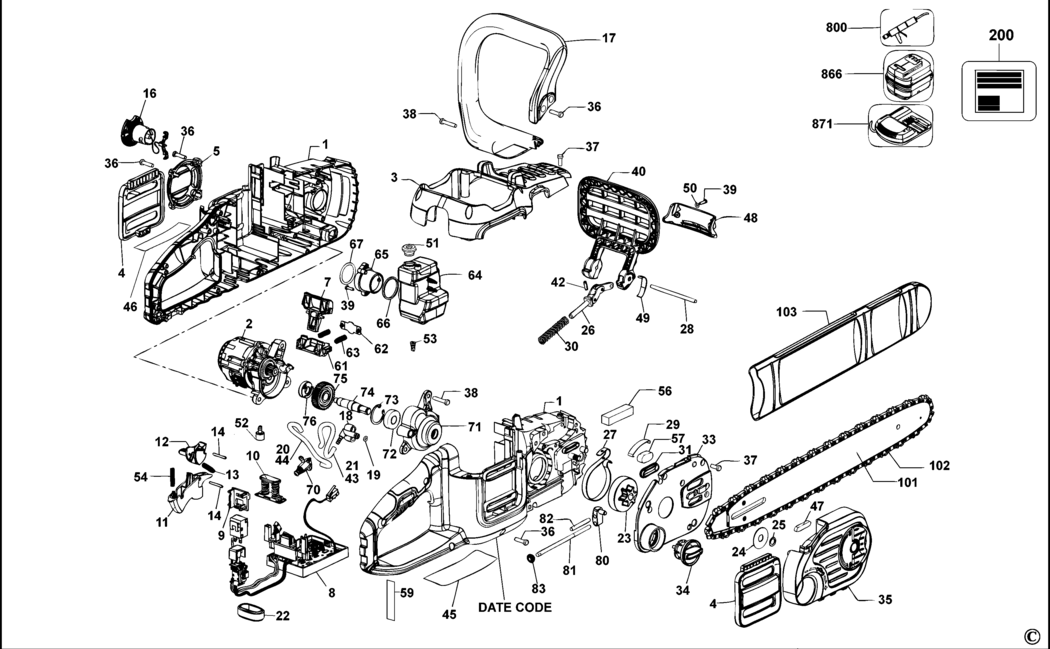

An exploded drawing and spare parts listing for the Dewalt DCM585 Type 1 Chainsaw

	Ex VAT	Inc VAT
1 - HOUSING SA BDE-90619964 90619964	£60.94	£73.13
2 - MOTOR SA & MOUNT BDE-90612950 90612950	£144.10	£172.92
3 - HOUSING BDE-90620684 90620684	£12.17	£14.60
4 - COVER BDE-90617820 90617820	£2.78	£3.34
5 - END CAP BDE-N513784 N513784	£1.82	£2.19
7 - BUTTON BDE-90606556.A3 90606556	£1.50	£1.80
8 - MODULE BDE-90619645 90619645	£209.59	£251.51
9 - SWITCH BDE-90605114.A4 90605114	£1.50	£1.80
10 - EJECTOR BDE-90605769.A1 90605769	£1.50	£1.80
11 - TRIGGER BDE-90613570.A4 90613570	£1.50	£1.80
12 - LEVER LOCK BDE-90613569.A0 90613569	£1.50	£1.80
13 - SPRING BDE-90620179.A2 90620179	£1.50	£1.80
14 - PIN BDE-5119820-00.A3 5119820-00	£1.50	£1.80
16 - CAP BDE-90618141.A0 90618141	£4.69	£5.63
17 - HANDLE BDE-90630455.A2 90630455	£16.03	£19.24
18 - PLUG BDE-90104269.A2 90104269	£1.50	£1.80
19 - O RING BDE-90104270.A1 90104270	£1.50	£1.80
20 - TUBE BDE-90609541.A0 90609541	£1.50	£1.80
21 - TUBE BDE-90609542.A2 90609542	£1.50	£1.80
22 - GROMMET BDE-90617047 90617047	£1.50	£1.80
23 - SPROCKET BDE-90618228.A2 90618228	£7.85	£9.42
24 - WASHER BDE-90618229.A1 90618229	£1.58	£1.89
25 - RING BDE-90624303 90624303	£1.50	£1.80
26 - BRAKE SA BDE-90619644.A0 90619644	£12.17	£14.60
27 - STRAP BDE-90618523 90618523	£1.50	£1.80
28 - PIN BDE-90618528.A0 90618528	£1.50	£1.80
29 - LEAF SPRING BDE-90621730.A1 90621730	£1.50	£1.80
30 - SPRING BDE-90609777.A1 90609777	£1.50	£1.80
31 - SEAL BDE-90618051.A0 90618051	£1.66	£1.99
33 - COVER BDE-90609778.A2 90609778	£4.69	£5.63
34 - KNOB BDE-90617753 90617753	£4.69	£5.63
35 - COVER BDE-N723753.A1 N723753	£17.48	£20.97
36 - SCREW BDE-330019-13.A272 330019-13	£1.50	£1.80
37 - SCREW.TEMP BDE-330019-11.A85 330019-11	£1.50	£1.80
38 - SCREW BDE-330019-14.A118 330019-14	£1.50	£1.80
39 - SCREW BDE-330019-28.A12 330019-28	£1.50	£1.80
40 - GUARD BDE-90609587.A1 90609587	£7.18	£8.62
42 - SPIROL PIN BDE-90627301.A1 90627301	£1.50	£1.80
43 - SPRING BDE-90620845.A1 90620845	£1.50	£1.80
44 - SPRING BDE-90620889.A0 90620889	£1.50	£1.80
45 - LABEL BDE-90641933 90641933	£1.50	£1.80
46 - RATING LABEL BDE-90641932 90641932	£1.50	£1.80
47 - SEAL BDE-90622086.A2 90622086	£1.50	£1.80
48 - CAP BDE-90622146 90622146	£2.26	£2.71
49 - LEAF SPRING BDE-90622670.A3 90622670	£1.50	£1.80
50 - WASHER BDE-90625146 90625146	£1.50	£1.80
51 - SEAL BDE-90104259.A0 90104259	£1.50	£1.80
52 - FILTER SA BDE-90622705.A0 90622705	£1.50	£1.80
53 - VALVE BDE-90618295.A1 90618295	£1.50	£1.80
54 - SPRING COMPRESSION BDE-90623323.A1 90623323	£1.50	£1.80
56 - FOAM BDE-90625339 90625339	£1.50	£1.80
57 - FOAM BDE-90625343.A0 90625343	£1.50	£1.80
61 - LATCH BDE-90606555.A1 90606555	£1.50	£1.80
62 - SUPPORT BDE-90607453.A0 90607453	£1.50	£1.80
63 - SPRING BDE-90606558.A2 90606558	£1.50	£1.80
64 - TANK BDE-90618137.A0 90618137	£5.88	£7.06
65 - ADAPTOR BDE-90618138.A2 90618138	£1.50	£1.80
66 - SEAL BDE-90618142.A1 90618142	£1.50	£1.80
67 - O RING BDE-90618339.A0 90618339	£1.50	£1.80
70 - PUMP SA BDE-90624557.A0 90624557	£9.41	£11.29
71 - GEARCASE BDE-90612949 90612949	£16.03	£19.24
72 - BEARING BDE-N150961.A27 N150961	£2.78	£3.34
73 - RING BDE-90551022.A2 90551022	£1.50	£1.80
74 - SPINDLE BDE-90612955 90612955	£4.69	£5.63
75 - GEAR BDE-90618517 90618517	£7.85	£9.42
76 - CAM BDE-90594615 90594615	£1.82	£2.19
80 - PIN BDE-90619596 90619596	£4.69	£5.63
81 - SCREW BDE-90617660 90617660	£7.85	£9.42
82 - SHAFT BDE-90617662.A0 90617662	£1.50	£1.80
83 - GEAR BDE-90617659.A0 90617659	£1.50	£1.80
101 - GUIDE BDE-N594320.A0 N594320	£45.14	£54.17
102 - CHAIN BDE-N594321.A2 N594321	£24.39	£29.27
103 - SHEATH BDE-90619707.A0 90619707	£9.41	£11.29

Attribute Name	Value
Brand	Dewalt
