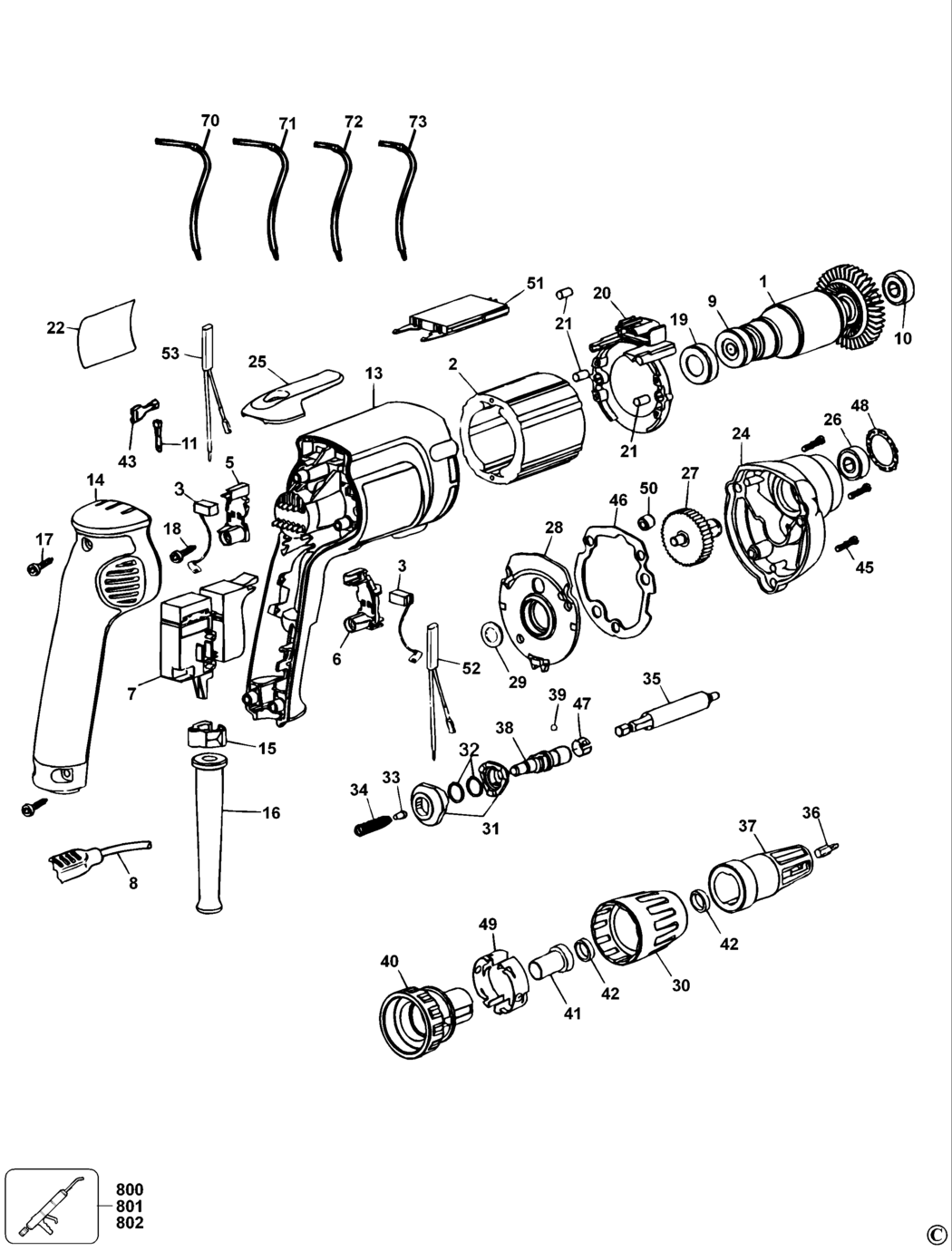

1 - ARMATURE & FAN
BDE-176851-00
176851-00
|
-
|
|
|
|
2 - FIELD
BDE-176849-00.A6
176849-00
|
-
|
|
|
|
5 - BRUSH HOLDER
BDE-176801-03.A19
176801-03
|
£9.41
|
£11.29
|
|
|
6 - BRUSH HOLDER
BDE-176800-03.A47
176800-03
|
£12.17
|
£14.60
|
|
|
9 - BEARING
BDE-605040-06.A64
605040-06
|
£3.80
|
£4.56
|
|
|
10 - BEARING
BDE-605040-06.A65
605040-06
|
£3.80
|
£4.56
|
|
|
11 - TERMINAL
BDE-449192-00.A1
449192-00
|
£1.50
|
£1.80
|
|
|
13 - FIELDCASE
BDE-396969-07.A1
396969-07
|
-
|
|
|
|
14 - HANDLE COVER
BDE-176816-01.A0
176816-01
|
-
|
|
|
|
15 - CORD CLAMP
BDE-393796-00
393796-00
|
-
|
|
|
|
16 - CORD PROTECTOR
BDE-148809-00.A8
148809-00
|
£1.50
|
£1.80
|
|
|
17 - SCREW
BDE-330019-13.A47
330019-13
|
£1.50
|
£1.80
|
|
|
18 - SCREW
BDE-176951-00.A40
176951-00
|
£1.50
|
£1.80
|
|
|
19 - SLEEVE
BDE-949721-03.A31
949721-03
|
£1.50
|
£1.80
|
|
|
20 - BAFFLE
BDE-176811-00.A104
176811-00
|
£1.50
|
£1.80
|
|
|
21 - DAMPER
BDE-949638-02.A130
949638-02
|
£1.50
|
£1.80
|
|
|
22 - BRAND LABEL
BDE-395047-00.A170
395047-00
|
£1.50
|
£1.80
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A29917
000000-00
|
-
|
|
|
|
25 - CLIP
BDE-N045425.A2
N045425
|
£2.78
|
£3.34
|
|
|
27 - NO LONGER AVAILABLE
BDE-000000-00.A29918
000000-00
|
-
|
|
|
|
28 - GEARCASE COVER
BDE-386622-00.A4
386622-00
|
£5.88
|
£7.06
|
|
|
29 - WASHER
BDE-23813-00.A1
23813-00
|
£1.50
|
£1.80
|
|
|
30 - COLLAR
BDE-152492-01.A14
152492-01
|
£5.88
|
£7.06
|
|
|
31 - CLUTCH
BDE-603478-00.A0
603478-00
|
£5.88
|
£7.06
|
|
|
32 - RETAINER
BDE-089210-00.A19
089210-00
|
£1.50
|
£1.80
|
|
|
33 - GUIDE
BDE-021287-00.A37
021287-00
|
£1.50
|
£1.80
|
|
|
34 - SPRING
BDE-86211-00.A16
86211-00
|
£1.50
|
£1.80
|
|
|
35 - HOLDER BIT
BDE-619773-02.A2
619773-02
|
£7.18
|
£8.62
|
|
|
36 - BIT SCREWDRIVER
BDE-607904-22.A16
607904-22
|
£1.50
|
£1.80
|
|
|
37 - LOCATOR
BDE-612001-00.A0
612001-00
|
-
|
|
|
|
38 - SPINDLE
BDE-176697-00.A20
176697-00
|
£7.85
|
£9.42
|
|
|
39 - BALL
BDE-696631-00.A63
696631-00
|
£1.50
|
£1.80
|
|
|
40 - CLUTCH SA
BDE-176632-00.A10
176632-00
|
£24.39
|
£29.27
|
|
|
41 - SLEEVE
BDE-450907-00.A4
450907-00
|
£1.50
|
£1.80
|
|
|
42 - SEAL
BDE-696534-00.A4
696534-00
|
£1.50
|
£1.80
|
|
|
43 - TERMINAL
BDE-136086-02.A15
136086-02
|
£1.50
|
£1.80
|
|
|
45 - SCREW
BDE-330019-14.A212
330019-14
|
£1.50
|
£1.80
|
|
|
46 - GASKET
BDE-176655-00.A4
176655-00
|
£4.69
|
£5.63
|
|
|
47 - RETAINER
BDE-94518-00.A47
94518-00
|
£1.50
|
£1.80
|
|
|
48 - RETAINER
BDE-87692-00.A49
87692-00
|
£1.42
|
£1.70
|
|
|
49 - SPRING
BDE-391436-00.A31
391436-00
|
£1.50
|
£1.80
|
|
|
50 - BEARING NEEDLE
BDE-330004-26
330004-26
|
-
|
|
|
|
51 - MODULE
BDE-176917-00.A40
176917-00
|
-
|
|
|
|
52 - NO LONGER AVAILABLE
BDE-000000-00.A95880
000000-00
|
-
|
|
|
|
53 - NO LONGER AVAILABLE
BDE-000000-00.A95881
000000-00
|
-
|
|
|
|
70 - LEAD BLACK
BDE-176893-00.A0
176893-00
|
£1.50
|
£1.80
|
|
|
71 - LEAD PURPLE
BDE-176892-00
176892-00
|
-
|
|
|
|
72 - NO LONGER AVAILABLE
BDE-000000-00.A95882
000000-00
|
-
|
|
|
|
73 - LEAD BLUE
BDE-176834-00.A34
176834-00
|
£1.50
|
£1.80
|
|
|
800 - GREASE
BDE-283484-01.A17
283484-01
|
£80.98
|
£97.18
|
|
|
801 - NO LONGER AVAILABLE
BDE-000000-00.A95883
000000-00
|
-
|
|
|
|
802 - GREASE
BDE-69542-00.A4
69542-00
|
£165.92
|
£199.11
|
|
