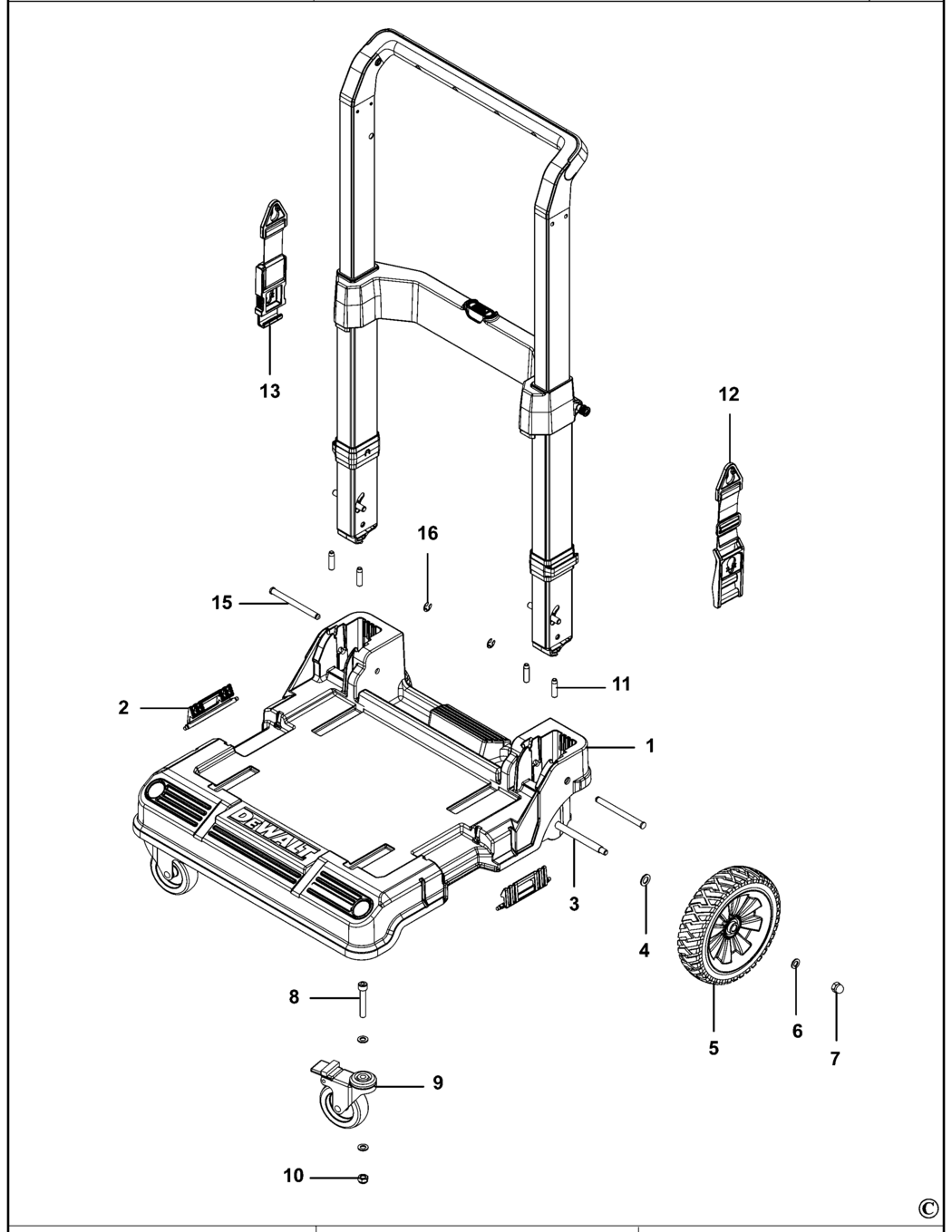

An exploded drawing and spare parts listing for the Dewalt DWST1-71196 Type 1 Trolley
Ex VAT Inc VAT
2 - LATCH BDE-N409477.A30 N409477 £1.66 £1.99
3 - AXLE WHEEL BDE-P910573.A1 P910573 £12.17 £14.60
4 - WASHER M10 BDE-P910547.A0 P910547 £1.50 £1.80
5 - WHEEL BDE-H2000047032.A4 H2000047032 £16.03 £19.24
6 - WASHER M8 BDE-P910528.A1 P910528 £1.50 £1.80
7 - LOCK NUT BDE-P910575.A1 P910575 £1.50 £1.80
8 - BOLT BDE-P910584.A0 P910584 £1.50 £1.80
9 - WHEEL PIVOT - BRAKE BDE-P910574.A0 P910574 £24.39 £29.27
10 - LOCK NUT BDE-P910542.A0 P910542 £1.50 £1.80
11 - PIN BDE-P910495.A0 P910495 £1.50 £1.80
12 - STRAP BDE-P910579.A1 P910579 £12.17 £14.60
13 - STRAP. HOOKED BDE-P910578.A0 P910578 £12.17 £14.60
15 - AXLE BDE-P910576.A0 P910576 £1.82 £2.19
16 - CIRCLIP BDE-P910577.A1 P910577 £1.50 £1.80
