Dewalt D23700 Type 1 Circular Saw Spare Parts

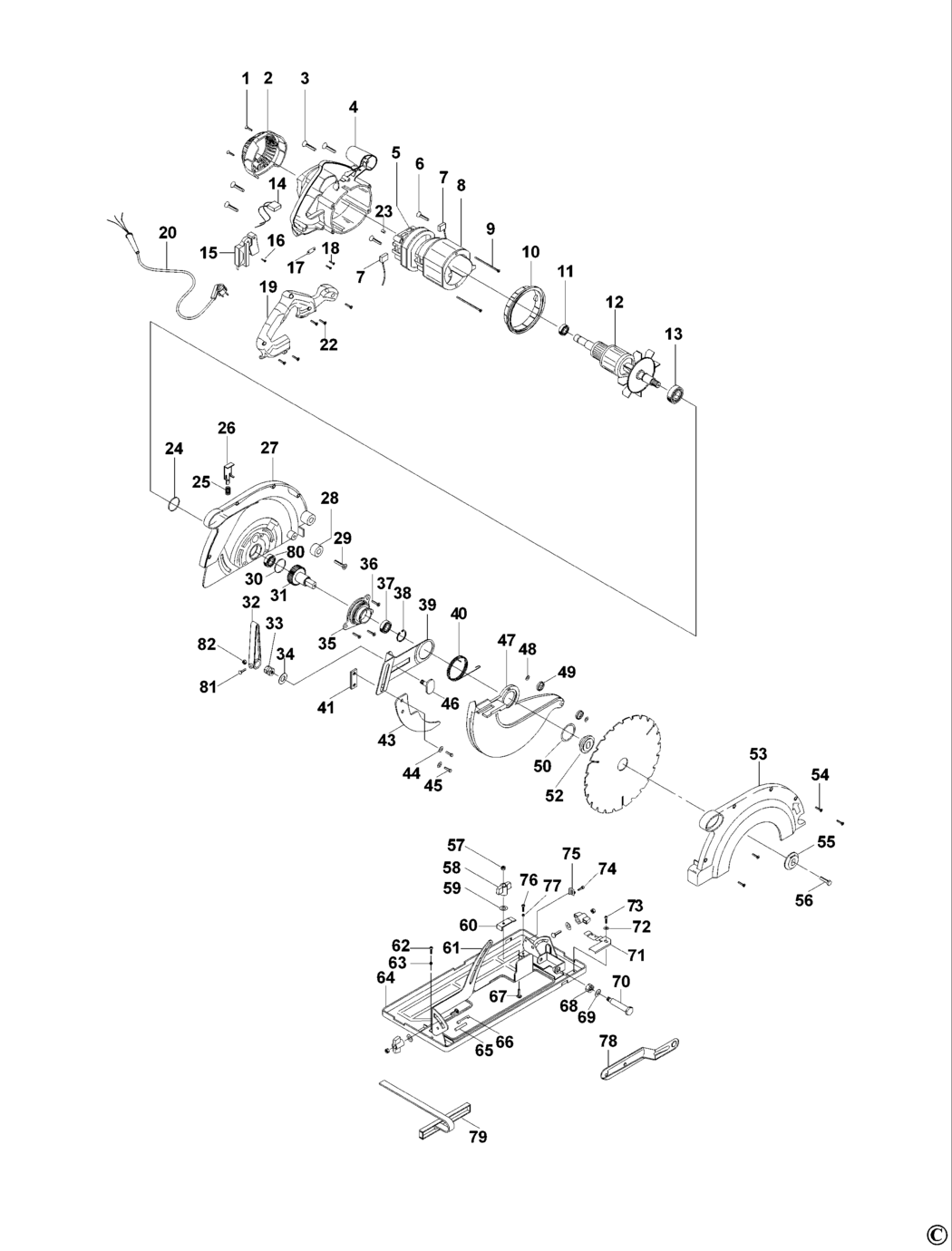

An exploded drawing and spare parts listing for the Dewalt D23700 Type 1 Circular Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-330019-13.A118 330019-13	£1.50	£1.80
2 - END CAP BDE-391933-00.A27 391933-00	£4.69	£5.63
3 - SCREW BDE-98094-56.A11 98094-56	-
4 - FIELD CASE BDE-N393404.A1 N393404	£16.03	£19.24
5 - BRUSH PLATE BDE-389512-01.A10 389512-01	£16.03	£19.24
6 - SCREW BDE-330019-13.A119 330019-13	£1.50	£1.80
7 - BRUSH & LEAD LX BDE-381028-08.A31 381028-08	£7.18	£8.62
7 - BRUSH & LEAD GB BDE-381028-08.A32 381028-08	£7.18	£8.62
8 - FIELD 230V GB BDE-N231738.A1 N231738	£93.62	£112.35
8 - FIELD 115V LX BDE-N231739.A1 N231739	£93.62	£112.35
9 - SCREW BDE-330019-19.A35 330019-19	£1.50	£1.80
10 - BAFFLE FAN BDE-391375-00.A18 391375-00	£1.82	£2.19
11 - BEARING BDE-N110359.A207 N110359	£3.75	£4.50
12 - ARMATURE SA GB BDE-N394282.A1 N394282	£125.16	£150.19
12 - ARMATURE 115V LX BDE-N394283.A1 N394283	£119.32	£143.19
13 - BEARING BDE-330003-13.A27 330003-13	£3.80	£4.56
14 - CAPACITOR BDE-628217-00.A1 628217-00	£10.85	£13.02
15 - SWITCH BDE-625425-00.A1 625425-00	£16.03	£19.24
16 - SCREW BDE-330013-22.A7 330013-22	-
17 - CORD CLAMP BDE-821070.A565 821070	£1.50	£1.80
18 - SCREW BDE-330013-22.A8 330013-22	-
19 - HANDLE BDE-N393405.A2 N393405	£7.18	£8.62
20 - CORDSET GB BDE-630421-01.A1 630421-01	£24.39	£29.27
20 - CORDSET LX BDE-630421-02.A1 630421-02	£37.35	£44.82
22 - SCREW BDE-330019-13.A117 330019-13	£1.50	£1.80
23 - PLUG BDE-145312-00.A44 145312-00	£1.50	£1.80
24 - RING BDE-696519-00.A18 696519-00	£1.50	£1.80
25 - SPRING BDE-941586-00.A14 941586-00	£1.50	£1.80
26 - SPINDLE LOCK BDE-625854-00.A1 625854-00	£1.50	£1.80
27 - GUARD BDE-N384927.A2 N384927	£71.44	£85.73
28 - BUSHING BDE-146753-00.A1 146753-00	£1.50	£1.80
29 - SCREW BDE-N409486.A14 N409486	£1.50	£1.80
30 - O RING BDE-616979-00.A7 616979-00	£1.50	£1.80
31 - SPINDLE & GEAR SA BDE-869219-05.A1 869219-05	£55.30	£66.36
32 - LEVER BDE-931460-00.A2 931460-00	£1.50	£1.80
33 - NUT BDE-931463-00.A6 931463-00	£3.30	£3.96
34 - WASHER BDE-933168-00.A3 933168-00	£1.50	£1.80
35 - COVERPLATE BDE-625421-00.A2 625421-00	£37.35	£44.82
36 - SCREW BDE-330045-14.A93 330045-14	£1.50	£1.80
37 - BEARING BDE-330003-74.A2 330003-74	£14.57	£17.48
38 - CIRCLIP BDE-629746-00.A2 629746-00	£1.50	£1.80
39 - ADJUSTER PLATE BDE-625427-00.A3 625427-00	£5.88	£7.06
40 - SPRING BDE-N388721.A2 N388721	£1.50	£1.80
41 - SUPPORT BDE-931445-00.A5 931445-00	£1.50	£1.80
43 - RIVING KNIFE BDE-625428-00.A2 625428-00	£9.41	£11.29
44 - WASHER BDE-860074-02.A63 860074-02	£1.50	£1.80
45 - SCREW BDE-860085-15.A12 860085-15	£1.50	£1.80
46 - SCREW.SPECIAL BDE-N008397.A2 N008397	£9.41	£11.29
47 - GUARD LOWER BDE-N390572.A5 N390572	£37.35	£44.82
48 - QUICKLOCK BDE-861366-00.A7 861366-00	£1.50	£1.80
49 - GUARD LOWER BDE-N390572.A6 N390572	£37.35	£44.82
50 - CIRCLIP BDE-629745-00.A4 629745-00	£1.50	£1.80
52 - WASHER INNER CLAMP BDE-145442-03.A8 145442-03	£3.80	£4.56
53 - GUARD COVER BDE-N013097.A4 N013097	£34.00	£40.80
54 - SCREW BDE-330045-15.A67 330045-15	£1.50	£1.80
55 - WASHER OUTER CLAMP BDE-145446-00.A5 145446-00	£3.30	£3.96
56 - SCREW.SPECIAL BDE-145344-00.A11 145344-00	£1.88	£2.25
57 - NUT BDE-860083-03.A224 860083-03	£1.50	£1.80
58 - NUT WING BDE-931406-00.A1 931406-00	£1.50	£1.80
59 - WASHER BDE-931407-00.A43 931407-00	£5.88	£7.06
60 - LOCK BDE-931484-00.A6 931484-00	£9.41	£11.29
61 - GUARD BDE-933415-00.A0 933415-00	£25.70	£30.84
62 - SCREW BDE-860089-18.A92 860089-18	£1.50	£1.80
63 - SCREW BDE-930224-00.A12 930224-00	£1.50	£1.80
64 - BASEPLATE BDE-626663-00.A1 626663-00	£78.12	£93.74
65 - PIN BDE-931420-00.A1 931420-00	£1.50	£1.80
66 - PIN BDE-931419-00.A5 931419-00	£1.50	£1.80
67 - SCREW BDE-931405-00.A9 931405-00	£1.50	£1.80
68 - NUT BDE-931449-00.A3 931449-00	£1.50	£1.80
69 - WASHER BDE-933168-00.A2 933168-00	£1.50	£1.80
70 - PIN BDE-931447-00.A3 931447-00	£3.80	£4.56
71 - POINTER BDE-931408-00.A1 931408-00	£7.85	£9.42
72 - WASHER BDE-933652-00.A51 933652-00	£1.50	£1.80
73 - SCREW BDE-949894-06.A89 949894-06	£1.50	£1.80
74 - SCREW BDE-860089-18.A91 860089-18	£1.50	£1.80
75 - INDICATOR BDE-933410-00.A3 933410-00	£3.80	£4.56
76 - SCREW BDE-860089-18.A90 860089-18	£1.50	£1.80
77 - NUT BDE-930244-00.A10 930244-00	£3.30	£3.96
78 - WRENCH BDE-145378-01.A16 145378-01	£1.50	£1.80
79 - FENCE BDE-931464-00.A0 931464-00	£10.85	£13.02
80 - BEARING BDE-135937-00.A6 135937-00	£3.30	£3.96
81 - SCREW BDE-930224-00.A13 930224-00	£1.50	£1.80
82 - NUT BDE-860083-10.A41 860083-10	£1.50	£1.80

Attribute Name	Value
Brand	Dewalt
