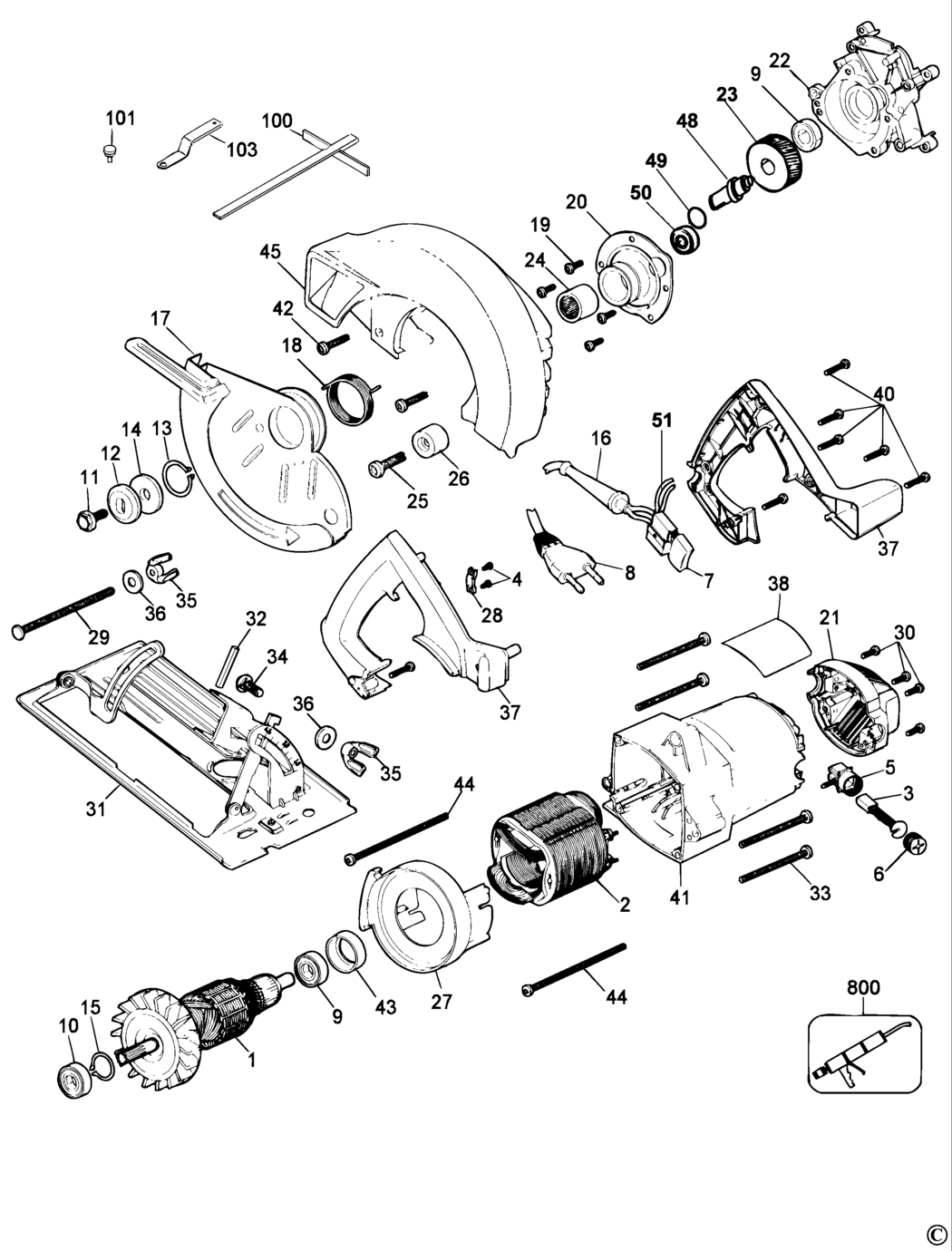

1 - ARMATURE 220V
BDE-186238-01.A0
186238-01
|
-
|
|
|
|
2 - FIELD 220V
BDE-187501-01
187501-01
|
-
|
|
|
|
3 - BRUSH & SPRING
BDE-450374-12.A21
450374-12
|
£9.41
|
£11.29
|
|
|
4 - SCREW
BDE-562097-00.A113
562097-00
|
£1.50
|
£1.80
|
|
|
5 - BRUSHBOX SA
BDE-448083-01.A8
448083-01
|
£5.88
|
£7.06
|
|
|
6 - BRUSH CAP
BDE-448084-01.A71
448084-01
|
-
|
|
|
|
7 - SWITCH
BDE-380772-00.A0
380772-00
|
-
|
|
|
|
9 - BEARING
BDE-605040-63.A11
605040-63
|
£3.30
|
£3.96
|
|
|
10 - BEARING
BDE-605040-20.A151
605040-20
|
£4.69
|
£5.63
|
|
|
11 - NO LONGER AVAILABLE
BDE-000000-00.A29363
000000-00
|
-
|
|
|
|
12 - WASHER OUTER CLAMP
BDE-142950-00.A0
142950-00
|
-
|
|
|
|
13 - RETAINER
BDE-133876-00.A3
133876-00
|
-
|
|
|
|
14 - BLADE CLAMP
BDE-142949-00.A4
142949-00
|
£1.42
|
£1.70
|
|
|
15 - RETAINER
BDE-696060-00.A5
696060-00
|
£1.50
|
£1.80
|
|
|
16 - CORD PROTECTOR
BDE-N542553.A158
N542553
|
£3.80
|
£4.56
|
|
|
17 - GUARD LOWER
BDE-646470-00
646470-00
|
-
|
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A29362
000000-00
|
-
|
|
|
|
19 - SCREW
BDE-158472-00.A19
158472-00
|
£1.50
|
£1.80
|
|
|
20 - GEARCASE COVER
BDE-187535-00
187535-00
|
-
|
|
|
|
21 - END CAP
BDE-449460-01.A5
449460-01
|
-
|
|
|
|
22 - GEARCASE
BDE-153170-00.A0
153170-00
|
-
|
|
|
|
23 - GEAR
BDE-153163-00
153163-00
|
-
|
|
|
|
24 - SLEEVE BEARING
BDE-187622-00
187622-00
|
-
|
|
|
|
25 - SCREW
BDE-131890-00.A0
131890-00
|
-
|
|
|
|
26 - BUMPER
BDE-131982-00.A3
131982-00
|
£1.42
|
£1.70
|
|
|
27 - BAFFLE
BDE-185471-00.A1
185471-00
|
-
|
|
|
|
28 - CORD CLAMP
BDE-185328-00.A2
185328-00
|
-
|
|
|
|
29 - SCREW
BDE-679139-00.A7
679139-00
|
£1.42
|
£1.70
|
|
|
30 - SCREW
BDE-330019-13.A90
330019-13
|
£1.50
|
£1.80
|
|
|
31 - SHOE
BDE-95100-19.A6
95100-19
|
£3.22
|
£3.86
|
|
|
32 - ROLLPIN
BDE-695197-00.A0
695197-00
|
£1.42
|
£1.70
|
|
|
33 - SCREW
BDE-142881-00.A1
142881-00
|
£1.42
|
£1.70
|
|
|
34 - SCREW
BDE-38910-00.A5
38910-00
|
£1.42
|
£1.70
|
|
|
35 - NUT WING
BDE-90914-00.A2
90914-00
|
£1.42
|
£1.70
|
|
|
36 - WASHER
BDE-5130830-00.A0
5130830-00
|
-
|
|
|
|
37 - HANDLE SA
BDE-385668-07.A2
385668-07
|
-
|
|
|
|
40 - SCREW
BDE-330019-14.A206
330019-14
|
£1.50
|
£1.80
|
|
|
41 - FIELD CASE
BDE-187533-00
187533-00
|
-
|
|
|
|
42 - SCREW
BDE-399729-00.A1
399729-00
|
£1.42
|
£1.70
|
|
|
43 - SLEEVE
BDE-445217-02.A18
445217-02
|
£1.50
|
£1.80
|
|
|
44 - SCREW.TEMP
BDE-144461-00.A0
144461-00
|
-
|
|
|
|
45 - GUARD UPPER
BDE-188515-00.A0
188515-00
|
-
|
|
|
|
48 - SPINDLE
BDE-187536-00
187536-00
|
-
|
|
|
|
49 - O RING
BDE-930028-00.A306
930028-00
|
£1.50
|
£1.80
|
|
|
50 - BEARING
BDE-605040-25.A103
605040-25
|
£4.69
|
£5.63
|
|
|
51 - LEADWIRE
BDE-153178-00
153178-00
|
-
|
|
|
|
101 - SCREW
BDE-73199-00.A2
73199-00
|
£3.70
|
£4.44
|
|
|
103 - SPANNER
BDE-N035355.A4
N035355
|
£1.50
|
£1.80
|
|
|
800 - GREASE
BDE-429698-00.A77
429698-00
|
£84.42
|
£101.30
|
|
