Dewalt D27107 Type 6 Combination Saw Spare Parts

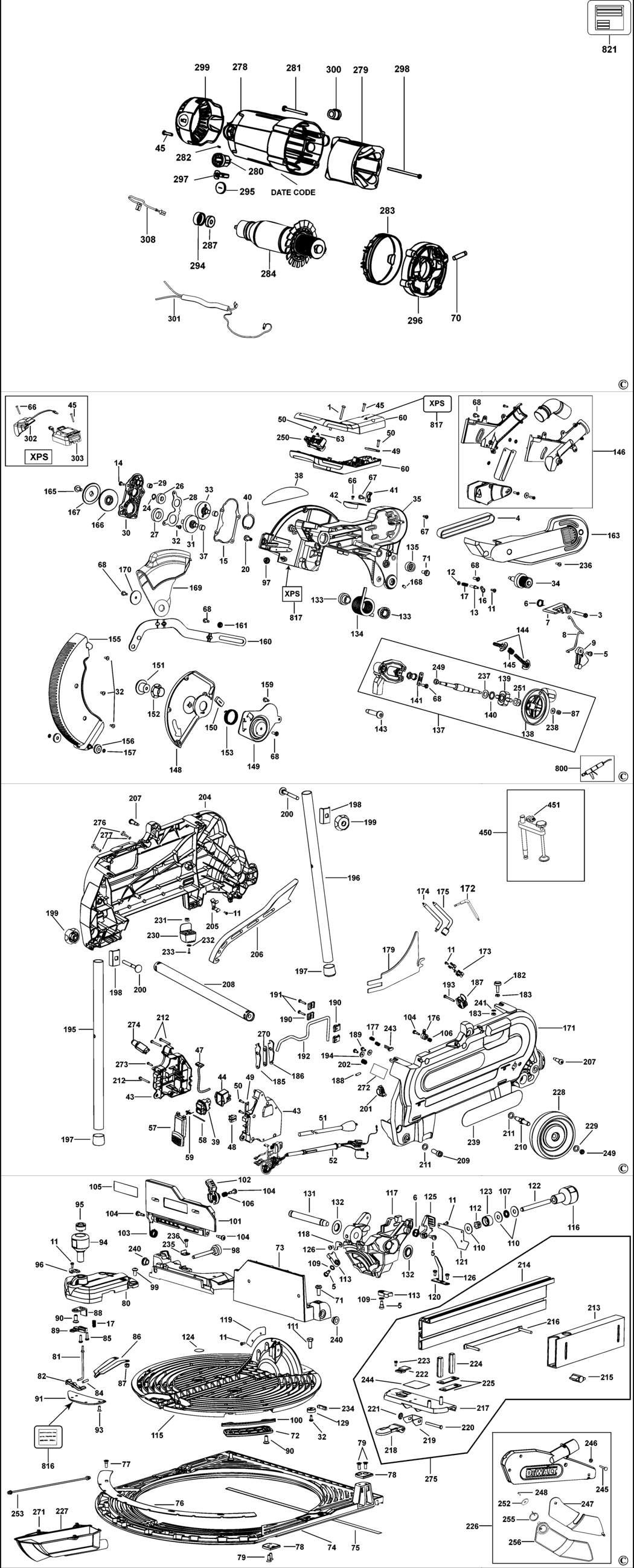

An exploded drawing and spare parts listing for the Dewalt D27107 Type 6 Combination Saw

	Ex VAT	Inc VAT
1 - SCREW BDE-98094-35.A10 98094-35	£1.50	£1.80
3 - BOLT BDE-152852-00.A46 152852-00	£1.82	£2.19
4 - BELT BDE-N453995.A13 N453995	£18.91	£22.69
5 - SCREW BDE-153639-00.A46 153639-00	£1.50	£1.80
6 - SPRING TORSION BDE-398472-00.A7 398472-00	£2.26	£2.71
7 - LEVER BDE-605603-00.A6 605603-00	£1.50	£1.80
8 - LINKAGE SA BDE-606278-00.A8 606278-00	£1.50	£1.80
9 - PLATE BDE-606279-00.A5 606279-00	£1.50	£1.80
11 - SCREW BDE-330045-05.A114 330045-05	£1.50	£1.80
12 - WASHER FELT BDE-618480-00.A6 618480-00	£1.50	£1.80
13 - LOCKING PIN BDE-153561-00.A8 153561-00	£1.50	£1.80
14 - SCREW BDE-385915-01.A25 385915-01	£1.50	£1.80
15 - GASKET BDE-391315-00.A21 391315-00	£2.78	£3.34
16 - PLATE BDE-393071-00.A7 393071-00	£1.50	£1.80
17 - SPRING BDE-868082-00.A93 868082-00	£1.50	£1.80
20 - SCREW BDE-N389947.A0 N389947	£1.50	£1.80
24 - CIRCLIP BDE-860079-03.A43 860079-03	£1.50	£1.80
26 - BEARING BDE-605040-59.A1 605040-59	£3.30	£3.96
27 - BEARING BALL BDE-330003-66.A18 330003-66	£14.57	£17.48
28 - BEARING PLATE BDE-627904-00.A6 627904-00	£3.30	£3.96
29 - BEARING NEEDLE BDE-391616-00.A24 391616-00	£4.69	£5.63
30 - GEARCASE COVER BDE-621759-00.A11 621759-00	£41.24	£49.49
31 - SPINDLE & GEAR SA BDE-869219-06.A13 869219-06	£41.24	£49.49
32 - SCREW BDE-330045-49.A98 330045-49	£1.50	£1.80
33 - SPINDLE & GEAR SA BDE-869219-07.A0 869219-07	£41.24	£49.49
34 - PINION SA BDE-N027131SV.A9 N027131SV	£115.77	£138.92
35 - ARM BDE-N387525.A1 N387525	£218.32	£261.98
37 - BEARING BDE-386780-00.A21 386780-00	£2.26	£2.71
38 - IDENTITY LABEL BDE-621329-00.A3 621329-00	£3.30	£3.96
39 - SWITCH GB BDE-637691-00.A6 637691-00	£41.24	£49.49
40 - RETAINER BDE-616726-00.A4 616726-00	£1.50	£1.80
41 - CORD CLAMP BDE-612350-00.A13 612350-00	£1.50	£1.80
42 - COVER BDE-613781-00.A6 613781-00	£1.50	£1.80
43 - HOUSING SWITCH GB BDE-605786-01.A4 605786-01	£34.00	£40.80
44 - BOOT BDE-638634-00.A8 638634-00	£9.41	£11.29
45 - SCREW BDE-330019-13.A6 330019-13	£1.50	£1.80
47 - CONNECTING WIRE BDE-652121-00.A8 652121-00	£1.50	£1.80
48 - TERMINAL BLOCK BDE-326057-00.A34 326057-00	£1.50	£1.80
49 - INSERT BDE-N380405.A1 N380405	£2.26	£2.71
50 - SCREW BDE-330013-22.A17 330013-22	-
51 - CORDSET (M/PLUG) GB GB BDE-N380401.A1 N380401	£25.70	£30.84
52 - SET OF LEAD WIRES BDE-N380402.A0 N380402	£37.35	£44.82
57 - SWITCH COVER BDE-N377629.A1 N377629	£3.30	£3.96
58 - PIN BDE-607854-00.A5 607854-00	£1.50	£1.80
59 - SPRING TORSION BDE-613782-01.A7 613782-01	£1.50	£1.80
60 - HANDLE SA BDE-607855-00.A8 607855-00	£19.90	£23.88
63 - SCREW BDE-384127-01.A121 384127-01	£1.50	£1.80
66 - SCREW BDE-860094-03.A153 860094-03	£1.50	£1.80
67 - SCREW BDE-330045-15.A116 330045-15	£1.50	£1.80
68 - SCREW.SPECIAL BDE-330045-23.A88 330045-23	£1.50	£1.80
70 - SCREW BDE-394034-00.A20 394034-00	£1.50	£1.80
71 - SCREW BDE-330045-32.A27 330045-32	£1.50	£1.80
72 - PLATE BDE-621647-00.A11 621647-00	£3.30	£3.96
73 - FENCE BDE-N162216.A8 N162216	£125.16	£150.19
74 - TABLE BDE-869233-00.A6 869233-00	£245.11	£294.13
75 - SCALE BDE-614822-00.A12 614822-00	£5.88	£7.06
76 - DETENT BDE-398999-00.A12 398999-00	£25.70	£30.84
77 - SCREW BDE-615876-00.A12 615876-00	£1.50	£1.80
78 - PLATE BDE-607103-00.A2 607103-00	£4.69	£5.63
79 - SCREW BDE-98104-16.A7 98104-16	£1.50	£1.80
80 - NOSE BDE-N162168.A5 N162168	£55.30	£66.36
81 - ROD BDE-605799-00.A9 605799-00	£1.50	£1.80
82 - ACTUATOR BDE-399162-00.A9 399162-00	£1.50	£1.80
84 - PIN BDE-399009-00.A1 399009-00	£1.50	£1.80
85 - SCREW.TEMP BDE-860094-00.A83 860094-00	£1.50	£1.80
86 - DETENT BDE-606898-00.A9 606898-00	£3.80	£4.56
87 - NUT BDE-860092-02.A46 860092-02	£1.50	£1.80
88 - PLATE BDE-606900-00.A10 606900-00	£1.50	£1.80
89 - PAD BDE-606896-00.A9 606896-00	£1.50	£1.80
90 - SCREW BDE-617561-00.A5 617561-00	£1.50	£1.80
91 - COVER BDE-606897-00.A4 606897-00	£3.80	£4.56
93 - SCREW BDE-860205-01.A9 860205-01	£1.50	£1.80
94 - KNOB BDE-399004-00.A1 399004-00	£7.18	£8.62
95 - BUTTON BDE-605785-00.A10 605785-00	£1.50	£1.80
96 - POINTER BDE-611991-00.A13 611991-00	£1.50	£1.80
97 - NUT BDE-860092-05.A8 860092-05	£1.50	£1.80
98 - KNOB BDE-606198-00.A13 606198-00	£2.26	£2.71
99 - SCREW BDE-N409486.A8 N409486	£1.50	£1.80
100 - PAD BDE-607129-00.A11 607129-00	£3.30	£3.96
101 - BACK FENCE BDE-N190890.A11 N190890	£51.90	£62.28
102 - KNOB BDE-610251-00.A10 610251-00	£1.50	£1.80
103 - SPRING BDE-610250-00.A3 610250-00	£1.50	£1.80
104 - SCREW BDE-N399933.A14 N399933	£1.50	£1.80
105 - WARNING LABEL BDE-610710-00.A19 610710-00	£1.50	£1.80
106 - SPRING BDE-941586-00.A23 941586-00	£1.50	£1.80
107 - BEARING THRUST BDE-153451-00.A21 153451-00	£1.82	£2.19
109 - WASHER BDE-153655-00.A60 153655-00	£1.50	£1.80
110 - WASHER BDE-153781-00.A12 153781-00	£1.50	£1.80
111 - SCREW BDE-153797-03.A4 153797-03	£1.50	£1.80
112 - NUT BDE-330021-10.A1 330021-10	£1.50	£1.80
113 - PAWL BDE-391347-00.A4 391347-00	£1.50	£1.80
115 - ROTARY TABLE + 122 124 BDE-869233-02.A7 869233-02	£301.55	£361.86
116 - KNOB BDE-399004-01.A12 399004-01	£7.18	£8.62
117 - TRUNNION BDE-605653-00.A4 605653-00	£84.42	£101.30
118 - POINTER BDE-606152-00.A4 606152-00	£1.82	£2.19
119 - BEVEL SCALE BDE-618660-00.A4 618660-00	£3.30	£3.96
120 - POINTER BDE-606192-00.A13 606192-00	£2.78	£3.34
121 - BEVEL SCALE BDE-606193-00.A0 606193-00	£3.80	£4.56
122 - STUD BDE-606359-00.A7 606359-00	£3.30	£3.96
123 - SPACER BDE-606362-00.A4 606362-00	£1.50	£1.80
124 - WARNING LABEL BDE-610707-00.A5 610707-00	£1.50	£1.80
125 - LATCH BDE-613709-00.A10 613709-00	£1.50	£1.80
126 - SCREW BDE-860094-06.A12 860094-06	£1.50	£1.80
129 - ADJUSTER BDE-615589-00.A11 615589-00	£2.26	£2.71
131 - PIVOT SHAFT BDE-615777-00.A8 615777-00	£5.88	£7.06
132 - WASHER BDE-148296-00.A41 148296-00	£1.50	£1.80
133 - SPACER BDE-146732-00.A12 146732-00	£1.50	£1.80
134 - SPRING BDE-619571-00.A2 619571-00	£17.48	£20.97
135 - BUSHING BDE-146753-00.A11 146753-00	£1.50	£1.80
137 - ADJUSTER HEIGHT BDE-609837-00.A4 609837-00	£84.42	£101.30
138 - CRANK BDE-606689-00.A12 606689-00	£12.17	£14.60
139 - CARRIER BDE-607754-00.A5 607754-00	£3.80	£4.56
140 - BALL STEEL BDE-604107-00.A11 604107-00	£1.50	£1.80
141 - CLAMP BDE-609840-00.A9 609840-00	£1.50	£1.80
143 - BOLT BDE-610254-00.A10 610254-00	£7.85	£9.42
144 - PIN BDE-614072-00.A7 614072-00	£1.50	£1.80
145 - SPRING BDE-606688-00.A1 606688-00	£1.50	£1.80
146 - DUST PORT BDE-N166053.A12 N166053	£37.35	£44.82
148 - PLATE BDE-615459-00.A11 615459-00	£18.91	£22.69
149 - BACKPLATE BDE-N041976.A12 N041976	£12.17	£14.60
150 - BUMPER BDE-609514-00.A7 609514-00	£1.50	£1.80
151 - RETAINING PLATE BDE-146750-03.A35 146750-03	£2.78	£3.34
152 - SLEEVE BDE-609314-00.A9 609314-00	£1.50	£1.80
153 - SPRING TORSION BDE-609496-00.A6 609496-00	£1.50	£1.80
155 - GUARD BDE-N298999.A3 N298999	£19.90	£23.88
156 - ROLLER BDE-146774-00.A65 146774-00	£1.82	£2.19
157 - LOCKING RING BDE-604728-00.A17 604728-00	£1.66	£1.99
159 - SCREW BDE-394589-01.A54 394589-01	£1.50	£1.80
160 - LINKAGE SA BDE-N225596.A0 N225596	£14.57	£17.48
161 - SLEEVE BDE-146740-02.A6 146740-02	£1.50	£1.80
163 - BELT COVER BDE-610556-01.A3 610556-01	£16.03	£19.24
165 - BLADE BOLT BDE-647776-00.A21 647776-00	£1.66	£1.99
166 - WASHER INNER CLAMP BDE-616319-00.A13 616319-00	£16.03	£19.24
167 - CLAMP OUTER BDE-604765-00.A24 604765-00	£5.88	£7.06
168 - SCREW BDE-150075-00.A19 150075-00	£1.50	£1.80
169 - GUARD BDE-N293739.A1 N293739	£10.85	£13.02
170 - WASHER BDE-607536-00.A5 607536-00	£4.69	£5.63
171 - FSO KIT BDE-656421-00.A3 656421-00	£245.11	£294.13
172 - WRENCH SPECIAL BDE-N040940.A4 N040940	£9.41	£11.29
173 - HOLDER BDE-391358-01.A85 391358-01	£1.50	£1.80
174 - WRENCH SPECIAL BDE-385567-01.A12 385567-01	-
175 - WRENCH SPECIAL BDE-608563-01.A12 608563-01	£7.18	£8.62
176 - RETAINER BDE-615993-00.A11 615993-00	£1.50	£1.80
177 - SPRING BDE-946866-00.A11 946866-00	£1.50	£1.80
179 - RIVING KNIFE BDE-N303519 N303519	£18.91	£22.69
182 - BUMPER BDE-616634-00.A1 616634-00	£4.16	£4.99
183 - NUT BDE-860083-15.A91 860083-15	£1.50	£1.80
185 - LOCK BDE-606233-00.A12 606233-00	£4.69	£5.63
186 - LOCK BDE-606232-00.A1 606232-00	£4.69	£5.63
187 - CABLE CLAMP BDE-869064-01.A1 869064-01	£1.50	£1.80
188 - PIN BDE-607132-00.A2 607132-00	£1.50	£1.80
189 - SCREW BDE-330045-55.A75 330045-55	£1.50	£1.80
190 - BEARING BLOCK BDE-153379-00.A18 153379-00	£1.82	£2.19
191 - SCREW BDE-610574-00.A10 610574-00	£1.50	£1.80
192 - ROD BDE-611094-00.A12 611094-00	£7.85	£9.42
193 - SCREW BDE-861090-00.A14 861090-00	£1.50	£1.80
194 - WASHER BDE-860073-14.A41 860073-14	£1.50	£1.80
195 - FRONT LEG BDE-613233-00.A13 613233-00	£18.91	£22.69
196 - REAR LEG BDE-655033-00.A1 655033-00	£16.03	£19.24
197 - FOOT BDE-861073-00.A21 861073-00	£10.85	£13.02
198 - CLAMP BDE-N013623.A13 N013623	£5.88	£7.06
199 - KNOB BDE-618362-00.A3 618362-00	£5.88	£7.06
200 - CARRIAGE BOLT BDE-98131-90.A9 98131-90	£1.50	£1.80
201 - CABLE CLAMP BDE-861091-00.A17 861091-00	£1.50	£1.80
202 - SPRING BDE-860112-11.A42 860112-11	£1.50	£1.80
204 - FRAME LH BDE-655032-00.A5 655032-00	£144.10	£172.92
205 - CLIP BDE-615994-00.A2 615994-00	£1.50	£1.80
206 - PUSHROD BDE-860610-01.A62 860610-01	£7.85	£9.42
207 - BOLT BDE-616592-00.A18 616592-00	£7.85	£9.42
208 - TUBE BDE-604537-00.A5 604537-00	£17.48	£20.97
209 - SCREW BDE-942447-00.A52 942447-00	£1.50	£1.80
210 - AXLE STUB BDE-611623-00.A11 611623-00	£12.17	£14.60
211 - WASHER BDE-98197-08.A13 98197-08	£1.50	£1.80
212 - SCREW BDE-330045-50.A1 330045-50	£1.50	£1.80
213 - FENCE BDE-605789-00.A11 605789-00	£14.57	£17.48
214 - FENCE BDE-386616-00.A15 386616-00	£18.91	£22.69
215 - KNOB BDE-147107-00.A34 147107-00	£1.82	£2.19
216 - PLATE BDE-611712-00.A8 611712-00	£2.78	£3.34
217 - BRACKET BDE-611921-00.A7 611921-00	£18.91	£22.69
218 - LEVER LOCK BDE-605794-00.A13 605794-00	£17.48	£20.97
219 - BRACKET BDE-605796-00.A13 605796-00	£1.50	£1.80
220 - CLEVIS PIN BDE-605795-00.A7 605795-00	£1.50	£1.80
221 - WASHER CLAMP BDE-392948-00.A9 392948-00	£1.50	£1.80
222 - POINTER BDE-605798-00.A7 605798-00	£1.50	£1.80
223 - SCREW BDE-330045-05.A113 330045-05	£1.50	£1.80
224 - NUT BDE-612284-00.A2 612284-00	£1.50	£1.80
225 - WASHER BDE-605790-00.A2 605790-00	£1.50	£1.80
226 - GUARD SA BDE-N162338.A3 N162338	£47.08	£56.49
226 - GUARD KIT BDE-N181532.A25 N181532	£110.62	£132.74
227 - GUARD BDE-N060425.A2 N060425	£19.90	£23.88
228 - WHEEL BDE-612441-00.A0 612441-00	£30.08	£36.10
229 - WASHER BDE-941602-00.A138 941602-00	£1.50	£1.80
230 - FOOT BDE-N219072.A1 N219072	£3.30	£3.96
231 - NUT BDE-860083-14.A30 860083-14	£1.50	£1.80
232 - WASHER M8 BDE-860073-03.A465 860073-03	£1.50	£1.80
233 - SCREW BDE-860085-20.A3 860085-20	£1.50	£1.80
234 - SHOE BDE-621653-00.A3 621653-00	£2.26	£2.71
235 - CLAMP BDE-610252-00.A2 610252-00	£2.26	£2.71
236 - SCREW BDE-330045-14.A60 330045-14	£1.50	£1.80
237 - WASHER BDE-623499-00.A10 623499-00	£2.26	£2.71
238 - WASHER BDE-860075-00.A164 860075-00	£1.50	£1.80
239 - IDENTITY LABEL BDE-617108-00.A12 617108-00	£9.41	£11.29
240 - BUSHING BDE-607182-00.A18 607182-00	£1.50	£1.80
241 - WASHER BDE-860078-02.A23 860078-02	£1.50	£1.80
243 - SPRING CLIP BDE-620327-00.A10 620327-00	£1.50	£1.80
244 - IDENTITY LABEL BDE-624373-00.A9 624373-00	£1.50	£1.80
245 - SCREW BDE-860085-20.A2 860085-20	£1.50	£1.80
246 - NUT BDE-860092-05.A9 860092-05	£1.50	£1.80
247 - GUARD PLATE BDE-N162668.A4 N162668	£7.18	£8.62
248 - SCREW BDE-860084-11.A81 860084-11	£1.50	£1.80
249 - NUT BDE-860092-05.A10 860092-05	£1.50	£1.80
250 - SWITCH GB BDE-394375-02P.A31 394375-02P	£14.57	£17.48
251 - NUT BDE-330021-08.A5 330021-08	£1.50	£1.80
252 - WASHER BDE-860075-01.A7 860075-01	£1.50	£1.80
253 - CORD BDE-N060144.A5 N060144	£3.80	£4.56
255 - SPRING BDE-N056486.A6 N056486	£1.50	£1.80
256 - GUARD PLATE BDE-N164679.A4 N164679	£7.18	£8.62
270 - SPACER BDE-626334-00.A11 626334-00	£1.50	£1.80
271 - FASTENER BDE-868303-00.A3 868303-00	£3.80	£4.56
272 - LABEL BDE-626191-00.A13 626191-00	£1.50	£1.80
273 - SCREW BDE-146679-00.A9 146679-00	£1.50	£1.80
275 - FENCE BDE-611713-01.A5 611713-01	£99.47	£119.36
276 - SCREW BDE-949701-05.A14 949701-05	£1.50	£1.80
277 - NUT BDE-860083-15.A92 860083-15	£1.50	£1.80
278 - FIELD CASE BDE-N025823.A8 N025823	£17.48	£20.97
279 - FIELD 230V TO DCODE WK46 2016 GB BDE-N071929.A3 N071929	£74.15	£88.98
280 - BRUSH HOLDER GB BDE-622440-00.A2 622440-00	£3.80	£4.56
281 - SCREW BDE-98094-55.A24 98094-55	£1.50	£1.80
282 - SCREW BDE-330022-16.A6 330022-16	£1.50	£1.80
283 - BAFFLE FAN BDE-391375-00.A3 391375-00	-
284 - ARMATURE 230V GB BDE-N158403.A4 N158403	£144.10	£172.92
287 - BEARING BDE-N110359.A191 N110359	£3.75	£4.50
294 - SLEEVE INSULATING BDE-650234-00.A0 650234-00	£1.50	£1.80
295 - BRUSH CAP BDE-622441-00.A16 622441-00	£1.50	£1.80
296 - MOUNTING BRACKET BDE-391282-00.A17 391282-00	£16.03	£19.24
297 - BRUSH GB BDE-N013883.A7 N013883	£2.26	£2.71
298 - SCREW BDE-330019-34.A19 330019-34	£1.50	£1.80
299 - END CAP BDE-660498-00.A2 660498-00	£1.50	£1.80
300 - BUSHING BDE-605155-00.A12 605155-00	£1.66	£1.99
301 - LEADWIRE BDE-N025819.A8 N025819	£12.17	£14.60
308 - BRUSH LEAD GB BDE-N025820.A0 N025820	£1.50	£1.80
450 - CLAMP SA BDE-630065-00.A14 630065-00	£14.57	£17.48
451 - KNOB LOWER BDE-147107-02.A53 147107-02	£2.26	£2.71
800 - GREASE BDE-5140061-28.A64 5140061-28	£51.90	£62.28
816 - WARNING LABEL BDE-N045702.A2 N045702	£2.78	£3.34
821 - RATING PLATE GB BDE-N381345 N381345	-

Attribute Name	Value
Brand	Dewalt

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Dewalt D27107 Type 6 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Dewalt D27107 Type 6 Combination Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Dewalt D27107 Type 6 Combination Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
