Dewalt DW252-----D Type 1 Mitre Saw Spare Parts

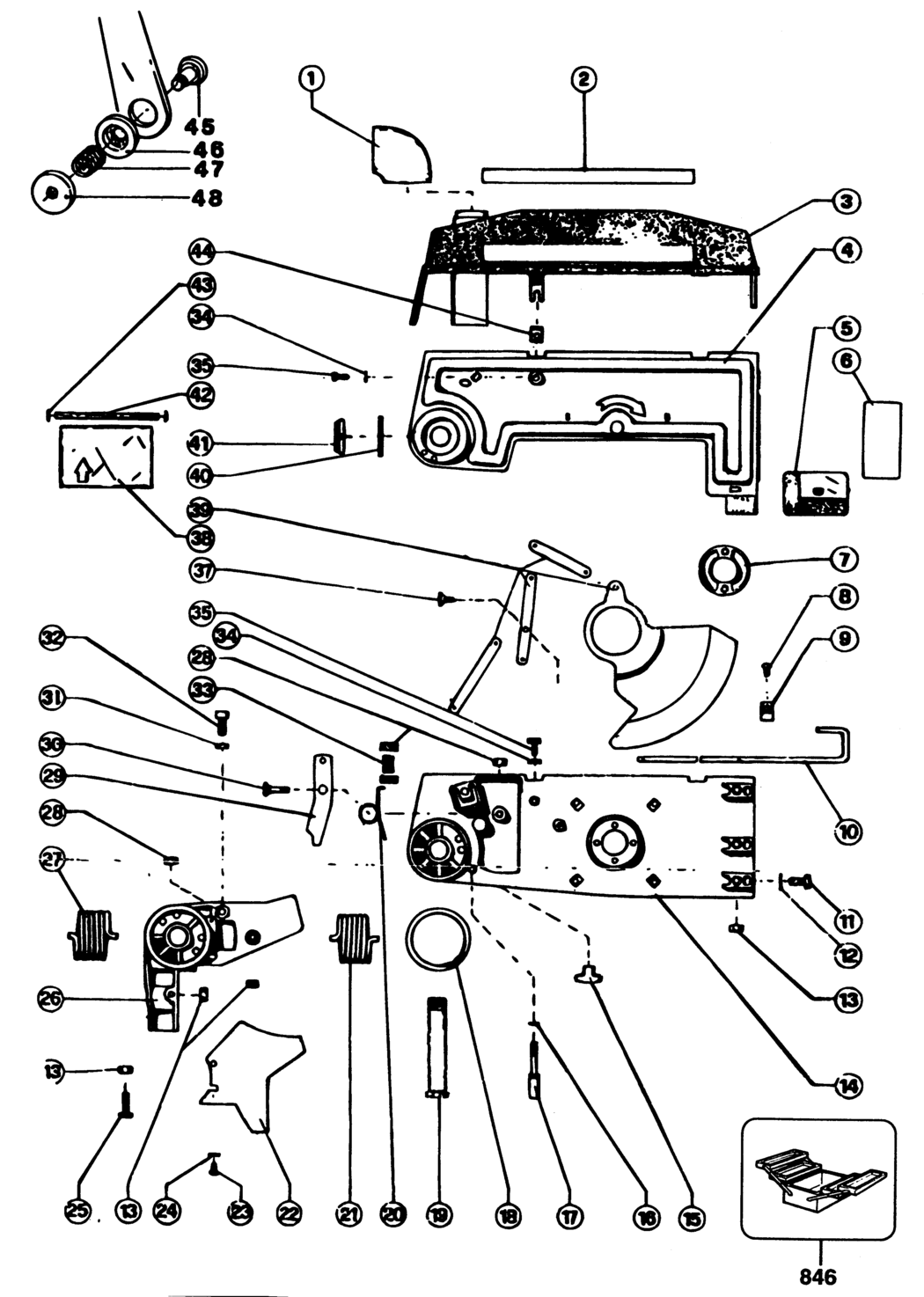

An exploded drawing and spare parts listing for the Dewalt DW252-----D Type 1 Mitre Saw

	Ex VAT	Inc VAT
1 - TUBE EXTRACTION BDE-864095-00.A47 864095-00	£7.85	£9.42
2 - NO LONGER AVAILABLE BDE-000000-00.A47856 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A47857 000000-00	-
4 - NO LONGER AVAILABLE DW250 ONLY BDE-000000-00.A47858 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A47859 000000-00	-
6 - NO LONGER AVAILABLE DW250 ONLY BDE-000000-00.A47860 000000-00	-
7 - HUB BDE-863039-02.A10 863039-02	£1.50	£1.80
8 - SCREW BDE-860094-02.A1 860094-02	£1.50	£1.80
9 - STRAP BDE-123106-00.A2 123106-00	£1.50	£1.80
10 - NO LONGER AVAILABLE BDE-000000-00.A47861 000000-00	-
11 - SCREW BDE-860085-13.A30 860085-13	£1.50	£1.80
12 - WASHER BDE-720959-00.A64 720959-00	£1.50	£1.80
13 - NUT BDE-860083-04.A51 860083-04	£1.50	£1.80
14 - NO LONGER AVAILABLE BDE-000000-00.A47862 000000-00	-
15 - KNOB BDE-946469-00.A17 946469-00	£1.50	£1.80
16 - O RING BDE-943030-00.A5 943030-00	£1.50	£1.80
17 - PIN BDE-863605-00.A4 863605-00	£1.82	£2.19
18 - SHIM BDE-863611-00.A11 863611-00	£1.50	£1.80
19 - PIN BDE-863607-00.A7 863607-00	£14.57	£17.48
20 - SPRING BDE-863604-00.A0 863604-00	£1.42	£1.70
21 - SPRING RH BDE-863590-00.A12 863590-00	£10.85	£13.02
22 - NO LONGER AVAILABLE BDE-000000-00.A47863 000000-00	-
23 - SCREW BDE-860094-06.A27 860094-06	£1.50	£1.80
24 - WASHER BDE-860074-01.A142 860074-01	£1.50	£1.80
25 - SCREW BDE-860085-13.A29 860085-13	£1.50	£1.80
26 - SUPPORT BDE-862182-00.A2 862182-00	-
27 - SPRING LH BDE-863606-00.A8 863606-00	£10.85	£13.02
28 - NUT BDE-860083-04.A50 860083-04	£1.50	£1.80
29 - PLATE BDE-863610-00.A5 863610-00	£1.50	£1.80
30 - SCREW BDE-863602-00.A12 863602-00	£1.50	£1.80
31 - SPACER BDE-863599-02.A15 863599-02	£1.50	£1.80
32 - SCREW BDE-860093-07.A34 860093-07	£1.50	£1.80
33 - PIN BDE-860088-10.A17 860088-10	£1.50	£1.80
34 - WASHER BDE-860073-01.A71 860073-01	£1.50	£1.80
35 - SCREW BDE-860084-21.A16 860084-21	£1.50	£1.80
37 - SCREW BDE-863262-00.A5 863262-00	£1.82	£2.19
38 - NO LONGER AVAILABLE BDE-000000-00.A47864 000000-00	-
39 - GUARD SA DW250 ONLY BDE-864693-04.A0 864693-04	£34.00	£40.80
39 - GUARD SA DW252 ONLY BDE-864693-04.A1 864693-04	£34.00	£40.80
40 - SHIM BDE-949761-02.A8 949761-02	£1.50	£1.80
41 - LOCK NUT BDE-949759-01.A7 949759-01	£2.78	£3.34
42 - NO LONGER AVAILABLE BDE-000000-00.A47865 000000-00	-
43 - WASHER BDE-860077-01.A11 860077-01	£1.50	£1.80
44 - FASTENER BDE-865410-00.A19 865410-00	£1.50	£1.80
45 - LOCK SCREW BDE-863046-00.A1 863046-00	£2.26	£2.71
46 - BUSH BDE-863048-00.A1 863048-00	£1.50	£1.80
47 - SPRING BDE-949722-18.A1 949722-18	£1.50	£1.80
48 - CAP BDE-863047-00.A8 863047-00	£1.50	£1.80
846 - NO LONGER AVAILABLE BDE-000000-00.A47866 000000-00	-

Attribute Name	Value
Brand	Dewalt
