Dremel MS 20 / F013MS2046 / GB 230 Volt Spare Parts

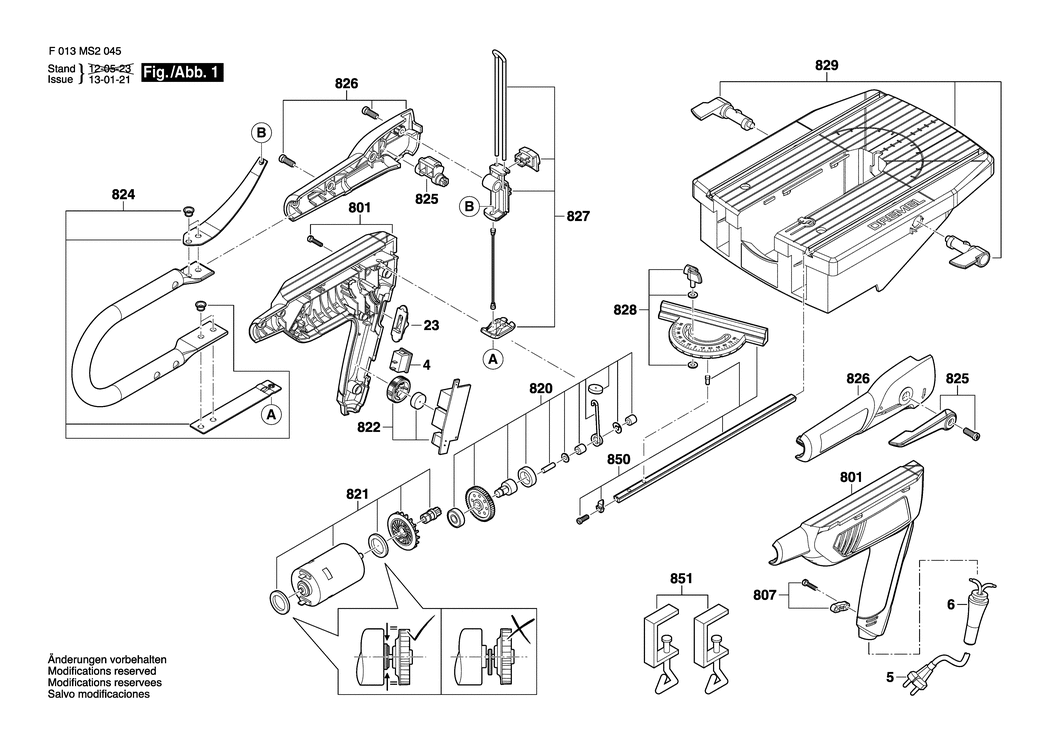

An exploded drawing and listing for the Dremel MS 20 / F013MS2046 / GB 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-2610Z03714.A0 2610Z03714	£3.72	£4.47
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F BSD-1604460124.A117 1604460124	-
6 - CORD GUARD BSD-2610Z03715.A1 2610Z03715	£2.16	£2.59
23 - SWITCH SLIDE BSD-2610Z03713.A1 2610Z03713	£1.75	£2.10
801 - HOUSING BSD-2610Z03721.A0 2610Z03721	£21.52	£25.83
807 - CABLE CLIP BSD-2610Z03716.A1 2610Z03716	£1.75	£2.10
820 - GEAR UNIT BSD-2610Z03710.A0 2610Z03710	£21.68	£26.01
821 - MOTOR BSD-2610Z03711.A1 2610Z03711	£59.53	£71.44
822 - SPEED GOVERNOR BSD-2610Z03712.A0 2610Z03712	£31.64	£37.97
824 - BOW ELEMENT BSD-2610Z03717.A0 2610Z03717	£27.23	£32.68
825 - KNOB BSD-2610Z03718.A1 2610Z03718	£2.80	£3.36
826 - UPPER HOUSING BSD-2610Z03719.A0 2610Z03719	£11.30	£13.56
827 - GUIDING SYSTEM BSD-2610Z03720.A1 2610Z03720	£6.52	£7.83
828 - KNOB BSD-2610Z03722.A1 2610Z03722	£1.75	£2.10
829 - TABLE BSD-2610Z03724.A1 2610Z03724	£40.80	£48.96
850 - ANGLE ATTACHMENT BSD-2610Z03723.A0 2610Z03723	£10.10	£12.12
851 - CLAMP BSD-2610Z03725.A0 2610Z03725	£14.91	£17.89

Attribute Name	Value
Brand	Dremel
