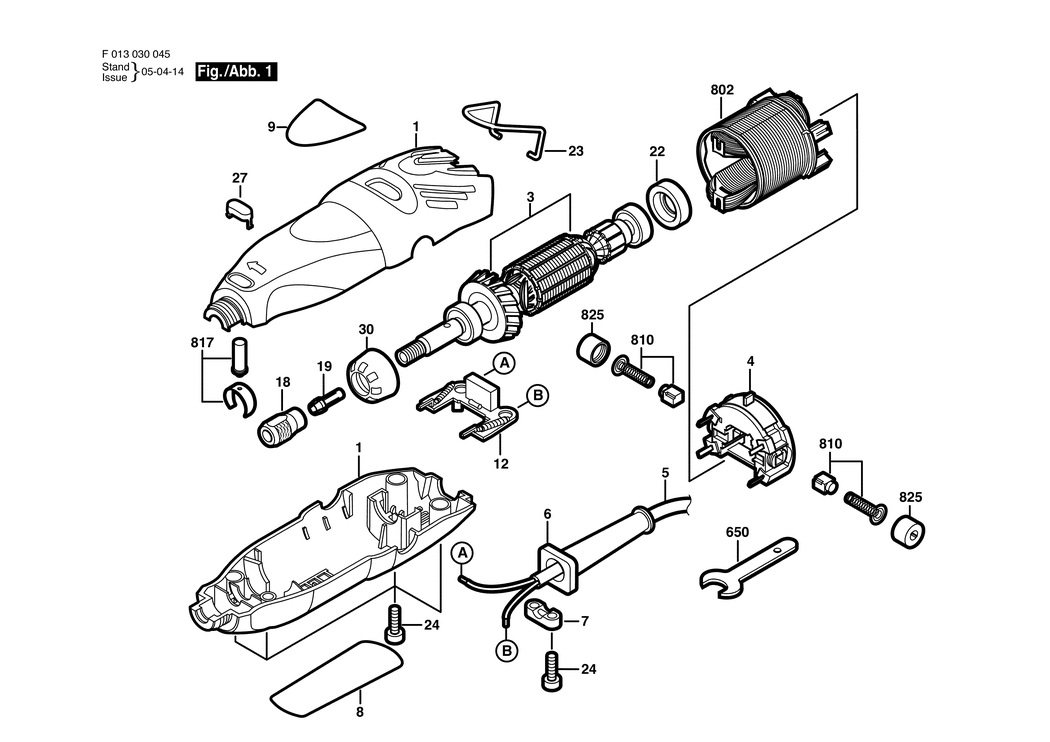

1 - HOUSING ASSEMBLY
BSD-2610004592.A0
2610004592
|
£12.04
|
£14.45
|
|
|
3 - ARMATURE 230V
BSD-2610941201.A10
2610941201
|
£31.64
|
£37.97
|
|
|
4 - ON-OFF SWITCH
BSD-2610925774.A1
2610925774
|
£21.68
|
£26.01
|
|
|
5 - POWER SUPPLY CORD EU 230V 2m 2 x 0.75mm H05 VV-F
BSD-2615302694.A2
2615302694
|
£14.91
|
£17.89
|
|
|
6 - GROMMET
BSD-2610360176.A471
2610360176
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2615650007.A31
2615650007
|
£2.61
|
£3.13
|
|
|
8 - NAMEPLATE
BSD-2610925775.A0
2610925775
|
£3.72
|
£4.47
|
|
|
9 - LABEL
BSD-2610925776.A0
2610925776
|
-
|
|
|
|
12 - CONDENSER
BSD-2615302683.A7
2615302683
|
£4.26
|
£5.11
|
|
|
18 - NUT
BSD-2610014582.A31
2610014582
|
£2.49
|
£2.99
|
|
|
19 - CONTOUR SLEEVE 1/8
BSD-2615110480.A34
2615110480
|
£3.72
|
£4.47
|
|
|
22 - INSULATOR
BSD-2615297373.A11
2615297373
|
£1.75
|
£2.10
|
|
|
23 - PICKUP CLIP
BSD-2610925720.A0
2610925720
|
£2.61
|
£3.13
|
|
|
24 - CROSS RECESSED-HEAD SCREW
BSD-2615294035.A8
2615294035
|
£1.75
|
£2.10
|
|
|
27 - COVER
BSD-2610925721.A1
2610925721
|
£2.80
|
£3.36
|
|
|
30 - COVER
BSD-2610919754.A2
2610919754
|
£2.16
|
£2.59
|
|
|
650 - CHUCK WRENCH
BSD-2610930692.A27
2610930692
|
£2.61
|
£3.13
|
|
|
802 - FIELD 230V
BSD-2615298792.A6
2615298792
|
£16.41
|
£19.69
|
|
|
810 - CARBON-BRUSH SET
BSD-2615298790.A16
2615298790
|
£7.36
|
£8.83
|
|
|
817 - SHAFT LOCK
BSD-2610009839.A4
2610009839
|
£13.41
|
£16.09
|
|
|
825 - SEALING CAP
BSD-2610913683.A6
2610913683
|
£4.26
|
£5.11
|
|
