Dremel 395 / F0130395DK / EU 230 Volt Spare Parts

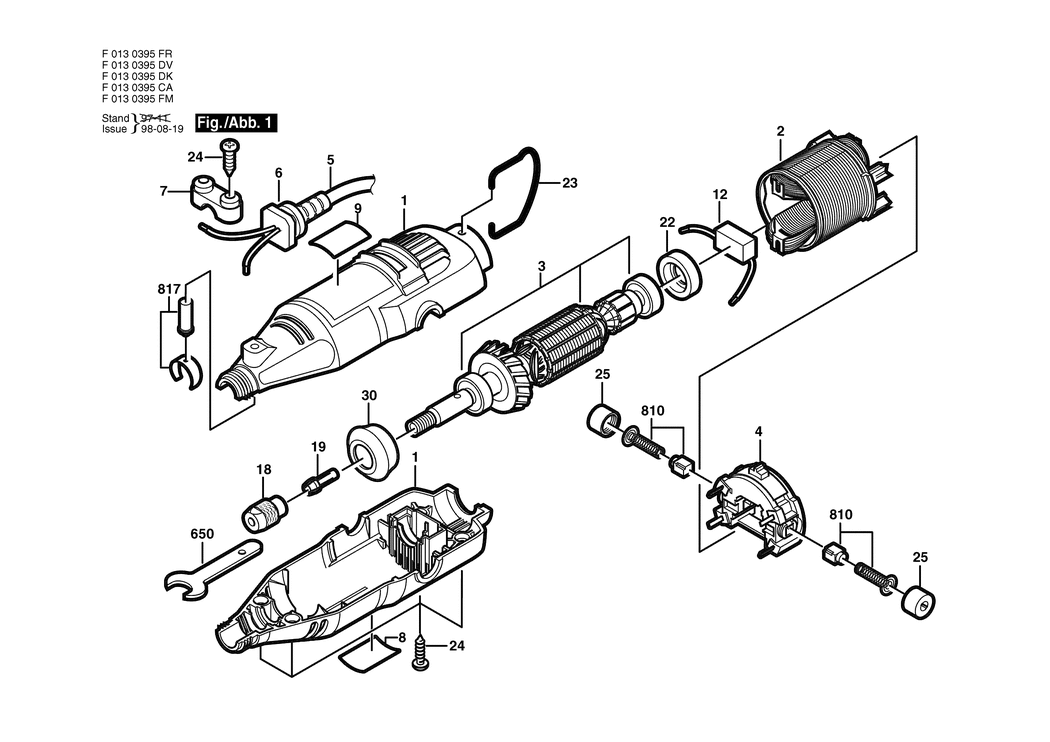

An exploded drawing and listing for the Dremel 395 / F0130395DK / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SET BSD-2610925248.A0 2610925248	£13.12	£15.75
2 - FIELD 230V BSD-2615298792.A21 2615298792	£16.41	£19.69
3 - ARMATURE 230V BSD-2610941201.A13 2610941201	£31.64	£37.97
4 - SWITCH BSD-2615298786.A0 2615298786	£21.68	£26.01
5 - POWER SUPPLY CORD EU 230V 2m 2 x 0.75mm H05 VV-F BSD-2615302694.A10 2615302694	£14.91	£17.89
6 - GROMMET BSD-2610360176.A452 2610360176	-
7 - CABLE CLIP BSD-2615650007.A6 2615650007	£2.61	£3.13
8 - NAMEPLATE BSD-2615302289.A0 2615302289	-
9 - REFERENCE PLATE BSD-2615302291.A1 2615302291	-
12 - CONTROL UNIT BSD-2610999112.A4 2610999112	-
18 - NUT BSD-2610014582.A13 2610014582	£2.49	£2.99
19 - CONTOUR SLEEVE 1/8 BSD-2615110480.A8 2615110480	£3.72	£4.47
19 - CONTOUR SLEEVE 3/32 BSD-2615000481.A11 2615000481	-
19 - CONTOUR SLEEVE 1/16 BSD-2615000482.A8 2615000482	-
19 - CONTOUR SLEEVE 1/32 BSD-2615000483.A11 2615000483	-
22 - INSULATOR BSD-2615297373.A2 2615297373	£1.75	£2.10
23 - PICKUP CLIP BSD-2615294043.A7 2615294043	£3.72	£4.47
24 - CROSS RECESSED-HEAD SCREW BSD-2615294035.A13 2615294035	£1.75	£2.10
25 - SEALING CAP BSD-2615302217.A3 2615302217	£4.26	£5.11
30 - RETAINING SNAP RING BSD-2610925247.A12 2610925247	£2.16	£2.59
650 - CHUCK WRENCH BSD-2610930692.A12 2610930692	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-2615298790.A3 2615298790	£7.36	£8.83
817 - PARTS SET BSD-2615297356.A12 2615297356	£3.54	£4.25

Attribute Name	Value
Brand	Dremel
