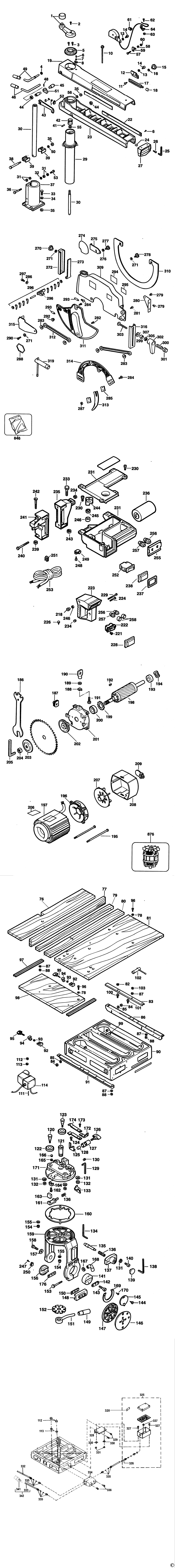

An exploded drawing and spare parts listing for the Elu RAS1251 Type 1 Radial Arm Saw
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16524 000000-00 -
2 - SCREW BDE-934401-00.A28 934401-00 £1.50 £1.80
3 - SCREW BDE-860093-06.A83 860093-06 £1.50 £1.80
4 - WASHER SPACER BDE-860073-06.A19 860073-06 £1.50 £1.80
5 - CAP BDE-860784-00.A57 860784-00 £7.85 £9.42
6 - SCREW BDE-860531-00.A29 860531-00 £1.50 £1.80
7 - WASHER BDE-860073-00.A133 860073-00 £1.50 £1.80
8 - POINTER BDE-860237-00.A45 860237-00 £3.80 £4.56
10 - SPRING BDE-863723-00.A5 863723-00 -
11 - SCREW BDE-860301-00.A70 860301-00 £1.50 £1.80
12 - SUPPORT BDE-860787-90.A56 860787-90 £5.72 £6.87
13 - WASHER BDE-860074-03.A267 860074-03 £1.50 £1.80
14 - SCREW GB BDE-860093-14.A26 860093-14 £1.50 £1.80
15 - KNOB BDE-946469-01.A74 946469-01 -
16 - WASHER BDE-720959-00.A104 720959-00 £1.50 £1.80
17 - ARM BDE-860852-90.A14 860852-90 -
18 - STOP RUBBER BDE-860786-00.A0 860786-00 £1.50 £1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A16529 000000-00 -
22 - SCALE GB BDE-863273-00.A3 863273-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A16530 000000-00 -
24 - BUMPER BDE-860429-00.A39 860429-00 £1.50 £1.80
25 - HEX KEY 5 MM BDE-930574-00.A4 930574-00 £1.50 £1.80
26 - SCREW.TEMP BDE-860093-05.A21 860093-05 £1.50 £1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A16531 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A16532 000000-00 -
30 - TUBE ELEVATING SA BDE-860791-00.A0 860791-00 £93.62 £112.35
31 - NUT BDE-860083-04.A178 860083-04 £1.50 £1.80
32 - WASHER M8 BDE-860073-03.A411 860073-03 £1.50 £1.80
33 - SCREW BDE-860085-05.A55 860085-05 £1.82 £2.19
34 - WASHER BDE-860073-04.A37 860073-04 £1.50 £1.80
35 - NUT RH BDE-860083-05.A114 860083-05 £1.50 £1.80
36 - SCREW BDE-860085-02.A9 860085-02 £1.82 £2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A16533 000000-00 -
38 - SCREW BDE-860086-00.A57 860086-00 £3.80 £4.56
39 - SPACER BDE-860065-00.A45 860065-00 £1.82 £2.19
41 - PIN BDE-860096-06.A21 860096-06 £1.50 £1.80
42 - PINION BDE-860831-90.A34 860831-90 £18.91 £22.69
43 - WRENCH BDE-860423-00.A8 860423-00 £4.69 £5.63
44 - NUT BDE-860232-00.A20 860232-00 £3.80 £4.56
45 - SCREW BDE-860231-00.A40 860231-00 £14.57 £17.48
46 - NO LONGER AVAILABLE BDE-000000-00.A16534 000000-00 -
48 - NO LONGER AVAILABLE BDE-000000-00.A16535 000000-00 -
49 - LEVER BDE-860795-00.A8 860795-00 £18.91 £22.69
50 - WASHER BDE-860074-04.A66 860074-04 £1.50 £1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A16536 000000-00 -
52 - BRACKET BDE-860843-02.A37 860843-02 £1.50 £1.80
53 - SCREW BDE-949853-11.A9 949853-11 £37.35 £44.82
55 - WASHER BDE-860226-01.A34 860226-01 £1.50 £1.80
56 - WASHER BDE-860802-90.A34 860802-90 £1.50 £1.80
76 - TABLE BDE-864944-00.A6 864944-00 £33.13 £39.76
77 - GUIDE BDE-864914-00.A2 864914-00 £18.42 £22.10
78 - WASHER M8 BDE-860073-03.A412 860073-03 £1.50 £1.80
79 - NO LONGER AVAILABLE GB BDE-000000-00.A16537 000000-00 -
80 - NO LONGER AVAILABLE BDE-000000-00.A16538 000000-00 -
81 - TABLE BDE-864943-00.A8 864943-00 £57.22 £68.66
82 - QUICKLOCK BDE-860077-02.A11 860077-02 £1.42 £1.70
83 - BAR BDE-860007-00.A5 860007-00 -
84 - NUT RH BDE-860083-05.A111 860083-05 £1.50 £1.80
85 - WASHER BDE-860074-04.A69 860074-04 £1.50 £1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A16539 000000-00 -
87 - WASHER BDE-860074-03.A259 860074-03 £1.50 £1.80
88 - NUT BDE-860083-04.A182 860083-04 £1.50 £1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A16540 000000-00 -
91 - NO LONGER AVAILABLE BDE-000000-00.A16541 000000-00 -
92 - SLIDER BDE-860069-00.A12 860069-00 -
93 - NUT BDE-860083-03.A278 860083-03 £1.50 £1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A16542 000000-00 -
95 - KNOB BDE-863310-00.A59 863310-00 -
96 - NO LONGER AVAILABLE GB BDE-000000-00.A16543 000000-00 -
97 - SUPPORT BRACKET BDE-863130-04.A11 863130-04 £10.85 £13.02
98 - NO LONGER AVAILABLE BDE-000000-00.A16544 000000-00 -
99 - BOLT BDE-860085-00.A3 860085-00 £1.42 £1.70
100 - STUD BDE-760565-01.A7 760565-01 -
101 - NO LONGER AVAILABLE BDE-000000-00.A16545 000000-00 -
102 - SPANNER BOX BDE-869235-00.A49 869235-00 £17.48 £20.97
103 - NUT BDE-860083-15.A102 860083-15 £1.50 £1.80
120 - SHAFT BDE-760421-00.A19 760421-00 £7.85 £9.42
121 - PIVOT SHAFT BDE-860123-00.A18 860123-00 -
122 - BEARING BDE-860154-00.A20 860154-00 £16.03 £19.24
123 - SHAFT BDE-760417-00.A44 760417-00 £10.85 £13.02
124 - SCREW BDE-949894-06.A76 949894-06 £1.50 £1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A16546 000000-00 -
126 - KNOB BDE-862427-00.A30 862427-00 £1.50 £1.80
127 - CLAMP BDE-860121-00.A38 860121-00 -
128 - NO LONGER AVAILABLE BDE-000000-00.A16547 000000-00 -
129 - KEY BDE-938539-00.A55 938539-00 £1.50 £1.80
130 - SCREW BDE-860088-27.A46 860088-27 £1.50 £1.80
131 - WASHER BDE-860074-03.A260 860074-03 £1.50 £1.80
132 - NUT BDE-860083-08.A39 860083-08 £1.50 £1.80
133 - COVER BDE-860817-01.A23 860817-01 £1.42 £1.70
134 - WRENCH 4 MM BDE-949882-01.A71 949882-01 £1.50 £1.80
135 - PIN BDE-863977-00.A28 863977-00 £14.57 £17.48
136 - SPRING BDE-860112-11.A29 860112-11 £1.50 £1.80
137 - SUPPORT BDE-860835-00.A35 860835-00 £16.03 £19.24
138 - WRENCH 6 MM BDE-860098-04.A82 860098-04 £1.50 £1.80
139 - KNOB BDE-946469-01.A71 946469-01 -
140 - SCREW BDE-860093-00.A20 860093-00 £1.50 £1.80
141 - FRONT TRUNNION BDE-860119-01.A41 860119-01 £38.80 £46.56
142 - PLATE BDE-860120-00.A19 860120-00 £1.82 £2.19
143 - SCREW BDE-860093-18.A28 860093-18 -
144 - SCREW BDE-860531-00.A27 860531-00 £1.50 £1.80
145 - POINTER BDE-862721-01.A32 862721-01 £5.88 £7.06
146 - PLATE BDE-860830-00.A24 860830-00 -
147 - SHIELD BDE-860827-00.A32 860827-00 £14.57 £17.48
148 - PLATE BDE-860828-00.A16 860828-00 -
149 - KNOB BDE-860796-01.A51 860796-01 -
150 - PLATE BDE-860809-00.A18 860809-00 -
151 - NO LONGER AVAILABLE BDE-000000-00.A16548 000000-00 -
152 - NO LONGER AVAILABLE BDE-000000-00.A16549 000000-00 -
153 - SCREW BDE-860086-11.A49 860086-11 £1.50 £1.80
154 - NUT BDE-860092-00.A158 860092-00 £1.50 £1.80
155 - WASHER BDE-720959-00.A105 720959-00 £1.50 £1.80
156 - BACKPLATE BDE-860822-00.A15 860822-00 -
157 - WASHER BDE-941602-00.A194 941602-00 £1.50 £1.80
158 - SCREW BDE-860093-00.A19 860093-00 £1.50 £1.80
159 - YOKE BDE-860823-02.A20 860823-02 -
160 - RING SA BDE-860824-00.A32 860824-00 £55.30 £66.36
161 - CATCH BDE-860818-04.A12 860818-04 -
162 - SCREW BDE-860085-06.A14 860085-06 £1.42 £1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A16550 000000-00 -
164 - CATCH BDE-860816-00.A29 860816-00 £1.42 £1.70
165 - WASHER BDE-860073-01.A117 860073-01 £1.50 £1.80
166 - NUT M5 BDE-860092-03.A15 860092-03 £1.50 £1.80
167 - WASHER BDE-860074-03.A258 860074-03 £1.50 £1.80
168 - CLAMP BDE-860825-00.A27 860825-00 -
169 - POINTER BDE-860829-00.A37 860829-00 £5.88 £7.06
170 - SCREW BDE-860205-06.A34 860205-06 £1.50 £1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A16551 000000-00 -
176 - PLATE BDE-863010-00.A5 863010-00 -
186 - NO LONGER AVAILABLE BDE-000000-00.A16552 000000-00 -
187 - BUSHING BDE-860447-00.A22 860447-00 £7.85 £9.42
188 - PLATE BDE-860807-00.A18 860807-00 £1.78 £2.13
189 - WASHER M8 BDE-860073-03.A400 860073-03 £1.50 £1.80
190 - NUT BDE-860655-01.A6 860655-01 -
191 - SCREW BDE-860085-19.A91 860085-19 £1.50 £1.80
192 - KEY BDE-860318-01.A39 860318-01 £1.50 £1.80
193 - BEARING BDE-868768-07.A67 868768-07 £7.85 £9.42
194 - RING BDE-860080-02.A72 860080-02 £1.50 £1.80
195 - ROD BDE-860446-00.A27 860446-00 £1.50 £1.80
196 - END CAP BDE-860443-00.A34 860443-00 £4.69 £5.63
197 - STATOR BDE-868413-00.A15 868413-00 £293.97 £352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A16553 000000-00 -
199 - RING BDE-860806-00.A15 860806-00 £1.50 £1.80
200 - BEARING BDE-861721-12.A62 861721-12 £7.85 £9.42
201 - HOUSING BDE-860808-00.A15 860808-00 -
202 - INNER FLANGE BDE-863266-00.A5 863266-00 -
203 - OUTER FLANGE BDE-861241-00.A25 861241-00 -
204 - NUT BDE-860126-01.A17 860126-01 -
205 - HEX KEY 8 MM BDE-860098-05.A68 860098-05 £3.30 £3.96
206 - NO LONGER AVAILABLE GB BDE-000000-00.A16554 000000-00 -
207 - FAN BDE-860444-00.A33 860444-00 £4.69 £5.63
208 - COVER BDE-860445-00.A46 860445-00 £7.18 £8.62
230 - SCREW BDE-930076-00.A74 930076-00 £1.50 £1.80
231 - HANDLE SA BDE-868649-00.A9 868649-00 £19.90 £23.88
233 - SCREW BDE-860093-00.A21 860093-00 £1.50 £1.80
234 - NUT BDE-860083-02.A106 860083-02 £1.50 £1.80
235 - HANDLE RH BDE-863318-00.A2 863318-00 -
236 - CAPACITOR BDE-949772-28.A9 949772-28 -
237 - PLATE BDE-863198-00.A8 863198-00 -
238 - CAP BDE-863849-00.A12 863849-00 -
239 - NUT BDE-860083-03.A276 860083-03 £1.50 £1.80
240 - SCREW BDE-949886-10.A11 949886-10 £1.78 £2.13
241 - HANDLE LH BDE-863319-00.A18 863319-00 -
242 - SCREW BDE-860093-20.A22 860093-20 £1.50 £1.80
243 - NUT BDE-860083-04.A183 860083-04 £1.50 £1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A16555 000000-00 -
245 - BLOCK BDE-863111-00.A8 863111-00 -
246 - NUT BDE-944590-00.A87 944590-00 £1.50 £1.80
247 - SCREW BDE-860094-03.A204 860094-03 £1.50 £1.80
248 - SCREW BDE-860084-20.A112 860084-20 £1.50 £1.80
249 - CLAMP BDE-860843-01.A27 860843-01 £1.50 £1.80
250 - BRACKET BDE-860843-02.A32 860843-02 £1.50 £1.80
251 - NO LONGER AVAILABLE GB BDE-000000-00.A16556 000000-00 -
252 - SWITCH SA GB BDE-861385-04.A8 861385-04 £80.98 £97.18
253 - CABLE SA GB BDE-949863-23.A2 949863-23 £74.15 £88.98
270 - KNOB BDE-946469-01.A70 946469-01 -
271 - WASHER BDE-860075-00.A128 860075-00 £1.50 £1.80
272 - SUPPORT BDE-863709-00.A16 863709-00 -
273 - PROTECTOR BDE-863703-00.A48 863703-00 -
274 - TUBE EXTRACTION BDE-864095-00.A72 864095-00 £7.85 £9.42
275 - SQUARE BDE-863708-00.A51 863708-00 £10.85 £13.02
276 - WASHER BDE-860073-01.A118 860073-01 £1.50 £1.80
277 - KNOB BDE-861842-01.A39 861842-01 £1.50 £1.80
279 - SCREW BDE-760273-00.A28 760273-00 £1.50 £1.80
280 - BRACKET BDE-863707-01.A20 863707-01 £9.41 £11.29
281 - SCREW BDE-760998-00.A125 760998-00 £1.50 £1.80
282 - SCREW BDE-249412-20.A76 249412-20 £1.50 £1.80
283 - WASHER BDE-864053-00.A59 864053-00 £3.80 £4.56
284 - SCREW BDE-860301-00.A69 860301-00 £1.50 £1.80
285 - SHIM BDE-864086-00.A1 864086-00 £3.70 £4.44
286 - WASHER BDE-860074-02.A104 860074-02 £1.50 £1.80
287 - NUT BDE-860083-03.A277 860083-03 £1.50 £1.80
288 - NO LONGER AVAILABLE BDE-000000-00.A16557 000000-00 -
290 - SCREW BDE-941518-00.A63 941518-00 £1.50 £1.80
292 - BUSH BDE-863705-00.A21 863705-00 £1.82 £2.19
293 - ROLLER BDE-864054-00.A15 864054-00 £1.82 £2.19
296 - KICK BACK SA GB BDE-864814-01.A14 864814-01 -
297 - SCREW BDE-760219-00.A25 760219-00 £1.50 £1.80
299 - SPACER BDE-863599-02.A5 863599-02 £1.50 £1.80
300 - SPRING BDE-760483-00.A28 760483-00 £1.50 £1.80
301 - CAP BDE-863073-00.A27 863073-00 £4.69 £5.63
302 - LEVER BDE-863320-00.A3 863320-00 £5.88 £7.06
303 - SCREW BDE-949891-03.A5 949891-03 £1.50 £1.80
305 - NUT BDE-860083-15.A103 860083-15 £1.50 £1.80
307 - WASHER M8 BDE-860073-03.A403 860073-03 £1.50 £1.80
309 - NO LONGER AVAILABLE BDE-000000-00.A16558 000000-00 -
310 - PROTECTOR BDE-863706-01.A19 863706-01 £10.85 £13.02
311 - GUARD BDE-862417-00.A10 862417-00 £10.85 £13.02
312 - LEVER BDE-862084-01.A15 862084-01 -
313 - NO LONGER AVAILABLE GB BDE-000000-00.A16559 000000-00 -
314 - BRACKET BDE-862083-00.A14 862083-00 -
315 - BRACKET BDE-863775-01.A12 863775-01 -
316 - PROTECTOR BDE-863434-00.A12 863434-00 -
846 - NO LONGER AVAILABLE BDE-000000-00.A16560 000000-00 -
876 - NO LONGER AVAILABLE BDE-000000-00.A16561 000000-00 -

Recently Viewed


x
Powered by kartris
