Elu RAS1251 Type 2 France Radial Arm Saw Spare Parts

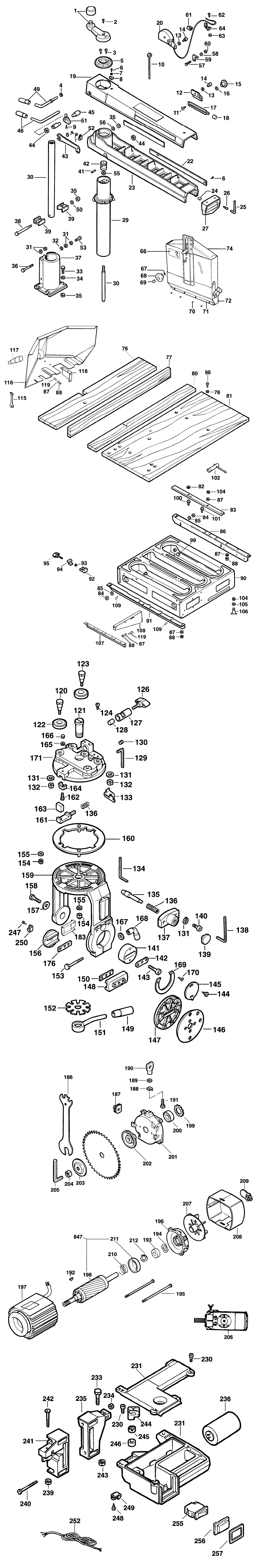

An exploded drawing and spare parts listing for the Elu RAS1251 Type 2 France Radial Arm Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A49709 000000-00	-
2 - SCREW BDE-934401-00.A45 934401-00	£1.50	£1.80
3 - SCREW BDE-860093-06.A45 860093-06	£1.50	£1.80
4 - WASHER SPACER BDE-860073-06.A5 860073-06	£1.50	£1.80
5 - CAP BDE-860784-00.A40 860784-00	£7.85	£9.42
6 - SCREW BDE-860531-00.A8 860531-00	£1.50	£1.80
7 - WASHER BDE-860073-00.A168 860073-00	£1.50	£1.80
8 - POINTER BDE-860237-00.A67 860237-00	£3.80	£4.56
9 - SCREW BDE-860085-06.A59 860085-06	£1.42	£1.70
10 - SPRING BDE-863723-00.A0 863723-00	-
11 - SCREW BDE-860301-00.A36 860301-00	£1.50	£1.80
12 - SUPPORT BDE-860787-90.A40 860787-90	£5.72	£6.87
13 - WASHER BDE-860074-03.A387 860074-03	£1.50	£1.80
14 - SCREW BDE-860093-07.A39 860093-07	£1.50	£1.80
15 - KNOB BDE-946469-01.A98 946469-01	-
16 - WASHER BDE-720959-00.A48 720959-00	£1.50	£1.80
17 - NO LONGER AVAILABLE BDE-000000-00.A49710 000000-00	-
18 - STOP RUBBER BDE-860786-00.A21 860786-00	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A49713 000000-00	-
20 - FSO REPAIR KIT BDE-N152003.A10 N152003	£84.42	£101.30
22 - NO LONGER AVAILABLE BDE-000000-00.A49711 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A49712 000000-00	-
24 - BUMPER BDE-860429-00.A19 860429-00	£1.50	£1.80
25 - HEX KEY 5 MM BDE-930574-00.A43 930574-00	£1.50	£1.80
26 - SCREW.TEMP BDE-860093-05.A43 860093-05	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A49714 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A49715 000000-00	-
30 - TUBE ELEVATING SA BDE-860791-00.A17 860791-00	£93.62	£112.35
31 - NUT BDE-860083-04.A114 860083-04	£1.50	£1.80
32 - WASHER M8 BDE-860073-03.A541 860073-03	£1.50	£1.80
33 - SCREW BDE-860085-05.A34 860085-05	£1.82	£2.19
34 - WASHER BDE-860073-04.A14 860073-04	£1.50	£1.80
35 - NUT RH BDE-860083-05.A144 860083-05	£1.50	£1.80
36 - SCREW BDE-860085-02.A34 860085-02	£1.82	£2.19
37 - NO LONGER AVAILABLE BDE-000000-00.A49716 000000-00	-
38 - SCREW BDE-860086-00.A43 860086-00	£3.80	£4.56
39 - SPACER BDE-860065-00.A60 860065-00	£1.82	£2.19
41 - PIN BDE-860096-06.A8 860096-06	£1.50	£1.80
42 - PINION BDE-860831-90.A52 860831-90	£18.91	£22.69
43 - WRENCH BDE-860423-00.A20 860423-00	£4.69	£5.63
44 - NUT BDE-860232-00.A5 860232-00	£3.80	£4.56
45 - SCREW BDE-860231-00.A55 860231-00	£14.57	£17.48
46 - LEVER BDE-864723-01.A29 864723-01	£34.00	£40.80
49 - LEVER BDE-860795-00.A24 860795-00	£18.91	£22.69
50 - WASHER BDE-860074-04.A28 860074-04	£1.50	£1.80
51 - LATCH BDE-864672-01.A13 864672-01	-
52 - BRACKET BDE-860843-02.A65 860843-02	£1.50	£1.80
53 - SCREW BDE-949853-11.A25 949853-11	£37.35	£44.82
55 - WASHER BDE-860226-01.A45 860226-01	£1.50	£1.80
56 - WASHER BDE-860802-90.A49 860802-90	£1.50	£1.80
57 - SCREW BDE-860301-00.A38 860301-00	£1.50	£1.80
58 - WASHER BDE-720959-00.A47 720959-00	£1.50	£1.80
59 - CATCH BDE-860858-00.A0 860858-00	-
60 - NUT BDE-860083-03.A359 860083-03	£1.50	£1.80
61 - CLAMP BDE-860521-00.A27 860521-00	-
62 - SCREW BDE-860090-02.A34 860090-02	-
63 - NUT BDE-860083-01.A65 860083-01	£1.50	£1.80
64 - NO LONGER AVAILABLE BDE-000000-00.A49717 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A49718 000000-00	-
67 - WASHER BDE-720959-00.A46 720959-00	£1.50	£1.80
68 - NO LONGER AVAILABLE BDE-000000-00.A49719 000000-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A49720 000000-00	-
70 - SCREW BDE-860084-05.A7 860084-05	£1.50	£1.80
71 - NO LONGER AVAILABLE BDE-000000-00.A49721 000000-00	-
72 - NO LONGER AVAILABLE BDE-000000-00.A49722 000000-00	-
74 - NO LONGER AVAILABLE BDE-000000-00.A49723 000000-00	-
76 - NO LONGER AVAILABLE BDE-000000-00.A49724 000000-00	-
77 - NO LONGER AVAILABLE BDE-000000-00.A49725 000000-00	-
78 - WASHER M8 BDE-860073-03.A540 860073-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A49726 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A49727 000000-00	-
82 - QUICKLOCK BDE-860077-02.A16 860077-02	£1.42	£1.70
83 - BAR BDE-860007-00.A1 860007-00	-
84 - NUT RH BDE-860083-05.A145 860083-05	£1.50	£1.80
85 - WASHER BDE-860074-04.A27 860074-04	£1.50	£1.80
86 - NO LONGER AVAILABLE BDE-000000-00.A49728 000000-00	-
87 - WASHER BDE-860074-03.A388 860074-03	£1.50	£1.80
88 - NUT BDE-860083-04.A113 860083-04	£1.50	£1.80
90 - NO LONGER AVAILABLE BDE-000000-00.A49729 000000-00	-
91 - NO LONGER AVAILABLE BDE-000000-00.A49730 000000-00	-
92 - SLIDER BDE-860069-00.A0 860069-00	-
93 - NUT BDE-860083-03.A358 860083-03	£1.50	£1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A49731 000000-00	-
95 - KNOB BDE-863310-00.A41 863310-00	-
96 - SCREW BDE-949703-01.A29 949703-01	£1.50	£1.80
99 - BOLT BDE-860085-00.A12 860085-00	£1.42	£1.70
100 - STUD BDE-760565-01.A12 760565-01	-
101 - NO LONGER AVAILABLE BDE-000000-00.A49732 000000-00	-
102 - SPANNER BOX BDE-869235-00.A81 869235-00	£17.48	£20.97
104 - NUT BDE-860083-04.A117 860083-04	£1.50	£1.80
105 - WASHER M8 BDE-860073-03.A543 860073-03	£1.50	£1.80
106 - FOOT BDE-941614-00.A25 941614-00	£1.50	£1.80
107 - NO LONGER AVAILABLE BDE-000000-00.A49733 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A49734 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A49735 000000-00	-
115 - SPANNER 10-13MM BDE-949751-07.A14 949751-07	£3.80	£4.56
116 - NO LONGER AVAILABLE BDE-000000-00.A49736 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A49737 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A49738 000000-00	-
119 - SCREW BDE-860085-04.A56 860085-04	£1.50	£1.80
120 - SHAFT BDE-760421-00.A7 760421-00	£7.85	£9.42
121 - PIVOT SHAFT BDE-860123-00.A1 860123-00	-
122 - BEARING BDE-860154-00.A7 860154-00	£16.03	£19.24
123 - SHAFT BDE-760417-00.A56 760417-00	£10.85	£13.02
126 - KNOB BDE-862427-00.A10 862427-00	£1.50	£1.80
127 - CLAMP BDE-860121-00.A53 860121-00	-
128 - NO LONGER AVAILABLE BDE-000000-00.A49739 000000-00	-
129 - KEY BDE-938539-00.A75 938539-00	£1.50	£1.80
130 - SCREW BDE-941880-00.A65 941880-00	£1.50	£1.80
131 - WASHER BDE-860074-03.A390 860074-03	£1.50	£1.80
132 - NUT BDE-860083-08.A54 860083-08	£1.50	£1.80
133 - COVER BDE-860817-01.A8 860817-01	£1.42	£1.70
134 - WRENCH 4 MM BDE-949882-01.A85 949882-01	£1.50	£1.80
135 - PIN BDE-863977-00.A5 863977-00	£14.57	£17.48
136 - SPRING BDE-860112-11.A1 860112-11	£1.50	£1.80
137 - SUPPORT BDE-860835-00.A10 860835-00	£16.03	£19.24
138 - WRENCH 6 MM BDE-860098-04.A27 860098-04	£1.50	£1.80
139 - KNOB BDE-946469-01.A100 946469-01	-
140 - SCREW BDE-860093-00.A90 860093-00	£1.50	£1.80
141 - FRONT TRUNNION BDE-860119-01.A57 860119-01	£38.80	£46.56
142 - PLATE BDE-860120-00.A1 860120-00	£1.82	£2.19
143 - SCREW BDE-860093-18.A42 860093-18	-
144 - SCREW BDE-860531-00.A9 860531-00	£1.50	£1.80
145 - POINTER BDE-862721-01.A47 862721-01	£5.88	£7.06
146 - PLATE BDE-860830-00.A7 860830-00	-
147 - SHIELD BDE-860827-00.A52 860827-00	£14.57	£17.48
148 - PLATE BDE-860828-00.A4 860828-00	-
149 - KNOB BDE-860796-01.A35 860796-01	-
150 - PLATE BDE-860809-00.A6 860809-00	-
151 - NO LONGER AVAILABLE BDE-000000-00.A49740 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A49741 000000-00	-
153 - SCREW BDE-860086-11.A33 860086-11	£1.50	£1.80
154 - NUT BDE-860092-00.A117 860092-00	£1.50	£1.80
155 - WASHER BDE-720959-00.A50 720959-00	£1.50	£1.80
156 - BACKPLATE BDE-860822-00.A26 860822-00	-
157 - WASHER BDE-941602-00.A124 941602-00	£1.50	£1.80
158 - SCREW BDE-860093-00.A89 860093-00	£1.50	£1.80
159 - YOKE BDE-860823-02.A6 860823-02	-
160 - RING SA BDE-860824-00.A49 860824-00	£55.30	£66.36
161 - NO LONGER AVAILABLE BDE-000000-00.A49742 000000-00	-
162 - SCREW BDE-860085-06.A60 860085-06	£1.42	£1.70
163 - NO LONGER AVAILABLE BDE-000000-00.A49743 000000-00	-
164 - CATCH BDE-860816-00.A49 860816-00	£1.42	£1.70
165 - WASHER BDE-860073-01.A46 860073-01	£1.50	£1.80
166 - NUT M5 BDE-860092-03.A42 860092-03	£1.50	£1.80
167 - WASHER BDE-860074-03.A391 860074-03	£1.50	£1.80
168 - CLAMP BDE-860825-00.A7 860825-00	-
169 - POINTER BDE-860829-00.A61 860829-00	£5.88	£7.06
170 - SCREW BDE-860205-06.A3 860205-06	£1.50	£1.80
171 - NO LONGER AVAILABLE BDE-000000-00.A49744 000000-00	-
176 - PLATE BDE-860809-00.A5 860809-00	-
183 - NO LONGER AVAILABLE BDE-000000-00.A49745 000000-00	-
186 - NO LONGER AVAILABLE BDE-000000-00.A49746 000000-00	-
187 - BUSHING BDE-860447-00.A11 860447-00	£7.85	£9.42
188 - PLATE BDE-860807-00.A5 860807-00	£1.78	£2.13
189 - WASHER M8 BDE-860073-03.A542 860073-03	£1.50	£1.80
190 - NUT BDE-860655-01.A1 860655-01	-
191 - SCREW BDE-860085-19.A61 860085-19	£1.50	£1.80
192 - KEY BDE-860318-01.A21 860318-01	£1.50	£1.80
193 - BEARING BDE-868768-07.A24 868768-07	£7.85	£9.42
194 - RING BDE-860080-02.A35 860080-02	£1.50	£1.80
195 - ROD BDE-860446-00.A45 860446-00	£1.50	£1.80
196 - HOUSING SA BDE-861345-00.A12 861345-00	£17.48	£20.97
197 - STATOR BDE-868413-00.A7 868413-00	£293.97	£352.76
198 - NO LONGER AVAILABLE BDE-000000-00.A49747 000000-00	-
199 - RING BDE-860806-00.A0 860806-00	£1.50	£1.80
200 - BEARING BDE-861721-12.A43 861721-12	£7.85	£9.42
201 - HOUSING BDE-860808-00.A27 860808-00	-
202 - NO LONGER AVAILABLE BDE-000000-00.A49748 000000-00	-
203 - OUTER FLANGE BDE-861241-00.A17 861241-00	-
204 - NUT BDE-860126-01.A33 860126-01	-
205 - HEX KEY 8 MM BDE-860098-05.A95 860098-05	£3.30	£3.96
206 - MOTOR 1 PH BDE-868407-00.A4 868407-00	-
207 - FAN BDE-860444-00.A67 860444-00	£4.69	£5.63
208 - COVER BDE-860445-00.A10 860445-00	£7.18	£8.62
209 - CAP BDE-863112-00.A52 863112-00	£1.50	£1.80
210 - SPRING BDE-861338-00.A10 861338-00	£1.50	£1.80
211 - BRAKE AFTER WEEK 41-97 BDE-861336-02.A8 861336-02	£9.41	£11.29
212 - CIRCLIP BDE-861349-00.A10 861349-00	£1.50	£1.80
230 - SCREW BDE-930076-00.A53 930076-00	£1.50	£1.80
231 - HANDLE SA BDE-868649-00.A16 868649-00	£19.90	£23.88
234 - NUT BDE-860083-02.A74 860083-02	£1.50	£1.80
235 - HANDLE RH BDE-863318-00.A9 863318-00	-
236 - NO LONGER AVAILABLE BDE-000000-00.A49749 000000-00	-
239 - NUT BDE-860083-03.A357 860083-03	£1.50	£1.80
240 - SCREW BDE-949886-10.A5 949886-10	£1.78	£2.13
241 - HANDLE LH BDE-863319-00.A11 863319-00	-
242 - SCREW BDE-860093-20.A29 860093-20	£1.50	£1.80
243 - NUT BDE-860083-04.A115 860083-04	£1.50	£1.80
244 - NO LONGER AVAILABLE BDE-000000-00.A49750 000000-00	-
245 - BLOCK BDE-863111-00.A5 863111-00	-
246 - NUT BDE-944590-00.A60 944590-00	£1.50	£1.80
247 - SCREW BDE-860094-03.A276 860094-03	£1.50	£1.80
248 - SCREW BDE-860084-20.A64 860084-20	£1.50	£1.80
249 - BRACKET BDE-860843-02.A64 860843-02	£1.50	£1.80
250 - CLAMP BDE-860843-01.A11 860843-01	£1.50	£1.80
252 - CABLE SA BDE-949863-17.A0 949863-17	-
255 - SWITCH SA BDE-861385-04.A0 861385-04	£80.98	£97.18
256 - BUTTON STOP BDE-863124-16.A26 863124-16	-
257 - BUTTON START BDE-863124-17.A1 863124-17	-
847 - ROTOR SA BDE-868424-01.A3 868424-01	-

Attribute Name	Value
Brand	Elu
