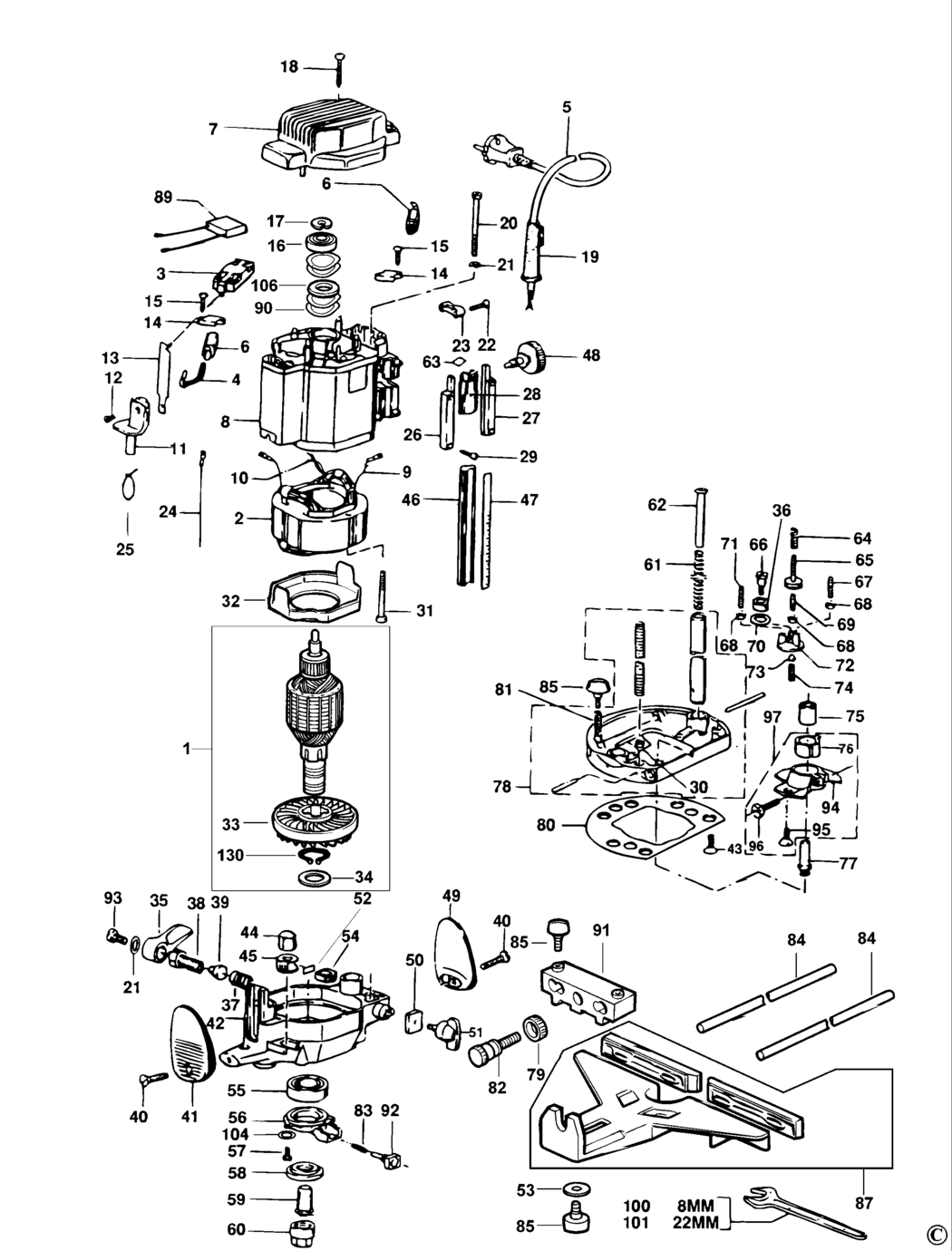

An exploded drawing and spare parts listing for the Elu MOF177 Type 2 Router
Ex VAT Inc VAT
1 - SERVICE KIT 230V GB BDE-N496601.A2 N496601 -
1 - SERVICE KIT 115V XW BDE-869367-01.A4 869367-01 -
2 - FIELD 220 / 240V GB BDE-868396-01 868396-01 £71.44 £85.73
2 - FIELD 115V GB 115v XW BDE-868405-02.A13 868405-02 -
3 - SWITCH BDE-868128-00.A14 868128-00 -
4 - BRUSH 230V GB 240v GB BDE-940146-00.A6 940146-00 £5.88 £7.06
4 - BRUSH 115V GB 115v XW BDE-940146-01.A18 940146-01 £9.41 £11.29
5 - NO LONGER AVAILABLE GB 240v GB BDE-000000-00.A82528 000000-00 -
5 - NO LONGER AVAILABLE M BDE-000000-00.A82529 000000-00 -
5 - CABLE M BDE-868118-00.A0 868118-00 £18.91 £22.69
6 - BRUSHBOX SA BDE-761202-00.A8 761202-00 £3.30 £3.96
7 - END CAP GB 115v BDE-248401-06.A3 248401-06 £9.41 £11.29
7 - END CAP GB 240v BDE-248401-06.A4 248401-06 £9.41 £11.29
8 - FIELDCASE BDE-942934-05.A7 942934-05 -
9 - BRUSH LEAD GB 115v BDE-868140-00.A11 868140-00 £1.78 £2.13
9 - BRUSH LEAD GB 240v BDE-868129-12.A9 868129-12 £1.82 £2.19
10 - LEAD 175MM RED BDE-868129-00.A3 868129-00 £1.82 £2.19
11 - NO LONGER AVAILABLE BDE-000000-00.A82530 000000-00 -
12 - SCREW BDE-249412-10.A21 249412-10 £1.50 £1.80
13 - SLIDER BDE-868123-00.A4 868123-00 £5.88 £7.06
14 - CLAMP BDE-868133-00.A15 868133-00 £2.26 £2.71
15 - SCREW BDE-860428-04.A29 860428-04 £1.50 £1.80
16 - BEARING BDE-868768-13.A2 868768-13 £7.85 £9.42
17 - CIRCLIP BDE-860079-03.A70 860079-03 £1.50 £1.80
18 - SCREW BDE-249220-00.A25 249220-00 £1.50 £1.80
19 - CORD PROTECTOR BDE-868520-00.A17 868520-00 £1.82 £2.19
20 - SCREW BDE-249424-24.A4 249424-24 £1.50 £1.80
21 - WASHER BDE-930248-00.A8 930248-00 £1.50 £1.80
22 - SCREW BDE-860084-04.A7 860084-04 £1.50 £1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A82531 000000-00 -
24 - LEAD 80MM RED BDE-868129-02.A13 868129-02 £1.82 £2.19
25 - CABLE TIE BDE-941486-00.A1 941486-00 -
26 - NO LONGER AVAILABLE BDE-000000-00.A82532 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A82533 000000-00 -
28 - LENS BDE-868124-01.A24 868124-01 £1.82 £2.19
29 - SCREW BDE-860428-04.A30 860428-04 £1.50 £1.80
30 - NUT BDE-761225-02.A34 761225-02 £1.50 £1.80
31 - SCREW BDE-248934-00.A1 248934-00 £1.50 £1.80
32 - BAFFLE FAN GB 115v BDE-942902-01.A0 942902-01 £2.26 £2.71
32 - BAFFLE FAN GB 240v BDE-942902-01.A1 942902-01 £2.26 £2.71
33 - FAN BDE-N041821.A3 N041821 -
34 - SPACER BDE-868127-02.A6 868127-02 £1.50 £1.80
35 - LEVER BDE-942906-00.A0 942906-00 £3.80 £4.56
36 - WASHER BDE-868092-00.A0 868092-00 -
37 - SPRING BDE-942909-00.A0 942909-00 £1.50 £1.80
38 - SCREW BDE-868204-00.A14 868204-00 £7.85 £9.42
39 - PIN BDE-942908-00.A9 942908-00 £9.41 £11.29
40 - REPAIR KIT BDE-869355-00.A27 869355-00 £14.57 £17.48
41 - REPAIR KIT GB 115v BDE-869355-00.A28 869355-00 £14.57 £17.48
41 - REPAIR KIT GB 240v BDE-869355-00.A29 869355-00 £14.57 £17.48
42 - HOUSING LOWER BDE-942898-00.A16 942898-00 £74.15 £88.98
43 - SCREW BDE-860205-04.A30 860205-04 £1.50 £1.80
44 - NUT GB 240v BDE-868150-00.A8 868150-00 £3.30 £3.96
45 - NUT GB 240v BDE-942910-00.A22 942910-00 £4.69 £5.63
45 - NUT GB 115v BDE-942910-00.A23 942910-00 £4.69 £5.63
46 - RACK BDE-868122-00.A8 868122-00 £9.41 £11.29
47 - SCALE BDE-249281-00.A5 249281-00 £1.50 £1.80
48 - PINION BDE-761243-05.A1 761243-05 £3.80 £4.56
49 - REPAIR KIT GB 240v BDE-869355-00.A30 869355-00 £14.57 £17.48
49 - REPAIR KIT GB 115v BDE-869355-00.A31 869355-00 £14.57 £17.48
50 - PLATE BDE-868119-00.A13 868119-00 £1.50 £1.80
51 - SCREW WING BDE-939840-05.A4 939840-05 £2.78 £3.34
52 - SPRING GB 115v BDE-942912-00.A19 942912-00 £1.50 £1.80
52 - SPRING GB 240v BDE-942912-00.A20 942912-00 £1.50 £1.80
53 - WASHER BDE-860075-00.A11 860075-00 £1.50 £1.80
54 - NUT GB 240v BDE-942911-00.A0 942911-00 £7.18 £8.62
54 - NUT GB 115v BDE-942911-00.A1 942911-00 £7.18 £8.62
55 - BEARING BDE-868132-03.A4 868132-03 £10.85 £13.02
56 - CLAMP BDE-942900-03.A0 942900-03 £7.85 £9.42
57 - SCREW BDE-249424-02.A30 249424-02 £1.50 £1.80
58 - LOCK NUT BDE-942901-00.A16 942901-00 £7.85 £9.42
60 - COLLET NUT BDE-942893-01.A20 942893-01 £7.18 £8.62
61 - SPRING BDE-868115-00.A3 868115-00 £1.50 £1.80
62 - ROD BDE-868566-01.A2 868566-01 £1.50 £1.80
63 - LENS BDE-868124-01.A23 868124-01 £1.82 £2.19
64 - SPRING BDE-868113-00.A12 868113-00 £1.50 £1.80
65 - SCREW BDE-868125-00.A5 868125-00 £4.69 £5.63
66 - SCREW BDE-249432-00.A16 249432-00 -
67 - SCREW.TEMP BDE-942931-02.A49 942931-02 £1.50 £1.80
68 - NUT BDE-860083-02.A189 860083-02 £1.50 £1.80
69 - SCREW BDE-942931-01.A5 942931-01 £1.50 £1.80
70 - WASHER BDE-860658-01.A1 860658-01 £1.50 £1.80
71 - SCREW BDE-942931-00.A16 942931-00 £1.50 £1.80
72 - TURRET BDE-720674-01.A28 720674-01 -
73 - BALL BDE-720664-00.A9 720664-00 £1.50 £1.80
74 - SPRING BDE-868082-00.A192 868082-00 £1.50 £1.80
75 - NO LONGER AVAILABLE BDE-000000-00.A82534 000000-00 -
76 - NO LONGER AVAILABLE BDE-000000-00.A82535 000000-00 -
77 - NO LONGER AVAILABLE BDE-000000-00.A82536 000000-00 -
78 - BASEPLATE SA BDE-329820-49.A22 329820-49 £84.42 £101.30
79 - INDEX BDE-942918-00.A0 942918-00 £1.50 £1.80
80 - BASE BDE-940459-00.A2 940459-00 £14.57 £17.48
81 - SPRING BDE-868082-00.A193 868082-00 £1.50 £1.80
82 - SCREW.SPECIAL BDE-942917-00.A13 942917-00 £24.39 £29.27
83 - SPRING BDE-942904-00.A16 942904-00 £1.50 £1.80
84 - ROD BDE-868147-01.A14 868147-01 £10.85 £13.02
85 - SCREW WING BDE-326573-01.A110 326573-01 £1.82 £2.19
87 - FENCE SA BDE-948581-01.A0 948581-01 £24.39 £29.27
89 - CAPACITOR BDE-868120-00.A4 868120-00 £3.80 £4.56
90 - WASHER SPRING BDE-248978-00.A17 248978-00 £3.80 £4.56
91 - NO LONGER AVAILABLE BDE-000000-00.A82537 000000-00 -
92 - LOCK BDE-942930-00.A2 942930-00 £1.50 £1.80
93 - SCREW BDE-943023-00.A9 943023-00 £1.50 £1.80
94 - NO LONGER AVAILABLE BDE-000000-00.A82538 000000-00 -
95 - SCREW BDE-249412-20.A43 249412-20 £1.50 £1.80
96 - NO LONGER AVAILABLE BDE-000000-00.A82539 000000-00 -
97 - NO LONGER AVAILABLE BDE-000000-00.A82540 000000-00 -
100 - SPANNER BDE-868148-00.A1 868148-00 £3.80 £4.56
101 - SPANNER BDE-868111-00.A5 868111-00 £7.85 £9.42
104 - WASHER BDE-932839-00.A65 932839-00 £1.50 £1.80
106 - SPACER BDE-868127-01.A11 868127-01 £3.80 £4.56
130 - CIRCLIP BDE-941541-00.A0 941541-00 £1.50 £1.80
