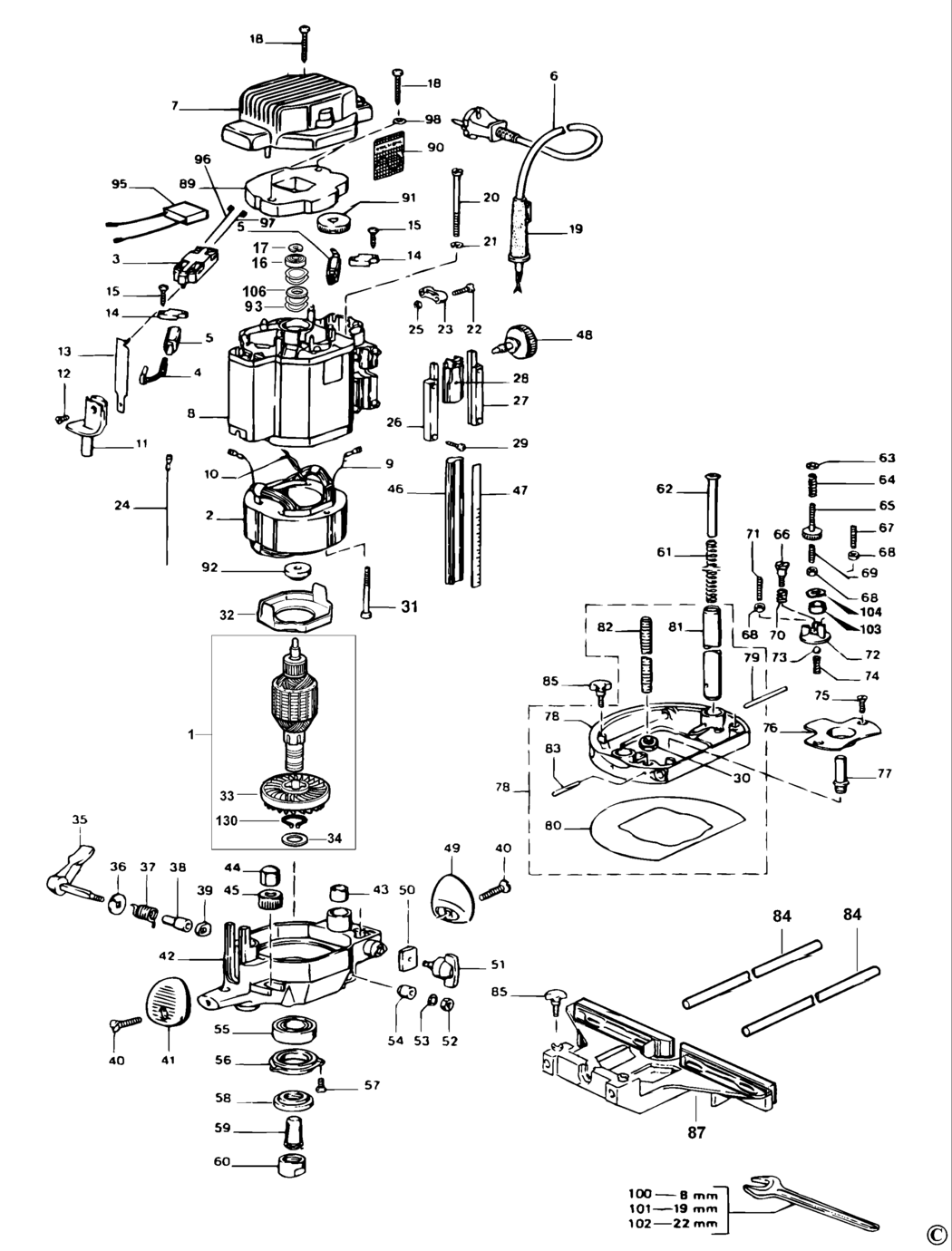

An exploded drawing and spare parts listing for the Elu MOF177E Type 1 Router
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE GB BDE-000000-00.A82560 000000-00 -
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A82561 000000-00 -
2 - NO LONGER AVAILABLE 240 VOLT BDE-000000-00.A82562 000000-00 -
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A82563 000000-00 -
3 - SWITCH BDE-868128-00.A16 868128-00 -
4 - BRUSH 230V 220 VOLT BDE-940146-00.A4 940146-00 £5.88 £7.06
4 - BRUSH 115V 115 VOLT BDE-940146-01.A20 940146-01 £9.41 £11.29
4 - BRUSH 230V 240 VOLT BDE-940146-00.A3 940146-00 £5.88 £7.06
5 - BRUSHBOX SA BDE-761202-00.A9 761202-00 £3.30 £3.96
7 - NO LONGER AVAILABLE BDE-000000-00.A82564 000000-00 -
9 - BRUSH LEAD BDE-868129-12.A7 868129-12 £1.82 £2.19
10 - LEAD 175MM RED BDE-868129-00.A0 868129-00 £1.82 £2.19
11 - NO LONGER AVAILABLE BDE-000000-00.A82565 000000-00 -
12 - SCREW BDE-249412-10.A24 249412-10 £1.50 £1.80
13 - SLIDER BDE-868123-00.A18 868123-00 £5.88 £7.06
14 - CLAMP BDE-868133-00.A12 868133-00 £2.26 £2.71
15 - SCREW BDE-949896-11.A10 949896-11 £1.50 £1.80
16 - BEARING BDE-868768-13.A7 868768-13 £7.85 £9.42
17 - CIRCLIP BDE-860079-03.A39 860079-03 £1.50 £1.80
18 - SCREW BDE-249416-04.A17 249416-04 £1.42 £1.70
19 - CORD PROTECTOR BDE-868520-00.A50 868520-00 £1.82 £2.19
20 - SCREW BDE-249424-24.A8 249424-24 £1.50 £1.80
21 - WASHER BDE-930248-00.A26 930248-00 £1.50 £1.80
22 - SCREW.TEMP BDE-760996-00.A1 760996-00 £1.42 £1.70
23 - NO LONGER AVAILABLE BDE-000000-00.A16831 000000-00 -
24 - LEAD 80MM RED BDE-868129-02.A12 868129-02 £1.82 £2.19
25 - NUT M4 BDE-249232-00.A9 249232-00 £1.42 £1.70
26 - NO LONGER AVAILABLE BDE-000000-00.A16832 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A16833 000000-00 -
28 - LENS BDE-868124-01.A1 868124-01 £1.82 £2.19
29 - SCREW BDE-860428-04.A2 860428-04 £1.50 £1.80
30 - NUT BDE-761225-02.A5 761225-02 £1.50 £1.80
31 - SCREW BDE-248934-00.A14 248934-00 £1.50 £1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A16834 000000-00 -
33 - FAN BDE-N041821.A7 N041821 -
34 - SPACER BDE-868127-02.A19 868127-02 £1.50 £1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A16835 000000-00 -
38 - NO LONGER AVAILABLE BDE-000000-00.A16836 000000-00 -
39 - NO LONGER AVAILABLE BDE-000000-00.A16837 000000-00 -
40 - REPAIR KIT BDE-869355-00.A45 869355-00 £14.57 £17.48
41 - REPAIR KIT BDE-869355-00.A46 869355-00 £14.57 £17.48
42 - NO LONGER AVAILABLE BDE-000000-00.A16838 000000-00 -
43 - NO LONGER AVAILABLE BDE-000000-00.A16839 000000-00 -
44 - NUT BDE-868150-00.A21 868150-00 £3.30 £3.96
45 - NUT BDE-942910-00.A13 942910-00 £4.69 £5.63
46 - RACK BDE-868122-00.A0 868122-00 £9.41 £11.29
47 - SCALE BDE-249281-00.A17 249281-00 £1.50 £1.80
48 - PINION BDE-761243-05.A16 761243-05 £3.80 £4.56
49 - REPAIR KIT BDE-869355-00.A44 869355-00 £14.57 £17.48
50 - PLATE BDE-868119-00.A0 868119-00 £1.50 £1.80
51 - SCREW WING BDE-939840-05.A9 939840-05 £2.78 £3.34
52 - NO LONGER AVAILABLE BDE-000000-00.A16840 000000-00 -
53 - WASHER BDE-743415.A53 743415 £1.50 £1.80
54 - NO LONGER AVAILABLE BDE-000000-00.A16841 000000-00 -
55 - BEARING BDE-868132-03.A10 868132-03 £10.85 £13.02
57 - SCREW BDE-249424-02.A13 249424-02 £1.50 £1.80
60 - COLLET NUT BDE-942893-01.A17 942893-01 £7.18 £8.62
61 - SPRING BDE-868115-00.A13 868115-00 £1.50 £1.80
62 - ROD BDE-868566-01.A10 868566-01 £1.50 £1.80
63 - NO LONGER AVAILABLE BDE-000000-00.A16842 000000-00 -
64 - SPRING BDE-868113-00.A6 868113-00 £1.50 £1.80
65 - SCREW BDE-868125-00.A13 868125-00 £4.69 £5.63
66 - SCREW BDE-249432-00.A26 249432-00 -
67 - SCREW.TEMP BDE-942931-02.A4 942931-02 £1.50 £1.80
68 - NUT BDE-860083-02.A115 860083-02 £1.50 £1.80
69 - SCREW BDE-942931-01.A54 942931-01 £1.50 £1.80
71 - SCREW BDE-942931-00.A1 942931-00 £1.50 £1.80
72 - TURRET BDE-720674-01.A7 720674-01 -
73 - BALL BDE-720664-00.A42 720664-00 £1.50 £1.80
74 - SPRING BDE-868082-00.A68 868082-00 £1.50 £1.80
75 - SCREW BDE-249412-20.A66 249412-20 £1.50 £1.80
78 - BASEPLATE SA BDE-329820-49.A2 329820-49 £84.42 £101.30
79 - SPRING BDE-868082-00.A69 868082-00 £1.50 £1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A16843 000000-00 -
81 - BASEPLATE SA BDE-329820-49.A3 329820-49 £84.42 £101.30
82 - BASEPLATE SA BDE-329820-49.A4 329820-49 £84.42 £101.30
83 - NO LONGER AVAILABLE BDE-000000-00.A16844 000000-00 -
84 - ROD BDE-868147-01.A5 868147-01 £10.85 £13.02
85 - SCREW WING BDE-326573-01.A47 326573-01 £1.82 £2.19
87 - FENCE SA BDE-948581-00.A0 948581-00 £38.80 £46.56
89 - PCB 230V 240 VOLT BDE-868142-01.A1 868142-01 -
89 - PCB 115V 115 VOLT LX BDE-868142-02.A3 868142-02 -
89 - PCB 230V 220 VOLT BDE-868142-01.A2 868142-01 -
90 - NO LONGER AVAILABLE BDE-000000-00.A16845 000000-00 -
91 - WHEEL BDE-249067-01.A3 249067-01 £4.69 £5.63
92 - POLE PIECE BDE-868141-00.A11 868141-00 £7.85 £9.42
93 - WASHER SPRING BDE-248978-00.A2 248978-00 £3.80 £4.56
95 - CAPACITOR BDE-868120-00.A17 868120-00 £3.80 £4.56
96 - LEAD 100MM RED BDE-868129-03.A3 868129-03 £1.50 £1.80
97 - LEAD 100MM RED BDE-868129-05.A5 868129-05 £1.50 £1.80
98 - WASHER BDE-249233-00.A82 249233-00 £1.50 £1.80
100 - SPANNER BDE-868148-00.A34 868148-00 £3.80 £4.56
101 - NO LONGER AVAILABLE BDE-000000-00.A16846 000000-00 -
102 - SPANNER BDE-868111-00.A12 868111-00 £7.85 £9.42
103 - WASHER BDE-868092-00.A25 868092-00 -
104 - WASHER BDE-860658-01.A23 860658-01 £1.50 £1.80
106 - SPACER BDE-868127-01.A0 868127-01 £3.80 £4.56
130 - CIRCLIP BDE-941541-00.A17 941541-00 £1.50 £1.80
