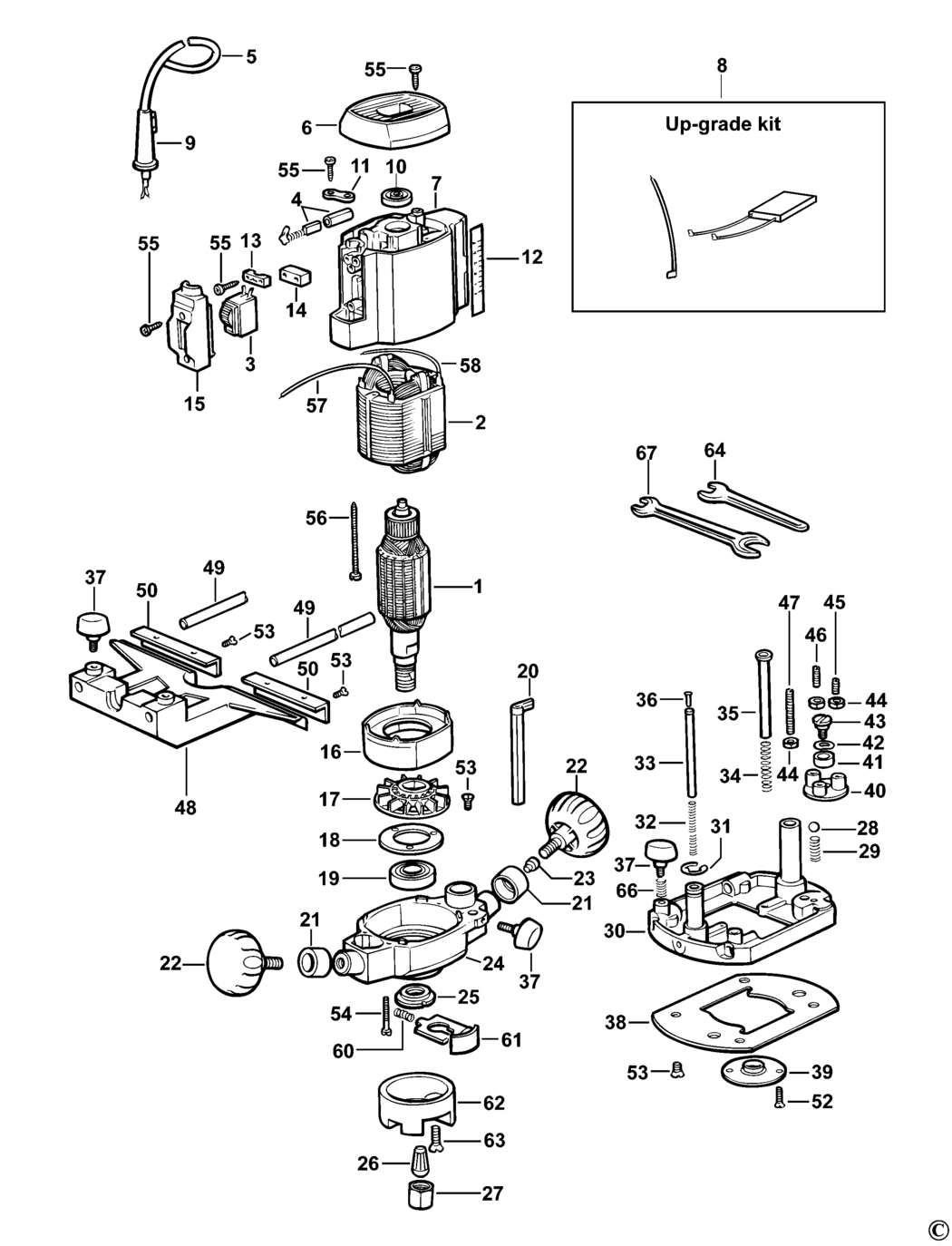

An exploded drawing and spare parts listing for the Elu MOF96 Type 2 Router
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A116279 000000-00 -
1 - NO LONGER AVAILABLE 115 VOLT XW BDE-000000-00.A116280 000000-00 -
2 - NO LONGER AVAILABLE 240 VOLT GB BDE-000000-00.A116281 000000-00 -
3 - SWITCH BDE-N566709.A14 N566709 £30.08 £36.10
4 - BRUSH & HOLDER 230V 220 / 240 VOLT BDE-247533-11.A5 247533-11 £10.85 £13.02
4 - BRUSH & HOLDER SA 115 VOLT XW BDE-248447-11.A5 248447-11 £12.17 £14.60
5 - CORDSET XW BDE-378990.A24 378990 £9.41 £11.29
5 - CORDSET GB BDE-324438-73.A8 324438-73 -
6 - NO LONGER AVAILABLE BDE-000000-00.A116282 000000-00 -
7 - FIELDCASE BDE-943047-01.A3 943047-01 -
8 - SUPPRESSOR BDE-581285-01.A2 581285-01 £23.75 £28.50
9 - CORD PROTECTOR BDE-868520-00.A9 868520-00 £1.82 £2.19
10 - BEARING 608 BDE-N110358.A228 N110358 £3.32 £3.99
11 - CLAMP BDE-868069-00.A3 868069-00 £1.50 £1.80
12 - SCALE BDE-249278-00.A4 249278-00 -
13 - CORD CLAMP BDE-576118-00.A5 576118-00 £1.50 £1.80
14 - GUIDE BDE-868521-00.A6 868521-00 £1.50 £1.80
15 - COVER BDE-247700-05.A4 247700-05 £3.30 £3.96
16 - BAFFLE FAN BDE-868522-00.A1 868522-00 -
17 - FAN BDE-943054-00.A13 943054-00 £3.80 £4.56
18 - PLATE BDE-868047-00.A21 868047-00 £7.85 £9.42
19 - BEARING BDE-868768-16.A8 868768-16 £7.85 £9.42
20 - DEPTH STOP BDE-868523-01.A10 868523-01 £10.85 £13.02
21 - BUSH BDE-249108-00.A6 249108-00 -
22 - HANDLE SA BDE-869284-05.A17 869284-05 £7.18 £8.62
23 - KNOB SA BDE-869284-23.A5 869284-23 £10.85 £13.02
24 - HOUSING LOWER BDE-248954-00.A4 248954-00 £60.94 £73.13
25 - NUT BDE-868052-00.A14 868052-00 £10.85 £13.02
27 - COLLET & NUT SA BDE-326286-00.A12 326286-00 £19.90 £23.88
27 - COLLET & NUT SA BDE-326286-01.A35 326286-01 £24.39 £29.27
28 - BALL BDE-720664-00.A26 720664-00 £1.50 £1.80
29 - SPRING BDE-868082-00.A103 868082-00 £1.50 £1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A116283 000000-00 -
31 - CIRCLIP BDE-943032-00.A1 943032-00 £1.50 £1.80
32 - NO LONGER AVAILABLE BDE-000000-00.A116284 000000-00 -
33 - NO LONGER AVAILABLE BDE-000000-00.A116285 000000-00 -
34 - NO LONGER AVAILABLE BDE-000000-00.A116286 000000-00 -
35 - ROD BDE-868566-00.A4 868566-00 £1.50 £1.80
36 - NO LONGER AVAILABLE BDE-000000-00.A116287 000000-00 -
37 - SCREW WING BDE-326573-01.A79 326573-01 £1.82 £2.19
38 - BASE BDE-943042-00.A8 943042-00 £10.85 £13.02
40 - TURRET BDE-720674-01.A20 720674-01 -
41 - WASHER BDE-868092-00.A18 868092-00 -
42 - WASHER BDE-860658-01.A15 860658-01 £1.50 £1.80
43 - SCREW BDE-249432-00.A4 249432-00 -
44 - NUT BDE-860083-02.A302 860083-02 £1.50 £1.80
45 - SCREW.TEMP BDE-942931-02.A33 942931-02 £1.50 £1.80
46 - SCREW BDE-942931-01.A21 942931-01 £1.50 £1.80
47 - SCREW BDE-868109-00.A12 868109-00 £1.50 £1.80
48 - FENCE SA BDE-948651-00.A3 948651-00 £41.24 £49.49
49 - ROD BDE-868080-00.A23 868080-00 £2.78 £3.34
50 - GUIDE BDE-249090-00.A18 249090-00 £1.82 £2.19
52 - SCREW BDE-249412-20.A9 249412-20 £1.50 £1.80
53 - SCREW BDE-860205-04.A16 860205-04 £1.50 £1.80
54 - SCREW BDE-249416-10.A2 249416-10 -
55 - SCREW BDE-949896-12.A56 949896-12 £1.50 £1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A116288 000000-00 -
57 - LEAD BLUE BDE-868530-02.A0 868530-02 £1.42 £1.70
58 - NO LONGER AVAILABLE BDE-000000-00.A116289 000000-00 -
60 - SPRING COMPRESSION BDE-N406641.A20 N406641 £1.50 £1.80
61 - LOCK BUTTON BDE-943114-00.A3 943114-00 £9.41 £11.29
62 - COVER BDE-943057-00.A0 943057-00 £7.18 £8.62
63 - SCREW BDE-249413-03.A14 249413-03 £1.50 £1.80
64 - SPANNER BDE-868148-00.A18 868148-00 £3.80 £4.56
66 - SPRING BDE-868082-00.A104 868082-00 £1.50 £1.80
67 - SPANNER BDE-31351301.A6 31351301 £2.78 £3.34
