Elu MHB157 Type 1 Belt Sander Spare Parts

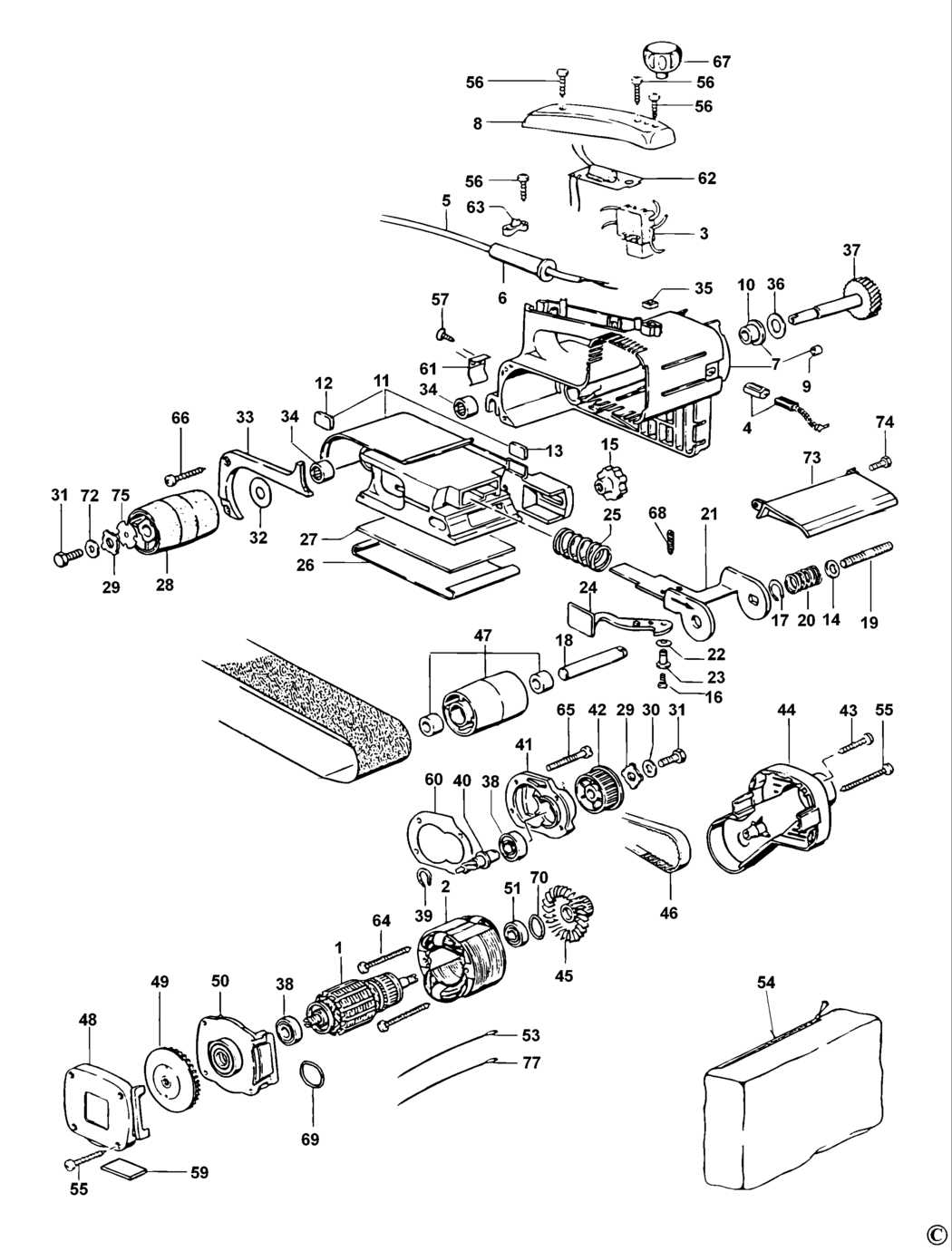

An exploded drawing and spare parts listing for the Elu MHB157 Type 1 Belt Sander

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A120891 000000-00	-
1 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A120892 000000-00	-
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A120893 000000-00	-
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A120894 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A120895 000000-00	-
4 - BRUSH & HOLDER 230V 220 VOLT BDE-247533-11.A10 247533-11	£10.85	£13.02
4 - BRUSH & HOLDER 115V 115 VOLT BDE-248447-01.A11 248447-01	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A120925 000000-00	-
6 - CORD PROTECTOR TYPE 3 BDE-868520-00.A2 868520-00	£1.82	£2.19
6 - CORD PROTECTOR TYPE 4 BDE-320785.A1131 320785	£1.50	£1.80
6 - CORD PROTECTOR TYPE 1 & 2 BDE-868520-00.A1 868520-00	£1.82	£2.19
7 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120896 000000-00	-
7 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A120897 000000-00	-
7 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A120898 000000-00	-
8 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120899 000000-00	-
8 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A120900 000000-00	-
8 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A120901 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A120902 000000-00	-
10 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120903 000000-00	-
11 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120904 000000-00	-
11 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A120905 000000-00	-
11 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A120906 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A120907 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A120908 000000-00	-
14 - WASHER M8 BDE-249223-00.A44 249223-00	£1.42	£1.70
15 - NO LONGER AVAILABLE BDE-000000-00.A120944 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A120945 000000-00	-
17 - CIRCLIP BDE-860079-03.A60 860079-03	£1.50	£1.80
18 - SPINDLE BDE-157152601.A11 157152601	£7.64	£9.17
19 - NO LONGER AVAILABLE BDE-000000-00.A120926 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A120927 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A120928 000000-00	-
22 - WASHER BDE-760261-00.A4 760261-00	£1.42	£1.70
23 - NO LONGER AVAILABLE BDE-000000-00.A120909 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A120910 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A120911 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A120912 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A120913 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A120914 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A120915 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A120916 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A120917 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A120918 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A120919 000000-00	-
34 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A120920 000000-00	-
34 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A120921 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A120922 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A120923 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A120924 000000-00	-
38 - BEARING BDE-330003-17.A71 330003-17	£3.80	£4.56
39 - NO LONGER AVAILABLE BDE-000000-00.A120929 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A120930 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A120931 000000-00	-
43 - SCREW BDE-249416-04.A7 249416-04	£1.42	£1.70
44 - NO LONGER AVAILABLE GB BDE-000000-00.A120932 000000-00	-
44 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120933 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A120934 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A120935 000000-00	-
47 - ROLLER SA BDE-157121405.A2 157121405	-
48 - NO LONGER AVAILABLE GB BDE-000000-00.A120936 000000-00	-
48 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120937 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A120938 000000-00	-
50 - NO LONGER AVAILABLE GB BDE-000000-00.A120939 000000-00	-
50 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120940 000000-00	-
51 - BEARING BDE-157830001.A15 157830001	£10.57	£12.68
53 - NO LONGER AVAILABLE BDE-000000-00.A120941 000000-00	-
54 - NO LONGER AVAILABLE GB BDE-000000-00.A120942 000000-00	-
54 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A120943 000000-00	-
55 - SCREW BDE-949896-11.A35 949896-11	£1.50	£1.80
56 - SCREW BDE-249437-00.A7 249437-00	£1.42	£1.70
57 - NO LONGER AVAILABLE BDE-000000-00.A120946 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A120947 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A120948 000000-00	-
61 - SPRING BDE-157930705.A13 157930705	-
62 - CAPACITOR GB BDE-065121902.A13 065121902	-
63 - CABLE CLAMP BDE-379684.A37 379684	£1.50	£1.80
64 - RETAINER BDE-911442.A8 911442	£1.42	£1.70
65 - SCREW BDE-249416-03.A36 249416-03	£1.42	£1.70
66 - SCREW BDE-760978-01.A31 760978-01	£1.50	£1.80
67 - NO LONGER AVAILABLE BDE-000000-00.A120949 000000-00	-
68 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A120950 000000-00	-
68 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A120951 000000-00	-
68 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A120952 000000-00	-
69 - GASKET TYPE 2 BDE-247600-00.A11 247600-00	£1.42	£1.70
69 - GASKET TYPE 3 BDE-247600-00.A12 247600-00	£1.42	£1.70
69 - GASKET TYPE 4 BDE-247600-00.A13 247600-00	£1.42	£1.70
70 - GASKET TYPE 2 BDE-247601-00.A5 247601-00	£1.78	£2.13
70 - GASKET TYPE 3 BDE-247601-00.A6 247601-00	£1.78	£2.13
70 - GASKET TYPE 4 BDE-247601-00.A7 247601-00	£1.78	£2.13
72 - WASHER M6 BDE-249221-00.A68 249221-00	£1.50	£1.80
73 - NO LONGER AVAILABLE GB BDE-000000-00.A120953 000000-00	-
74 - SCREW GB BDE-249416-06.A91 249416-06	£1.42	£1.70
75 - NO LONGER AVAILABLE GB BDE-000000-00.A120954 000000-00	-
77 - NO LONGER AVAILABLE GB BDE-000000-00.A120955 000000-00	-
