Elu MHB157E Type 1 Belt Sander Spare Parts

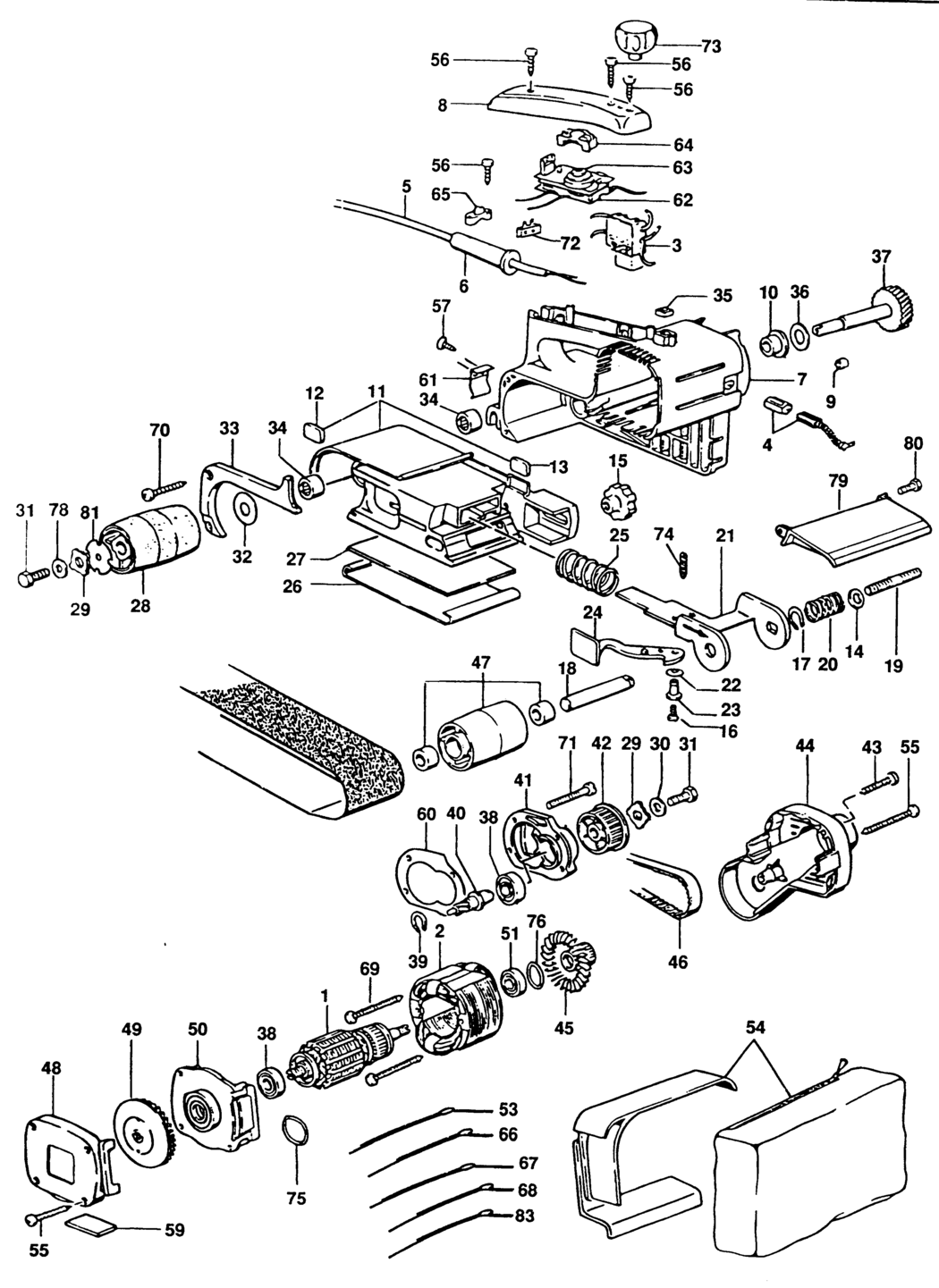

An exploded drawing and spare parts listing for the Elu MHB157E Type 1 Belt Sander

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A121001 000000-00	-
1 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A121002 000000-00	-
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A121003 000000-00	-
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A121004 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A121005 000000-00	-
4 - BRUSH & HOLDER 230V 220 VOLT BDE-247533-11.A11 247533-11	£10.85	£13.02
4 - BRUSH & HOLDER 115V 115 VOLT BDE-248447-01.A12 248447-01	-
5 - NO LONGER AVAILABLE GB BDE-000000-00.A121006 000000-00	-
6 - CORD PROTECTOR TYPE 4 BDE-320785.A1120 320785	£1.50	£1.80
6 - CORD PROTECTOR TYPE 1 & 2 BDE-868520-00.A3 868520-00	£1.82	£2.19
6 - CORD PROTECTOR TYPE 3 BDE-868520-00.A4 868520-00	£1.82	£2.19
7 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A121007 000000-00	-
7 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A121008 000000-00	-
7 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121009 000000-00	-
8 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121010 000000-00	-
8 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A121011 000000-00	-
8 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A121012 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A121013 000000-00	-
10 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121014 000000-00	-
11 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121015 000000-00	-
11 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A121016 000000-00	-
11 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A121017 000000-00	-
12 - NO LONGER AVAILABLE BDE-000000-00.A121018 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A121019 000000-00	-
14 - WASHER M8 BDE-249223-00.A43 249223-00	£1.42	£1.70
15 - NO LONGER AVAILABLE BDE-000000-00.A121054 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A121055 000000-00	-
17 - CIRCLIP BDE-860079-03.A59 860079-03	£1.50	£1.80
18 - SPINDLE BDE-157152601.A10 157152601	£7.64	£9.17
19 - NO LONGER AVAILABLE BDE-000000-00.A121036 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A121037 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A121038 000000-00	-
22 - WASHER BDE-760261-00.A5 760261-00	£1.42	£1.70
23 - NO LONGER AVAILABLE BDE-000000-00.A121020 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A121021 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A121022 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A121023 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A121024 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A121025 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A121026 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A121027 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A121028 000000-00	-
32 - NO LONGER AVAILABLE BDE-000000-00.A121029 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A121030 000000-00	-
34 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A121031 000000-00	-
34 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A121032 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A121033 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A121034 000000-00	-
37 - NO LONGER AVAILABLE BDE-000000-00.A121035 000000-00	-
38 - BEARING BDE-330003-17.A74 330003-17	£3.80	£4.56
39 - NO LONGER AVAILABLE BDE-000000-00.A121039 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A121040 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A121041 000000-00	-
43 - SCREW BDE-249416-04.A6 249416-04	£1.42	£1.70
44 - NO LONGER AVAILABLE GB BDE-000000-00.A121042 000000-00	-
44 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121043 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A121044 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A121045 000000-00	-
47 - ROLLER SA BDE-157121405.A3 157121405	-
48 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121046 000000-00	-
48 - NO LONGER AVAILABLE GB BDE-000000-00.A121047 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A121048 000000-00	-
50 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121049 000000-00	-
50 - NO LONGER AVAILABLE GB BDE-000000-00.A121050 000000-00	-
51 - BEARING BDE-157830001.A16 157830001	£10.57	£12.68
53 - NO LONGER AVAILABLE BDE-000000-00.A121051 000000-00	-
54 - NO LONGER AVAILABLE GB BDE-000000-00.A121052 000000-00	-
54 - NO LONGER AVAILABLE TYPE 1 & 2 BDE-000000-00.A121053 000000-00	-
55 - SCREW BDE-949896-12.A75 949896-12	£1.50	£1.80
56 - SCREW BDE-249437-00.A9 249437-00	£1.42	£1.70
57 - NO LONGER AVAILABLE BDE-000000-00.A121056 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A121057 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A121058 000000-00	-
61 - SPRING BDE-157930705.A12 157930705	-
62 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A121059 000000-00	-
63 - NO LONGER AVAILABLE BDE-000000-00.A121060 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A121061 000000-00	-
65 - CABLE CLAMP BDE-379684.A36 379684	£1.50	£1.80
66 - NO LONGER AVAILABLE BDE-000000-00.A121067 000000-00	-
67 - NO LONGER AVAILABLE BDE-000000-00.A121068 000000-00	-
68 - NO LONGER AVAILABLE BDE-000000-00.A121069 000000-00	-
69 - RETAINER BDE-911442.A7 911442	£1.42	£1.70
70 - SCREW BDE-760978-01.A36 760978-01	£1.50	£1.80
71 - SCREW BDE-249416-03.A33 249416-03	£1.42	£1.70
72 - NO LONGER AVAILABLE BDE-000000-00.A121062 000000-00	-
73 - NO LONGER AVAILABLE BDE-000000-00.A121063 000000-00	-
74 - NO LONGER AVAILABLE TYPE 3 BDE-000000-00.A121064 000000-00	-
74 - NO LONGER AVAILABLE TYPE 4 BDE-000000-00.A121065 000000-00	-
74 - NO LONGER AVAILABLE TYPE 2 BDE-000000-00.A121066 000000-00	-
75 - GASKET TYPE 2 BDE-247600-00.A14 247600-00	£1.42	£1.70
75 - GASKET TYPE 3 BDE-247600-00.A15 247600-00	£1.42	£1.70
75 - GASKET TYPE 4 BDE-247600-00.A16 247600-00	£1.42	£1.70
76 - GASKET TYPE 2 BDE-247601-00.A2 247601-00	£1.78	£2.13
76 - GASKET TYPE 3 BDE-247601-00.A3 247601-00	£1.78	£2.13
76 - GASKET TYPE 4 BDE-247601-00.A4 247601-00	£1.78	£2.13
78 - WASHER M6 BDE-249221-00.A67 249221-00	£1.50	£1.80
79 - NO LONGER AVAILABLE GB BDE-000000-00.A121070 000000-00	-
80 - SCREW GB BDE-249416-06.A95 249416-06	£1.42	£1.70
81 - NO LONGER AVAILABLE GB BDE-000000-00.A121075 000000-00	-
83 - NO LONGER AVAILABLE BDE-000000-00.A121076 000000-00	-
