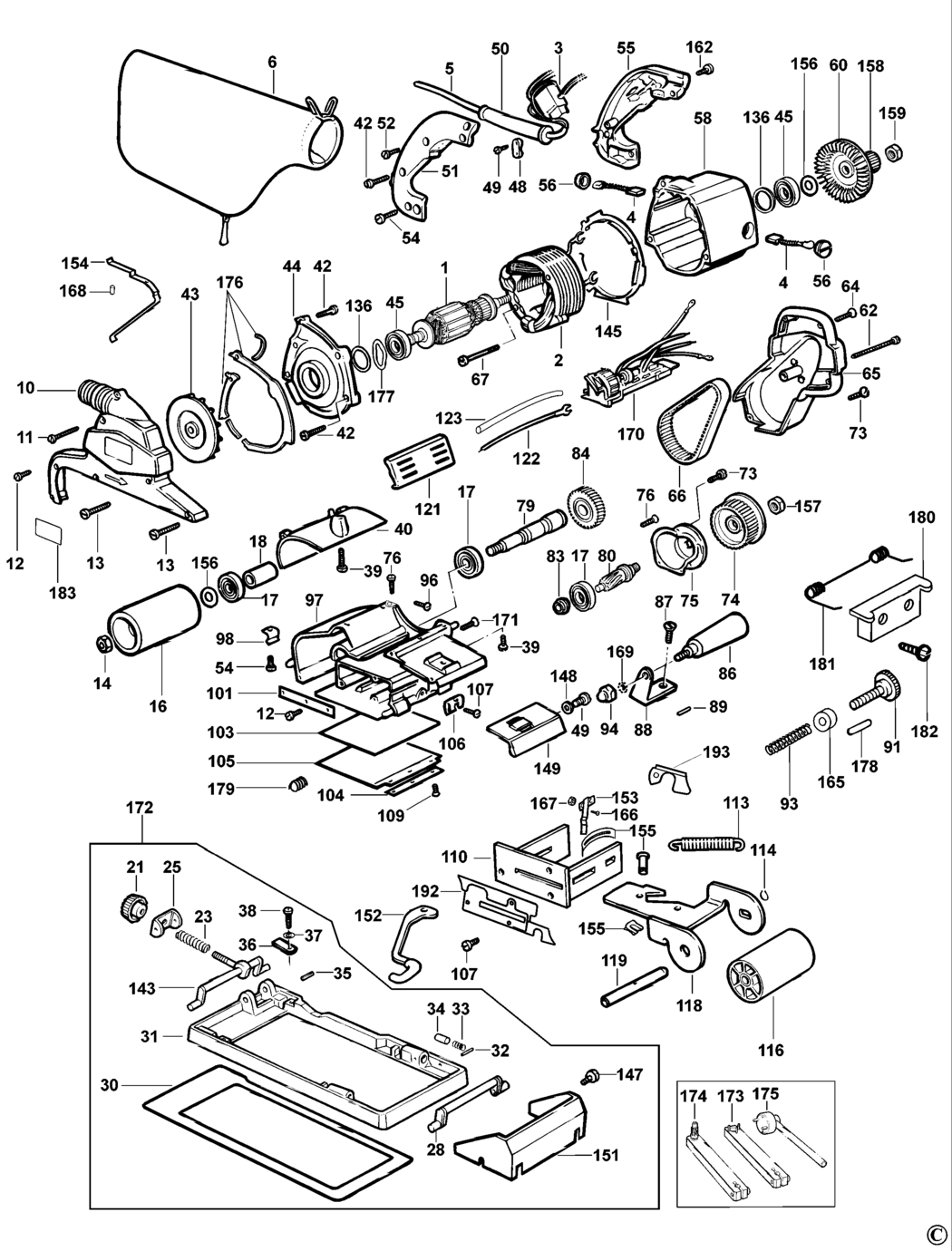

An exploded drawing and spare parts listing for the Elu MHB90EK Type 6 Belt Sander
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A121086 000000-00 -
2 - FIELD 220V BDE-090102102.A3 090102102 £72.28 £86.73
3 - NO LONGER AVAILABLE BDE-000000-00.A121087 000000-00 -
4 - BRUSH 220V BDE-013121501.A4 013121501 £4.45 £5.34
6 - NO LONGER AVAILABLE BDE-000000-00.A121088 000000-00 -
10 - FANCASE KIT BDE-247664-05.A7 247664-05 £76.16 £91.39
11 - SCREW BDE-247144-05.A14 247144-05 £1.42 £1.70
12 - SCREW BDE-249437-01.A22 249437-01 £1.42 £1.70
13 - SCREW BDE-249415-03.A0 249415-03 £1.42 £1.70
14 - NUT BDE-249232-40.A21 249232-40 -
16 - ROLLER SA BDE-324914-00.A4 324914-00 -
17 - BEARING 6002 2RS BDE-055830000.A16 055830000 £10.57 £12.68
18 - SPACER BDE-050152300.A11 050152300 £2.71 £3.25
21 - NO LONGER AVAILABLE BDE-000000-00.A121089 000000-00 -
23 - NO LONGER AVAILABLE BDE-000000-00.A121090 000000-00 -
25 - NO LONGER AVAILABLE BDE-000000-00.A121091 000000-00 -
28 - NO LONGER AVAILABLE BDE-000000-00.A121092 000000-00 -
30 - NO LONGER AVAILABLE BDE-000000-00.A121093 000000-00 -
31 - NO LONGER AVAILABLE BDE-000000-00.A121094 000000-00 -
32 - NO LONGER AVAILABLE BDE-000000-00.A121095 000000-00 -
33 - SPRING BDE-013931037.A9 013931037 £3.70 £4.44
34 - NO LONGER AVAILABLE BDE-000000-00.A121096 000000-00 -
35 - NO LONGER AVAILABLE BDE-000000-00.A121097 000000-00 -
36 - NO LONGER AVAILABLE BDE-000000-00.A121098 000000-00 -
37 - WASHER BDE-725163.A91 725163 £1.50 £1.80
38 - SCREW BDE-249415-01.A2 249415-01 £1.42 £1.70
39 - SCREW BDE-249220-00.A18 249220-00 £1.50 £1.80
40 - PLATE BDE-324922-06.A0 324922-06 £2.21 £2.65
42 - SCREW BDE-760978-01.A35 760978-01 £1.50 £1.80
43 - FAN BDE-324908-00.A2 324908-00 -
44 - NO LONGER AVAILABLE BDE-000000-00.A121099 000000-00 -
45 - BEARING 6001 RSZ BDE-050830000.A9 050830000 -
48 - CABLE CLAMP BDE-910556.A71 910556 £1.42 £1.70
49 - SCREW BDE-249416-06.A96 249416-06 £1.42 £1.70
50 - CORD PROTECTOR BDE-320785.A1199 320785 £1.50 £1.80
51 - NO LONGER AVAILABLE BDE-000000-00.A121100 000000-00 -
52 - SCREW BDE-249416-03.A32 249416-03 £1.42 £1.70
54 - SCREW BDE-249424-20.A0 249424-20 £1.42 £1.70
55 - NO LONGER AVAILABLE BDE-000000-00.A121101 000000-00 -
56 - BRUSH CAP BDE-249007-01.A11 249007-01 £1.82 £2.19
58 - NO LONGER AVAILABLE BDE-000000-00.A121102 000000-00 -
60 - FAN BDE-324907-02.A6 324907-02 -
62 - SCREW BDE-248090-05.A1 248090-05 £1.42 £1.70
64 - SCREW BDE-249437-02.A1 249437-02 £1.42 £1.70
65 - COVER BELT BDE-248187-06.A3 248187-06 £18.91 £22.69
66 - BELT TOOTHED BDE-324909-00.A9 324909-00 £18.91 £22.69
67 - RETAINER BDE-911442.A6 911442 £1.42 £1.70
73 - SCREW BDE-249415-01.A3 249415-01 £1.42 £1.70
74 - PULLEY BDE-324910-00.A2 324910-00 £18.91 £22.69
75 - PLATE BDE-050151901.A4 050151901 £14.19 £17.03
76 - SCREW BDE-249415-02.A7 249415-02 £1.42 £1.70
79 - GEAR & SPINDLE SA BDE-378189.A18 378189 £37.35 £44.82
80 - NO LONGER AVAILABLE BDE-000000-00.A121103 000000-00 -
83 - BEARING SINTER BDE-018980105.A11 018980105 £7.01 £8.41
84 - GEAR & SPINDLE SA BDE-378189.A19 378189 £37.35 £44.82
86 - KNOB BDE-140111000.A11 140111000 £14.19 £17.03
87 - SCREW BDE-248084-05.A3 248084-05 £3.70 £4.44
88 - LEVER BDE-249124-00.A1 249124-00 £11.87 £14.24
89 - PIN BDE-761065-00.A29 761065-00 £1.50 £1.80
91 - SCREW BDE-050117100.A5 050117100 -
93 - SPRING BDE-761054-00.A39 761054-00 £1.50 £1.80
94 - NUT BDE-248078-05.A2 248078-05 £1.78 £2.13
96 - SCREW BDE-249440-00.A2 249440-00 £1.42 £1.70
97 - HOUSING REPAIR KIT BDE-248125-02.A7 248125-02 £238.94 £286.73
98 - SPRING BDE-050930703.A6 050930703 £4.58 £5.49
101 - STRIP BDE-050116300.A5 050116300 -
103 - PLATE BDE-050111700.A10 050111700 £1.42 £1.70
104 - STRIP BDE-050110000.A10 050110000 £5.72 £6.87
105 - PLATE BDE-050110001.A5 050110001 £4.58 £5.49
106 - SPRING BDE-050930700.A9 050930700 £5.72 £6.87
107 - SCREW BDE-324006-00.A67 324006-00 £1.50 £1.80
109 - SCREW BDE-248084-10.A10 248084-10 -
110 - HOLDER BDE-248148-05.A2 248148-05 £7.64 £9.17
113 - SPRING BDE-050931316.A9 050931316 -
114 - CIRCLIP BDE-860079-03.A56 860079-03 £1.50 £1.80
116 - REPAIR KIT BDE-590984-00.A22 590984-00 -
118 - BRACKET BDE-324924-05.A1 324924-05 -
119 - REPAIR KIT BDE-590984-00.A23 590984-00 -
121 - NO LONGER AVAILABLE BDE-000000-00.A121104 000000-00 -
123 - SLEEVE BDE-868020-00.A1 868020-00 £1.42 £1.70
136 - GASKET BDE-248113-00.A9 248113-00 £1.78 £2.13
143 - NO LONGER AVAILABLE BDE-000000-00.A121105 000000-00 -
145 - BAFFLE BDE-324466-00.A6 324466-00 £4.58 £5.49
147 - SCREW BDE-249424-01.A10 249424-01 £1.42 £1.70
148 - WASHER BDE-249233-00.A1 249233-00 £1.50 £1.80
149 - NO LONGER AVAILABLE BDE-000000-00.A121106 000000-00 -
151 - COVER BDE-324127-06.A0 324127-06 -
152 - NO LONGER AVAILABLE BDE-000000-00.A121107 000000-00 -
153 - SPRING BDE-324923-00.A10 324923-00 £4.58 £5.49
154 - SPRING BDE-247998-00.A9 247998-00 £4.58 £5.49
155 - REPAIR KIT BDE-249523-01.A1 249523-01 £3.80 £4.56
156 - WASHER BDE-247869-00.A11 247869-00 £1.42 £1.70
157 - NUT BDE-003822700.A13 003822700 £3.60 £4.32
158 - PULLEY BDE-325248-01.A2 325248-01 £16.03 £19.24
159 - NUT BDE-248077-00.A10 248077-00 £1.78 £2.13
162 - SCREW BDE-249437-10.A6 249437-10 £1.42 £1.70
165 - NO LONGER AVAILABLE BDE-000000-00.A121108 000000-00 -
166 - SCREW.TEMP BDE-248312-00.A9 248312-00 £1.42 £1.70
167 - NUT BDE-248313-00.A2 248313-00 £1.42 £1.70
168 - RIVET BDE-248082-00.A9 248082-00 £1.78 £2.13
169 - WASHER BDE-249219-00.A4 249219-00 £1.42 £1.70
170 - NO LONGER AVAILABLE BDE-000000-00.A121109 000000-00 -
171 - SCREW BDE-249424-00.A21 249424-00 £1.42 £1.70
173 - CLAMP SERVICE TOOLING BDE-559574-99.A1 559574-99 £24.39 £29.27
174 - S.T.LOCKING TOOL SERVICE TOOLING BDE-559575-99.A10 559575-99 £71.44 £85.73
175 - S.T.WRENCH SERVICE TOOLING BDE-559573-99.A10 559573-99 £71.44 £85.73
176 - GASKET BDE-249503-00.A6 249503-00 £1.42 £1.70
177 - WASHER SPRING BDE-249582-00.A6 249582-00 £1.42 £1.70
178 - PIN BDE-325880-04.A0 325880-04 £1.42 £1.70
179 - SPRING BDE-323395-28.A0 323395-28 £3.70 £4.44
180 - PLATE BDE-329160-00.A1 329160-00 £3.22 £3.86
181 - SPRING BDE-329159-00.A2 329159-00 £3.80 £4.56
182 - SCREW BDE-911126.A4 911126 £1.42 £1.70
183 - NO LONGER AVAILABLE BDE-000000-00.A121116 000000-00 -
192 - COVER RH BDE-575472-00.A2 575472-00 £1.42 £1.70
193 - COVER LH BDE-575473-00.A1 575473-00 £1.42 £1.70
