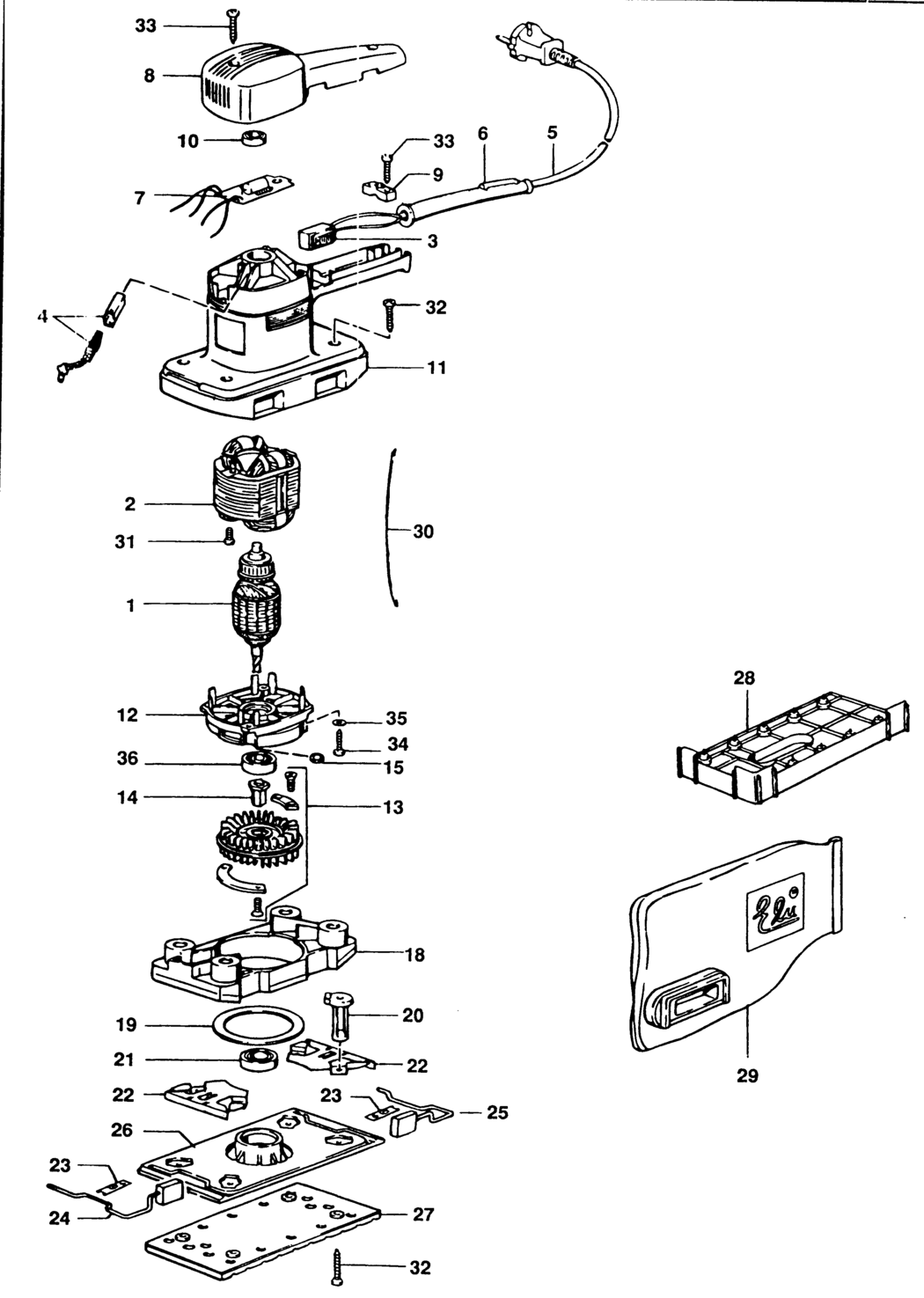

An exploded drawing and spare parts listing for the Elu MVS156 Type 1 Orbital Sander
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A16913 000000-00 -
1 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A16914 000000-00 -
2 - NO LONGER AVAILABLE 220 VOLT BDE-000000-00.A16915 000000-00 -
2 - NO LONGER AVAILABLE 115 VOLT BDE-000000-00.A16916 000000-00 -
3 - SWITCH BDE-N566709.A29 N566709 £30.08 £36.10
4 - BRUSH & HOLDER 230V 220 VOLT BDE-247533-11.A37 247533-11 £10.85 £13.02
4 - BRUSH & HOLDER 115V 115 VOLT BDE-248447-01.A6 248447-01 -
5 - NO LONGER AVAILABLE M BDE-000000-00.A16917 000000-00 -
6 - CORD PROTECTOR BDE-868520-00.A48 868520-00 £1.82 £2.19
7 - CAPACITOR GB BDE-065121902.A7 065121902 -
8 - NO LONGER AVAILABLE BDE-000000-00.A16918 000000-00 -
9 - CABLE CLAMP BDE-379684.A5 379684 £1.50 £1.80
10 - BEARING 608 BDE-N110358.A27 N110358 £3.32 £3.99
11 - NO LONGER AVAILABLE FROM 13.7.84 BDE-000000-00.A16919 000000-00 -
14 - NO LONGER AVAILABLE BDE-000000-00.A16920 000000-00 -
15 - NO LONGER AVAILABLE BDE-000000-00.A16921 000000-00 -
18 - NO LONGER AVAILABLE BDE-000000-00.A16922 000000-00 -
19 - NO LONGER AVAILABLE BDE-000000-00.A16923 000000-00 -
20 - MOUNT BDE-156127200.A1 156127200 -
21 - BEARING FROM 13.7.84 BDE-605040-25.A48 605040-25 £4.69 £5.63
22 - NO LONGER AVAILABLE BDE-000000-00.A16924 000000-00 -
23 - NO LONGER AVAILABLE FROM 13.7.84 BDE-000000-00.A16925 000000-00 -
24 - NO LONGER AVAILABLE FROM 13.7.84 BDE-000000-00.A16926 000000-00 -
24 - NO LONGER AVAILABLE UP TO 13.7.84. BDE-000000-00.A16927 000000-00 -
25 - NO LONGER AVAILABLE FROM 13.7.84 BDE-000000-00.A16928 000000-00 -
25 - NO LONGER AVAILABLE UP TO 13.7.84. BDE-000000-00.A16929 000000-00 -
26 - NO LONGER AVAILABLE FROM 13.7.84 BDE-000000-00.A16930 000000-00 -
27 - NO LONGER AVAILABLE BDE-000000-00.A16931 000000-00 -
29 - NO LONGER AVAILABLE BDE-000000-00.A16932 000000-00 -
30 - NO LONGER AVAILABLE GB BDE-000000-00.A16933 000000-00 -
31 - RETAINER BDE-911442.A35 911442 £1.42 £1.70
32 - NO LONGER AVAILABLE BDE-000000-00.A16939 000000-00 -
33 - SCREW BDE-249437-00.A34 249437-00 £1.42 £1.70
34 - SCREW BDE-760978-01.A8 760978-01 £1.50 £1.80
35 - NO LONGER AVAILABLE BDE-000000-00.A16934 000000-00 -
