Fein Balancer up to 32 kg / 90801056000 Spare Parts

Fein Balancer up to 32 kg / 90801056000 Spare Parts
Home Details Reviews Delivery

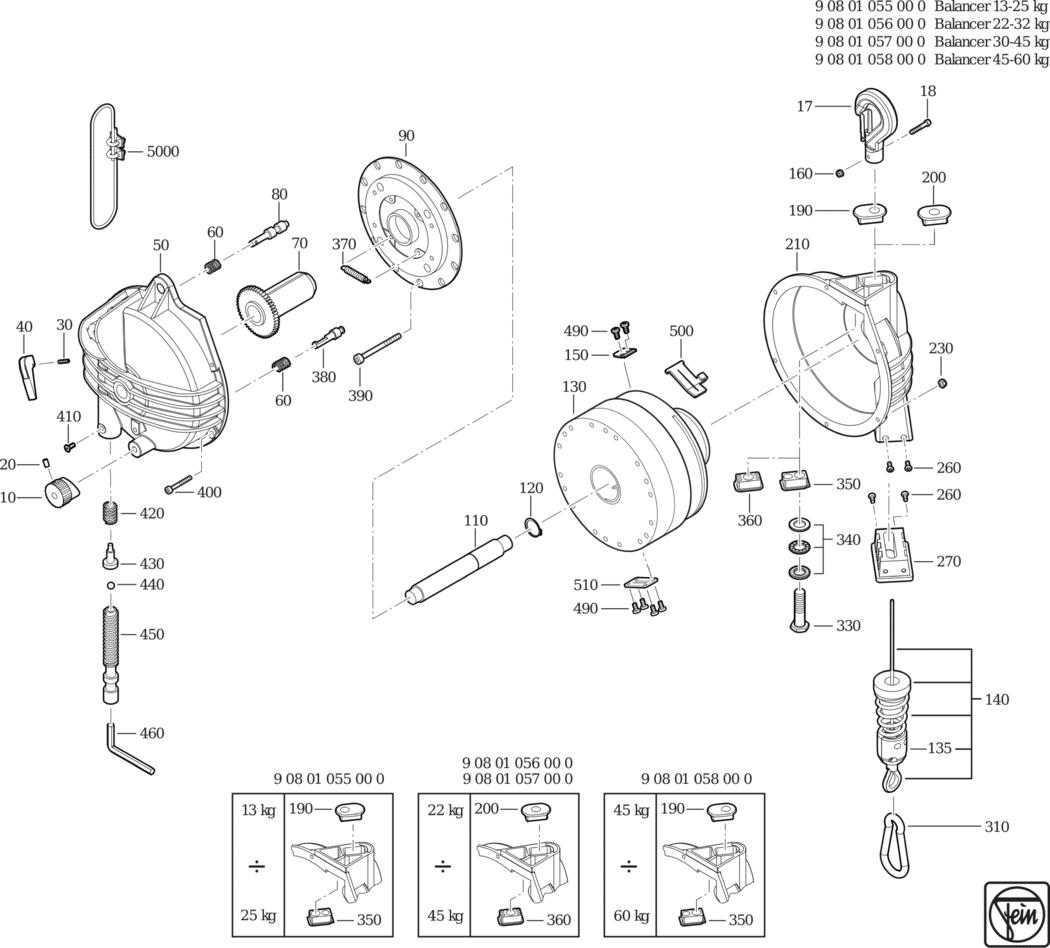

An exploded diagram and spare parts listing for the Fein Balancer up to 32 kg / 90801056000
Ex VAT Inc VAT
10 - ROTARY KNOB FEI-31334001006.A2 31334001006 £25.42 £30.51
20 - SET SCREW FEI-43045014067.A2 43045014067 -
30 - CLAMPING SLEEVE FEI-40238012001.A6 40238012001 -
40 - LEVER FEI-31334002009.A5 31334002009 -
50 - HOUSING FEI-31334003003.A2 31334003003 £209.52 £251.42
60 - SPRING FEI-31334004001.A5 31334004001 -
70 - GEAR-WHEEL FEI-31334005005.A2 31334005005 -
80 - BOLT FEI-31334006008.A5 31334006008 -
90 - CIRCLIP FEI-31334007002.A2 31334007002 £158.67 £190.40
110 - SHAFT FEI-31334008000.A5 31334008000 -
120 - CIRCLIP FEI-42616014009.A43 42616014009 £1.60 £1.92
130 - ROPE DRUM 32 KG FEI-31334040000.A0 31334040000 -
135 - TERMINAL FEI-31334048000.A1 31334048000 -
140 - ROPE SET FEI-31334043000.A2 31334043000 -
150 - PLATE FEI-31334044000.A1 31334044000 -
160 - NUT FEI-42019012049.A3 42019012049 -
170 - HOOK FEI-31334014000.A2 31334014000 £57.93 £69.52
180 - CYLINDER HEAD SCREW FEI-43035072042.A4 43035072042 -
200 - INSERT FEI-31334016007.A0 31334016007 -
210 - HOUSING FEI-31334017001.A3 31334017001 £207.40 £248.88
220 - CIRCLIP FEI-42616009003.A41 42616009003 £1.60 £1.92
230 - NUT FEI-42019009051.A11 42019009051 £1.60 £1.92
260 - COUNTERSUNK SCREW FEI-31334031003.A3 31334031003 £1.60 £1.92
270 - GUIDE FEI-31334018009.A4 31334018009 £33.78 £40.54
310 - CARABINER FEI-31334021004.A3 31334021004 £47.15 £56.58
330 - SCREW FEI-31334033000.A4 31334033000 -
340 - GROOVED BALL BEARING FEI-31334034008.A3 31334034008 -
360 - INSERT FEI-31334023001.A0 31334023001 -
370 - SPRING FEI-31334024009.A3 31334024009 -
380 - BOLT FEI-31334025003.A4 31334025003 £33.78 £40.54
390 - SCREW FEI-31334049000.A2 31334049000 £1.60 £1.92
400 - SCREW FEI-31334036005.A3 31334036005 £1.60 £1.92
410 - COUNTERSUNK SCREW FEI-31334029002.A4 31334029002 £1.60 £1.92
420 - SPRING FEI-31334026006.A3 31334026006 -
430 - BOLT FEI-31334027000.A4 31334027000 -
440 - BALL FEI-31334037009.A4 31334037009 -
450 - SCREW FEI-31334028008.A3 31334028008 -
460 - ALLEN KEY SW8 FEI-62907006002.A2 62907006002 £3.29 £3.95
480 - LOCKING DEVICE FEI-30240239014.A4 30240239014 £106.86 £128.23
490 - SCREW FEI-31334047000.A2 31334047000 -
500 - PLATE FEI-31334045000.A2 31334045000 -
510 - PLATE FEI-31334046000.A1 31334046000 -
5000 - ROPE FEI-31334038016.A3 31334038016 -
9000 - OPERATING INSTRUCTIONS BALANCER FEI-34101225060.A8 34101225060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A559 34130054061 -
