Fein ASB 14 / 71040500950 Spare Parts

Fein ASB 14 / 71040500950 Spare Parts

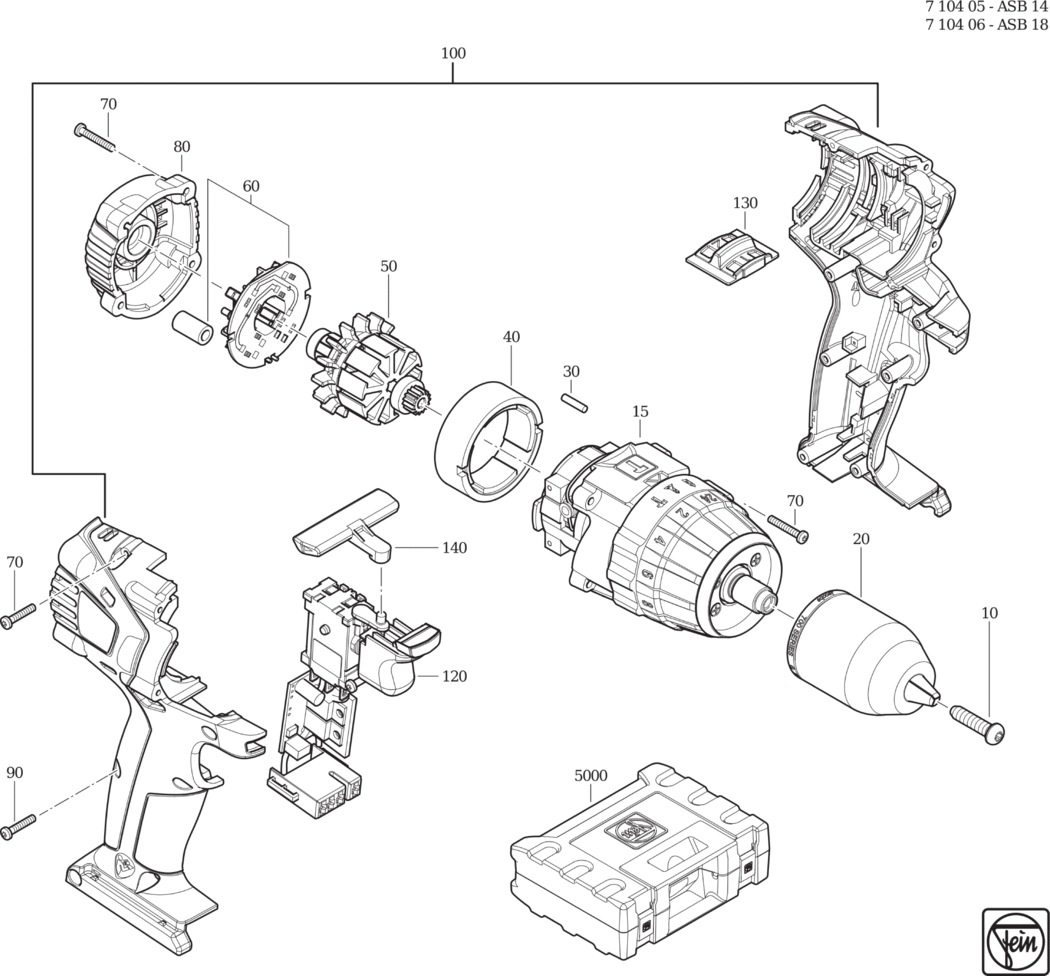

An exploded diagram and spare parts listing for the Fein ASB 14 / 71040500950
Ex VAT Inc VAT
10 - SCREW FEI-31333117000.A3 31333117000 £1.60 £1.92
15 - GEARBOX 14V FEI-31333128010.A0 31333128010 £127.67 £153.20
20 - DRILL CHUCK FEI-31333090000.A0 31333090000 £52.34 £62.81
30 - PRESSURE PIECE FEI-31333126000.A1 31333126000 -
40 - STATOR FEI-31333119000.A1 31333119000 -
50 - ARMATURE 14V FEI-31333120000.A0 31333120000 £57.89 £69.47
60 - BRUSH HOLDER SET FEI-31333121000.A4 31333121000 £27.03 £32.44
70 - SCREW FEI-31333125000.A4 31333125000 £1.60 £1.92
80 - COVER FEI-31333127000.A2 31333127000 £13.45 £16.14
90 - SCREW FEI-43072015000.A62 43072015000 £1.60 £1.92
100 - MOTOR HOUSING FEI-31333129010.A0 31333129010 £39.32 £47.19
120 - SWITCH 14V FEI-31333124010.A0 31333124010 £109.38 £131.26
130 - SLIDE SWITCH FEI-31333122000.A1 31333122000 -
140 - TOGGLE SWITCH FEI-31333123000.A2 31333123000 £2.59 £3.11
5000 - PLASTIC TOOL CASES FEI-33901141010.A1 33901141010 £31.28 £37.53
9020 - SAFETY INSTRUCTION FEI-34130054061.A471 34130054061 -
