Fein ASCM 18 (18V) / 71160300940 Spare Parts

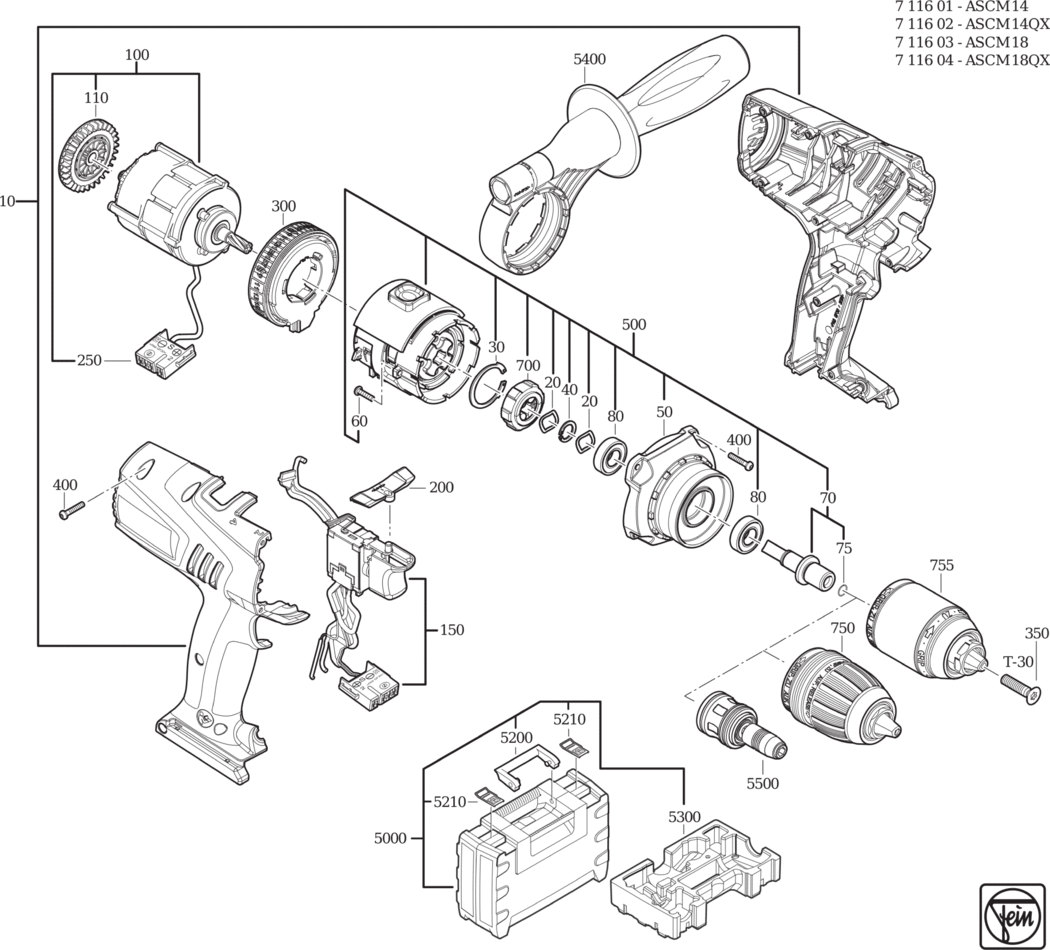

An exploded diagram and spare parts listing for the Fein ASCM 18 (18V) / 71160300940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912117010.A7 31912117010	-
20 - DISC FEI-30235026000.A7 30235026000	£1.60	£1.92
30 - CIRCLIP FEI-31305457000.A4 31305457000	-
40 - CIRCLIP FEI-42616013001.A35 42616013001	£1.60	£1.92
50 - HOUSING FEI-32436075000.A0 32436075000	£31.58	£37.90
60 - SCREW FEI-33024075000.A5 33024075000	-
70 - SHAFT FEI-33403119000.A0 33403119000	-
80 - GROOVED BALL BEARING FEI-31305456000.A4 31305456000	-
100 - MOTOR FEI-54113002800.A4 54113002800	£171.25	£205.50
110 - FAN WHEEL FEI-31004051000.A19 31004051000	-
150 - SWITCH FEI-30701318970.A0 30701318970	-
200 - TOGGLE SWITCH FEI-32805308000.A4 32805308000	-
250 - PLUG 18V FEI-30703054000.A2 30703054000	£5.78	£6.94
300 - ADJUSTING RING FEI-32816074010.A0 32816074010	£51.48	£61.78
350 - SCREW FEI-43075000004.A4 43075000004	£2.24	£2.69
400 - SCREW FEI-43072015000.A56 43072015000	£1.60	£1.92
500 - GEARBOX FEI-30109209010.A3 30109209010	£119.72	£143.67
700 - SPINDLE LOCK FEI-30240309000.A0 30240309000	£19.72	£23.67
755 - DRILL CHUCK FEI-63205037020.A1 63205037020	£37.99	£45.59
5000 - TOOL CASE FEI-33901128580.A0 33901128580	£61.28	£73.54
5200 - HANDLE FEI-32119122000.A100 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A168 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904580000.A5 33904580000	-
5400 - HANDLE FEI-31204189000.A0 31204189000	£18.32	£21.99
9000 - OPERATING INSTRUCTIONS FEI-34101193060.A4 34101193060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A430 34130054061	-

Attribute Name	Value
Brand	Fein
