Fein ASCT 18 (18V) / 71131600940 Spare Parts

Fein ASCT 18 ⠘V) / 71131600940 Spare Parts

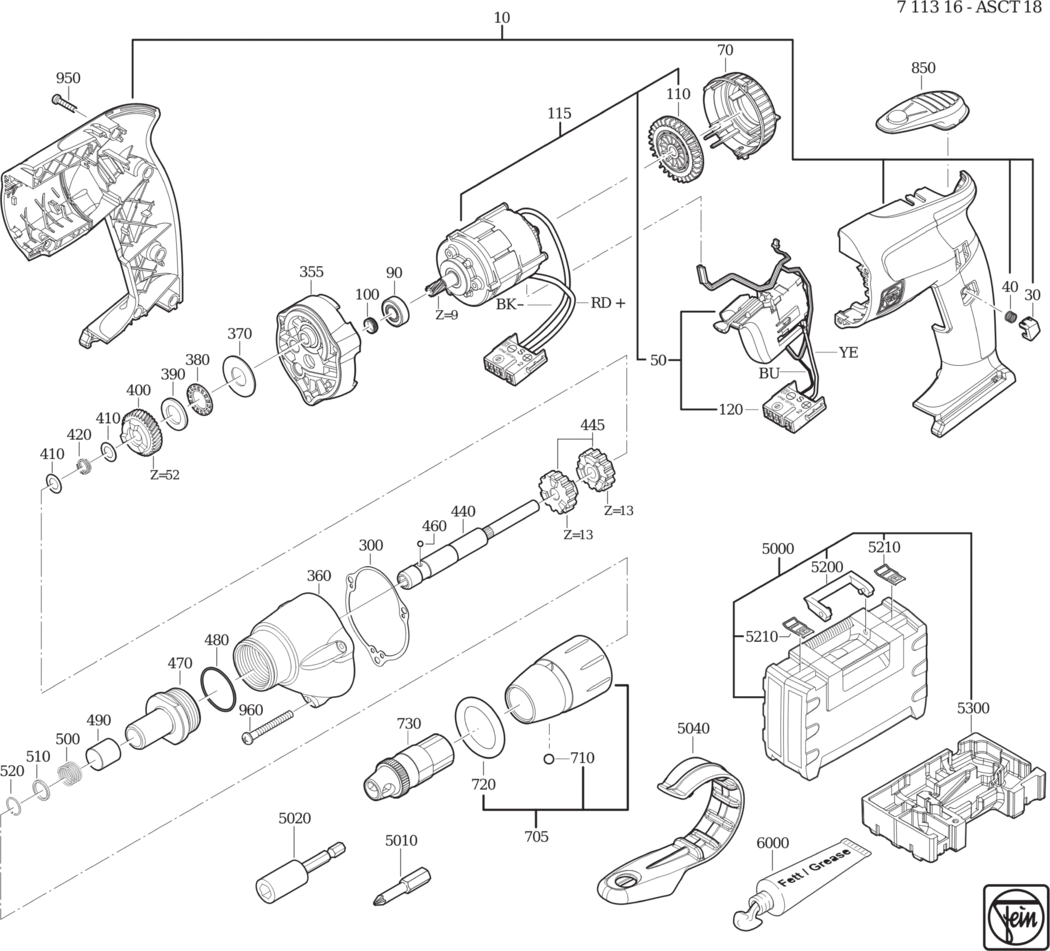

An exploded diagram and spare parts listing for the Fein ASCT 18 (18V) / 71131600940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A5 31912104020	£45.22	£54.27
30 - STOP BUTTON FEI-32816063000.A3 32816063000	£3.01	£3.61
40 - SPIRAL SPRING FEI-30901387000.A10 30901387000	-
50 - SWITCH 18V FEI-30701318990.A9 30701318990	-
70 - AIR GUIDE RING FEI-31428172000.A3 31428172000	-
90 - GROOVED BALL BEARING FEI-41701119250.A2 41701119250	-
100 - SEALING RING FEI-32612129000.A2 32612129000	-
110 - FAN WHEEL FEI-31004051000.A15 31004051000	-
115 - MOTOR FEI-54113028800.A1 54113028800	-
120 - PLUG 18V FEI-30703054000.A7 30703054000	£5.78	£6.94
300 - SEAL FEI-30610041000.A12 30610041000	-
355 - INTERMEDIATE GEAR BOX FEI-31506367014.A8 31506367014	£19.38	£23.25
360 - GEARBOX HOUSING FEI-31508251002.A18 31508251002	-
370 - DISC FEI-41719026007.A18 41719026007	£2.82	£3.38
380 - NEEDLE CAGE FEI-41715029009.A19 41715029009	£5.91	£7.09
390 - DISC FEI-32408395000.A3 32408395000	£10.88	£13.05
400 - GEAR-WHEEL FEI-33653001000.A1 33653001000	£37.82	£45.39
410 - DISC FEI-32624094032.A15 32624094032	£1.60	£1.92
420 - SPIRAL SPRING FEI-30901139007.A30 30901139007	£1.60	£1.92
440 - TOOL HOLDER FEI-30104133006.A8 30104133006	£77.17	£92.60
445 - CLUTCH RING Z=13 FEI-30102101013.A14 30102101013	£51.24	£61.49
460 - BALL FEI-41708014001.A62 41708014001	£1.60	£1.92
470 - BUSH FEI-31603045005.A33 31603045005	£37.70	£45.24
480 - SEALING RING FEI-40612093004.A36 40612093004	£1.60	£1.92
490 - SLEEVE FEI-30503151006.A21 30503151006	£6.65	£7.98
500 - SPIRAL SPRING FEI-30901362001.A19 30901362001	£1.60	£1.92
510 - RING FEI-32601274004.A16 32601274004	£4.96	£5.95
520 - CIRCLIP FEI-42615147001.A3 42615147001	£1.60	£1.92
705 - STOP SLEEVE FEI-30505069011.A27 30505069011	£41.28	£49.53
710 - BALL FEI-41708019004.A49 41708019004	£1.60	£1.92
720 - SEALING RING FEI-40612071009.A20 40612071009	£3.89	£4.67
730 - SLEEVE FEI-32127068000.A20 32127068000	£33.28	£39.93
850 - HOLDER FEI-30240285000.A4 30240285000	£11.26	£13.51
950 - SCREW FEI-43074010000.A52 43074010000	£1.60	£1.92
960 - SCREW FEI-43072010009.A76 43072010009	£1.60	£1.92
5000 - TOOL CASE FEI-33901131080.A9 33901131080	£78.68	£94.41
5010 - BIT Â¼ HEXAGON HEAD FEI-62712109034.A17 62712109034	£16.55	£19.86
5020 - TOOL HOLDER Â¼ EXTERNAL HEXAGON FEI-60510215003.A24 60510215003	£40.12	£48.15
5040 - HOLDER FEI-64203001000.A4 64203001000	£9.37	£11.24
5200 - HANDLE FEI-32119122000.A69 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A152 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904432000.A8 33904432000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003217.A15 32160003217	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A521 34130054061	-
