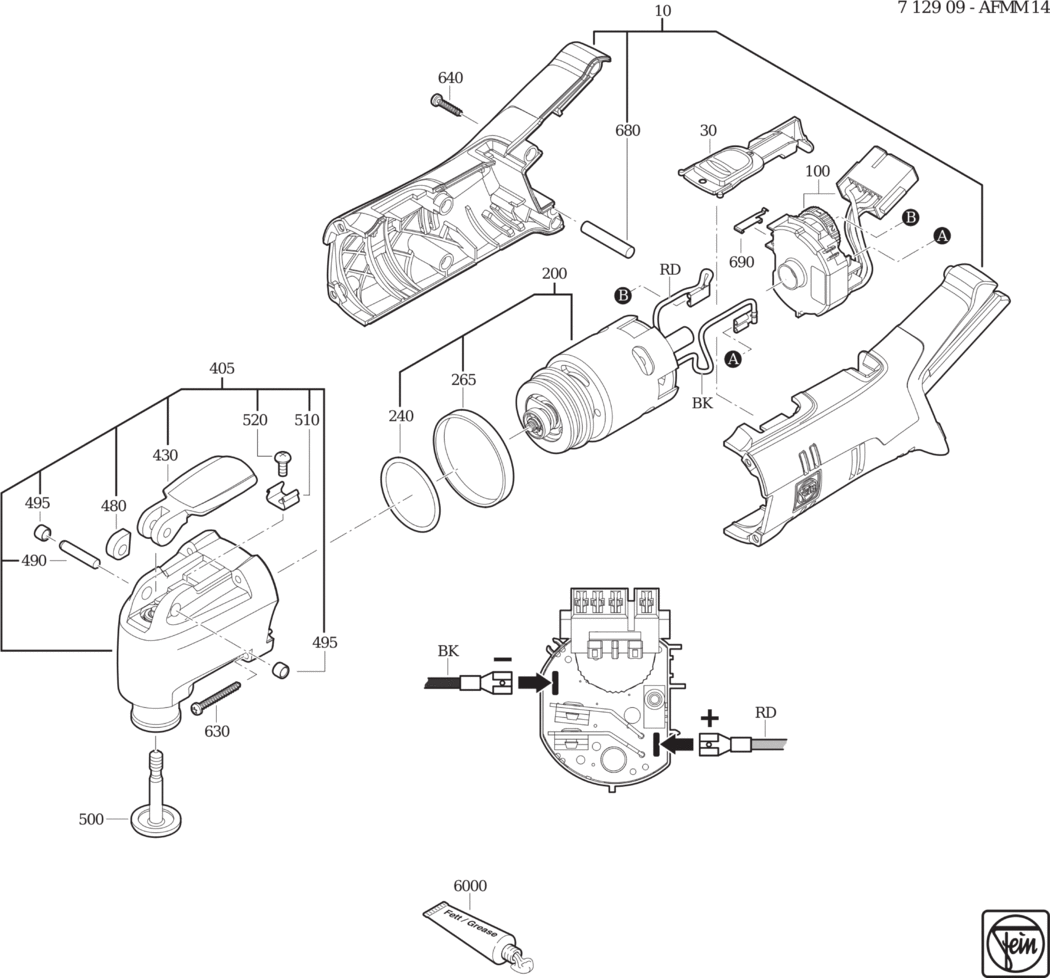

An exploded diagram and spare parts listing for the Fein AFMM 14 (14.40V) / 71290900950
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901156020.A7 31901156020 £46.88 £56.26
30 - SLIDE SWITCH FEI-32805237000.A8 32805237000 £2.86 £3.43
100 - SPEED SETTING SWITCH FEI-30762569990.A8 30762569990 £93.15 £111.78
200 - MOTOR FEI-54112003820.A1 54112003820 £114.31 £137.17
240 - SEALING RING FEI-40612167000.A0 40612167000 £1.60 £1.92
265 - MOTOR BEARING RING FEI-30610038010.A8 30610038010 £9.92 £11.91
405 - TOOL HEAD FEI-31508261020.A4 31508261020 £134.89 £161.87
430 - LEVER FEI-32805238000.A4 32805238000 £14.63 £17.56
480 - ECCENTRIC RING FEI-32636042000.A12 32636042000 £3.54 £4.25
490 - STRAIGHT PIN FEI-40242064000.A14 40242064000 £1.60 £1.92
495 - BUSH FEI-30507220000.A72 30507220000 £2.60 £3.12
500 - CLAMPING UNIT FEI-30240271000.A3 30240271000 £27.06 £32.47
510 - LOCKING SPRING FEI-30907067000.A11 30907067000 £1.60 £1.92
520 - FILLISTER HEAD SCREW FEI-43064023045.A27 43064023045 £1.60 £1.92
630 - SCREW FEI-43074004000.A22 43074004000 £1.60 £1.92
640 - SCREW FEI-43074010000.A112 43074010000 £1.60 £1.92
680 - PRESSURE PIECE FEI-31415108000.A6 31415108000 £1.60 £1.92
690 - LOCKING SPRING FEI-30907070000.A18 30907070000 £4.59 £5.51
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A402 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A0 34130054061 -
