Fein ABLK 1.3 TE (14.40V) / 71320300950 Spare Parts

Fein ABLK 1.3 TE ⠔.40V) / 71320300950 Spare Parts

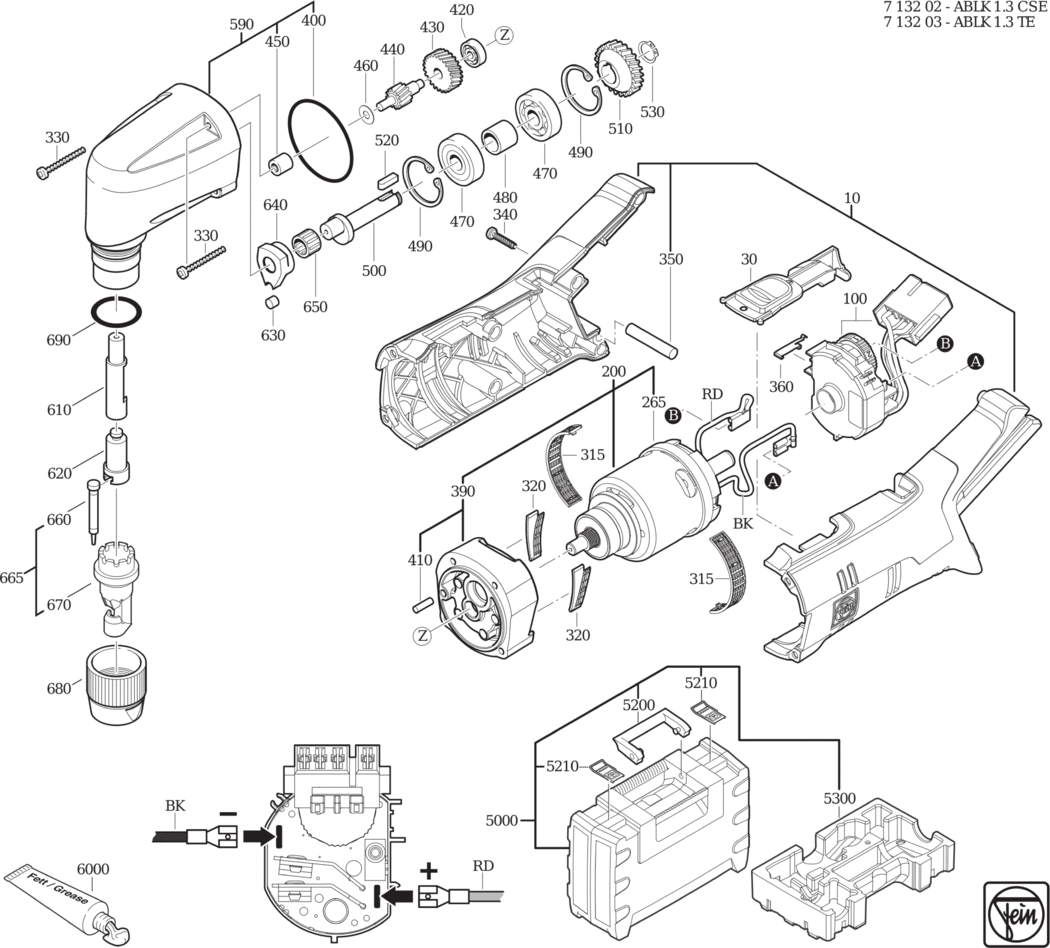

An exploded diagram and spare parts listing for the Fein ABLK 1.3 TE (14.40V) / 71320300950

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901156020.A4 31901156020	£46.88	£56.26
30 - SLIDE SWITCH FEI-32805237000.A12 32805237000	£2.86	£3.43
100 - SPEED SETTING SWITCH FEI-30762569990.A11 30762569990	£93.15	£111.78
200 - MOTOR FEI-54112004800.A4 54112004800	£115.09	£138.11
230 - RING FEI-32636044000.A3 32636044000	-
265 - MOTOR BEARING RING FEI-30610038010.A15 30610038010	£9.92	£11.91
315 - PROTECTIVE GRILLE FEI-32901053000.A5 32901053000	-
320 - PROTECTIVE GRILLE FEI-32901051000.A16 32901051000	-
330 - SCREW FEI-43074015000.A8 43074015000	£1.60	£1.92
340 - SCREW FEI-43074010000.A43 43074010000	£1.60	£1.92
350 - PRESSURE PIECE FEI-31415108000.A10 31415108000	£1.60	£1.92
360 - LOCKING SPRING FEI-30907070000.A5 30907070000	£4.59	£5.51
390 - INTERMEDIATE GEAR BOX FEI-31506387020.A7 31506387020	-
400 - SEALING RING FEI-40612000000.A26 40612000000	£1.60	£1.92
410 - PIN FEI-40242006007.A46 40242006007	-
420 - GROOVED BALL BEARING FEI-41701202018.A72 41701202018	£6.92	£8.30
430 - GEAR-WHEEL FEI-33657163004.A14 33657163004	£48.54	£58.25
440 - SHAFT TOOTHED Z=17 FEI-33757081005.A2 33757081005	£58.39	£70.07
450 - NEEDLE BEARING FEI-41706034001.A35 41706034001	£38.61	£46.33
460 - DISC FEI-32408185009.A21 32408185009	£2.94	£3.53
470 - GROOVED BALL BEARING FEI-41701010032.A34 41701010032	£13.90	£16.68
480 - SLEEVE FEI-30501342007.A24 30501342007	£4.00	£4.80
490 - CIRCLIP FEI-42616027009.A17 42616027009	£1.60	£1.92
500 - ECCENTRIC SHAFT FEI-33405045007.A26 33405045007	£93.68	£112.41
510 - GEAR-WHEEL Z=39 FEI-33657174001.A3 33657174001	£54.63	£65.56
520 - FEATHER KEY FEI-40223016005.A23 40223016005	£1.60	£1.92
530 - CIRCLIP FEI-42616006007.A92 42616006007	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508278130.A3 31508278130	£210.25	£252.30
610 - PLUNGER FEI-30109146005.A20 30109146005	£121.99	£146.39
620 - HOLDER FEI-30109147009.A15 30109147009	£57.58	£69.09
630 - ROLLER FEI-41709001008.A2 41709001008	£11.78	£14.13
640 - CON ROD FEI-32305016008.A17 32305016008	£93.12	£111.75
650 - NEEDLE CAGE FEI-41715049007.A33 41715049007	£17.50	£21.00
660 - PUNCH FEI-63602050000.A11 63602050000	£29.48	£35.38
665 - PUNCHES AND DIES IN A SET FEI-30109170030.A3 30109170030	£312.20	£374.64
670 - DIE FEI-30109170001.A2 30109170001	£256.76	£308.11
680 - NUT FEI-42015064005.A10 42015064005	£28.94	£34.73
690 - SEALING RING FEI-40612041002.A18 40612041002	£3.50	£4.20
5000 - TOOL CASE FEI-33901128820.A7 33901128820	£65.32	£78.39
5200 - HANDLE FEI-32119122000.A105 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A180 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A4 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A441 34130054061	-
