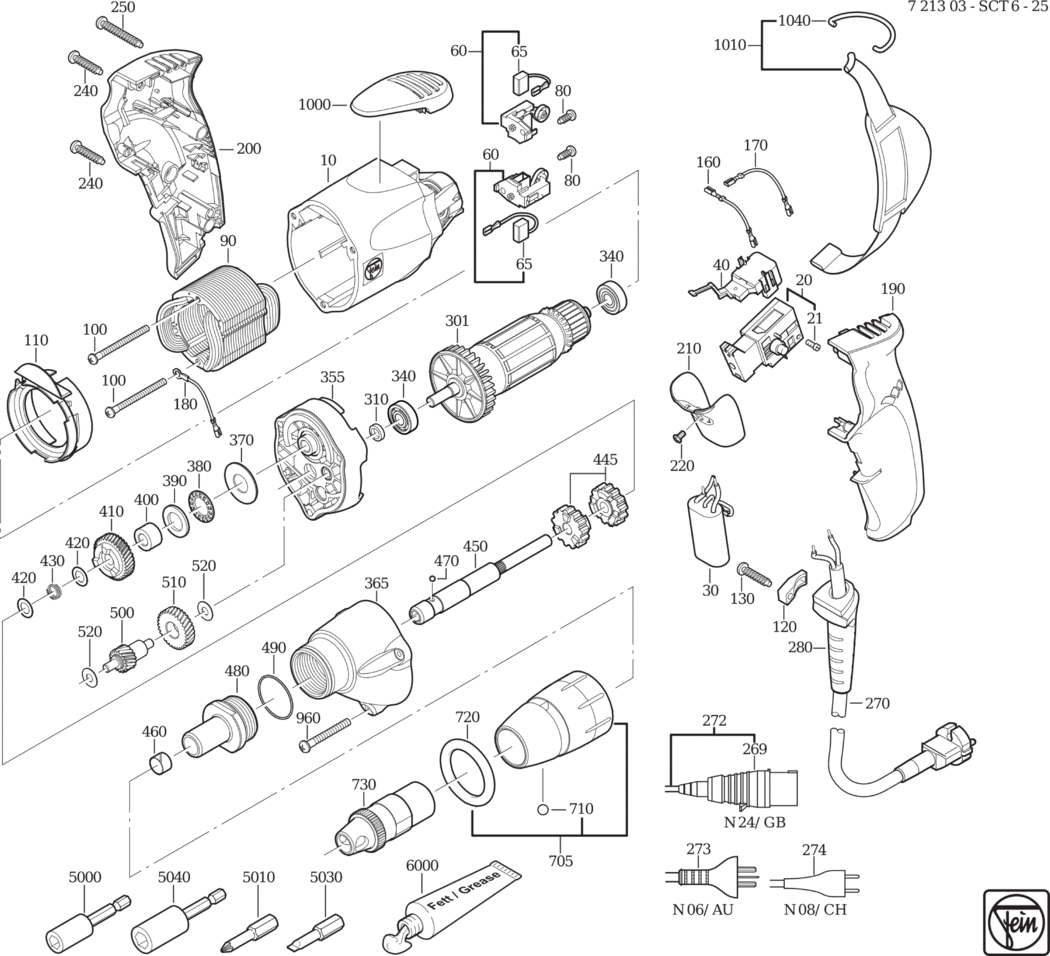

An exploded diagram and spare parts listing for the Fein SCT 6-25 (50Hz 230V) / 72130300233
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901138011.A10 31901138011 £39.65 £47.58
20 - SWITCH FEI-30701228002.A29 30701228002 £54.05 £64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A78 43013052033 £1.60 £1.92
30 - CAPACITOR FEI-30722183018.A14 30722183018 £9.12 £10.95
40 - TOGGLE SWITCH FEI-30701249004.A16 30701249004 £20.57 £24.68
60 - BRUSH HOLDER FEI-30712089039.A3 30712089039 £34.06 £40.87
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A48 30711165000 £12.84 £15.41
80 - SCREW FEI-43070018009.A90 43070018009 £1.60 £1.92
90 - STATOR FEI-51274014230.A2 51274014230 -
100 - SCREW FEI-43070014000.A86 43070014000 £1.60 £1.92
110 - AIR GUIDE RING FEI-31428149008.A8 31428149008 £8.86 £10.63
120 - CABLE CLAMPING PIECE FEI-32431046000.A5 32431046000 £1.60 £1.92
130 - SCREW FEI-43070006008.A62 43070006008 £1.60 £1.92
160 - CONNECTING CABLE FEI-30719544014.A2 30719544014 £1.60 £1.92
170 - CONNECTING CABLE FEI-30719545018.A9 30719545018 £1.60 £1.92
180 - CONNECTING CABLE FEI-30719630014.A17 30719630014 £1.60 £1.92
190 - HANDLE HALF SHELL FEI-31201123003.A3 31201123003 £16.57 £19.88
200 - HANDLE HALF SHELL FEI-31201124001.A2 31201124001 £16.57 £19.88
210 - SWITCH PUSHBUTTON FEI-32805191002.A10 32805191002 £6.67 £8.00
220 - COUNTERSUNK SCREW FEI-43066009038.A45 43066009038 £1.60 £1.92
240 - SHEET METAL SCREW FEI-43046003009.A20 43046003009 £1.60 £1.92
250 - SCREW FEI-43070007002.A80 43070007002 £1.60 £1.92
270 - CABLE WITH PLUG FEI-30707343017.A16 30707343017 £20.96 £25.15
280 - HANDLE REPAIR-SET FEI-31201136030.A1 31201136030 £29.96 £35.95
301 - ARMATURE Z=5 FEI-53274004235.A0 53274004235 £106.42 £127.70
310 - SEALING RING FEI-32612084001.A8 32612084001 £3.44 £4.13
340 - GROOVED BALL BEARING FEI-41701001172.A224 41701001172 £9.63 £11.56
355 - INTERMEDIATE GEAR BOX FEI-31506367020.A2 31506367020 £22.20 £26.64
365 - GEARBOX HOUSING FEI-31508250056.A0 31508250056 £37.14 £44.57
370 - DISC FEI-41719026007.A35 41719026007 £2.82 £3.38
380 - NEEDLE CAGE FEI-41715029009.A6 41715029009 £5.91 £7.09
390 - DISC FEI-32408395000.A9 32408395000 £10.88 £13.05
400 - BUSH FEI-30507233005.A0 30507233005 -
410 - GEAR-WHEEL Z=34 FEI-33657173003.A6 33657173003 -
420 - DISC FEI-32624094032.A26 32624094032 £1.60 £1.92
430 - SPIRAL SPRING FEI-30901139007.A17 30901139007 £1.60 £1.92
445 - CLUTCH RING Z=13 FEI-30102101013.A24 30102101013 £51.24 £61.49
450 - TOOL HOLDER FEI-30104130000.A0 30104130000 -
460 - RING FEI-30906025008.A3 30906025008 £7.81 £9.37
470 - BALL FEI-41708014001.A50 41708014001 £1.60 £1.92
480 - BUSH FEI-31603045005.A20 31603045005 £37.70 £45.24
490 - SEALING RING FEI-40612093004.A25 40612093004 £1.60 £1.92
500 - SHAFT TOOTHED Z=17 FEI-33757080006.A4 33757080006 -
510 - GEAR-WHEEL Z=30 FEI-33657172009.A12 33657172009 £42.74 £51.29
520 - DISC FEI-32408185009.A25 32408185009 £2.94 £3.53
705 - STOP SLEEVE FEI-30505069011.A20 30505069011 £41.28 £49.53
710 - BALL FEI-41708019004.A47 41708019004 £1.60 £1.92
720 - SEALING RING FEI-40612071009.A12 40612071009 £3.89 £4.67
730 - STOP SLEEVE FEI-32127057008.A2 32127057008 £34.42 £41.31
960 - SCREW FEI-43072010009.A50 43072010009 £1.60 £1.92
1000 - PRESSURE PIECE FEI-30240257001.A1 30240257001 -
1010 - HOLDER FEI-63901011059.A17 63901011059 -
1040 - SUSPENSION DEVICE FEI-30232046008.A21 30232046008 -
5000 - TOOL HOLDER ¼ EXTERNAL HEXAGON FEI-60510215003.A17 60510215003 £40.12 £48.15
5010 - BIT ¼ HEXAGON HEAD FEI-62712109034.A8 62712109034 £16.55 £19.86
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003217.A21 32160003217 -
