Fein WSB 20-180 (50Hz 230V) / 72210500237 Spare Parts

Fein WSB 20-180 ⡐Hz 230V) / 72210500237 Spare Parts
Home Details Reviews Delivery

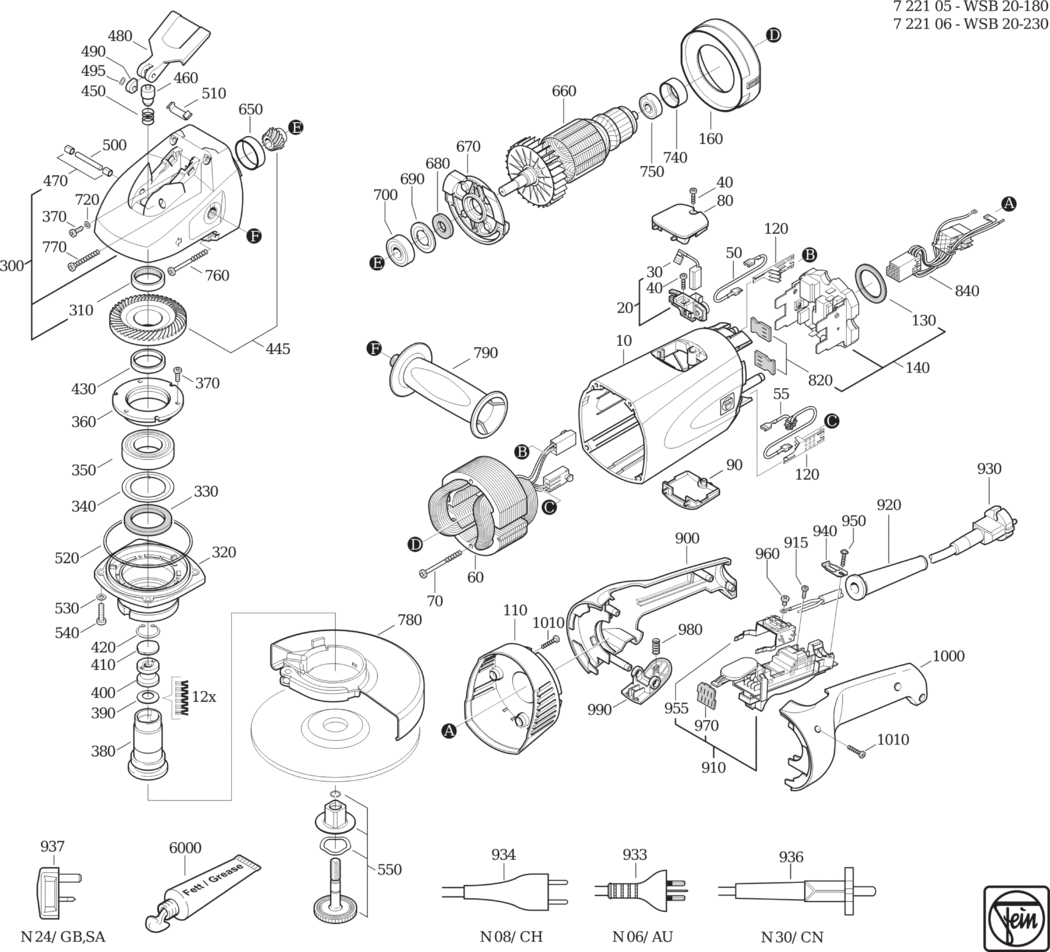

An exploded diagram and spare parts listing for the Fein WSB 20-180 (50Hz 230V) / 72210500237
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903214006.A11 31903214006 £37.81 £45.37
20 - BRUSH HOLDER 220-230V 50/60HZ FEI-30712090019.A25 30712090019 £23.51 £28.21
30 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711137006.A24 30711137006 £14.48 £17.37
40 - SCREW FEI-43070027000.A2 43070027000 -
50 - CONNECTING CABLE FEI-30719556010.A5 30719556010 £1.60 £1.92
55 - RING CORE CHOKE FEI-30764122008.A5 30764122008 £8.28 £9.93
60 - STATOR 50HZ230V FEI-51275002232.A7 51275002232 -
70 - SCREW FEI-43072011008.A6 43072011008 -
80 - COVER FEI-32427117008.A16 32427117008 £4.37 £5.24
90 - COVER FEI-32427118006.A6 32427118006 £4.37 £5.24
110 - HOUSING FEI-31207251008.A0 31207251008 £16.16 £19.39
120 - BASE PLATE FEI-31428144005.A15 31428144005 £1.60 £1.92
140 - ELECTRONICS FEI-30762614990.A0 30762614990 -
160 - AIR GUIDE RING FEI-31428141000.A7 31428141000 £5.95 £7.14
300 - GEARBOX HOUSING FEI-31206113033.A5 31206113033 £93.13 £111.76
310 - NEEDLE SLEEVE FEI-41705036003.A0 41705036003 £9.94 £11.93
320 - BEARING PLATE FEI-32419139000.A2 32419139000 -
330 - FELT RING FEI-30601105004.A9 30601105004 £1.60 £1.92
340 - DISC FEI-32411080005.A23 32411080005 £1.60 £1.92
350 - GROOVED BALL BEARING FEI-41701025023.A0 41701025023 -
360 - PLATE FEI-32416102002.A9 32416102002 £9.73 £11.68
370 - FILLISTER HEAD SCREW FEI-43064002043.A23 43064002043 £1.60 £1.92
380 - SHAFT FEI-33406286006.A9 33406286006 £37.98 £45.58
390 - CUP SPRING PACKAGE FEI-30905073015.A0 30905073015 £15.72 £18.87
400 - PRESSURE PIECE FEI-30220059006.A0 30220059006 £11.40 £13.68
410 - DISC FEI-32414112005.A0 32414112005 £1.60 £1.92
420 - CIRCLIP FEI-42616066001.A23 42616066001 -
430 - RING FEI-32601270000.A0 32601270000 £4.62 £5.54
445 - BEVEL GEAR Z=15/52 FEI-33809231013.A4 33809231013 -
450 - SPIRAL SPRING FEI-30901342003.A0 30901342003 £1.60 £1.92
460 - BOLT FEI-30217336008.A0 30217336008 £8.93 £10.72
470 - BUSH FEI-30507200002.A9 30507200002 £2.55 £3.06
480 - LEVER FEI-32805179002.A5 32805179002 £24.87 £29.84
490 - ECCENTRIC RING FEI-32636040002.A0 32636040002 £4.76 £5.71
495 - DISC FEI-42446021000.A0 42446021000 £1.60 £1.92
500 - BOLT FEI-30216138007.A15 30216138007 £1.60 £1.92
510 - LOCKING SPRING FEI-30907055006.A19 30907055006 £4.55 £5.46
520 - DISC FEI-32624118022.A1 32624118022 £2.66 £3.19
530 - CIRCLIP M5 FEI-42443004057.A299 42443004057 £1.60 £1.92
540 - FILLISTER HEAD SCREW FEI-43064009054.A21 43064009054 -
550 - CLAMPING UNIT FEI-63802183025.A0 63802183025 £60.72 £72.86
650 - BUSH FEI-30507169007.A40 30507169007 £2.74 £3.29
660 - ARMATURE 50/60H220/230V FEI-53275002234.A3 53275002234 £162.14 £194.57
670 - PLATE FEI-32416106001.A6 32416106001 £9.82 £11.78
680 - FELT RING FEI-30601050002.A48 30601050002 £1.60 £1.92
690 - DISC FEI-32411083001.A0 32411083001 £1.60 £1.92
700 - GROOVED BALL BEARING FEI-41701213096.A60 41701213096 £20.90 £25.08
720 - CIRCLIP M4 FEI-42443003043.A132 42443003043 £1.60 £1.92
740 - BUSH FEI-30507168003.A0 30507168003 £2.74 £3.29
750 - GROOVED BALL BEARING FEI-41701207033.A78 41701207033 £10.15 £12.18
760 - SCREW FEI-43070029002.A26 43070029002 -
770 - SCREW FEI-43070030004.A0 43070030004 -
780 - SAFETY HOOD FEI-31810245020.A9 31810245020 £48.24 £57.89
790 - SIDE HANDLE FEI-32119032002.A47 32119032002 £12.89 £15.47
840 - CONNECTING CABLE FEI-30719594019.A0 30719594019 £22.88 £27.45
900 - HANDLE HALF SHELL FEI-31204167000.A0 31204167000 £13.42 £16.11
910 - SWITCH FEI-30701230023.A5 30701230023 £67.14 £80.57
915 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A28 43041001994 £1.60 £1.92
920 - CABLE GROMMET FEI-31413094007.A115 31413094007 £3.04 £3.65
930 - CABLE WITH PLUG FEI-30707387012.A17 30707387012 £18.18 £21.81
940 - CABLE CLAMPING PIECE FEI-32431042008.A32 32431042008 £1.60 £1.92
950 - SCREW FEI-43070035002.A35 43070035002 £1.60 £1.92
955 - CONNECTING PIECE FEI-30717203014.A7 30717203014 £22.25 £26.70
960 - FILLISTER HEAD SCREW FEI-43041016042.A63 43041016042 -
970 - SEAL FEI-31415090001.A9 31415090001 £1.60 £1.92
980 - SPIRAL SPRING FEI-30901343007.A20 30901343007 -
990 - SWITCH PUSHBUTTON FEI-32816057007.A7 32816057007 £3.17 £3.80
1000 - HANDLE HALF SHELL FEI-31204168008.A27 31204168008 £13.42 £16.11
1010 - SCREW FEI-43070031003.A114 43070031003 £1.60 £1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A532 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A304 34130054061 -
