Fein WSG 10-115 (50/60Hz 220/230V) / 72216100230 Spare Parts

Fein WSG 10-115 ⡐/60Hz 220/230V) / 72216100230 Spare Parts

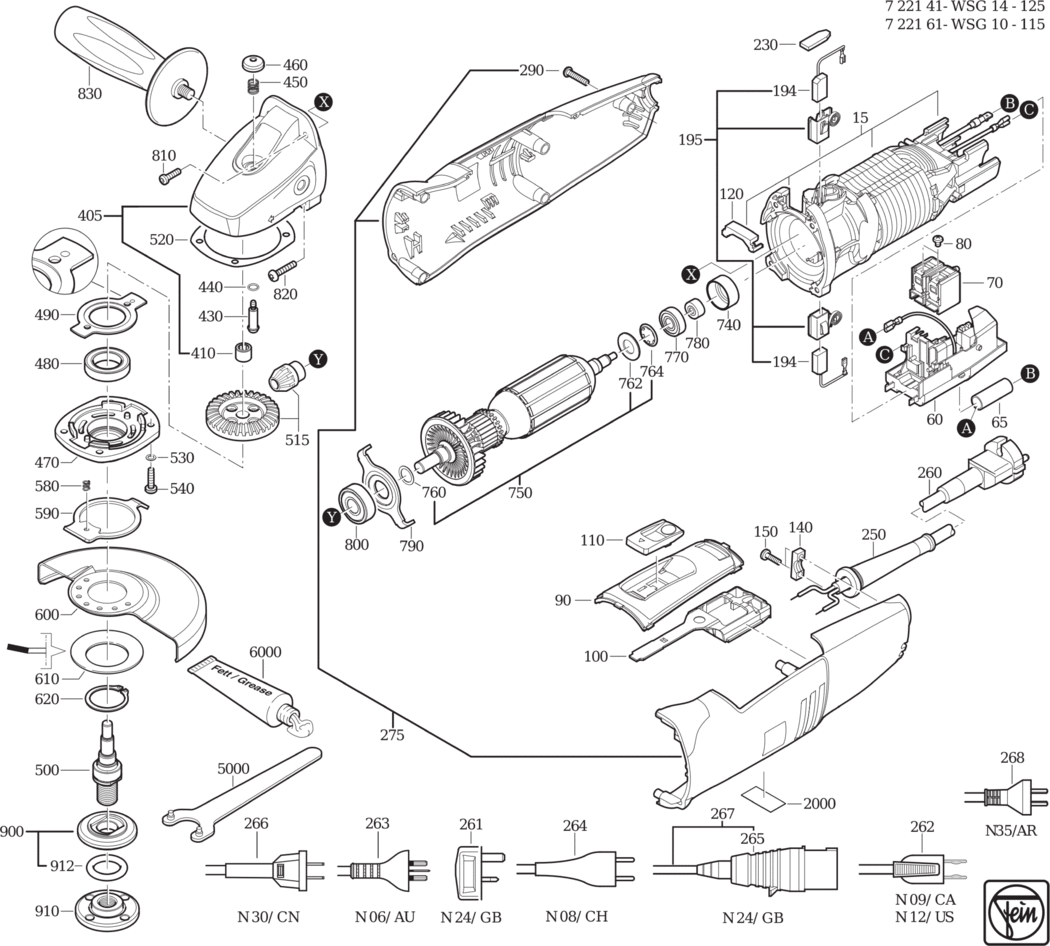

An exploded diagram and spare parts listing for the Fein WSG 10-115 (50/60Hz 220/230V) / 72216100230

	Ex VAT	Inc VAT
15 - STATOR UNIT 230V/50HZ FEI-52277030230.A5 52277030230	£92.07	£110.48
60 - ELECTRONICS FEI-30762375990.A0 30762375990	£88.95	£106.74
65 - INSULATING HOSE FEI-31413232000.A46 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A57 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A122 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427140000.A2 32427140000	-
100 - CONTROL ROD FEI-32816072000.A7 32816072000	£9.37	£11.24
110 - SLIDE SWITCH FEI-32805223000.A5 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A39 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A113 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A135 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A35 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A27 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A43 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A99 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A2 30707544010	-
275 - MOTOR HOUSING FEI-31912097010.A0 31912097010	-
290 - SCREW FEI-43074008000.A129 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206141020.A7 31206141020	£85.88	£103.05
410 - NEEDLE SLEEVE FEI-41705006006.A40 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A77 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A3 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A151 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A145 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A0 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A257 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A4 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A19 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A15 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A28 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A296 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A174 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A8 30901340001	£1.60	£1.92
590 - LEVER FEI-32805230000.A5 32805230000	£6.12	£7.34
600 - SAFETY HOOD FEI-31810256000.A7 31810256000	£23.91	£28.69
610 - CUP SPRING FEI-30905070000.A30 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A13 42616073005	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A40 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53277003230.A4 53277003230	£117.69	£141.23
760 - CIRCLIP FEI-42615081002.A100 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A33 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A51 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A199 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A39 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A40 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A94 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A0 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A4 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A11 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A204 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A215 63802052000	£14.88	£17.86
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A14 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A283 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A67 34130054061	-

Attribute Name	Value
Brand	Fein
