Fein WSG 11-125 R (50/60Hz 220/230V) / 72218600230 Spare Parts

Fein WSG 11-125 R ⡐/60Hz 220/230V) / 72218600230 Spare Parts

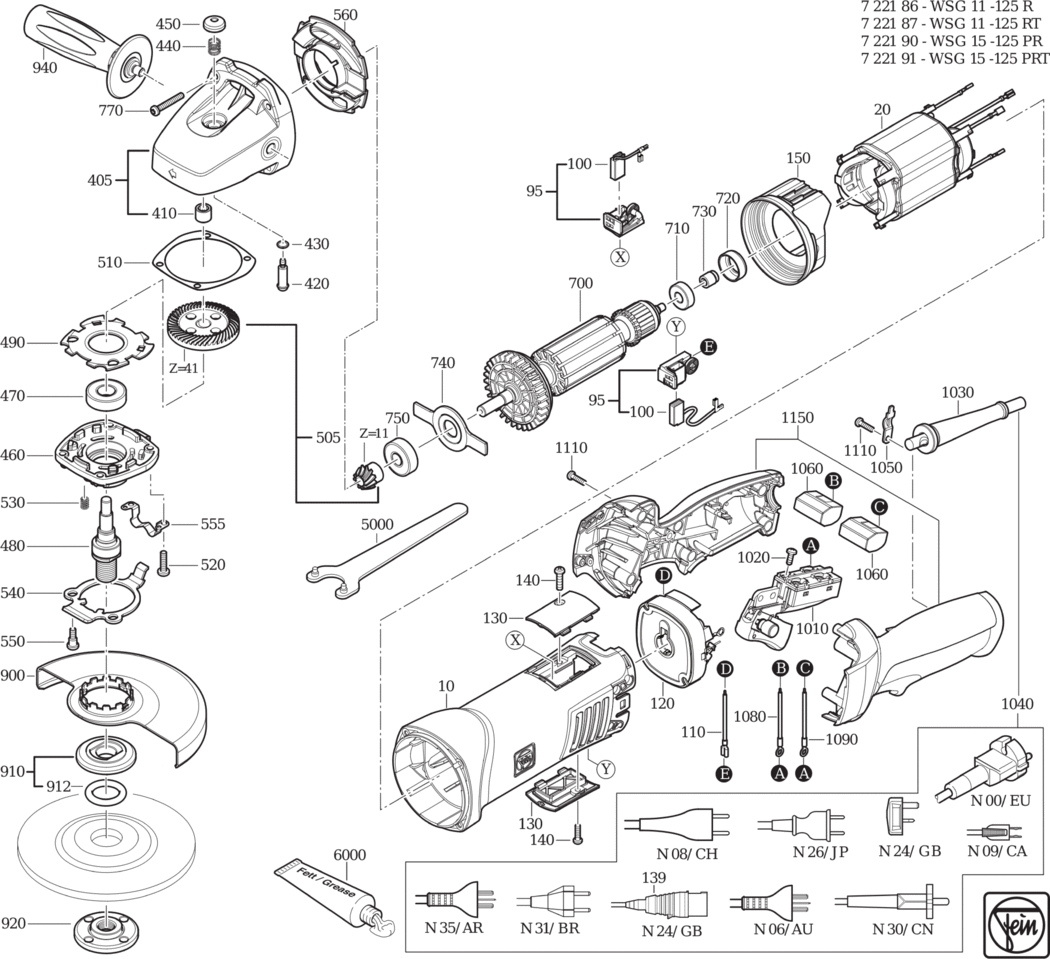

An exploded diagram and spare parts listing for the Fein WSG 11-125 R (50/60Hz 220/230V) / 72218600230
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A26 31903225000 £40.71 £48.85
20 - STATOR 50HZ230V FEI-51279005230.A13 51279005230 £55.98 £67.18
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A1 30712096010 £11.45 £13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A40 30711158000 £8.15 £9.78
120 - ELECTRONICS FEI-30762496990.A4 30762496990 -
130 - COVER FEI-32427157000.A63 32427157000 £4.97 £5.96
140 - SCREW FEI-43072000000.A66 43072000000 £1.60 £1.92
150 - AIR GUIDE RING FEI-31428179000.A64 31428179000 £7.46 £8.95
405 - GEARBOX HOUSING FEI-31206146030.A44 31206146030 -
410 - NEEDLE SLEEVE FEI-41705006006.A37 41705006006 £7.31 £8.77
420 - BOLT FEI-30217335005.A78 30217335005 £7.39 £8.87
430 - SEALING RING FEI-40612137008.A4 40612137008 £1.60 £1.92
440 - SPIRAL SPRING FEI-30901357005.A152 30901357005 £2.38 £2.86
450 - PUSHBUTTON FEI-32805200008.A147 32805200008 £2.58 £3.09
460 - BEARING PLATE FEI-32419151000.A17 32419151000 £28.48 £34.17
470 - GROOVED BALL BEARING FEI-41701010054.A259 41701010054 £8.25 £9.90
480 - SHAFT FEI-33406299001.A22 33406299001 £26.04 £31.25
490 - PLATE FEI-32416115000.A28 32416115000 -
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A0 33809238020 £40.91 £49.09
510 - WASHER 0.1 FEI-32624122020.A41 32624122020 £1.60 £1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A175 43064024043 -
530 - SPIRAL SPRING FEI-30901340001.A6 30901340001 £1.60 £1.92
540 - LEVER FEI-32805312000.A25 32805312000 £4.78 £5.73
550 - SCREW FEI-33024073000.A26 33024073000 -
555 - CLAMP FEI-30907074000.A1 30907074000 £2.34 £2.81
560 - AIR GUIDE RING FEI-31428180000.A74 31428180000 £4.28 £5.14
700 - ARMATURE 50HZ230V FEI-53279002230.A7 53279002230 £88.04 £105.65
710 - GROOVED BALL BEARING FEI-41701001260.A198 41701001260 £7.11 £8.53
720 - BEARING BUSH FEI-30507236000.A43 30507236000 £3.19 £3.83
740 - PLATE FEI-32416117000.A85 32416117000 £1.60 £1.92
750 - GROOVED BALL BEARING FEI-41701207260.A80 41701207260 £7.41 £8.89
770 - SCREW FEI-43074012000.A4 43074012000 £1.60 £1.92
900 - SAFETY HOOD Ø125 FEI-31810288010.A18 31810288010 £20.80 £24.96
910 - INNER FLANGE FEI-63801182010.A207 63801182010 £14.88 £17.86
912 - SEALING RING FEI-40612000007.A4 40612000007 £1.60 £1.92
920 - THREADED FLANGE FEI-63802052000.A213 63802052000 £14.88 £17.86
940 - HANDLE FEI-32119107016.A88 32119107016 £10.15 £12.18
1010 - SWITCH FEI-30701304010.A16 30701304010 -
1020 - FILLISTER HEAD SCREW FEI-43041039999.A124 43041039999 £1.60 £1.92
1030 - CABLE GROMMET FEI-31413282000.A102 31413282000 £2.55 £3.06
1040 - CABLE WITH PLUG FEI-30707544010.A4 30707544010 -
1050 - CABLE CLAMPING PIECE FEI-32431043002.A70 32431043002 £1.60 £1.92
1060 - TERMINAL FEI-31412063000.A40 31412063000 £3.93 £4.72
1080 - CABLE FEI-30719886010.A35 30719886010 -
1110 - SCREW FEI-43072000000.A67 43072000000 £1.60 £1.92
1150 - HANDLE FEI-31204193010.A24 31204193010 -
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A15 62910022002 £7.22 £8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A288 32160003014 -
9000 - OPERATING INSTRUCTIONS WS8 11 12 15 FEI-34101217060.A4 34101217060 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A63 34130054061 -
