Fein WSG 11-125 RT (50Hz 110V) / 72218724110 Spare Parts

Fein WSG 11-125 RT ⡐Hz 110V) / 72218724110 Spare Parts

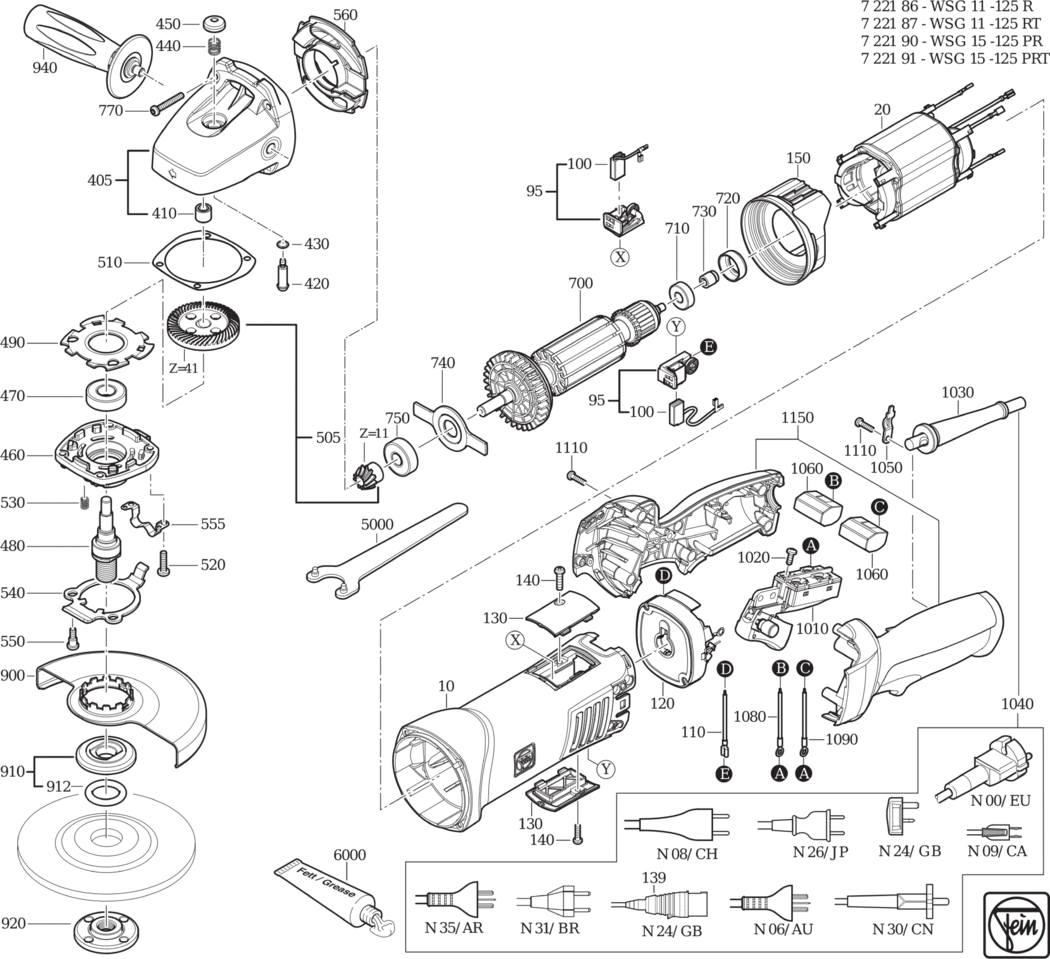

An exploded diagram and spare parts listing for the Fein WSG 11-125 RT (50Hz 110V) / 72218724110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A30 31903225000	£40.71	£48.85
20 - STATOR 50HZ110V FEI-51279005110.A0 51279005110	£53.18	£63.81
95 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712096040.A40 30712096040	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 110-120V 50/60HZ FEI-30711160000.A30 30711160000	£8.15	£9.78
110 - CHOKE FEI-30764171000.A1 30764171000	-
120 - ELECTRONICS FEI-30762496990.A5 30762496990	-
130 - COVER FEI-32427157000.A60 32427157000	£4.97	£5.96
139 - PLUG CEE 16A/110V FEI-30728288004.A12 30728288004	£14.25	£17.10
140 - SCREW FEI-43072000000.A78 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A60 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206146030.A52 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A49 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A73 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A16 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A158 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A155 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419151000.A21 32419151000	£28.48	£34.17
470 - GROOVED BALL BEARING FEI-41701010054.A254 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A28 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A36 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A11 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A50 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A183 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A4 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A23 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A21 33024073000	-
555 - CLAMP FEI-30907074000.A2 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A78 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ110V FEI-53279002110.A4 53279002110	£84.55	£101.46
710 - GROOVED BALL BEARING FEI-41701001260.A194 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A54 30507236000	£3.19	£3.83
740 - PLATE FEI-32416117000.A76 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A84 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A7 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜125 FEI-31810288010.A23 31810288010	£20.80	£24.96
910 - INNER FLANGE FEI-63801182010.A216 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A10 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A204 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A94 32119107016	£10.15	£12.18
1010 - SWITCH FEI-30701305010.A8 30701305010	£31.19	£37.43
1020 - FILLISTER HEAD SCREW FEI-43041039999.A129 43041039999	£1.60	£1.92
1030 - PROTECTIVE HOSE FEI-31413237000.A11 31413237000	£2.74	£3.29
1040 - CABLE WITH PLUG FEI-30707546010.A3 30707546010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A68 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A39 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A39 30719886010	-
1110 - SCREW FEI-43072000000.A82 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A29 31204193010	-
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A20 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A294 32160003014	-
9000 - OPERATING INSTRUCTIONS WS8 11 12 15 FEI-34101217060.A5 34101217060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A58 34130054061	-

Attribute Name	Value
Brand	Fein
