Fein WSG 15-125 P (50/60Hz 220/230V) / 72217800230 Spare Parts

Fein WSG 15-125 P ⡐/60Hz 220/230V) / 72217800230 Spare Parts

Home Details Reviews Delivery

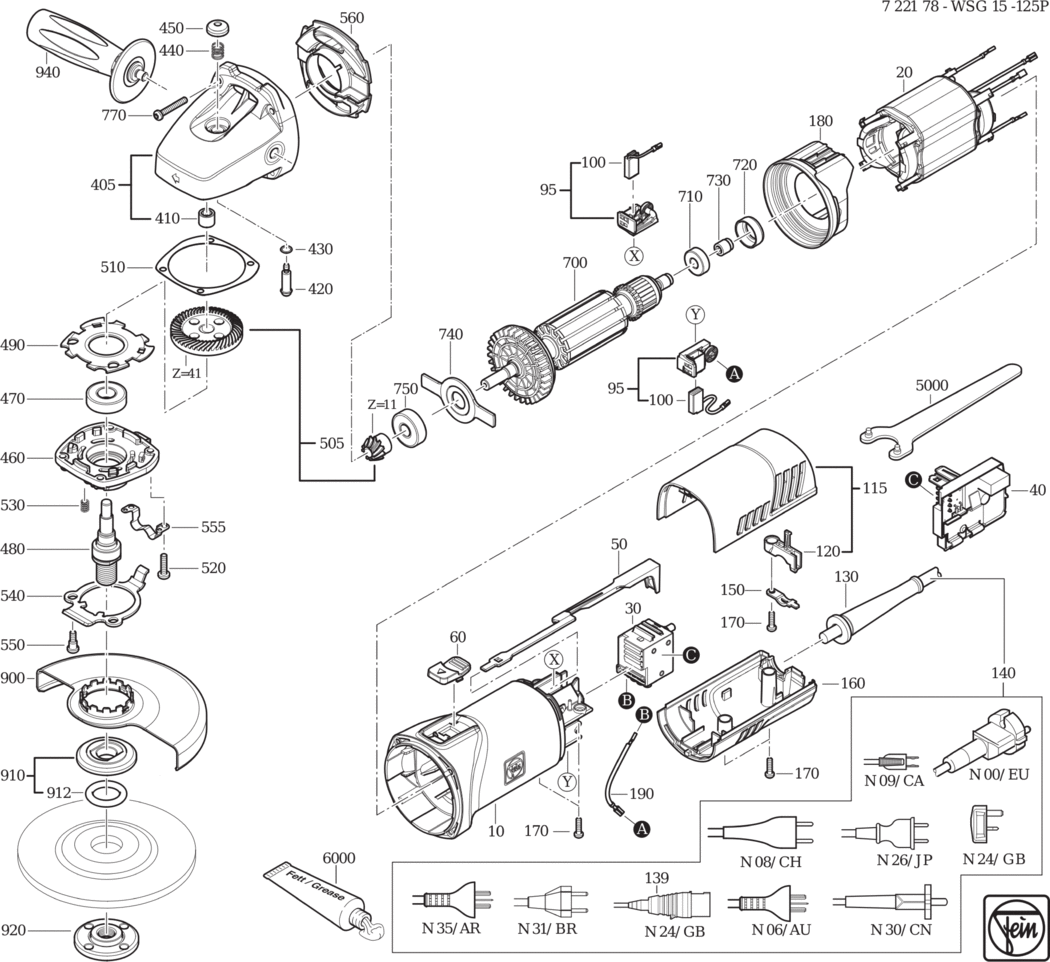

An exploded diagram and spare parts listing for the Fein WSG 15-125 P (50/60Hz 220/230V) / 72217800230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A50 31901175000	£36.82	£44.19
20 - STATOR 50HZ230V FEI-51279004230.A31 51279004230	£57.22	£68.67
30 - SWITCH FEI-30701299000.A75 30701299000	£28.81	£34.57
40 - ELECTRONICS 50/60H 220-230V FEI-30762531990.A10 30762531990	£65.31	£78.37
50 - CONTROL ROD FEI-32816080000.A20 32816080000	£2.55	£3.06
60 - SLIDE SWITCH FEI-32805306000.A81 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A37 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A7 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427154010.A17 32427154010	£15.42	£18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A42 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A34 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A34 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A110 32431043002	£1.60	£1.92
160 - COVER UT FEI-32427152000.A16 32427152000	£6.62	£7.95
170 - SCREW FEI-43072000000.A21 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A130 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206146030.A27 31206146030	-
410 - NEEDLE SLEEVE FEI-41705006006.A14 41705006006	£7.31	£8.77
420 - BOLT FEI-30217335005.A25 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A128 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A88 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A112 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419151000.A7 32419151000	£28.48	£34.17
470 - GROOVED BALL BEARING FEI-41701010054.A179 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406299001.A12 33406299001	£26.04	£31.25
490 - PLATE FEI-32416115000.A41 32416115000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A32 33809238020	£40.91	£49.09
510 - WASHER 0.1 FEI-32624122020.A57 32624122020	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064024043.A151 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A53 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A15 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A12 33024073000	-
555 - CLAMP FEI-30907074000.A24 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A11 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279001230.A8 53279001230	£89.30	£107.16
710 - GROOVED BALL BEARING FEI-41701001260.A59 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A106 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A39 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A103 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A167 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A61 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜125 FEI-31810288010.A6 31810288010	£20.80	£24.96
910 - INNER FLANGE FEI-63801182010.A122 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A81 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A116 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A58 32119124010	£17.68	£21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A160 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A502 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A268 34130054061	-
