Fein WSG 15-150 PRT (50/60Hz 220/230V) / 72219300230 Spare Parts

Fein WSG 15-150 PRT ⡐/60Hz 220/230V) / 72219300230 Spare Parts

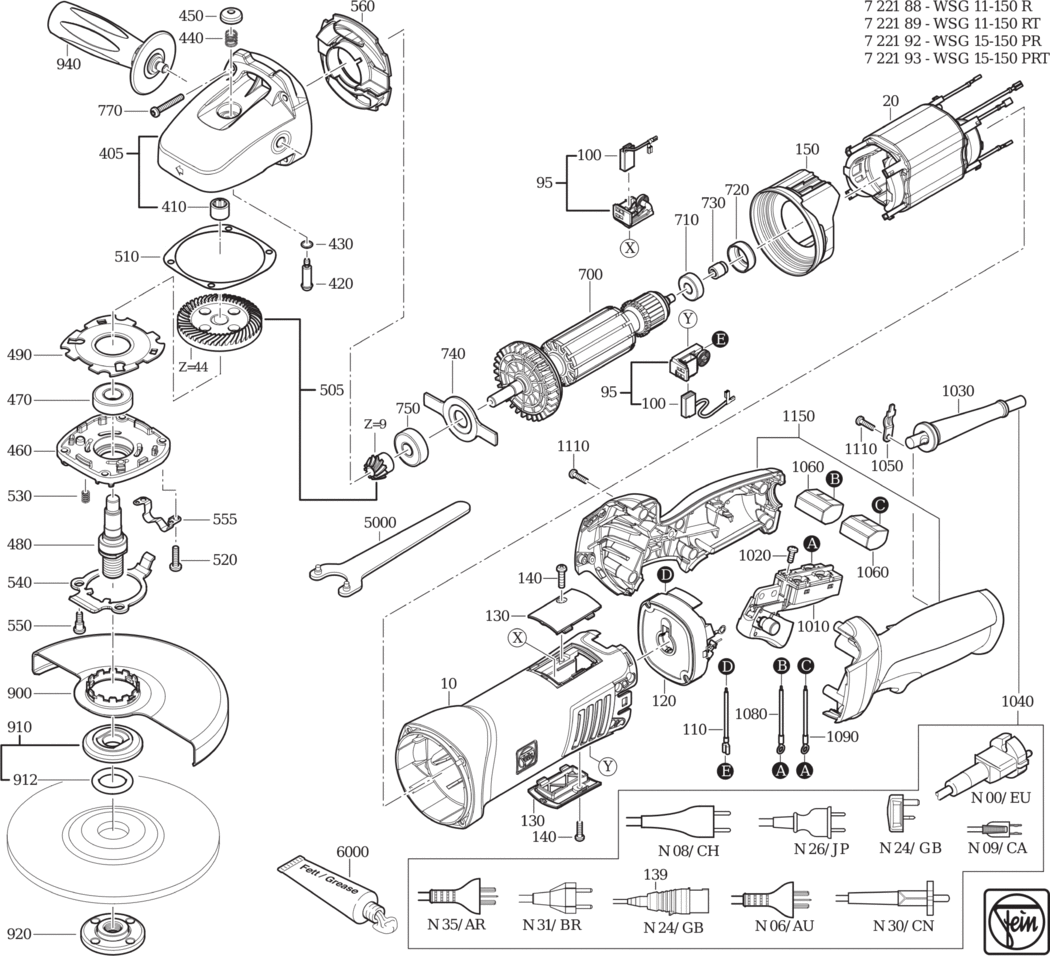

An exploded diagram and spare parts listing for the Fein WSG 15-150 PRT (50/60Hz 220/230V) / 72219300230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903225000.A17 31903225000	£40.71	£48.85
20 - STATOR 50HZ230V FEI-51279004230.A39 51279004230	£57.22	£68.67
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A21 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A60 30711158000	£8.15	£9.78
120 - ELECTRONICS 100-230V50/60H FEI-30762494990.A4 30762494990	-
130 - COVER FEI-32427157000.A58 32427157000	£4.97	£5.96
140 - SCREW FEI-43072000000.A87 43072000000	£1.60	£1.92
150 - AIR GUIDE RING FEI-31428179000.A75 31428179000	£7.46	£8.95
405 - GEARBOX HOUSING FEI-31206147030.A7 31206147030	-
410 - NEEDLE SLEEVE FEI-41705019001.A69 41705019001	£9.49	£11.39
420 - BOLT FEI-30217335005.A92 30217335005	£7.39	£8.87
430 - SEALING RING FEI-40612137008.A54 40612137008	£1.60	£1.92
440 - SPIRAL SPRING FEI-30901357005.A143 30901357005	£2.38	£2.86
450 - PUSHBUTTON FEI-32805200008.A186 32805200008	£2.58	£3.09
460 - BEARING PLATE FEI-32419152000.A2 32419152000	-
470 - GROOVED BALL BEARING FEI-41701010054.A299 41701010054	£8.25	£9.90
480 - SHAFT FEI-33406284009.A30 33406284009	£33.58	£40.29
490 - PLATE FEI-32416116000.A28 32416116000	-
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A30 33809247010	-
510 - WASHER FEI-32624123020.A27 32624123020	-
520 - FILLISTER HEAD SCREW FEI-43064024043.A201 43064024043	-
530 - SPIRAL SPRING FEI-30901340001.A17 30901340001	£1.60	£1.92
540 - LEVER FEI-32805312000.A35 32805312000	£4.78	£5.73
550 - SCREW FEI-33024073000.A31 33024073000	-
555 - CLAMP FEI-30907074000.A13 30907074000	£2.34	£2.81
560 - AIR GUIDE RING FEI-31428180000.A68 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53279001230.A13 53279001230	£89.30	£107.16
710 - GROOVED BALL BEARING FEI-41701001260.A167 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A29 30507236000	£3.19	£3.83
730 - MAGNET FEI-32172014010.A9 32172014010	£8.85	£10.62
740 - PLATE FEI-32416117000.A51 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A118 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A19 43074012000	£1.60	£1.92
900 - SAFETY HOOD Ã˜150 FEI-31810289010.A1 31810289010	£21.18	£25.42
910 - INNER FLANGE FEI-63801182010.A189 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A41 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A167 63802052000	£14.88	£17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A30 32119124010	£17.68	£21.22
1010 - SWITCH FEI-30701305010.A10 30701305010	£31.19	£37.43
1020 - FILLISTER HEAD SCREW FEI-43041039999.A119 43041039999	£1.60	£1.92
1030 - CABLE GROMMET FEI-31413282000.A78 31413282000	£2.55	£3.06
1040 - CABLE WITH PLUG FEI-30707544010.A18 30707544010	-
1050 - CABLE CLAMPING PIECE FEI-32431043002.A52 32431043002	£1.60	£1.92
1060 - TERMINAL FEI-31412063000.A33 31412063000	£3.93	£4.72
1080 - CABLE FEI-30719886010.A30 30719886010	-
1110 - SCREW FEI-43072000000.A92 43072000000	£1.60	£1.92
1150 - HANDLE FEI-31204193010.A21 31204193010	-
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A65 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A335 32160003014	-
9000 - OPERATING INSTRUCTIONS WS8 11 12 15 FEI-34101217060.A3 34101217060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A89 34130054061	-

Attribute Name	Value
Brand	Fein
