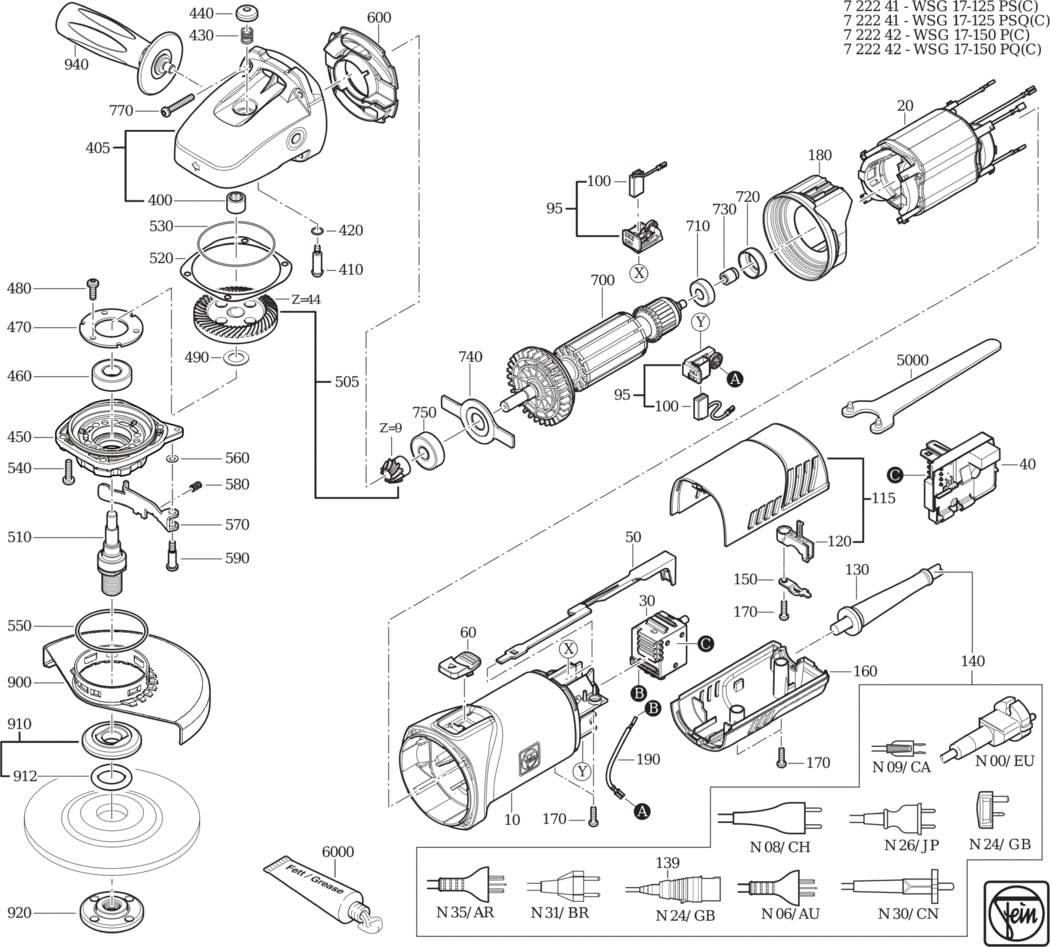

An exploded diagram and spare parts listing for the Fein WSG 17-125 PS (C) / 72224124230
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901175000.A8 31901175000 £36.82 £44.19
20 - STATOR 50HZ230V FEI-51279004230.A10 51279004230 £57.22 £68.67
30 - SWITCH FEI-30701299000.A26 30701299000 £28.81 £34.57
40 - ELECTRONICS 50/60H220-230V FEI-30762556990.A4 30762556990 £62.92 £75.50
50 - CONTROL ROD FEI-32816080000.A48 32816080000 £2.55 £3.06
60 - SLIDE SWITCH FEI-32805306000.A17 32805306000 £4.59 £5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A81 30712096010 £11.45 £13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A117 30711158000 £8.15 £9.78
115 - COVER OT FEI-32427154010.A38 32427154010 £15.42 £18.51
120 - CABLE CLAMPING PIECE FEI-32431047000.A82 32431047000 -
130 - CABLE GROMMET FEI-31413282000.A121 31413282000 £2.55 £3.06
140 - CABLE WITH PLUG FEI-30707547010.A6 30707547010 -
150 - CABLE CLAMPING PIECE FEI-32431043002.A157 32431043002 £1.60 £1.92
160 - COVER UT FEI-32427152000.A39 32427152000 £6.62 £7.95
170 - SCREW FEI-43072000000.A185 43072000000 £1.60 £1.92
180 - AIR GUIDE RING FEI-31428179000.A51 31428179000 £7.46 £8.95
400 - NEEDLE SLEEVE FEI-41705019001.A113 41705019001 £9.49 £11.39
405 - GEARBOX HOUSING FEI-31206166030.A2 31206166030 -
410 - BOLT FEI-30217335005.A173 30217335005 £7.39 £8.87
420 - SEALING RING FEI-40612137008.A201 40612137008 £1.60 £1.92
430 - SPIRAL SPRING FEI-30901357005.A17 30901357005 £2.38 £2.86
440 - PUSHBUTTON FEI-32805200008.A51 32805200008 £2.58 £3.09
450 - BEARING PLATE FEI-32419160000.A4 32419160000 -
460 - GROOVED BALL BEARING FEI-41701010054.A73 41701010054 £8.25 £9.90
470 - PLATE FEI-32416118000.A33 32416118000 -
480 - FILLISTER HEAD SCREW FEI-43064002043.A35 43064002043 £1.60 £1.92
490 - DISC FEI-32601281000.A3 32601281000 -
505 - BEVEL GEAR Z=9/44 FEI-33809247010.A47 33809247010 -
510 - SHAFT M14 FEI-33406349000.A10 33406349000 -
520 - WASHER 0.15 FEI-32624123060.A11 32624123060 -
520 - WASHER FEI-32624123020.A4 32624123020 -
530 - RING FEI-40612000009.A1 40612000009 -
540 - FILLISTER HEAD SCREW FEI-43064024043.A83 43064024043 -
550 - SEALING RING FEI-40612000003.A25 40612000003 £1.60 £1.92
560 - DISC FEI-32408450000.A64 32408450000 £1.60 £1.92
570 - LEVER FEI-30240332000.A7 30240332000 £7.46 £8.95
580 - SPRING FEI-30901403000.A82 30901403000 £1.60 £1.92
590 - SCREW FEI-33024077000.A65 33024077000 £1.60 £1.92
600 - AIR GUIDE RING FEI-31428180000.A89 31428180000 £4.28 £5.14
700 - ARMATURE 50H230V FEI-53279006230.A18 53279006230 £90.61 £108.73
710 - GROOVED BALL BEARING FEI-41701001260.A272 41701001260 £7.11 £8.53
720 - BEARING BUSH FEI-30507236000.A161 30507236000 £3.19 £3.83
730 - MAGNET FEI-32172014010.A98 32172014010 £8.85 £10.62
740 - PLATE FEI-32416117000.A3 32416117000 £1.60 £1.92
750 - GROOVED BALL BEARING FEI-41701207260.A19 41701207260 £7.41 £8.89
770 - SCREW FEI-43074012000.A151 43074012000 £1.60 £1.92
900 - WHEEL GUARD FEI-31810300000.A39 31810300000 £19.05 £22.86
910 - INNER FLANGE FEI-63801182010.A23 63801182010 £14.88 £17.86
912 - SEALING RING FEI-40612000007.A192 40612000007 £1.60 £1.92
920 - THREADED FLANGE FEI-63802052000.A17 63802052000 £14.88 £17.86
940 - ANTI-VIBRATION HANDLE FEI-32119124010.A114 32119124010 £17.68 £21.22
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A273 62910022002 £7.22 £8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A205 32160003014 -
