Fein KBB 40 X / 72721324110 Spare Parts

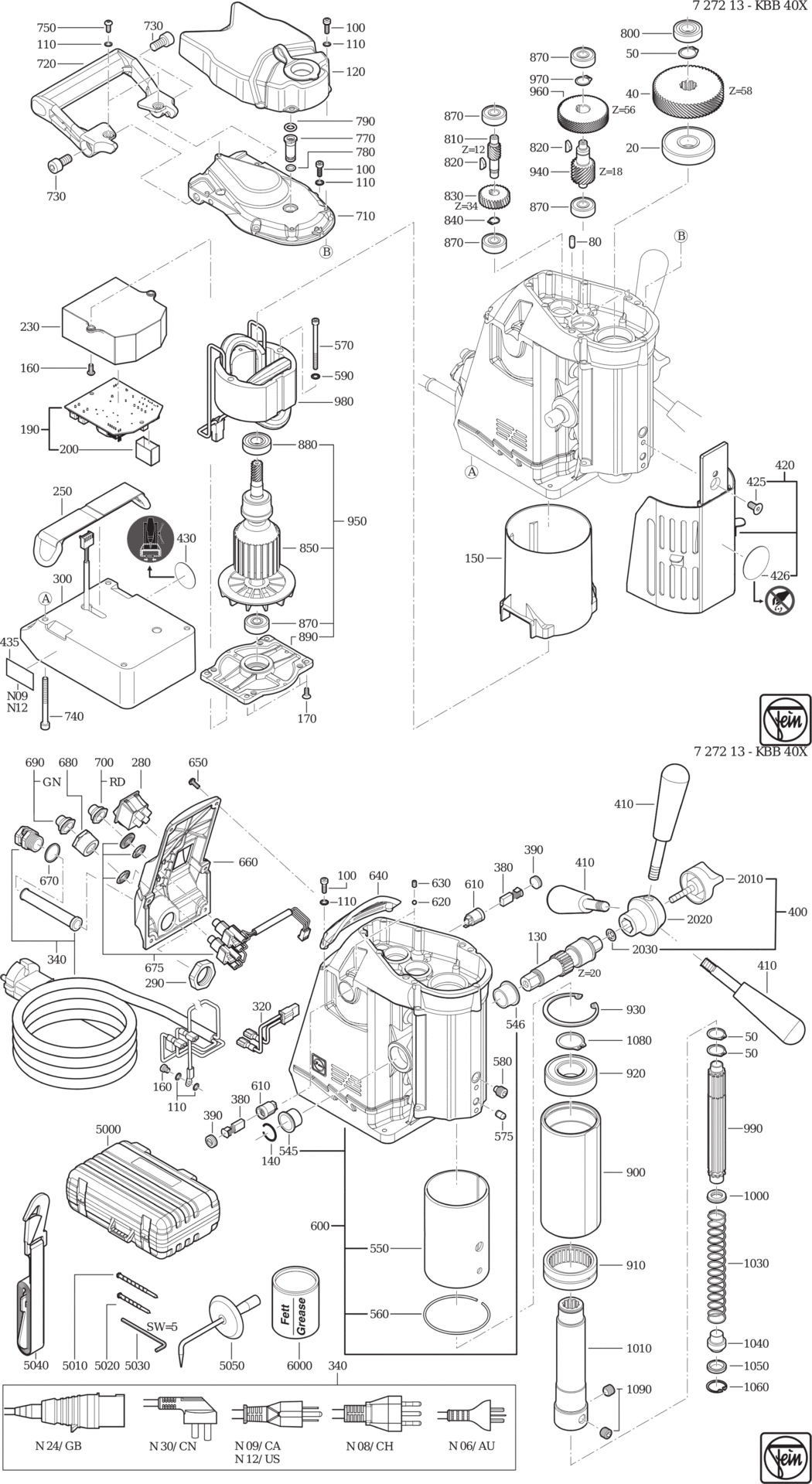

An exploded diagram and spare parts listing for the Fein KBB 40 X / 72721324110

	Ex VAT	Inc VAT
20 - GROOVED BALL BEARING FEI-41798730450.A10 41798730450	-
40 - GEAR-WHEEL FEI-33698681200.A0 33698681200	-
50 - RING FEI-42698740160.A1 42698740160	£1.60	£1.92
80 - PIN FEI-40298742003.A7 40298742003	-
100 - SCREW FEI-43098704220.A0 43098704220	-
110 - DISC FEI-42498720440.A20 42498720440	£1.60	£1.92
120 - CONTAINER FEI-32198190030.A6 32198190030	£26.60	£31.92
130 - SHAFT TOOTHED FEI-33298320110.A6 33298320110	-
140 - RING FEI-42698740180.A0 42698740180	£1.60	£1.92
150 - INSULATING RING FEI-31998631055.A0 31998631055	£11.86	£14.23
160 - SCREW FEI-43098704060.A24 43098704060	£1.60	£1.92
170 - SCREW FEI-43098704100.A6 43098704100	£1.60	£1.92
190 - ELECTRONICS FEI-30798550065.A1 30798550065	£129.65	£155.58
200 - PROTECTIVE CAP FEI-30798550120.A3 30798550120	£1.60	£1.92
230 - HOUSING FEI-31498530100.A0 31498530100	£9.22	£11.07
250 - BELT FEI-32198121000.A0 32198121000	£24.88	£29.85
280 - SWITCH FEI-30798755410.A14 30798755410	£33.88	£40.66
290 - NUT FEI-30798757544.A10 30798757544	£3.04	£3.65
300 - MAGNETIC FOOT FEI-33298492070.A1 33298492070	-
320 - CABLE FEI-30798592770.A3 30798592770	£16.24	£19.49
340 - CABLE WITH PLUG GB FEI-30798592070.A5 30798592070	£90.57	£108.68
380 - CARBON BRUSH (SOLD SINGLY) FEI-30798651120.A0 30798651120	£18.09	£21.71
390 - CAP FEI-30798651160.A0 30798651160	£6.30	£7.56
400 - CONNECTING PIECE FEI-31698391000.A4 31698391000	£44.05	£52.86
410 - HANDLE FEI-32198114000.A16 32198114000	£18.38	£22.06
420 - PROTECTING LATTICE FEI-63998611030.A0 63998611030	£45.50	£54.60
425 - SCREW FEI-43098706040.A0 43098706040	-
426 - STICKER FEI-32217406002.A94 32217406002	£1.60	£1.92
430 - STICKER FEI-32217407000.A3 32217407000	-
545 - BUSH FEI-41798733100.A6 41798733100	£9.00	£10.80
546 - BUSH FEI-41798733200.A0 41798733200	£10.71	£12.85
550 - SLEEVE FEI-31598231500.A0 31598231500	£92.47	£110.96
560 - CIRCLIP FEI-42698740620.A6 42698740620	-
570 - SCREW FEI-43098704370.A3 43098704370	-
580 - SCREW FEI-43098709020.A6 43098709020	£6.75	£8.10
590 - DISC FEI-42498720460.A0 42498720460	-
600 - HOUSING FEI-31298391110.A0 31298391110	-
610 - BRUSH HOLDER FEI-30798651140.A6 30798651140	£13.02	£15.62
620 - BALL FEI-42498748005.A0 42498748005	-
630 - SCREW FEI-43098705000.A0 43098705000	-
640 - COVER FEI-32498611030.A6 32498611030	£8.68	£10.42
650 - SCREW FEI-43098703230.A3 43098703230	-
660 - COVER FEI-30798591140.A1 30798591140	£19.01	£22.81
670 - SEAL FEI-30610034008.A24 30610034008	£1.60	£1.92
675 - SWITCH FEI-30798591068.A6 30798591068	£54.78	£65.74
680 - PROTECTIVE CAP FEI-32498520090.A3 32498520090	£3.95	£4.74
690 - PUSHBUTTON FEI-30798755270.A14 30798755270	£8.29	£9.95
700 - PUSHBUTTON FEI-30798755275.A6 30798755275	£8.29	£9.95
710 - COVER FEI-31342621182.A6 31342621182	£122.42	£146.90
720 - HANDLE FEI-31298330020.A10 31298330020	£19.50	£23.40
730 - SCREW FEI-43098708100.A20 43098708100	-
740 - SCREW FEI-43098705640.A3 43098705640	-
750 - SCREW FEI-43098704060.A23 43098704060	£1.60	£1.92
770 - CONNECTING PIECE FEI-31498761060.A6 31498761060	£23.08	£27.69
780 - RING FEI-40698763680.A6 40698763680	£1.60	£1.92
790 - RING FEI-40698763660.A6 40698763660	-
800 - GROOVED BALL BEARING FEI-41798730390.A20 41798730390	£35.33	£42.40
810 - PINION FEI-33698681260.A6 33698681260	-
820 - FEATHER KEY FEI-40298745840.A0 40298745840	-
830 - GEAR-WHEEL FEI-33698681280.A0 33698681280	-
840 - CIRCLIP FEI-42698740090.A0 42698740090	-
850 - ARMATURE 60HZ/120V FEI-53298651070.A2 53298651070	£151.49	£181.79
870 - GROOVED BALL BEARING FEI-41798730240.A0 41798730240	£21.99	£26.39
880 - GROOVED BALL BEARING FEI-41798730390.A19 41798730390	£35.33	£42.40
890 - BEARING PLATE FEI-33298333030.A6 33298333030	£18.79	£22.55
900 - SLEEVE FEI-33498223000.A0 33498223000	£162.45	£194.94
910 - NEEDLE BEARING FEI-41798730630.A0 41798730630	£38.89	£46.67
920 - GROOVED BALL BEARING FEI-41798730570.A6 41798730570	£27.41	£32.89
930 - CIRCLIP FEI-42698741520.A0 42698741520	-
940 - PINION FEI-33698681220.A6 33698681220	-
950 - ARMATURE 60HZ/120V FEI-52298694420.A2 52298694420	£209.47	£251.36
960 - GEAR-WHEEL FEI-33698681240.A0 33698681240	-
970 - CIRCLIP FEI-42698740130.A0 42698740130	-
980 - STATOR 60HZ/120V FEI-51298651050.A2 51298651050	£171.02	£205.22
990 - SHAFT FEI-33498223040.A1 33498223040	£129.02	£154.82
1000 - SEAL FEI-40698763080.A6 40698763080	£19.49	£23.39
1010 - SHAFT FEI-33498223020.A5 33498223020	£164.13	£196.96
1030 - SPRING FEI-30998744020.A6 30998744020	£6.68	£8.01
1040 - PLUNGER FEI-33498223060.A5 33498223060	£4.38	£5.26
1050 - SEAL FEI-40698763100.A0 40698763100	£17.50	£21.00
1060 - CIRCLIP FEI-42698741190.A0 42698741190	£1.60	£1.92
1080 - CIRCLIP FEI-42698740250.A6 42698740250	£1.60	£1.92
1090 - SCREW FEI-43098709000.A8 43098709000	£1.60	£1.92
2010 - CLAMPING UNIT FEI-64298120140.A4 64298120140	-
2020 - CONNECTING PIECE FEI-31698321000.A13 31698321000	£39.75	£47.70
2030 - DISC FEI-42098746000.A5 42098746000	-
5000 - TOOL CASE FEI-33998140062.A4 33998140062	-
5010 - CENTERING PIN FEI-63134998310.A76 63134998310	£25.18	£30.21
5020 - CENTERING PIN FEI-63134998300.A12 63134998300	£25.18	£30.21
5030 - WRENCH FEI-62998780030.A16 62998780030	£3.35	£4.02
5040 - BELT FEI-32198131000.A19 32198131000	£50.73	£60.88
5050 - SWARF HOOK FEI-64298160400.A19 64298160400	-
6000 - LUBRICANT CAN 0.400KG FEI-32198766040.A1 32198766040	-
9020 - SAFETY INSTRUCTION FEI-34130465060.A13 34130465060	-
