Fein KBU 35 QW (A) / 72708500230 Spare Parts

Fein KBU 35 QW ʊ) / 72708500230 Spare Parts

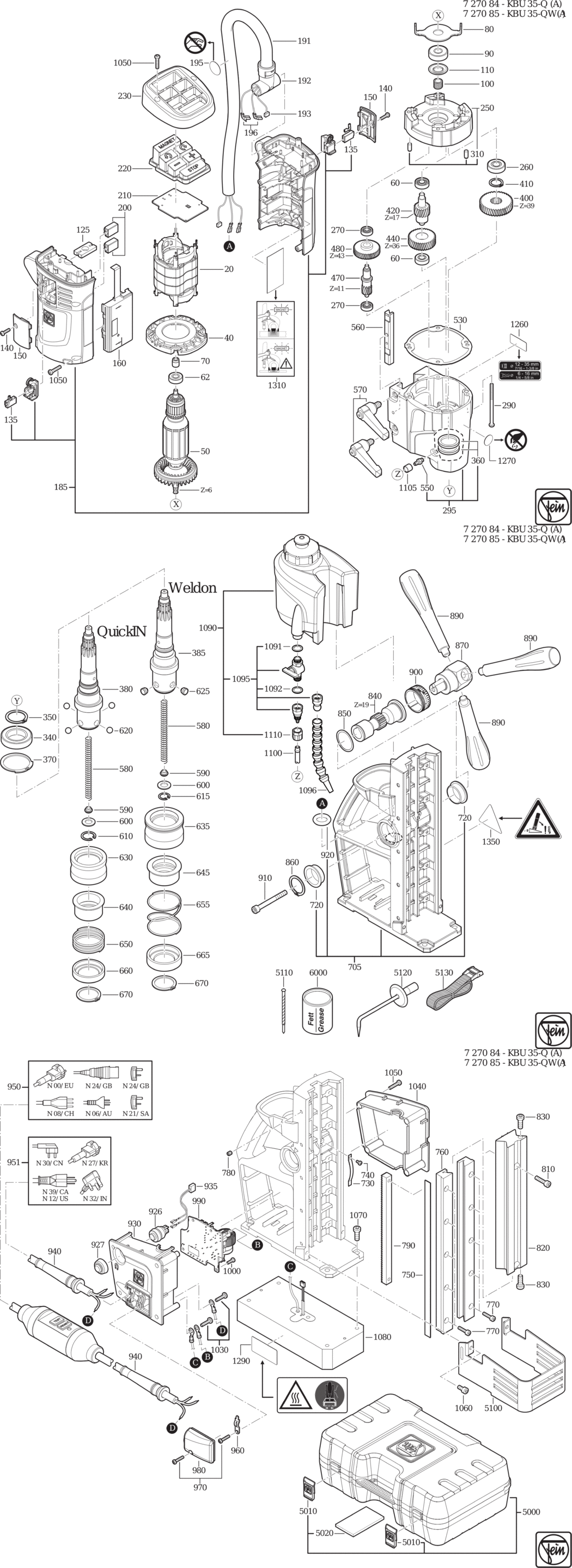

An exploded diagram and spare parts listing for the Fein KBU 35 QW (A) / 72708500230

	Ex VAT	Inc VAT
20 - STATOR 50HZ 230V FEI-51282002230.A7 51282002230	-
40 - AIR GUIDE RING FEI-31428196000.A22 31428196000	-
50 - ARMATURE 50/60H220/230V FEI-53281007230.A7 53281007230	-
60 - GROOVED BALL BEARING FEI-41701001172.A154 41701001172	£9.63	£11.56
62 - GROOVED BALL BEARING FEI-41701001260.A239 41701001260	£7.11	£8.53
70 - MAGNET FEI-32172014010.A109 32172014010	£8.85	£10.62
80 - PLATE FEI-32416098005.A40 32416098005	£1.60	£1.92
90 - GROOVED BALL BEARING FEI-41701207260.A42 41701207260	£7.41	£8.89
100 - SEALING RING FEI-32612135000.A21 32612135000	£9.45	£11.34
110 - SEALING RING FEI-42639028003.A43 42639028003	£5.74	£6.89
125 - COVER FEI-32411089000.A15 32411089000	-
135 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A91 30711158000	£8.15	£9.78
140 - SCREW FEI-43072000000.A133 43072000000	£1.60	£1.92
150 - COVER FEI-32427157000.A20 32427157000	£4.97	£5.96
160 - ELECTRONICS FEI-30762562990.A14 30762562990	-
185 - MOTOR HOUSING U 230V FEI-31901202030.A9 31901202030	-
191 - PROTECTIVE HOSE FEI-31414072000.A26 31414072000	-
192 - CONNECTING PIECE FEI-32429146010.A42 32429146010	-
193 - CONNECTING CABLE FEI-30719936010.A16 30719936010	-
195 - STICKER FEI-32217468060.A29 32217468060	-
196 - CABLE HARNESS FEI-30719943010.A12 30719943010	-
200 - TERMINAL FEI-30728445000.A7 30728445000	-
210 - ELECTRONICS FEI-30762560990.A16 30762560990	-
220 - SWITCH INSERT FEI-32816078000.A44 32816078000	£37.72	£45.27
230 - COVER FEI-32429141000.A11 32429141000	£14.66	£17.59
250 - INTERMEDIATE GEAR BOX FEI-31506412010.A12 31506412010	-
260 - GROOVED BALL BEARING FEI-41701006034.A26 41701006034	£11.83	£14.20
270 - GROOVED BALL BEARING FEI-41701202018.A38 41701202018	£6.92	£8.30
290 - SCREW FEI-43072006001.A12 43072006001	-
295 - GEARBOX HOUSING FEI-31508311020.A1 31508311020	-
310 - PIN FEI-40242058004.A32 40242058004	-
340 - GROOVED BALL BEARING FEI-41701000015.A10 41701000015	-
350 - CIRCLIP FEI-42616014009.A54 42616014009	£1.60	£1.92
360 - SEALING RING FEI-40608000005.A21 40608000005	-
370 - CIRCLIP FEI-42644019001.A6 42644019001	-
385 - SHAFT FEI-33403132000.A6 33403132000	-
400 - GEAR-WHEEL Z=39 FEI-33663174000.A1 33663174000	-
410 - CIRCLIP FEI-42616007001.A20 42616007001	£1.60	£1.92
420 - SHAFT TOOTHED Z=17 FEI-33763064000.A32 33763064000	-
440 - GEAR-WHEEL Z=36 FEI-33661002000.A6 33661002000	-
470 - SHAFT TOOTHED FEI-33761002000.A26 33761002000	-
480 - GEAR-WHEEL FEI-33657190000.A21 33657190000	£38.05	£45.66
530 - SEAL FEI-30610048000.A18 30610048000	-
550 - HOSE SOCKET FEI-41138025006.A10 41138025006	£8.40	£10.08
560 - PRESSURE PIECE FEI-33218134000.A12 33218134000	-
570 - LEVER FEI-32170025000.A7 32170025000	£26.84	£32.21
580 - SPIRAL SPRING FEI-30901341000.A15 30901341000	£5.99	£7.19
590 - SEALING RING FEI-30503145006.A29 30503145006	£3.52	£4.23
600 - DISC FEI-32408389000.A75 32408389000	£1.60	£1.92
615 - CIRCLIP FEI-42616033009.A82 42616033009	£1.60	£1.92
625 - PIN FEI-30240330000.A8 30240330000	-
635 - CLAMPING SLEEVE FEI-30501371000.A19 30501371000	-
645 - BUSH FEI-30501373000.A19 30501373000	£30.84	£37.01
655 - SPRING FEI-30901401000.A6 30901401000	-
665 - SLEEVE FEI-30501372000.A2 30501372000	-
670 - CIRCLIP 28X1 5 FEI-42616076000.A6 42616076000	-
705 - HOUSING FEI-31207320020.A13 31207320020	-
720 - BUSH FEI-31602089009.A33 31602089009	-
730 - LEAF SPRING FEI-30904047000.A25 30904047000	-
740 - SCREW FEI-43076001030.A14 43076001030	-
750 - PRESSURE PIECE FEI-33216047000.A9 33216047000	£5.35	£6.42
760 - GUIDE STRIP FEI-34300000002.A27 34300000002	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A82 43035076041	£1.60	£1.92
780 - SET SCREW FEI-43058008051.A17 43058008051	-
790 - GEAR RACK FEI-33812007004.A10 33812007004	£101.03	£121.24
810 - CYLINDER HEAD SCREW FEI-43035017057.A10 43035017057	£1.60	£1.92
820 - GUIDE FEI-34300000003.A2 34300000003	-
830 - FILLISTER HEAD SCREW FEI-43041041053.A12 43041041053	£1.60	£1.92
840 - SHAFT TOOTHED FEI-33713073000.A6 33713073000	-
850 - DISC FEI-42446003009.A47 42446003009	£1.60	£1.92
860 - CIRCLIP FEI-42616065008.A12 42616065008	-
870 - CONNECTING PIECE FEI-30109201010.A58 30109201010	-
890 - HANDLE FEI-32119114014.A39 32119114014	£19.35	£23.22
900 - SCALE FEI-32636046000.A40 32636046000	-
910 - CYLINDER HEAD SCREW FEI-43035084062.A3 43035084062	-
920 - SEALING RING FEI-40612171000.A60 40612171000	-
926 - BUTTON FEI-30701223005.A27 30701223005	£14.97	£17.96
927 - CAP FEI-30701224003.A20 30701224003	£5.50	£6.60
930 - COVER FEI-32424032000.A19 32424032000	-
935 - CONNECTING CABLE FEI-30719935010.A10 30719935010	-
940 - PROTECTIVE HOSE FEI-31413237000.A91 31413237000	£2.74	£3.29
950 - CABLE PRCD FEI-30707579010.A5 30707579010	£78.74	£94.49
960 - CABLE CLAMPING PIECE FEI-32431043002.A200 32431043002	£1.60	£1.92
970 - SCREW FEI-43074010000.A16 43074010000	£1.60	£1.92
980 - COVER FEI-32424031000.A1 32424031000	£12.77	£15.32
990 - ELECTRONICS 110-230V 50/60HZ FEI-30762561990.A13 30762561990	-
1000 - SCREW FEI-43074013000.A10 43074013000	-
1030 - FILLISTER HEAD SCREW FEI-43064023045.A65 43064023045	£1.60	£1.92
1040 - COVER FEI-32424033000.A1 32424033000	-
1050 - SCREW FEI-43074008000.A32 43074008000	£1.60	£1.92
1060 - CYLINDER HEAD SCREW FEI-43035013058.A75 43035013058	£1.60	£1.92
1070 - CYLINDER HEAD SCREW FEI-43033064066.A24 43033064066	£1.60	£1.92
1080 - MAGNETIC FOOT FEI-32172029000.A15 32172029000	-
1090 - CONTAINER FEI-32132035010.A51 32132035010	£44.58	£53.50
1091 - SEALING RING FEI-40612112007.A61 40612112007	£1.60	£1.92
1092 - SEALING RING FEI-40612087004.A36 40612087004	£1.60	£1.92
1095 - BALL COCK SET FEI-30240357010.A28 30240357010	£22.73	£27.28
1096 - FLEX-JOINTED HOSE FEI-31414070010.A56 31414070010	£25.70	£30.84
1100 - HOSE FEI-31414073000.A1 31414073000	-
1105 - SLEEVE FEI-30501377000.A5 30501377000	-
1110 - NUT FEI-42015000000.A20 42015000000	£6.83	£8.20
1260 - INFORMATION SIGN FEI-32217514000.A6 32217514000	-
1270 - STICKER FEI-32217406002.A76 32217406002	£1.60	£1.92
1290 - INFORMATION SIGN FEI-32217507060.A27 32217507060	-
1310 - INFORMATION SIGN FEI-32217466060.A26 32217466060	-
1350 - INFORMATION SIGN FEI-32217552000.A2 32217552000	£1.60	£1.92
5000 - N.A. FEI-33901174060.A15 33901174060	£131.31	£157.57
5010 - WIRE CLAMP FEI-30232050000.A200 30232050000	£10.78	£12.94
5020 - INSERT FEI-33904576000.A13 33904576000	-
5100 - PROTECTIVE GRILLE FEI-31810298000.A14 31810298000	-
5110 - CENTERING PIN FEI-63134998310.A72 63134998310	£25.18	£30.21
5120 - HOOK F. CHIP REMOVAL FEI-64201001000.A47 64201001000	£61.87	£74.24
5130 - STRAP SAFETY FEI-32174008007.A30 32174008007	£33.23	£39.88
6000 - LUBRICANT CAN 1000 G FEI-32132041000.A10 32132041000	-
