Fein ASte 638 (50/60Hz 220/230V) / 72341500230 Spare Parts

Fein ASte 638 ⡐/60Hz 220/230V) / 72341500230 Spare Parts

Home Details Reviews Delivery

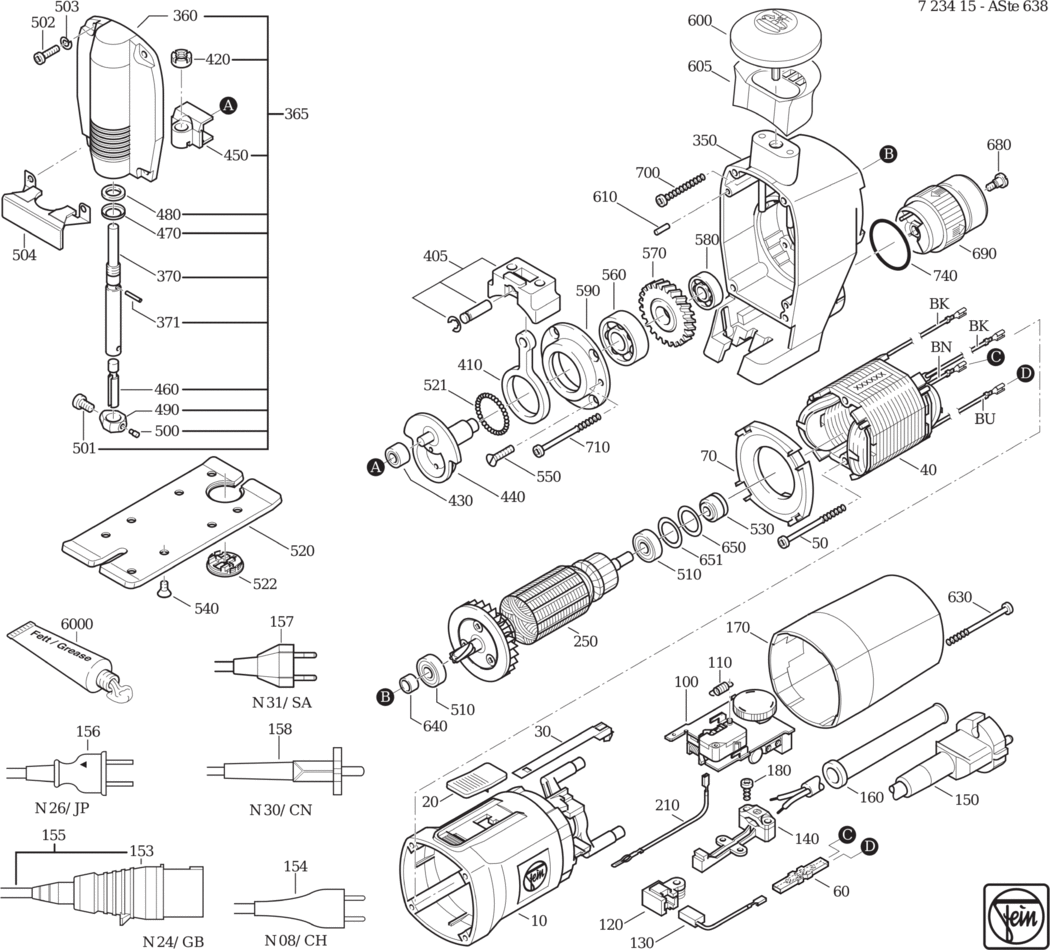

An exploded diagram and spare parts listing for the Fein ASte 638 (50/60Hz 220/230V) / 72341500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901093000.A0 31901093000	£37.91	£45.49
20 - SLIDE SWITCH FEI-32805128003.A24 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816049000.A0 32816049000	£5.60	£6.72
40 - STATOR 220-230V 50/60HZ FEI-51271009230.A0 51271009230	-
50 - SCREW FEI-43070004001.A15 43070004001	£1.60	£1.92
60 - CONNECTOR FEI-30717224000.A4 30717224000	-
70 - AIR GUIDE RING FEI-31428075007.A7 31428075007	£4.18	£5.01
100 - SPEED SETTING SWITCH FEI-30762240027.A0 30762240027	£188.18	£225.82
110 - SPIRAL SPRING FEI-30902040004.A24 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A3 30712086011	£8.42	£10.11
130 - CARBON BRUSH (SOLD SINGLY) FEI-30711128005.A0 30711128005	£12.18	£14.62
140 - CABLE CLAMPING PIECE FEI-32431036008.A13 32431036008	£3.75	£4.50
150 - CABLE WITH PLUG FEI-30707401010.A4 30707401010	£22.79	£27.35
160 - CABLE GROMMET FEI-31413007007.A77 31413007007	£1.60	£1.92
170 - COVER FEI-31201072014.A5 31201072014	£13.28	£15.94
180 - SCREW FEI-43070001006.A4 43070001006	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340024.A17 30719340024	£3.04	£3.65
250 - ARMATURE FEI-53268002233.A0 53268002233	-
350 - GEARBOX HOUSING FEI-31209029002.A9 31209029002	£154.02	£184.83
360 - COVER FEI-32429104006.A1 32429104006	£89.38	£107.25
365 - COVER FEI-32429104015.A8 32429104015	£302.89	£363.47
370 - PLUNGER FEI-30109054008.A8 30109054008	£107.02	£128.42
371 - CLAMPING SLEEVE FEI-40238007005.A11 40238007005	£1.60	£1.92
405 - N.A. FEI-32714091000.A4 32714091000	-
410 - CON ROD FEI-32714042000.A7 32714042000	£80.49	£96.59
420 - NUT FEI-42007047005.A5 42007047005	£8.38	£10.05
430 - NEEDLE BEARING FEI-41706017004.A5 41706017004	-
440 - ECCENTRIC SHAFT FEI-33405017007.A1 33405017007	£133.23	£159.88
450 - LINK FEI-32714041007.A2 32714041007	£94.54	£113.45
460 - BOLT FEI-30217181009.A3 30217181009	£21.52	£25.82
470 - CAP FEI-32435041008.A0 32435041008	£1.60	£1.92
480 - FELT RING FEI-30601057007.A9 30601057007	£1.60	£1.92
490 - CLAMPING RING FEI-32607038001.A0 32607038001	£35.88	£43.06
500 - SET SCREW FEI-43019055990.A0 43019055990	£1.60	£1.92
501 - CYLINDER HEAD SCREW FEI-43033008058.A26 43033008058	£1.60	£1.92
502 - FILLISTER HEAD SCREW FEI-43041030049.A0 43041030049	-
503 - SPRING WASHER FEI-42445001044.A17 42445001044	£1.60	£1.92
504 - CHIPPING PROTECTOR FEI-32714088007.A0 32714088007	£9.43	£11.32
510 - GROOVED BALL BEARING FEI-41701001260.A234 41701001260	£7.11	£8.53
520 - PLATE FEI-32714089001.A3 32714089001	£46.42	£55.70
521 - BALL FEI-41708013003.A14 41708013003	-
522 - PLATE FEI-31428102007.A3 31428102007	£3.95	£4.74
530 - BUSH FEI-31428076019.A3 31428076019	£26.78	£32.14
540 - COUNTERSUNK SCREW FEI-43069001045.A8 43069001045	£1.60	£1.92
550 - COUNTERSUNK SCREW FEI-43069004040.A3 43069004040	-
560 - GROOVED BALL BEARING FEI-41701213011.A1 41701213011	£8.92	£10.70
570 - GEAR-WHEEL FEI-33657031001.A6 33657031001	£50.53	£60.64
580 - GROOVED BALL BEARING FEI-41701004015.A15 41701004015	£6.83	£8.20
590 - BEARING PLATE FEI-32419109006.A6 32419109006	£40.98	£49.17
600 - HANDLE FEI-32119091003.A2 32119091003	£15.95	£19.14
605 - RECESSED HANDLE FEI-31428113000.A1 31428113000	£5.10	£6.12
610 - STRAIGHT PIN FEI-40201024000.A9 40201024000	-
630 - SCREW FEI-43070004001.A58 43070004001	£1.60	£1.92
640 - SEALING RING FEI-32612052002.A1 32612052002	£5.35	£6.42
650 - DISC FEI-32624034022.A14 32624034022	£1.60	£1.92
651 - DISC FEI-32624034038.A27 32624034038	£1.60	£1.92
680 - FLAT HEADED SCREW FEI-43013043044.A1 43013043044	-
690 - SLIDER FEI-31428090007.A7 31428090007	£7.17	£8.60
700 - SCREW FEI-43070005005.A4 43070005005	-
710 - SCREW FEI-43070012008.A7 43070012008	£1.60	£1.92
740 - SEALING RING FEI-40612143008.A3 40612143008	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A264 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A150 34130054061	-
