Fein BSS 2.0 E (50Hz 110V) / 72303324110 Spare Parts

Fein BSS 2.0 E ⡐Hz 110V) / 72303324110 Spare Parts

Home Details Reviews Delivery

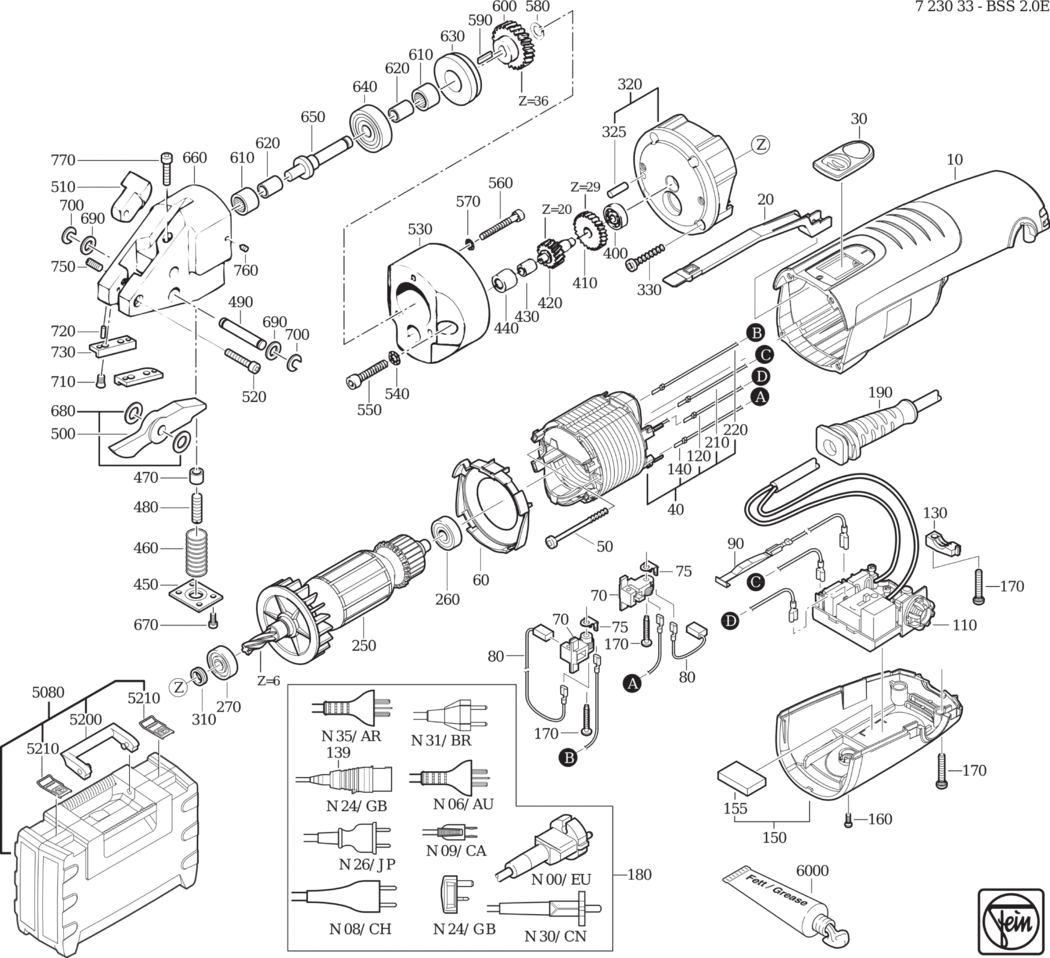

An exploded diagram and spare parts listing for the Fein BSS 2.0 E (50Hz 110V) / 72303324110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901172000.A10 31901172000	-
20 - CONTROL ROD FEI-32816066000.A2 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A19 32805226000	£2.91	£3.49
40 - STATOR FEI-51278004110.A9 51278004110	£51.97	£62.36
50 - SCREW FEI-43074005000.A60 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A33 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A12 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A56 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A67 30711129009	£6.73	£8.08
90 - CONTACT SPRING FEI-32803019010.A28 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A23 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A21 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A35 32431045000	£1.60	£1.92
139 - PLUG CEE 16A/110V FEI-30728288004.A81 30728288004	£14.25	£17.10
140 - CONNECTING CABLE FEI-30719641010.A30 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A7 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A24 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A49 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A4 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707381016.A10 30707381016	£40.42	£48.51
190 - PROTECTIVE HOSE FEI-31413251000.A3 31413251000	£2.41	£2.89
210 - CONNECTING CABLE FEI-30719644010.A20 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A31 30719643010	£1.60	£1.92
250 - ARMATURE Z=6 110/120V 50/60HZ FEI-53278004110.A3 53278004110	£109.72	£131.67
260 - GROOVED BALL BEARING FEI-41701001032.A26 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007266.A129 41701007266	£10.67	£12.80
310 - SEALING RING FEI-32612125000.A40 32612125000	£2.39	£2.87
320 - INTERMEDIATE GEAR BOX FEI-31506399010.A1 31506399010	-
325 - PIN FEI-40242006007.A73 40242006007	-
330 - SCREW FEI-43074004000.A4 43074004000	£1.60	£1.92
400 - GROOVED BALL BEARING FEI-41701202018.A16 41701202018	£6.92	£8.30
410 - GEAR-WHEEL FEI-33657163004.A8 33657163004	£48.54	£58.25
420 - SHAFT TOOTHED FEI-31308115001.A3 31308115001	-
430 - RING FEI-41719029003.A2 41719029003	-
440 - BUSH FEI-41705001004.A6 41705001004	-
450 - PLATE FEI-31308107009.A5 31308107009	-
460 - SPIRAL SPRING FEI-31308108007.A3 31308108007	-
470 - NUT FEI-31308119000.A3 31308119000	£7.02	£8.43
480 - PLUNGER FEI-31308109001.A5 31308109001	£9.14	£10.97
490 - BLADE PIN FEI-31308111002.A5 31308111002	£29.95	£35.94
500 - CUTTING BLADE FEI-31308110003.A3 31308110003	£148.09	£177.71
510 - HAND GUARD FEI-31308106005.A3 31308106005	-
520 - CYLINDER HEAD SCREW FEI-43002041047.A35 43002041047	£1.60	£1.92
530 - ADAPTER FEI-31308101003.A5 31308101003	-
540 - SPRING WASHER FEI-42445002053.A26 42445002053	-
550 - CYLINDER HEAD SCREW FEI-43033015052.A10 43033015052	£1.60	£1.92
560 - CYLINDER HEAD SCREW FEI-43035072042.A7 43035072042	-
570 - CIRCLIP M4 FEI-42443003043.A73 42443003043	£1.60	£1.92
580 - CIRCLIP FEI-31308116004.A5 31308116004	-
590 - FEATHER KEY FEI-31308102006.A3 31308102006	-
600 - GEAR-WHEEL FEI-31308117008.A3 31308117008	-
610 - NEEDLE SLEEVE FEI-41705007000.A6 41705007000	£5.66	£6.79
620 - RING FEI-41719030005.A7 41719030005	-
630 - COVER FEI-31308103000.A5 31308103000	-
640 - GROOVED BALL BEARING FEI-31308118006.A5 31308118006	-
650 - ECCENTRIC SHAFT FEI-31308104008.A3 31308104008	-
660 - HOUSING FEI-31308105002.A5 31308105002	-
670 - COUNTERSUNK SCREW FEI-43059040033.A5 43059040033	£1.60	£1.92
680 - DISC SET FEI-31308112005.A3 31308112005	-
690 - DISC FEI-42401018069.A45 42401018069	£1.60	£1.92
700 - CIRCLIP FEI-42634010006.A5 42634010006	£1.60	£1.92
710 - COUNTERSUNK SCREW FEI-43075000005.A1 43075000005	-
720 - STRAIGHT PIN FEI-40201022008.A25 40201022008	-
730 - CUTTING BARS FEI-31308113009.A5 31308113009	£157.88	£189.46
750 - SET SCREW M5X12 FEI-43011006054.A0 43011006054	-
760 - SET SCREW M4X4 FEI-43009004049.A3 43009004049	-
770 - CYLINDER HEAD SCREW FEI-43035076041.A60 43035076041	£1.60	£1.92
5080 - TOOL CASE FEI-33901118010.A16 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A153 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A231 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A30 32160003083	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A598 34130054061	-
