Festool CMS-OF / 494836 Spare Parts

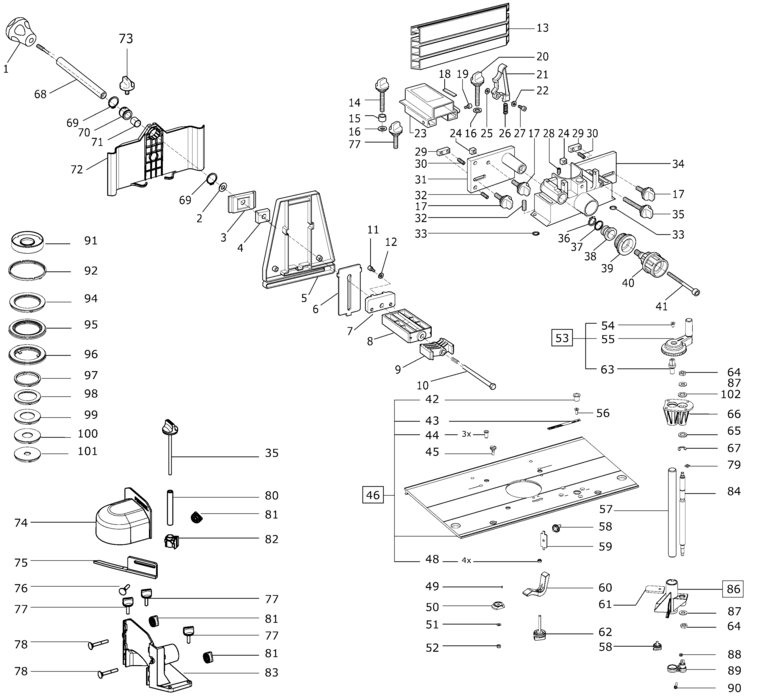

An exploded diagram and spare parts listing for the Festool CMS-OF / 494836

	Ex VAT	Inc VAT
1 - GRIP FSP-487555.A14 487555	£7.97	£9.57
2 - WASHER 8.4 MM FSP-219049.A32 219049	£2.00	£2.40
3 - HEAD PIECE FSP-457150.A7 457150	£4.88	£5.85
4 - PRESSURE PIECE FSP-443148.A2 443148	£2.00	£2.40
5 - PRESSURE PIECE FSP-442771.A2 442771	£22.03	£26.44
6 - COVER FSP-457859.A5 457859	£14.38	£17.25
7 - PLATE FSP-457151.A1 457151	£5.17	£6.20
8 - SLIP PIECE FSP-442772.A6 442772	£6.29	£7.55
9 - CLAMPING ELEMENT FSP-442754.A6 442754	£4.41	£5.29
10 - SCREW FSP-496214.A1 496214	£41.79	£50.15
11 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A54 219071	£2.00	£2.40
12 - WASHER 4.3 MM FSP-200576.A4 200576	£2.00	£2.40
13 - RULER FSP-463100.A7 463100	£46.93	£56.32
14 - ROTARY KNOB M6 X 95 FSP-485666.A4 485666	£7.62	£9.14
15 - SPACER BUSH FSP-442202.A7 442202	£4.69	£5.63
16 - WASHER 6.4 MM FSP-228546.A29 228546	£2.00	£2.40
17 - ROTARY KNOB M6 X 22.5 FSP-10734068.A38 10734068	£2.00	£2.40
18 - SUPPORT FSP-436021.A6 436021	£2.00	£2.40
19 - SHOULDER SCREW M5 X 8 FSP-228765.A1 228765	£2.00	£2.40
20 - ROTARY KNOB M6 X 70 FSP-485665.A4 485665	£7.31	£8.77
21 - CATCH FSP-442777.A2 442777	£2.00	£2.40
22 - WASHER 4.3 MM FSP-228542.A25 228542	£2.00	£2.40
23 - COVER FSP-486331.A5 486331	£49.30	£59.16
24 - NUT FSP-442207.A1 442207	£3.32	£3.98
25 - WASHER 6.4 MM FSP-200578.A8 200578	£2.00	£2.40
26 - PRESSURE SPRING FSP-216897.A7 216897	£2.00	£2.40
27 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A30 203806	£2.00	£2.40
28 - THREADED PIN M6 X 8 FSP-772439.A5 772439	£2.00	£2.40
29 - NUT FSP-466335.A5 466335	£7.12	£8.54
30 - THREADED PIN M6 X 12 FSP-442597.A3 442597	£2.00	£2.40
31 - PLATE FSP-10012647.A2 10012647	£53.78	£64.54
32 - THREADED PIN M8 X 10 FSP-400618.A3 400618	£2.00	£2.40
33 - O-RING 5 X 2 MM FSP-204551.A8 204551	£2.00	£2.40
34 - HOUSING FSP-486654.A3 486654	£87.58	£105.09
35 - ROTARY KNOB M6 X 111 FSP-485667.A4 485667	£7.56	£9.07
36 - SNAP RING FSP-200352.A2 200352	£2.00	£2.40
37 - SHIM RING 20 X 28 X 1.5 MM FSP-228760.A2 228760	£2.00	£2.40
38 - BUSH FSP-442204.A6 442204	£23.15	£27.78
39 - SCALE RING FSP-442203.A2 442203	£6.25	£7.50
40 - ADJUSTING KNOB FSP-485583.A4 485583	£54.24	£65.09
41 - CHEESE HEAD SCREW M6 X 90 FSP-228764.A6 228764	£2.00	£2.40
42 - BUSH FSP-473748.A0 473748	£11.18	£13.42
43 - STICKER FSP-473804.A0 473804	-
44 - ADAPTER FSP-10004928.A0 10004928	£3.93	£4.72
45 - BOLT FSP-437177.A6 437177	£23.70	£28.44
46 - PROFILE PLATE FSP-495303.A0 495303	-
48 - PRESS NUT FSP-455808.A0 455808	£2.00	£2.40
49 - DOWEL PIN 2 X 8 MM FSP-227448.A2 227448	£2.00	£2.40
50 - TURN LOCK FASTENER FSP-437176.A6 437176	£2.00	£2.40
51 - WASHER 6.4 MM FSP-200578.A9 200578	£2.00	£2.40
52 - HEXAGON NUT M6 FSP-228541.A16 228541	£2.00	£2.40
53 - CRANK FSP-495304.A0 495304	£37.42	£44.91
54 - FLAT HEAD SCREW M6 X 12 FSP-401022.A0 401022	£2.00	£2.40
55 - CRANK FSP-495095.A0 495095	£9.43	£11.32
56 - FLAT HEAD SCREW M6 X 16 FSP-400990.A0 400990	£2.00	£2.40
57 - SUPPORT FSP-473331.A0 473331	£32.58	£39.10
58 - ROTARY KNOB FSP-436195.A36 436195	£2.00	£2.40
59 - ADJUSTMENT BRACKET FSP-473344.A0 473344	£3.88	£4.65
60 - CLAMPING SUPPORT FSP-473323.A0 473323	£11.01	£13.21
61 - GUIDE PLATE FSP-473343.A0 473343	£5.24	£6.29
62 - ROTARY KNOB FSP-494878.A0 494878	£2.00	£2.40
63 - CRANKSHAFT FSP-473547.A0 473547	£17.29	£20.75
64 - HEXAGON NUT M10 FSP-401020.A0 401020	£3.52	£4.22
65 - WASHER FSP-400991.A0 400991	£2.00	£2.40
66 - BEARING FLANGE FSP-473334.A0 473334	£6.29	£7.55
67 - RETAINING DISC FSP-400992.A0 400992	£2.00	£2.40
68 - PIPE FSP-465522.A0 465522	£28.90	£34.68
69 - SNAP RING FSP-400636.A11 400636	£2.00	£2.40
70 - BUSH FSP-465524.A2 465524	£16.48	£19.77
71 - BUSH FSP-471691.A0 471691	£9.91	£11.89
72 - PROTECTION FSP-464655.A2 464655	£14.88	£17.86
73 - ROTARY KNOB FSP-482110.A24 482110	£2.32	£2.78
74 - HOOD FSP-472932.A3 472932	£7.99	£9.59
75 - STOP BEAD FSP-473324.A0 473324	£3.45	£4.14
76 - ROUND-HEAD SCREW M6 X 30 FSP-771793.A18 771793	£2.00	£2.40
77 - ROTARY KNOB M6 FSP-486243.A4 486243	£2.00	£2.40
78 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A22 228534	£2.00	£2.40
79 - SQUARE NUT M6 FSP-452453.A3 452453	£2.00	£2.40
80 - GUIDE TUBE FSP-473325.A3 473325	£9.59	£11.51
81 - ROTARY KNOB M6 FSP-440712.A46 440712	£2.00	£2.40
82 - TERMINAL FSP-473326.A0 473326	£2.00	£2.40
83 - EXTRACTOR CONNECTOR FSP-472933.A0 472933	£13.42	£16.11
84 - SPINDLE FSP-473746.A0 473746	£37.97	£45.56
86 - SLIDE FSP-495553.A0 495553	£37.06	£44.47
87 - WASHER FSP-401016.A0 401016	£2.00	£2.40
88 - HEXAGON NUT M5 FSP-200717.A61 200717	£2.00	£2.40
89 - CABLE CLAMP FSP-474458.A0 474458	£2.00	£2.40
90 - CHEESE HEAD SCREW M5 X 18 FSP-202824.A33 202824	£2.00	£2.40
91 - PROTECTIVE COVER FSP-473449.A0 473449	£6.29	£7.55
92 - CENTERING RING FSP-473808.A0 473808	£5.24	£6.29
94 - COVER FSP-473812.A0 473812	£5.24	£6.29
95 - CENTERING RING FSP-473809.A0 473809	£6.72	£8.07
96 - CENTERING RING FSP-473810.A0 473810	£6.29	£7.55
97 - COVER FSP-469881.A0 469881	£4.41	£5.29
98 - COVER FSP-469882.A0 469882	£4.58	£5.49
99 - COVER FSP-469883.A0 469883	£4.72	£5.66
100 - COVER FSP-469884.A0 469884	£4.81	£5.77
101 - COVER FSP-469885.A0 469885	£4.81	£5.77
102 - BEARING FSP-475635.A0 475635	£3.19	£3.83

Attribute Name	Value
Brand	Festool
