Festool CMS-OF 1010 / 495135 Spare Parts

Home Details Reviews Delivery

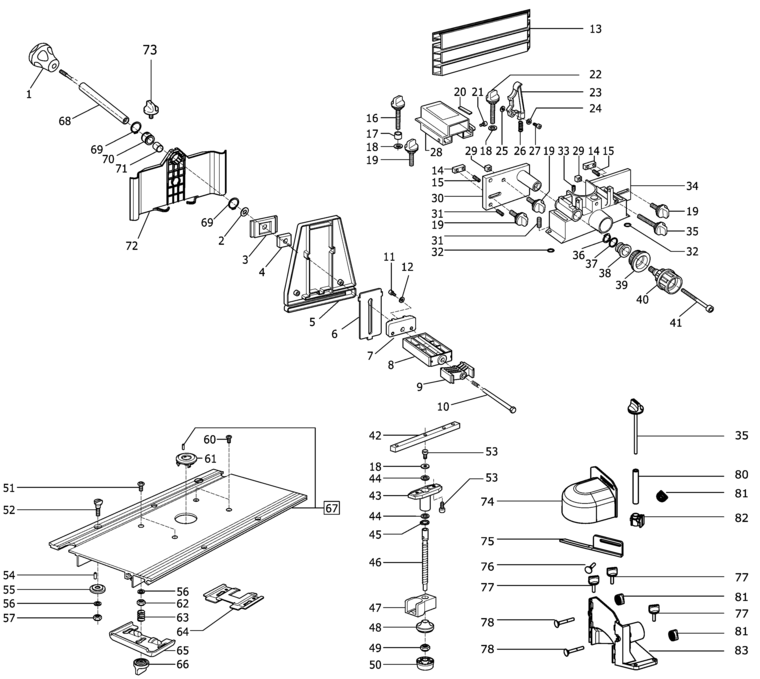

An exploded diagram and spare parts listing for the Festool CMS-OF 1010 / 495135

	Ex VAT	Inc VAT
1 - GRIP FSP-487555.A13 487555	£7.97	£9.57
2 - WASHER 8.4 MM FSP-219049.A31 219049	£2.00	£2.40
3 - HEAD PIECE FSP-457150.A8 457150	£4.88	£5.85
4 - PRESSURE PIECE FSP-443148.A3 443148	£2.00	£2.40
5 - PRESSURE PIECE FSP-442771.A1 442771	£22.03	£26.44
6 - COVER FSP-457859.A6 457859	£14.38	£17.25
7 - PLATE FSP-457151.A0 457151	£5.17	£6.20
8 - SLIP PIECE FSP-442772.A7 442772	£6.29	£7.55
9 - CLAMPING ELEMENT FSP-442754.A7 442754	£4.41	£5.29
10 - SCREW FSP-496214.A0 496214	£41.79	£50.15
11 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A55 219071	£2.00	£2.40
12 - WASHER 4.3 MM FSP-200576.A5 200576	£2.00	£2.40
13 - RULER FSP-463100.A6 463100	£46.93	£56.32
14 - NUT FSP-466335.A6 466335	£7.12	£8.54
15 - THREADED PIN M6 X 12 FSP-442597.A2 442597	£2.00	£2.40
16 - ROTARY KNOB M6 X 95 FSP-485666.A3 485666	£7.62	£9.14
17 - SPACER BUSH FSP-442202.A6 442202	£4.69	£5.63
18 - WASHER 6.4 MM FSP-228546.A28 228546	£2.00	£2.40
19 - ROTARY KNOB M6 X 22.5 FSP-10734068.A37 10734068	£2.00	£2.40
20 - SUPPORT FSP-436021.A7 436021	£2.00	£2.40
21 - SHOULDER SCREW M5 X 8 FSP-228765.A2 228765	£2.00	£2.40
22 - ROTARY KNOB M6 X 70 FSP-485665.A5 485665	£7.31	£8.77
23 - CATCH FSP-442777.A1 442777	£2.00	£2.40
24 - WASHER 4.3 MM FSP-228542.A26 228542	£2.00	£2.40
25 - WASHER 6.4 MM FSP-200578.A6 200578	£2.00	£2.40
26 - PRESSURE SPRING FSP-216897.A8 216897	£2.00	£2.40
27 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A29 203806	£2.00	£2.40
28 - COVER FSP-486331.A4 486331	£49.30	£59.16
29 - NUT FSP-442207.A2 442207	£3.32	£3.98
30 - PLATE FSP-10012647.A3 10012647	£53.78	£64.54
31 - THREADED PIN M8 X 10 FSP-400618.A4 400618	£2.00	£2.40
32 - O-RING 5 X 2 MM FSP-204551.A9 204551	£2.00	£2.40
33 - THREADED PIN M6 X 8 FSP-772439.A4 772439	£2.00	£2.40
34 - HOUSING FSP-486654.A4 486654	£87.58	£105.09
35 - ROTARY KNOB M6 X 111 FSP-485667.A5 485667	£7.56	£9.07
36 - SNAP RING FSP-200352.A1 200352	£2.00	£2.40
37 - SHIM RING 20 X 28 X 1.5 MM FSP-228760.A1 228760	£2.00	£2.40
38 - BUSH FSP-442204.A8 442204	£23.15	£27.78
39 - SCALE RING FSP-442203.A0 442203	£6.25	£7.50
40 - ADJUSTING KNOB FSP-485583.A3 485583	£54.24	£65.09
41 - CHEESE HEAD SCREW M6 X 90 FSP-228764.A7 228764	£2.00	£2.40
42 - CLAMP RAIL FSP-442214.A3 442214	£16.72	£20.06
43 - BEARING FSP-444079.A4 444079	£2.69	£3.23
44 - WASHER FSP-437082.A0 437082	£2.00	£2.40
45 - SNAP RING FSP-200621.A4 200621	£2.00	£2.40
46 - SPINDLE FSP-437062.A4 437062	£37.97	£45.56
47 - DRIVER FSP-437388.A6 437388	£2.00	£2.40
48 - PART OF GRIP M8 FSP-436191.A3 436191	£5.81	£6.97
49 - HEXAGON NUT M8 FSP-200719.A19 200719	£2.00	£2.40
50 - KNOB FSP-436189.A9 436189	£4.31	£5.17
51 - FLAT HEAD SCREW M6 X 25 FSP-403038.A6 403038	£2.00	£2.40
52 - BOLT FSP-437177.A7 437177	£23.70	£28.44
53 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A17 200685	£2.00	£2.40
54 - DOWEL PIN 2 X 8 MM FSP-227448.A1 227448	£2.00	£2.40
55 - TURN LOCK FASTENER FSP-437176.A5 437176	£2.00	£2.40
56 - WASHER 6.4 MM FSP-200578.A4 200578	£2.00	£2.40
57 - HEXAGON NUT M6 FSP-228541.A17 228541	£2.00	£2.40
60 - FLAT HEAD SCREW M6 X 20 FSP-228529.A0 228529	£2.00	£2.40
61 - NO LONGER AVAILABLE FSP-00000.A2131 00000	-
62 - HEXAGON NUT M6 FSP-200601.A32 200601	£2.00	£2.40
63 - PRESSURE SPRING FSP-207813.A0 207813	£2.00	£2.40
64 - CLAMPING PLATE FSP-437161.A4 437161	£30.94	£37.13
65 - CLAMPING PLATE FSP-437172.A0 437172	£23.34	£28.01
66 - ROTARY KNOB M6 FSP-483350.A39 483350	£6.30	£7.56
67 - PROFILE PLATE FSP-493828.A1 493828	£183.03	£219.64
68 - PIPE FSP-465522.A2 465522	£28.90	£34.68
69 - SNAP RING FSP-400636.A10 400636	£2.00	£2.40
70 - BUSH FSP-465524.A0 465524	£16.48	£19.77
71 - BUSH FSP-471691.A2 471691	£9.91	£11.89
72 - PROTECTION FSP-464655.A0 464655	£14.88	£17.86
73 - ROTARY KNOB FSP-482110.A26 482110	£2.32	£2.78
74 - HOOD FSP-472932.A1 472932	£7.99	£9.59
75 - STOP BEAD FSP-473324.A1 473324	£3.45	£4.14
76 - ROUND-HEAD SCREW M6 X 30 FSP-771793.A16 771793	£2.00	£2.40
77 - ROTARY KNOB M6 FSP-486243.A3 486243	£2.00	£2.40
78 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A20 228534	£2.00	£2.40
80 - GUIDE TUBE FSP-473325.A2 473325	£9.59	£11.51
81 - ROTARY KNOB M6 FSP-440712.A45 440712	£2.00	£2.40
82 - TERMINAL FSP-473326.A1 473326	£2.00	£2.40
83 - EXTRACTOR CONNECTOR FSP-472933.A2 472933	£13.42	£16.11

Attribute Name	Value
Brand	Festool
