Festool CMS-OF 1400/OF 2000 / 495136 Spare Parts

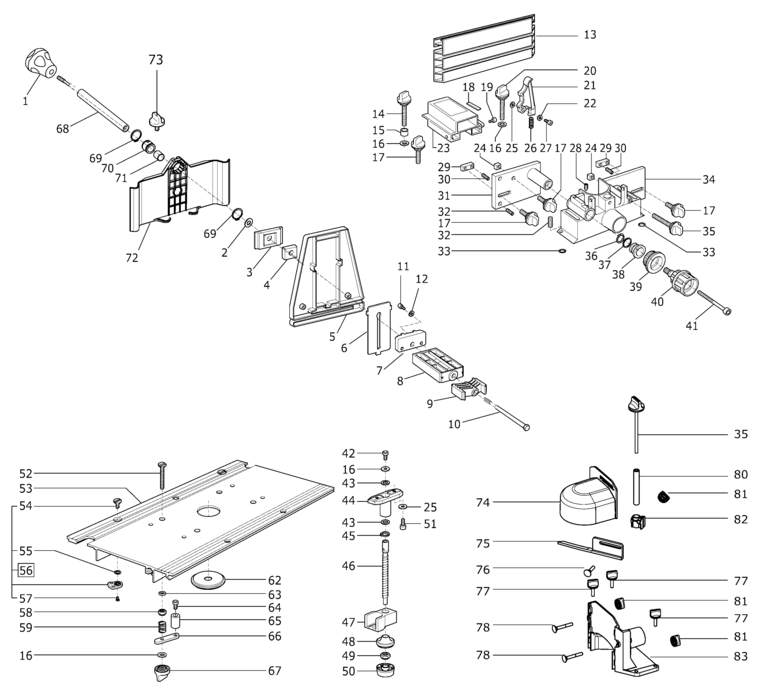

An exploded diagram and spare parts listing for the Festool CMS-OF 1400/OF 2000 / 495136

	Ex VAT	Inc VAT
1 - GRIP FSP-487555.A12 487555	£7.97	£9.57
2 - WASHER 8.4 MM FSP-219049.A33 219049	£2.00	£2.40
3 - HEAD PIECE FSP-457150.A6 457150	£4.88	£5.85
4 - PRESSURE PIECE FSP-443148.A4 443148	£2.00	£2.40
5 - PRESSURE PIECE FSP-442771.A0 442771	£22.03	£26.44
6 - COVER FSP-457859.A4 457859	£14.38	£17.25
7 - PLATE FSP-457151.A2 457151	£5.17	£6.20
8 - SLIP PIECE FSP-442772.A8 442772	£6.29	£7.55
9 - CLAMPING ELEMENT FSP-442754.A8 442754	£4.41	£5.29
10 - SCREW FSP-496214.A2 496214	£41.79	£50.15
11 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A53 219071	£2.00	£2.40
12 - WASHER 4.3 MM FSP-200576.A6 200576	£2.00	£2.40
13 - RULER FSP-463100.A8 463100	£46.93	£56.32
14 - ROTARY KNOB M6 X 95 FSP-485666.A2 485666	£7.62	£9.14
15 - SPACER BUSH FSP-442202.A8 442202	£4.69	£5.63
16 - WASHER 6.4 MM FSP-228546.A30 228546	£2.00	£2.40
17 - ROTARY KNOB M6 X 22.5 FSP-10734068.A36 10734068	£2.00	£2.40
18 - SUPPORT FSP-436021.A5 436021	£2.00	£2.40
19 - SHOULDER SCREW M5 X 8 FSP-228765.A0 228765	£2.00	£2.40
20 - ROTARY KNOB M6 X 70 FSP-485665.A6 485665	£7.31	£8.77
21 - CATCH FSP-442777.A0 442777	£2.00	£2.40
22 - WASHER 4.3 MM FSP-228542.A24 228542	£2.00	£2.40
23 - COVER FSP-486331.A6 486331	£49.30	£59.16
24 - NUT FSP-442207.A0 442207	£3.32	£3.98
25 - WASHER 6.4 MM FSP-200578.A3 200578	£2.00	£2.40
26 - PRESSURE SPRING FSP-216897.A6 216897	£2.00	£2.40
27 - RAISED-HEAD SCREW M4 X 8 FSP-203806.A31 203806	£2.00	£2.40
28 - THREADED PIN M6 X 8 FSP-772439.A6 772439	£2.00	£2.40
29 - NUT FSP-466335.A4 466335	£7.12	£8.54
30 - THREADED PIN M6 X 12 FSP-442597.A1 442597	£2.00	£2.40
31 - PLATE FSP-10012647.A4 10012647	£53.78	£64.54
32 - THREADED PIN M8 X 10 FSP-400618.A2 400618	£2.00	£2.40
33 - O-RING 5 X 2 MM FSP-204551.A7 204551	£2.00	£2.40
34 - HOUSING FSP-486654.A2 486654	£87.58	£105.09
35 - ROTARY KNOB M6 X 111 FSP-485667.A6 485667	£7.56	£9.07
36 - SNAP RING FSP-200352.A0 200352	£2.00	£2.40
37 - SHIM RING 20 X 28 X 1.5 MM FSP-228760.A0 228760	£2.00	£2.40
38 - BUSH FSP-442204.A7 442204	£23.15	£27.78
39 - SCALE RING FSP-442203.A1 442203	£6.25	£7.50
40 - ADJUSTING KNOB FSP-485583.A2 485583	£54.24	£65.09
41 - CHEESE HEAD SCREW M6 X 90 FSP-228764.A8 228764	£2.00	£2.40
42 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A16 200685	£2.00	£2.40
43 - WASHER FSP-437082.A1 437082	£2.00	£2.40
44 - BEARING FSP-444079.A5 444079	£2.69	£3.23
45 - SNAP RING FSP-200621.A5 200621	£2.00	£2.40
46 - SPINDLE FSP-465868.A0 465868	£44.02	£52.82
47 - DRIVER FSP-437388.A7 437388	£2.00	£2.40
48 - PART OF GRIP M8 FSP-436191.A2 436191	£5.81	£6.97
49 - HEXAGON NUT M8 FSP-200719.A20 200719	£2.00	£2.40
50 - KNOB FSP-436189.A10 436189	£4.31	£5.17
51 - CHEESE HEAD SCREW M6 X 14 FSP-228577.A0 228577	£2.00	£2.40
52 - SCREW M6 X 45 FSP-400620.A2 400620	£2.00	£2.40
53 - PROFILE PLATE FSP-493892.A1 493892	£169.22	£203.07
54 - FLANGE NUT FSP-447731.A5 447731	£12.60	£15.12
55 - SPRING DISC FSP-223862.A1 223862	£2.00	£2.40
56 - TURN LOCK FASTENER FSP-488200.A5 488200	£40.42	£48.50
57 - FLAT HEAD SCREW M4 X 6 FSP-400346.A6 400346	£2.00	£2.40
58 - HEXAGON NUT M6 FSP-200601.A31 200601	£2.00	£2.40
59 - PRESSURE SPRING FSP-457063.A2 457063	£2.00	£2.40
60 - CLAMPING ELEMENT FSP-486707.A0 486707	£44.10	£52.92
62 - BUSH 25 OF 2000 FSP-455733.A1 455733	£19.94	£23.93
62 - BUSH 70 OF2000 FSP-457032.A1 457032	£18.30	£21.96
62 - BUSH 25 OF1400 FSP-466074.A0 466074	£19.40	£23.28
62 - BUSH 66 OF1400 FSP-466075.A2 466075	£18.39	£22.07
63 - WASHER 6.4 MM FSP-200578.A5 200578	£2.00	£2.40
64 - NO LONGER AVAILABLE FSP-00000.A2132 00000	-
65 - BOLT FSP-465881.A2 465881	£3.75	£4.50
66 - FEATHER KEY FSP-465877.A0 465877	-
67 - ROTARY KNOB M6 FSP-483350.A40 483350	£6.30	£7.56
68 - PIPE FSP-465522.A1 465522	£28.90	£34.68
69 - SNAP RING FSP-400636.A9 400636	£2.00	£2.40
70 - BUSH FSP-465524.A1 465524	£16.48	£19.77
71 - BUSH FSP-471691.A1 471691	£9.91	£11.89
72 - PROTECTION FSP-464655.A1 464655	£14.88	£17.86
73 - ROTARY KNOB FSP-482110.A25 482110	£2.32	£2.78
74 - HOOD FSP-472932.A2 472932	£7.99	£9.59
75 - STOP BEAD FSP-473324.A2 473324	£3.45	£4.14
76 - ROUND-HEAD SCREW M6 X 30 FSP-771793.A17 771793	£2.00	£2.40
77 - ROTARY KNOB M6 FSP-486243.A2 486243	£2.00	£2.40
78 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A21 228534	£2.00	£2.40
80 - GUIDE TUBE FSP-473325.A1 473325	£9.59	£11.51
81 - ROTARY KNOB M6 FSP-440712.A44 440712	£2.00	£2.40
82 - TERMINAL FSP-473326.A2 473326	£2.00	£2.40
83 - EXTRACTOR CONNECTOR FSP-472933.A1 472933	£13.42	£16.11
