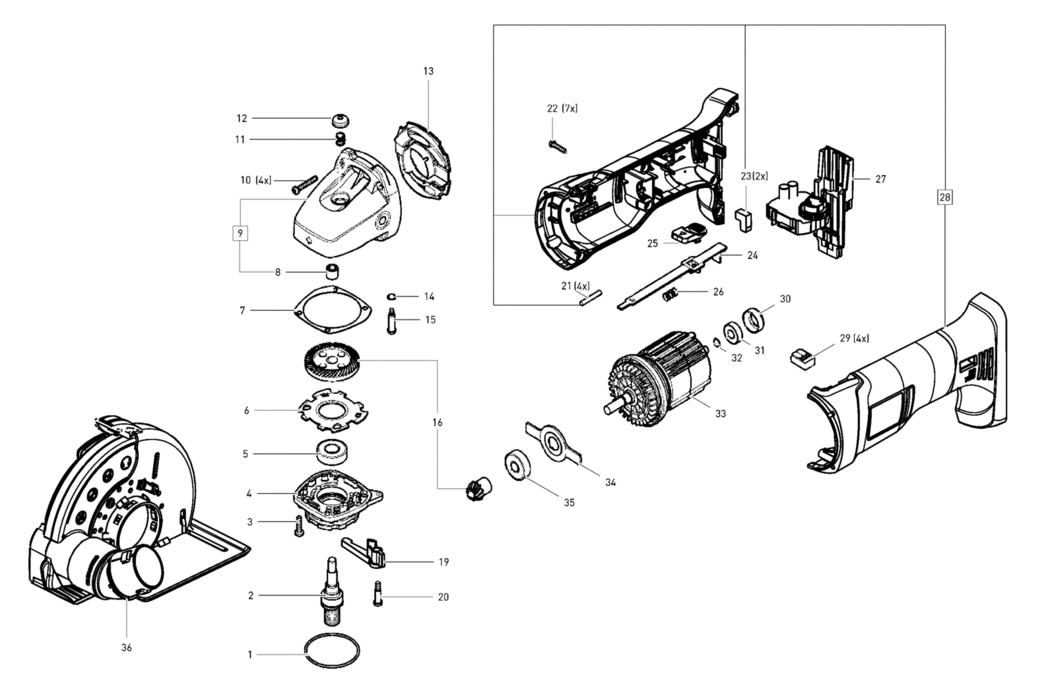

An exploded diagram and spare parts listing for the Festool DSC-AGC 18 EU / 204080
Ex VAT Inc VAT
1 - SEALING RING FSP-10202103.A1 10202103 £2.00 £2.40
2 - SHAFT FSP-10202093.A0 10202093 £37.75 £45.30
3 - RAISED-HEAD SCREW FSP-10202100.A0 10202100 £2.00 £2.40
4 - BEARING PLATE FSP-10202090.A0 10202090 £41.70 £50.04
5 - BALL BEARING FSP-10202091.A1 10202091 £15.85 £19.02
6 - PLATE FSP-10202094.A1 10202094 £8.61 £10.33
7 - COMPENSATING WASHER FSP-10202098.A1 10202098 £3.44 £4.13
8 - NEEDLE SLEEVE FSP-10202083.A0 10202083 £16.60 £19.92
9 - GEAR HOUSING FSP-10202081.A1 10202081 £76.24 £91.49
10 - SCREW FSP-10202080.A0 10202080 £2.00 £2.40
11 - SPIRAL SPRING FSP-10202088.A0 10202088 £4.75 £5.70
12 - BUTTON FSP-10202089.A1 10202089 £6.37 £7.64
13 - AIR DEFLECTOR RING FSP-10202110.A0 10202110 £8.61 £10.33
14 - SEALING RING FSP-10202087.A0 10202087 £2.00 £2.40
15 - BOLT FSP-10202085.A1 10202085 £14.60 £17.52
16 - BEVEL GEAR AND PINION FSP-10202095.A0 10202095 £58.51 £70.21
19 - ANGLE STOP FSP-10042693.A0 10042693 £30.69 £36.83
20 - SCREW FSP-10202108.A1 10202108 £3.62 £4.35
21 - SHOCK ABSORBER FSP-10202071.A0 10202071 £2.00 £2.40
22 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A76 400468 £2.00 £2.40
23 - BUFFER FSP-10113272.A0 10113272 £3.75 £4.50
24 - ROD FSP-10202078.A0 10202078 £7.92 £9.51
25 - SWITCH FSP-10139017.A0 10139017 £11.61 £13.93
26 - SPRING FSP-10202079.A0 10202079 £4.31 £5.17
27 - ELECTRONIC FSP-10202072.A1 10202072 £105.95 £127.14
28 - MOTOR HOUSING FSP-10202070.A0 10202070 £74.50 £89.40
29 - TERMINAL FSP-10202074.A0 10202074 £8.55 £10.26
30 - BEARING SLEEVE FSP-10202069.A1 10202069 £6.88 £8.25
31 - BALL BEARING FSP-706031.A1 706031 £6.58 £7.89
32 - RING FSP-10202066.A0 10202066 £2.00 £2.40
33 - MOTOR FSP-10202061.A1 10202061 £177.94 £213.53
34 - PLATE FSP-10202063.A0 10202063 £5.25 £6.30
35 - BALL BEARING FSP-10202064.A1 10202064 £14.22 £17.07
36 - DUST EXTRACTION ATTACHMENT FSP-10040397.A0 10040397 £95.57 £114.68
