Festool LHS 225 EQ GB 110V / 494828 Spare Parts

Home Details Reviews Delivery

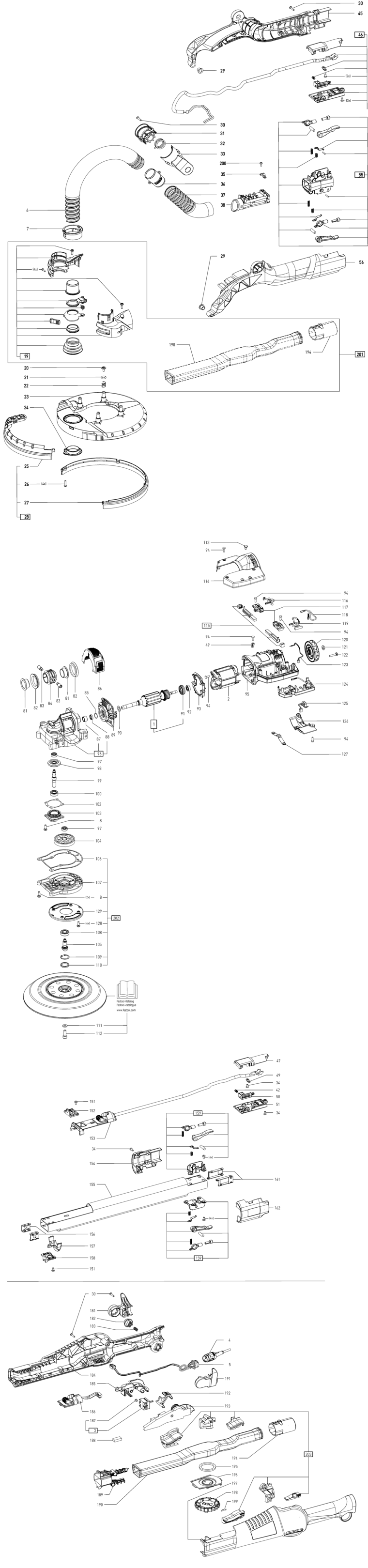

An exploded diagram and spare parts listing for the Festool LHS 225 EQ GB 110V / 494828

	Ex VAT	Inc VAT
1 - ARMATURE FSP-204910.A0 204910	£101.64	£121.97
2 - FIELD ASSEMBLY 110-120V FSP-495273.A0 495273	£55.39	£66.47
3 - SWITCH FSP-495284.A1 495284	£24.83	£29.80
4 - DESCRIPTION UNAVAILABLE FSP-000000.A18 000000	-
5 - SOCKET HOUSING GB 110V FSP-494818.A0 494818	£22.46	£26.95
6 - HOSE PIECE FSP-499186.A0 499186	£39.18	£47.01
7 - CLAMPING RING FSP-465387.A0 465387	£3.88	£4.65
8 - TALLOW-DROP SCREW FSP-10006908.A1 10006908	£2.00	£2.40
19 - CAP FSP-204126.A1 204126	£39.89	£47.87
20 - RAISED-HEAD SCREW FSP-465402.A1 465402	£2.00	£2.40
21 - O-RING FSP-400893.A0 400893	£2.00	£2.40
22 - PRESSURE SPRING FSP-465401.A0 465401	£2.00	£2.40
23 - DUST EXTRACTION ATTACHMENT FSP-467610.A0 467610	£36.46	£43.75
24 - HOLDER FSP-472013.A1 472013	£2.00	£2.40
26 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A28 400468	£2.00	£2.40
27 - BRUSH COVER STRIP FSP-465407.A0 465407	£20.22	£24.26
30 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A37 400584	£2.00	£2.40
31 - SWIVELING SEGMENT FSP-470740.A0 470740	£2.66	£3.19
32 - LEG SPRING FSP-470743.A0 470743	£2.00	£2.40
33 - SWIVELING SEGMENT FSP-470741.A1 470741	£2.66	£3.19
35 - CABLE CLAMP FSP-473205.A1 473205	£2.00	£2.40
36 - CONNECTION PIECE FSP-469471.A1 469471	£2.00	£2.40
37 - HOSE PIECE FSP-470739.A1 470739	£16.72	£20.07
38 - CHANNEL FSP-10005157.A1 10005157	£3.50	£4.20
46 - PLUG FSP-200297.A1 200297	£45.81	£54.97
55 - FIXED CLAMPS FSP-495276.A0 495276	£100.31	£120.37
81 - FLANGE BUSHING FSP-400963.A1 400963	£3.00	£3.60
82 - SEALING RING FSP-465457.A1 465457	£4.11	£4.93
83 - THREADED PIN FSP-465393.A1 465393	£6.62	£7.95
84 - SIDE PANEL FSP-465392.A0 465392	£12.04	£14.45
85 - O-RING FSP-200131.A2 200131	£2.00	£2.40
86 - SIEVE FILTER FSP-10005447.A0 10005447	£2.00	£2.40
87 - NEEDLE SLEEVE FSP-400824.A1 400824	£5.18	£6.22
88 - SEALING RING FSP-401007.A0 401007	£9.24	£11.09
89 - CONNECTION FLANGE FSP-465367.A1 465367	£22.84	£27.41
90 - SHIM RING FSP-401004.A1 401004	£2.00	£2.40
91 - SOLENOID RING FSP-495601.A1 495601	£7.99	£9.59
92 - BALL BEARING FSP-400798.A4 400798	£7.20	£8.64
93 - AIR GUIDE WASHER FSP-473295.A0 473295	£2.82	£3.39
94 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A241 219031	£2.00	£2.40
95 - MOTOR HOUSING FSP-467605.A1 467605	£14.02	£16.83
96 - GEAR HOUSING FSP-204128.A1 204128	£73.58	£88.29
97 - BALL BEARING FSP-400953.A0 400953	£6.15	£7.38
98 - RING GEAR FSP-465391.A1 465391	£30.30	£36.36
99 - SHAFT FSP-465390.A0 465390	£24.92	£29.91
100 - BALL BEARING FSP-464865.A0 464865	£16.48	£19.77
102 - TOLERANCE RING FSP-469682.A1 469682	£2.00	£2.40
103 - CONNECTION FLANGE FSP-465394.A0 465394	£27.58	£33.10
104 - GEAR FSP-465396.A0 465396	£43.19	£51.83
105 - OUTPUT SHAFT FSP-465395.A1 465395	£23.11	£27.73
106 - GASKET FSP-465398.A1 465398	£3.56	£4.27
108 - BALL BEARING FSP-401018.A7 401018	£12.09	£14.51
109 - SNAP RING FSP-204471.A53 204471	£2.00	£2.40
110 - SEALING RING FSP-400886.A7 400886	£3.62	£4.35
111 - WASHER 6.4 MM FSP-200578.A65 200578	£2.00	£2.40
112 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A4 200685	£2.00	£2.40
113 - LENS FSP-474309.A1 474309	£2.00	£2.40
114 - CAP FSP-495187.A0 495187	£11.15	£13.38
115 - BRUSH HOLDER FSP-203231.A0 203231	£26.33	£31.60
116 - RESTRICTOR FSP-495305.A1 495305	£26.82	£32.19
117 - COVER FSP-473392.A1 473392	£2.66	£3.19
118 - FLEXIBLE LEAD FSP-473060.A0 473060	£2.00	£2.40
119 - RESTRICTOR FSP-495306.A0 495306	£26.82	£32.19
120 - FAN FSP-493537.A0 493537	£14.38	£17.25
121 - HEXAGON NUT M6 FSP-200601.A27 200601	£2.00	£2.40
122 - RAISED-HEAD SCREW FSP-400823.A0 400823	£2.00	£2.40
123 - PTC RESISTOR FSP-474617.A0 474617	£9.24	£11.09
124 - ELECTRONIC 110-120V FSP-494500.A0 494500	£61.89	£74.27
125 - SPEED INDICATOR FSP-495307.A1 495307	£30.69	£36.83
126 - COVER FSP-472014.A0 472014	£1.75	£2.10
127 - PLATE SPRING FSP-474995.A0 474995	£2.00	£2.40
128 - COUNTERSUNK SCREW FSP-10006907.A0 10006907	£2.00	£2.40
129 - RING FSP-10001942.A0 10001942	£9.49	£11.39
151 - SCREW FSP-10001655.A1 10001655	£2.00	£2.40
152 - HOLDER FSP-474459.A2 474459	£30.07	£36.08
153 - HOUSING FSP-10225914.A2 10225914	£32.44	£38.93
159 - CLAMPING LEVER FSP-495279.A2 495279	£68.34	£82.01
163 - CABLE FSP-467604.A0 467604	£25.58	£30.69
165 - PISTOL STOCK FSP-200287.A0 200287	£45.40	£54.48
166 - COVER FSP-200179.A2 200179	£41.79	£50.15
167 - PIPE FSP-200180.A0 200180	£85.98	£103.17
168 - CLEVIS FSP-200286.A1 200286	£44.85	£53.82
181 - HOUSING FSP-470616.A1 470616	£2.00	£2.40
182 - BUTTON FSP-470614.A0 470614	£2.00	£2.40
183 - PRESSURE SPRING FSP-472065.A1 472065	£2.00	£2.40
185 - SWITCHING HOUSING FSP-470613.A1 470613	£3.20	£3.84
186 - HOUSING FSP-10225954.A0 10225954	£22.58	£27.10
187 - RAISED-HEAD SCREW M3.5 X 5 FSP-455593.A3 455593	£2.00	£2.40
188 - CONTACT SECTION FSP-454328.A1 454328	£2.00	£2.40
189 - INSERT FSP-471864.A0 471864	£64.50	£77.40
190 - CHANNEL FSP-471861.A0 471861	£22.11	£26.53
191 - HOUSING FSP-202494.A1 202494	£21.59	£25.91
192 - ROTARY SWITCH FSP-470612.A0 470612	£2.00	£2.40
193 - ELECTRONIC 110-120V FSP-495238.A0 495238	£61.89	£74.27
194 - EXTRACTOR CONNECTOR FSP-10006305.A0 10006305	£2.94	£3.53
195 - GASKET FSP-473244.A1 473244	£2.00	£2.40
196 - PLATE FSP-471952.A1 471952	£4.81	£5.77
198 - ADJUSTING KNOB FSP-471863.A1 471863	£10.06	£12.07
199 - PLATE SPRING FSP-457753.A34 457753	£2.00	£2.40
200 - RAISED-HEAD SCREW 4.0 X 10 MM FSP-228729.A6 228729	£2.00	£2.40
201 - DUST EXTRACTION SET FSP-204127.A0 204127	£57.20	£68.64
202 - GEAR COVER FSP-499740.A1 499740	£64.19	£77.03
203 - PLUG FSP-499739.A0 499739	£30.82	£36.98
