Festool MX 1600/2 E EF IL / 500801 Spare Parts

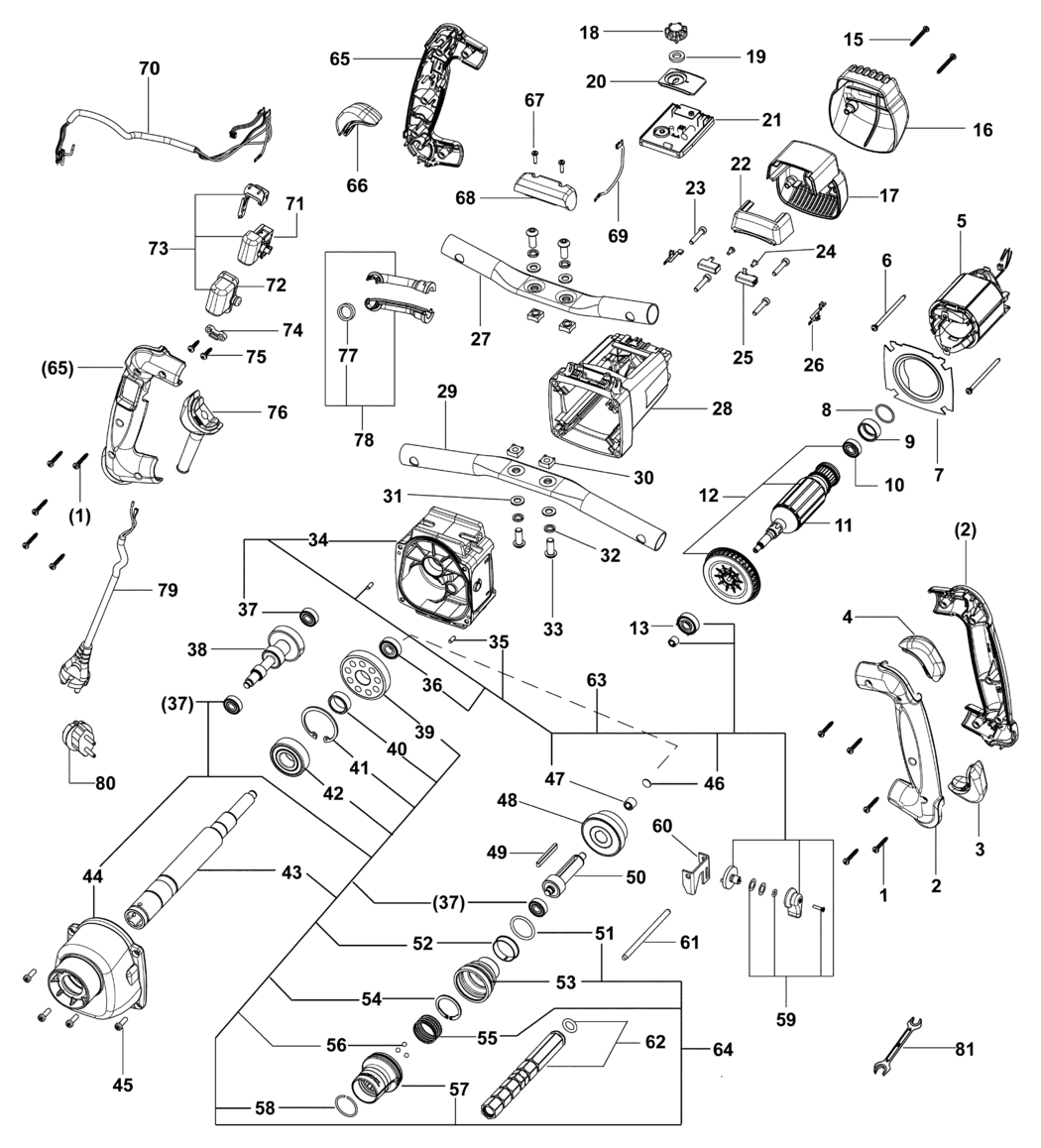

An exploded diagram and spare parts listing for the Festool MX 1600/2 E EF IL / 500801

	Ex VAT	Inc VAT
1 - SCREW 4.0 X 25 MM FSP-614772.A0 614772	£2.00	£2.40
2 - GRIP FSP-769777.A2 769777	£26.82	£32.19
3 - SHOCK ABSORBER FSP-768585.A4 768585	£5.99	£7.19
4 - SHOCK ABSORBER FSP-768586.A5 768586	£5.99	£7.19
5 - FIELD ASSEMBLY FSP-766496.A3 766496	£44.85	£53.82
6 - SCREW 4.0 X 70 MM FSP-614777.A9 614777	£2.00	£2.40
7 - AIR GUIDE WASHER FSP-620693.A2 620693	£2.00	£2.40
8 - O-RING FSP-614992.A1 614992	£2.00	£2.40
9 - BEARING RING FSP-438613.A72 438613	£2.00	£2.40
10 - BEARING FSP-630466.A3 630466	£7.99	£9.59
11 - ARMATURE FSP-765890.A1 765890	£118.79	£142.55
12 - ARMATURE SET FSP-769431.A0 769431	£118.79	£142.55
13 - BEARING FSP-763543.A4 763543	£5.24	£6.29
15 - SCREW 4.0 X 35 MM FSP-614773.A4 614773	£2.00	£2.40
16 - COVER CAP FSP-768686.A1 768686	£6.42	£7.71
17 - CAP FSP-768224.A5 768224	£6.39	£7.67
18 - ADJUSTING KNOB FSP-440991.A19 440991	£5.24	£6.29
19 - SEALING RING FSP-438509.A0 438509	£2.00	£2.40
20 - LENS FSP-768873.A0 768873	£3.88	£4.65
21 - ELECTRONIC FSP-765893.A1 765893	£58.25	£69.90
22 - ENCLOSURE FSP-768223.A0 768223	£3.68	£4.42
23 - SCREW M5 X 25 FSP-614860.A2 614860	£2.00	£2.40
24 - SCREW FSP-625071.A10 625071	£2.00	£2.40
25 - CARBON BRUSH (PAIR) FSP-627004.A2 627004	£10.17	£12.20
26 - PLUG-IN BRACKET FSP-443331.A16 443331	£2.00	£2.40
27 - SIDE PANEL FSP-768632.A1 768632	£61.08	£73.29
28 - MOTOR HOUSING FSP-10164929.A8 10164929	£15.34	£18.41
29 - SIDE PANEL FSP-768633.A2 768633	£52.12	£62.54
30 - NUT M8 FSP-614473.A0 614473	£2.00	£2.40
31 - WASHER FSP-761517.A9 761517	£2.00	£2.40
32 - WASHER FSP-615028.A1 615028	£2.00	£2.40
33 - SCREW FSP-767120.A2 767120	£2.00	£2.40
34 - BEARING COVER FSP-768687.A2 768687	£62.98	£75.57
35 - PIN FSP-614988.A9 614988	£2.00	£2.40
36 - BEARING FSP-615493.A2 615493	£6.39	£7.67
37 - BEARING FSP-763547.A4 763547	£3.20	£3.84
38 - TRANSMISSION FSP-765873.A2 765873	£47.88	£57.45
39 - SPINDLE WHEEL FSP-60403582.A3 60403582	-
40 - DISTANCE TUBE FSP-765876.A1 765876	£5.43	£6.52
41 - SNAP RING FSP-614804.A7 614804	£2.00	£2.40
42 - BEARING FSP-614999.A9 614999	£10.37	£12.44
43 - OUTPUT SHAFT FSP-10003803.A0 10003803	£76.44	£91.73
44 - GEAR HOUSING FSP-768706.A2 768706	£42.69	£51.23
45 - SCREW M4 X 20 FSP-614856.A1 614856	£1.75	£2.10
46 - SUPPORTING RING FSP-592433.A4 592433	£2.00	£2.40
47 - NEEDLE BUSHING FSP-614934.A1 614934	£3.14	£3.77
48 - SPINDLE FSP-620710.A0 620710	£58.01	£69.61
49 - FEATHER KEY FSP-592443.A0 592443	£4.49	£5.39
50 - PINION FSP-620709.A3 620709	£42.78	£51.34
51 - O-RING FSP-401162.A3 401162	£2.00	£2.40
52 - SLIDING SLEEVE FSP-10001347.A6 10001347	£2.00	£2.40
53 - SEALING LIP FSP-764180.A4 764180	£4.69	£5.63
54 - SNAP RING FSP-764184.A2 764184	£3.71	£4.45
55 - SPRING FSP-10000545.A2 10000545	£2.00	£2.40
56 - BALL FSP-614486.A2 614486	£2.00	£2.40
57 - RING FSP-768594.A7 768594	£6.68	£8.01
58 - LOCK WASHER FSP-625048.A4 625048	£2.00	£2.40
59 - CONTROL GEAR. CPL. FSP-769420.A2 769420	£3.68	£4.42
60 - CONNECTING MEMBER FSP-765885.A1 765885	£7.62	£9.14
61 - TENONS FSP-620697.A0 620697	£5.31	£6.37
62 - DESCRIPTION UNAVAILABLE FSP-000000.A131 000000	-
63 - BEARING COVER. CPL. FSP-769428.A1 769428	£74.39	£89.27
64 - GEAR HOUSING FSP-769423.A1 769423	£110.26	£132.31
65 - GRIP FSP-769778.A2 769778	£25.70	£30.84
66 - SHOCK ABSORBER FSP-768553.A4 768553	£5.99	£7.19
67 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A11 400468	£2.00	£2.40
68 - CLIP FSP-768703.A2 768703	£2.00	£2.40
69 - WIRE FSP-620376.A1 620376	£4.58	£5.49
70 - COUPLER FSP-10035758.A1 10035758	£23.34	£28.01
71 - SWITCH FSP-768875.A4 768875	£28.00	£33.60
72 - SWITCH COVER FSP-10040054.A5 10040054	£2.00	£2.40
73 - SWITCH FSP-769424.A2 769424	£24.46	£29.35
74 - CLIP FSP-619112.A8 619112	£2.00	£2.40
75 - SCREW 4 X 16 MM FSP-625697.A11 625697	£2.00	£2.40
76 - CABLE CONDUIT FSP-768207.A1 768207	£4.72	£5.66
77 - LINER MXP 1202 FSP-10002818.A1 10002818	£2.00	£2.40
78 - CONNECTING SLEEVE FSP-769425.A1 769425	£5.99	£7.19
79 - MAINS CABLE MX 1600/2 IL. 4.2 M FSP-10017771.A0 10017771	£25.08	£30.09
80 - DESCRIPTION UNAVAILABLE FSP-000000.A132 000000	-
81 - DOUBLE OPEN-ENDED WRENCH FSP-765735.A4 765735	£10.69	£12.83
