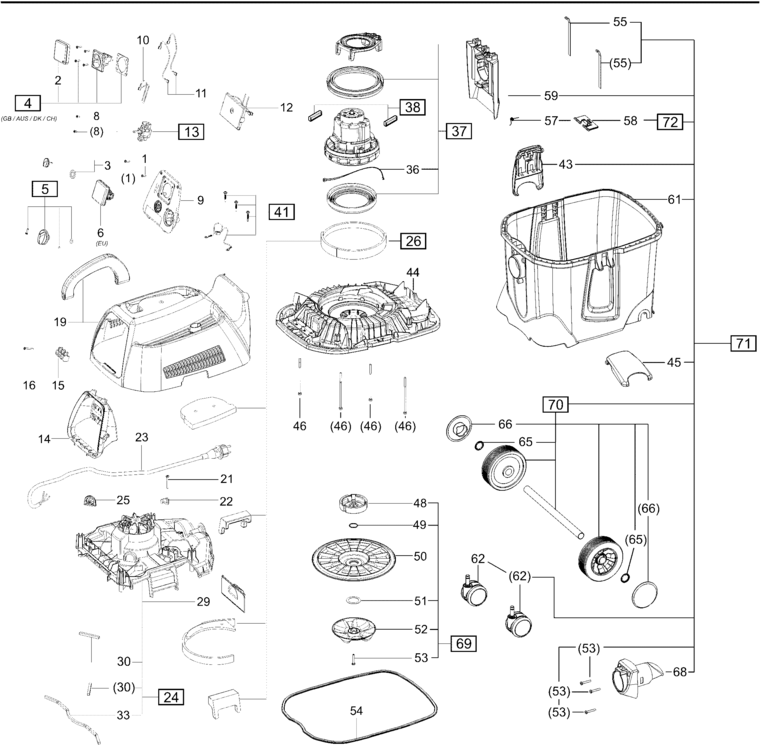

An exploded diagram and spare parts listing for the Festool CT 17 E / 768061
Ex VAT Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A177 452450 £2.00 £2.40
2 - COVER FSP-200504.A1 200504 £12.85 £15.42
3 - ROTARY KNOB FSP-456813.A24 456813 £8.55 £10.26
4 - SOCKET GB 240V FSP-454799.A16 454799 £44.10 £52.92
5 - ROTARY KNOB FSP-456814.A0 456814 £16.10 £19.32
6 - SOCKET FSP-200531.A102 200531 £24.33 £29.20
8 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A128 10737121 £2.00 £2.40
9 - SCREEN FSP-201022.A1 201022 £26.95 £32.34
10 - FLEXIBLE LEAD FSP-201843.A1 201843 £2.87 £3.44
11 - FLEXIBLE LEAD FSP-201844.A0 201844 £2.87 £3.44
12 - ELECTRONIC FSP-498510.A1 498510 £71.63 £85.96
13 - SWITCH FSP-498514.A0 498514 £21.53 £25.84
14 - PROTECTIVE COVER FSP-201845.A1 201845 £14.48 £17.37
15 - CLAMP RAIL FSP-200871.A4 200871 £21.21 £25.45
16 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400524.A9 400524 £2.00 £2.40
19 - HOOD FSP-201025.A1 201025 £63.83 £76.60
21 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A10 452449 £1.75 £2.10
22 - CABLE CLAMP FSP-202482.A0 202482 £2.00 £2.40
23 - CABLE FSP-200562.A1 200562 £58.51 £70.21
23 - CABLE FSP-200893.A0 200893 £41.54 £49.85
24 - MOTOR SHROUDING COVER FSP-500295.A0 500295 £40.44 £48.53
25 - GASKET FSP-201846.A0 201846 £3.62 £4.35
26 - SEALING SET FSP-473159.A0 473159 £35.81 £42.97
29 - FLAP FSP-202483.A1 202483 £4.31 £5.17
30 - GASKET FSP-201847.A1 201847 £2.87 £3.44
33 - GASKET FSP-200423.A22 200423 £11.55 £13.86
36 - CABLE HARNESS FSP-200894.A0 200894 £36.42 £43.71
37 - TURBINE 220-240V FSP-10494018.A14 10494018 £148.29 £177.95
38 - CARBON SET 220-240V FSP-496268.A86 496268 £38.81 £46.57
41 - CORD WITH PLUG FSP-473162.A1 473162 £21.46 £25.75
43 - CLAMP FSP-200548.A1 200548 £14.60 £17.52
44 - FILTER HOUSING FSP-200557.A0 200557 £57.66 £69.19
45 - CLAMP FSP-200553.A1 200553 £14.60 £17.52
46 - CHEESE HEAD SCREW 5.0 X 119 MM FSP-10739634.A5 10739634 £2.00 £2.40
48 - CLAMPING NUT FSP-200551.A0 200551 £15.23 £18.28
49 - O-RING FSP-200948.A0 200948 £2.00 £2.40
50 - COVER FSP-201826.A1 201826 £14.22 £17.07
51 - SHIM RING FSP-228723.A1 228723 £2.00 £2.40
52 - CLOSURE FSP-201848.A0 201848 £6.06 £7.27
53 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A0 452447 £2.00 £2.40
54 - CONTAINER SEAL FSP-201006.A0 201006 £21.46 £25.75
55 - WATER CONTACT FSP-200573.A0 200573 £4.81 £5.77
57 - BRACKET FSP-500314.A105 500314 £17.98 £21.57
58 - BRACKET FSP-500314.A106 500314 £17.98 £21.57
59 - HOLDER FSP-200556.A1 200556 £16.22 £19.47
61 - CONTAINER FSP-201849.A1 201849 £61.55 £73.86
62 - ROLLER FSP-200554.A0 200554 £21.46 £25.75
63 - PIPE FSP-201850.A0 201850 £15.11 £18.13
65 - TOOTH RING FSP-202484.A0 202484 £2.87 £3.44
66 - WHEEL COVER FSP-200515.A1 200515 £5.18 £6.22
68 - SLEEVE FSP-200558.A0 200558 £16.84 £20.21
69 - CLOSURE FSP-493314.A1 493314 £37.56 £45.07
70 - AXLE FSP-500298.A0 500298 £37.97 £45.56
71 - CONTAINER FSP-500296.A0 500296 £91.88 £110.25
72 - BRACKET FSP-500297.A1 500297 £12.98 £15.57
